Product Introduction

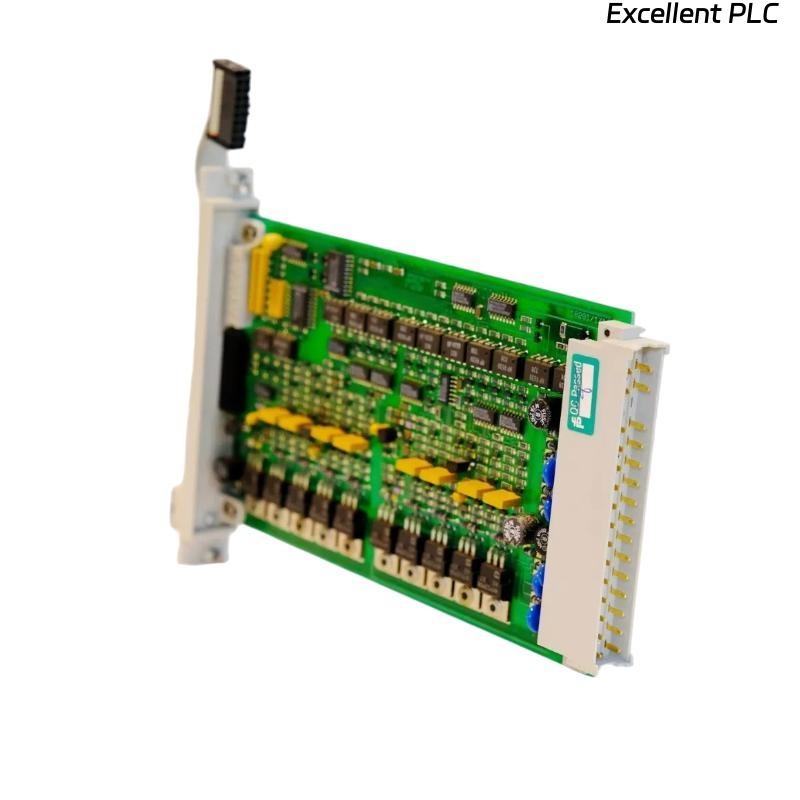

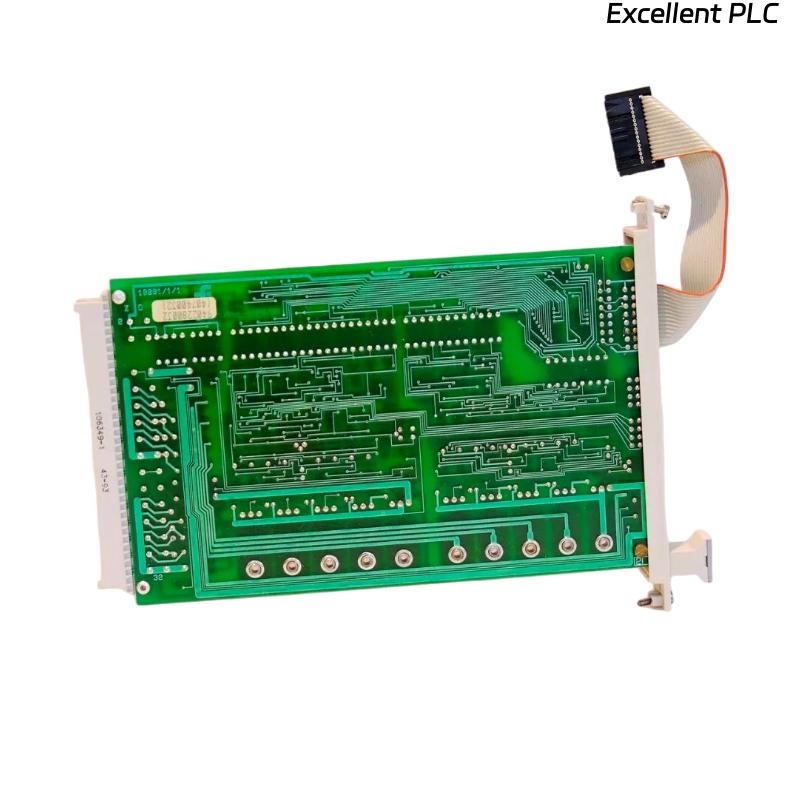

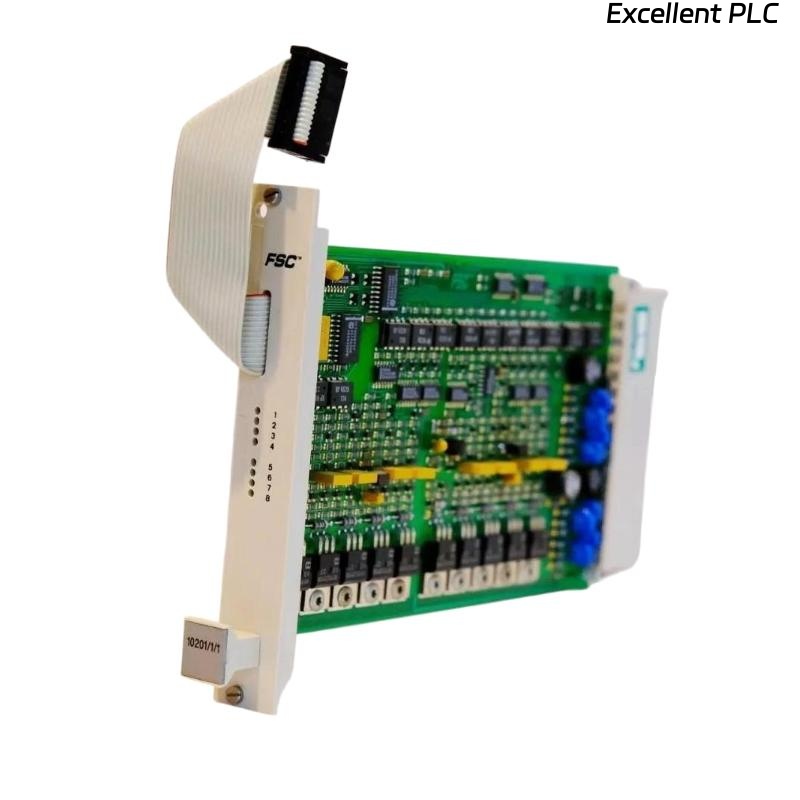

The Honeywell 10201/1/1 8 Channel Digital Output Module is an integral component within Honeywell’s industrial automation and process control systems. Designed to provide precise, reliable digital output control, this module can switch and control multiple field devices such as actuators, solenoids, relays, and indicator lamps. With its eight independent output channels, it enables efficient signal distribution from the control system to external devices.
This module is optimized for high-reliability industrial environments, offering robust electrical isolation, fault detection capabilities, and fast switching performance. Its design ensures seamless integration into Honeywell rack-based systems and maintains consistent output quality under continuous operation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 10201/1/1 |
| Module Type | 8 Channel Digital Output Module |
| Number of Outputs | 8 independent digital channels |
| Output Type | Transistor or relay (depending on configuration) |
| Output Voltage Range | 24 VDC nominal (other voltages available per system) |
| Output Current Rating | 0.5 A per channel (max) |
| Switching Speed | ≤ 5 ms |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Diagnostic Functions | Open circuit detection, short-circuit protection |
| Power Supply | Supplied via system backplane |
| Power Consumption | Approx. 8 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 110 × 150 × 200 mm |
| Weight | 0.16 kg |
| Mounting | Rack-mountable module |
Product Applications
The Honeywell 10201/1/1 module is designed for diverse industrial control scenarios, including:
-
Process Automation — Driving solenoid valves, relays, and control coils in chemical, petrochemical, and refining plants.
-
Manufacturing Lines — Controlling actuators and indicator lights for automated production processes.
-
Energy Sector — Operating control relays for turbines, generators, and switchgear.
-
Water Treatment Facilities — Managing pumps, gates, and chemical dosing systems.
-
Building Management Systems — Activating alarms, HVAC relays, and security systems.
-
Oil & Gas Platforms — Providing robust control of safety-critical actuators.
Product Advantages
-
Eight Independent Outputs — Allows simultaneous control of multiple devices.
-
Fast Switching Response — Enables real-time control for time-sensitive applications.
-
Electrical Isolation — Protects both the module and connected devices from electrical faults.
-
Integrated Diagnostics — Supports quick identification of open circuits or overload conditions.
-
Modular Integration — Fully compatible with Honeywell’s rack-mount systems for easy installation and replacement.
-
Industrial Durability — Designed to withstand harsh environmental conditions and heavy operational loads.
-
Flexible Output Types — Available in configurations suitable for various voltage and load requirements.
FAQ
-
What is the maximum current each output channel can handle?
Each output channel supports up to 0.5 A. -
Does the module provide electrical isolation between channels?
Yes, each channel is electrically isolated from the others and from the system bus. -
What type of output drivers are used?
The module can be configured with transistor or relay outputs depending on application needs. -
How fast can the outputs switch?
The switching response time is typically ≤ 5 ms. -
Can the module detect open or short-circuited loads?
Yes, it includes diagnostic functions for open circuit detection and short-circuit protection. -
How is the module powered?
It is powered through the system backplane from the main rack power supply. -
Is the module hot-swappable?
In most Honeywell rack systems, it supports removal and replacement under power, but system configuration must allow it. -
What output voltage range does it support?
Standard configuration supports 24 VDC nominal; custom configurations may be available. -
Does it require external wiring for isolation?
No, the isolation is built into the module’s design. -
How does it enhance system reliability?
By providing robust isolation, diagnostics, and fast response, it minimizes downtime and ensures consistent device control.
