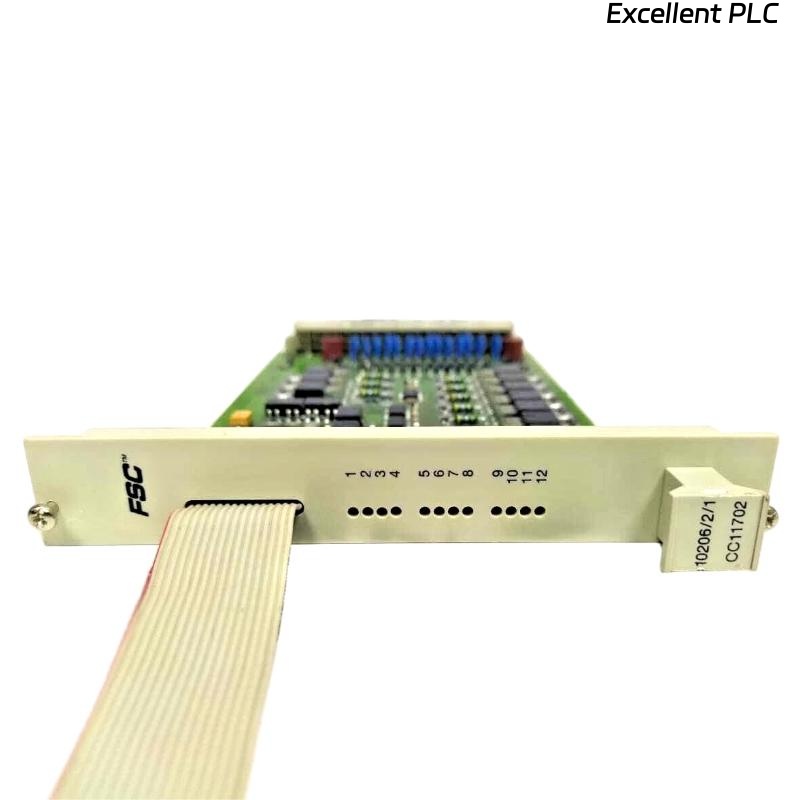

Honeywell 10206/2/1 Digital Output Module

Product Introduction

The Honeywell 10206/2/1 Digital Output Module is an integral part of Honeywell’s industrial automation and control systems, designed to provide reliable digital output signals. This module converts control system commands into discrete output signals, which can drive actuators, relays, solenoids, or other binary devices. It is commonly used in process control environments to ensure precise and dependable operation of various plant components.

Engineered for robustness and accuracy, the 10206/2/1 module offers seamless integration with Honeywell’s control platforms. It supports industrial-grade performance under demanding conditions, ensuring consistent control actions and maintaining overall system reliability.

Product Parameters

Product Applications

The 10206/2/1 Digital Output Module finds application across various industrial sectors, including:

• Process Automation — Controlling valves, motors, and other on/off devices in chemical, petrochemical, and manufacturing plants.

• Safety Systems — Activating alarms, interlocks, and shutdown mechanisms to maintain operational safety.

• Batch Process Control — Coordinating discrete output signals to manage sequential batch operations.

• Utility Management — Operating auxiliary equipment such as pumps, compressors, and breakers.

• Building Management Systems — Controlling lighting, HVAC, and access control systems through discrete digital outputs.

• Distributed Control Systems — Serving as the digital output interface within Honeywell’s control architecture.

Product Advantages

• High Channel Count — Supports 16 independent output channels for versatile control applications.

• Robust Relay Contacts — Each channel features relay contacts rated at 3 A for reliable switching of various loads.

• Electrical Isolation — Ensures noise immunity and protects control systems with channel-to-channel and system isolation.

• Fast Response — Delivers output switching with response times under 20 milliseconds, suitable for timely control.

• Wide Environmental Range — Designed to operate under challenging industrial temperatures and humidity levels.

• Seamless Integration — Fully compatible with Honeywell’s control platforms and communication protocols.

• Modular and Maintainable — Rack-mounted design allows easy installation, replacement, and system expansion.

FAQ

1. What type of output contacts does the 10206/2/1 module provide?
   It provides Form A relay contacts for each output channel.

2. How many digital output channels does the module have?
   The module supports 16 discrete digital output channels.

3. What is the maximum current rating for each relay contact?
   Each contact is rated at 3 A for 250 VAC or 30 VDC.

4. Is the module electrically isolated to prevent noise?
   Yes, it offers channel-to-channel and channel-to-system electrical isolation.

5. What is the typical response time of the outputs?
   The response time is less than or equal to 20 milliseconds.

6. Can the module switch both AC and DC loads?
   Yes, it supports switching of both AC (up to 250 V) and DC (up to 30 V) loads.

7. What communication interface does the module use?
   It uses Honeywell’s proprietary bus communication interface for integration.

8. What environmental conditions can the module operate under?
   It operates reliably between 0°C to 55°C and 5% to 95% relative humidity, non-condensing.

9. What is the module’s power consumption during operation?
   Approximately 7 watts.

10. How is the module mounted within a control system?
    It is rack-mounted for easy installation and maintenance within Honeywell control racks.
