Product Introduction

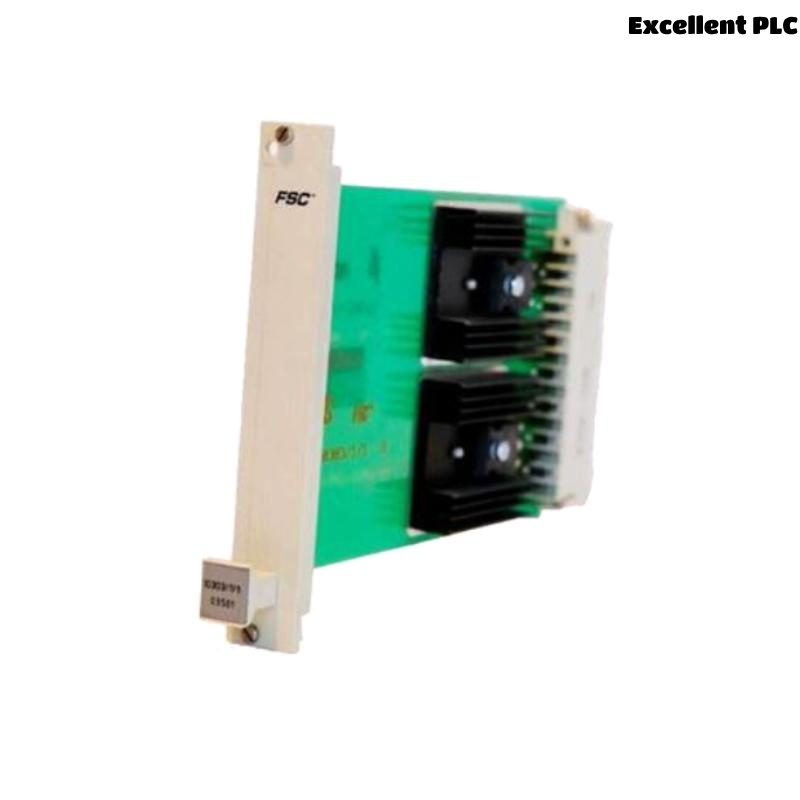

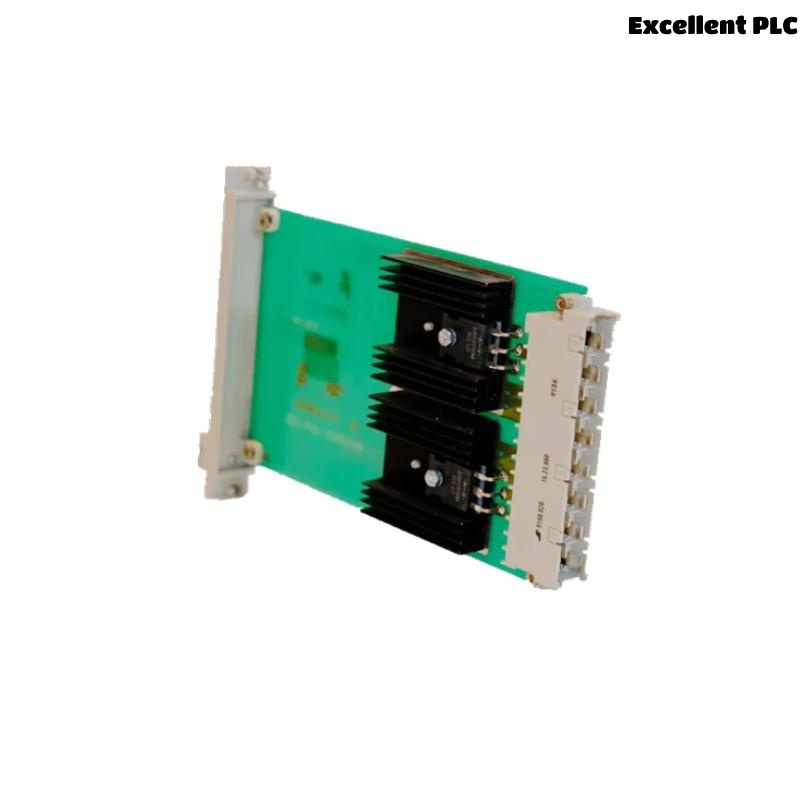

The Honeywell 10307/1/1 Vertical Bus Terminator is a specialized termination module designed to ensure reliable communication and signal integrity within Honeywell’s industrial control systems. As part of a robust field I/O or PLC system architecture, this terminator is used at the end of a vertical bus backplane to eliminate signal reflection, data corruption, or noise interference. It is typically deployed in redundant or high-availability systems to maintain data integrity, especially in environments where real-time control and deterministic communication are essential.
Manufactured with precision and tested to meet strict industrial-grade reliability standards, the 10307/1/1 model is part of Honeywell’s legacy and current distributed control system (DCS) offerings and integrates seamlessly with Honeywell’s TDC 3000 and Experion platforms.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Vertical Bus Terminator |
| Model Number | 10307/1/1 |
| Manufacturer | Honeywell |
| Function | Terminates vertical communication bus |
| Installation | Plug-in module for vertical bus systems |
| Bus Type | Backplane bus / Vertical bus |
| Material | Industrial-grade PCB with protective housing |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Shock/Vibration Resistance | IEC 60068 compliant |
| Mounting Orientation | Vertical |
| Compatibility | Honeywell TDC 3000, Experion PKS systems |
| Electrical Termination Type | Passive resistor network |
| Dimensions | 38 x 127 x 191 mm |
| Weight | 0.4 kg |
Product Applications
-
Distributed Control Systems (DCS): Ensures proper bus termination in Honeywell DCS architectures.
-
Process Automation Systems: Maintains data communication integrity in oil & gas, petrochemical, and power generation plants.
-
Industrial Control Panels: Used in control cabinets where vertical bus backplanes are installed.
-
Redundant Communication Setups: Supports high-availability applications where termination quality affects uptime.
-
Retrofit Projects: Ideal for replacing worn-out or aging terminators in legacy systems.
-
OEM System Integration: Used by integrators and panel builders for Honeywell-certified systems.
Product Advantages
-
Improves Communication Integrity: Prevents signal reflections and ensures reliable data transfer across the vertical bus.
-
Seamless Compatibility: Fully compatible with Honeywell TDC 3000 and Experion systems.
-
Compact and Lightweight: Easy to install even in space-constrained enclosures.
-
Industrial Durability: Built to withstand harsh environmental conditions and mechanical stress.
-
Passive, Maintenance-Free Operation: Requires no external power; built-in resistor networks operate without intervention.
-
Reliable Signal Termination: Essential for long bus runs to ensure clean signal cut-off at endpoints.
-
Easy Replacement: Plug-and-play design allows quick service or replacement with minimal downtime.
-
Backed by Honeywell Quality Assurance: Rigorously tested for quality and performance in critical applications.
Frequently Asked Questions (FAQ)
-
What is the function of the Honeywell 10307/1/1 Bus Terminator?
It ensures signal integrity by terminating the vertical bus to prevent signal reflection and noise. -
Which systems is this terminator compatible with?
It is compatible with Honeywell’s TDC 3000 and Experion PKS control systems. -
Is the terminator active or passive?
It is a passive terminator with no active electronic components, ensuring low maintenance. -
Can I use this terminator in third-party systems?
It is specifically engineered for Honeywell systems; use in third-party systems is not recommended. -
How is it mounted or installed?
It is inserted directly into a designated slot on the vertical bus backplane. -
Does the terminator require power?
No, it operates passively and does not require a power supply. -
What are the environmental limits for this device?
It can operate between 0°C and 60°C and be stored between -40°C and +85°C. -
What certifications or standards does it meet?
It is compliant with industrial standards such as IEC 60068 for environmental stress. -
How do I know if the terminator is failing?
Symptoms of failure may include communication errors or bus signal degradation. Physical inspection or system diagnostics may be required. -
Is this terminator replaceable in the field?
Yes, it is hot-swappable and designed for quick field replacement with minimal disruption.
