Product Description

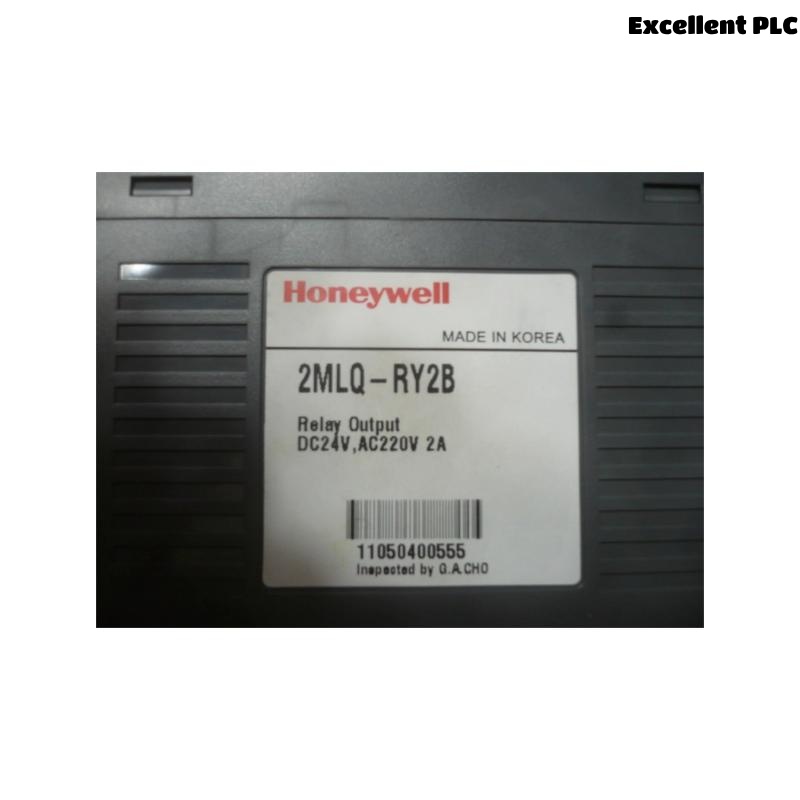

The Honeywell 2MLQ-RY2B is a 16-point digital relay output module belonging to the MasterLogic-200 PLC system. Designed for robust industrial control, it provides high-reliability relay outputs with enhanced protection through integrated surge absorbers (varistor and C.R. absorber). It supports switching for both AC and DC loads and is suitable for applications requiring electrical isolation and noise resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 2MLQ-RY2B |
| Output Points | 16 relay outputs |
| Isolation Method | Relay isolation |
| Rated Load Voltage/Current | DC24V 2A (resistive), AC220V 2A (COSφ = 1) |
| Min. Load Voltage/Current | DC5V / 1mA |
| Max. Load Voltage/Current | AC250V, DC125V |
| Off Leakage Current | 0.1mA (AC220V, 60Hz) |
| Max. On/Off Frequency | 3,600 times/hour |
| Surge Absorber | Varistor (387~473V), C.R Absorber (IEC 61006-6-2) |
| Electrical Service Life | ≥100,000 operations (at rated load) |
| Mechanical Service Life | ≥20 million operations |
| Response Time (Off → On) | ≤10 ms |
| Response Time (On → Off) | ≤12 ms |
| Common Method | 16 points / 1 COM |
| Current Consumption | 500mA (All points ON) |
| Operation Indicator | LED (ON per channel) |
| External Connection | 18-point terminal block (M3 × 6 screws) |
| Dimensions | 114 × 48 × 127 mm |
| Weight | 0.17 kg |
Applications
-
General-purpose industrial digital control systems
-
HVAC and building automation
-
Process control and manufacturing
-
Electrical isolation-required environments
-
Control of solenoids, relays, small motors, and lamps
Advantages
-
High surge resistance with dual-type absorbers
-
Reliable operation under high switching cycles
-
Wide voltage and load compatibility
-
Clear LED indicators for output state monitoring
-
Modular design for flexible system integration
FAQ
Q1: What type of output does the 2MLQ-RY2B module provide?
A1: It provides 16-point relay outputs suitable for both AC and DC loads.
Q2: What is the maximum switching voltage supported?
A2: The module supports up to AC250V or DC125V.
Q3: Can this module be used for inductive loads?
A3: Yes, it includes surge protection suitable for inductive loads.
Q4: What is the module’s response time?
A4: ≤10 ms for Off → On and ≤12 ms for On → Off.
Q5: Is there any LED indication for channel activity?
A5: Yes, each channel includes an LED to indicate output status.
Q6: What type of surge protection is used?
A6: A combination of varistor (387–473V) and C.R. absorber compliant with IEC 61006-6-2.
Q7: What is the minimum allowable load?
A7: DC5V / 1mA.
Q8: Is the module hot-swappable?
A8: No, modules should be replaced with power off to ensure safety.
Q9: Does the module support output isolation?
A9: Yes, it uses relay isolation for channel separation and safety.
Q10: What’s the mechanical life expectancy of the relays?
A10: More than 20 million mechanical operations.
Related Models from the Same Series
| Model | Output Type | Channels | Isolation | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 2MLQ-RY2A | Relay | 16 | Relay | 114 × 48 × 127 | 0.17 kg |
| 2MLQ-RY1A | Relay | 8 | Relay | 114 × 48 × 127 | 0.13 kg |
| 2MLQ-TR2A | Transistor (Sink) | 16 | Photocoupler | 114 × 48 × 127 | 0.11 kg |
| 2MLQ-TR4A | Transistor (Sink) | 32 | Photocoupler | 114 × 48 × 127 | 0.10 kg |
| 2MLQ-TR2B | Transistor (Source) | 16 | Photocoupler | 114 × 48 × 127 | 0.12 kg |
| 2MLQ-SS2A | Triac | 16 | Photocoupler | 114 × 48 × 127 | 0.20 kg |
