Product Introduction

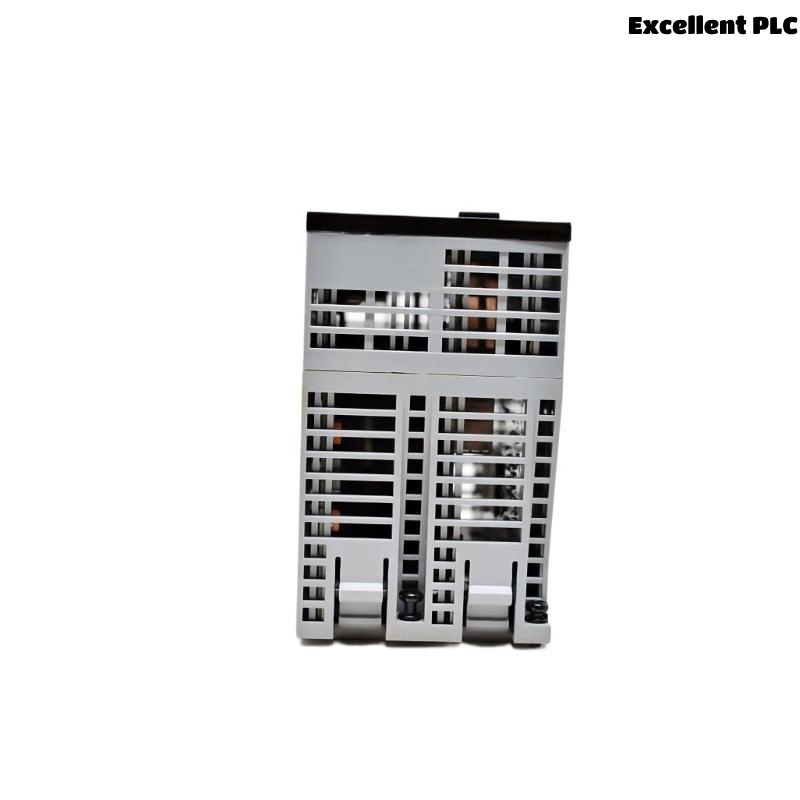

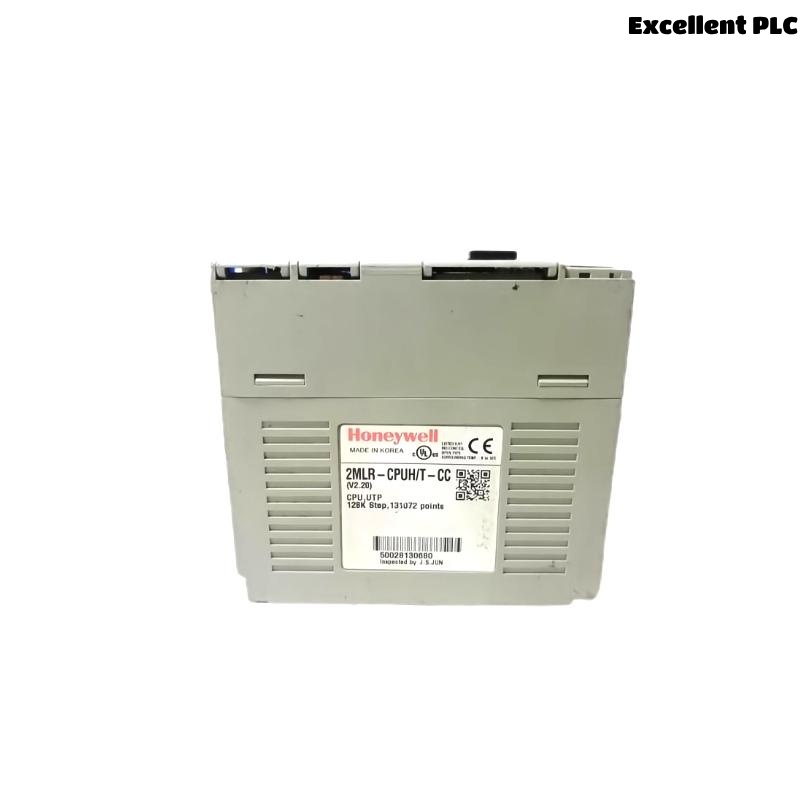

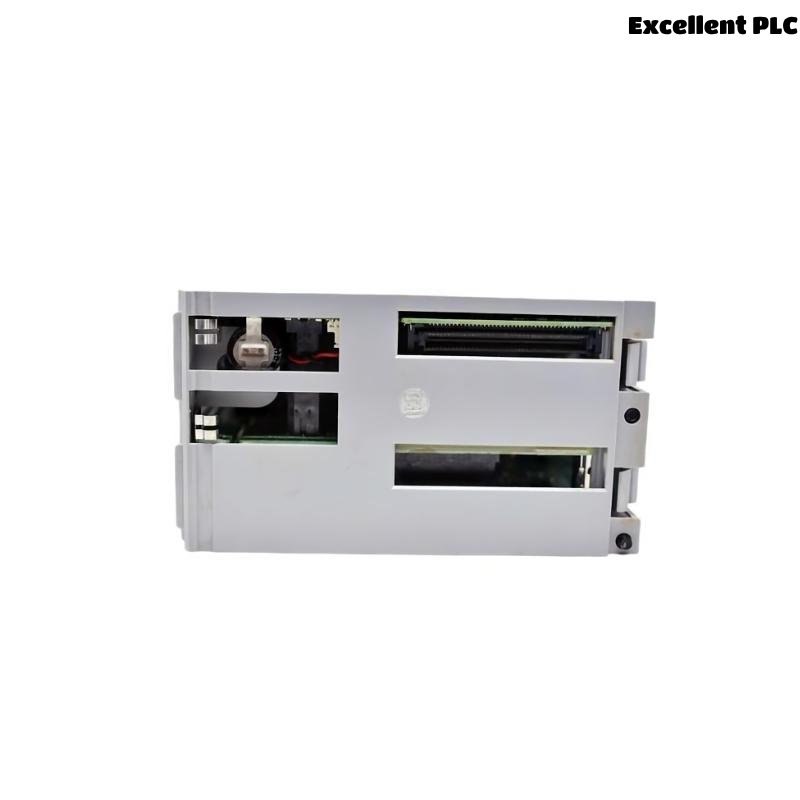

The Honeywell 2MLR-CPUH/T-CC is a high-performance CPU module specifically designed for industrial automation systems. This module is part of Honeywell’s highly reliable and scalable control platform, catering to mission-critical operations that require robust computation, real-time processing, and seamless integration into distributed control systems (DCS). Built with advanced processing capabilities and a compact yet durable form factor, the 2MLR-CPUH/T-CC ensures consistent operation in harsh industrial environments.
Whether deployed in oil and gas, chemicals, power generation, or water treatment facilities, this CPU module delivers the performance, reliability, and integration support required for modern automated process control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | 2MLR-CPUH/T-CC |
| Manufacturer | Honeywell |
| Product Type | CPU Module |
| Processor Type | High-speed industrial-grade microprocessor |
| Clock Speed | 1.0 GHz (typical) |
| Memory Capacity | 512 MB RAM, 1 GB Flash |
| Communication Ports | 2x Ethernet, 1x RS485, 1x USB |
| Supported Protocols | Modbus TCP/IP, Ethernet/IP, OPC, Honeywell Peer-to-Peer |
| Input Voltage | 24 VDC ±10% |
| Power Consumption | 6.5 W (typical) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Type | DIN rail or panel mount |
| Dimensions (W x H x D) | 150 x 100 x 50 mm |
| Weight | 0.257 kg |
| Compliance | CE, UL, RoHS, FCC |
Product Applications
The Honeywell 2MLR-CPUH/T-CC is designed for a wide variety of industrial applications, including:
-
Distributed Control Systems (DCS): Serves as the processing brain in Honeywell’s control architecture.
-
Process Automation: Used in refining, chemical processing, and manufacturing plants for real-time process control.
-
Energy and Power Management: Manages operations in power generation plants, including fossil, hydro, and renewables.
-
Water and Wastewater Treatment: Monitors and controls pumping stations, filtration, and chemical dosing.
-
Oil & Gas Sector: Critical for pipeline monitoring, drilling platforms, and offshore processing.
-
Building Automation Systems: Controls HVAC, lighting, and access systems in commercial and industrial buildings.
Product Advantages
-
High Reliability: Designed with industrial-grade components and tested for rugged environments.
-
Seamless Integration: Fully compatible with Honeywell Experion and other DCS platforms.
-
Real-Time Performance: Supports high-speed processing for time-sensitive control loops.
-
Scalable Architecture: Easily expandable for growing plant requirements or additional I/O modules.
-
Secure Communication: Embedded with encrypted protocols and firewall capabilities for network safety.
-
User-Friendly Interface: Simplified setup with web-based configuration and diagnostics.
-
Low Power Operation: Efficient operation with reduced energy consumption, supporting sustainability goals.
-
Long Lifecycle Support: Backed by Honeywell’s long-term product availability and global support network.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 2MLR-CPUH/T-CC module?
It acts as the central processing unit in an industrial control system, managing data processing, I/O communications, and real-time automation logic. -
Which communication protocols are supported?
The module supports Modbus TCP/IP, OPC, Ethernet/IP, and Honeywell proprietary peer-to-peer protocols. -
Is the CPU module hot-swappable?
No, the 2MLR-CPUH/T-CC should be powered down before replacement to avoid system instability. -
Can this module be used in outdoor installations?
It is designed for indoor use or protected enclosures, as it requires environmental shielding in outdoor conditions. -
What is the typical lifespan of the 2MLR-CPUH/T-CC?
The expected lifecycle exceeds 10 years under normal industrial operating conditions. -
Does it support redundancy?
Yes, the module supports redundant configurations for high availability systems. -
What software tools are compatible with this CPU?
Compatible with Honeywell Control Builder, Experion PKS, and third-party SCADA platforms supporting OPC. -
Is firmware upgrade possible in the field?
Yes, it supports field firmware updates via Ethernet or USB. -
Can it be integrated into legacy systems?
With the appropriate communication interfaces and protocols, it can interface with older Honeywell systems. -
How is it mounted?
The CPU module can be mounted using standard DIN rails or panel mounting options.
Related Models (Same Series or Functional Range)
| Model | Description | Key Features |
|---|---|---|
| 2MLR-CPUL/T-CC | Low-power variant of the same CPU series | Reduced energy consumption, fewer ports |
| 2MLR-CPUHX/T-CC | High-performance version with extended memory | 1 GB RAM, dual-core processor |
| 2MLR-CPUH/T-CN | Chinese market version | Region-specific compliance and protocols |
| 2MLR-IO16/T-CC | I/O expansion module for the CPUH series | 16 configurable digital/analog I/Os |
| 2MLR-COMM/T-CC | Communication module for protocol expansion | Adds Profibus, CANopen, and serial protocols |
| 2MLR-BAT/T-CC | Backup battery module for CPU series | Real-time clock and memory retention support |
Popular Honeywell Models (Across Other Series)
| Model | Description | Application |
|---|---|---|
| HC900-CPU-0501 | Hybrid controller CPU module | Process and logic control |
| C300 Controller | Advanced process controller in Experion PKS | High-end DCS applications |
| ML200R-IO | Compact I/O module for distributed applications | Remote I/O expansion |
| UDC3500 | Universal Digital Controller | Temperature and process control |
| RM7840G1018 | Burner Control Module | Industrial combustion control |
| HC900-RTU | Remote Terminal Unit module | Distributed field data collection |
