Product Introduction

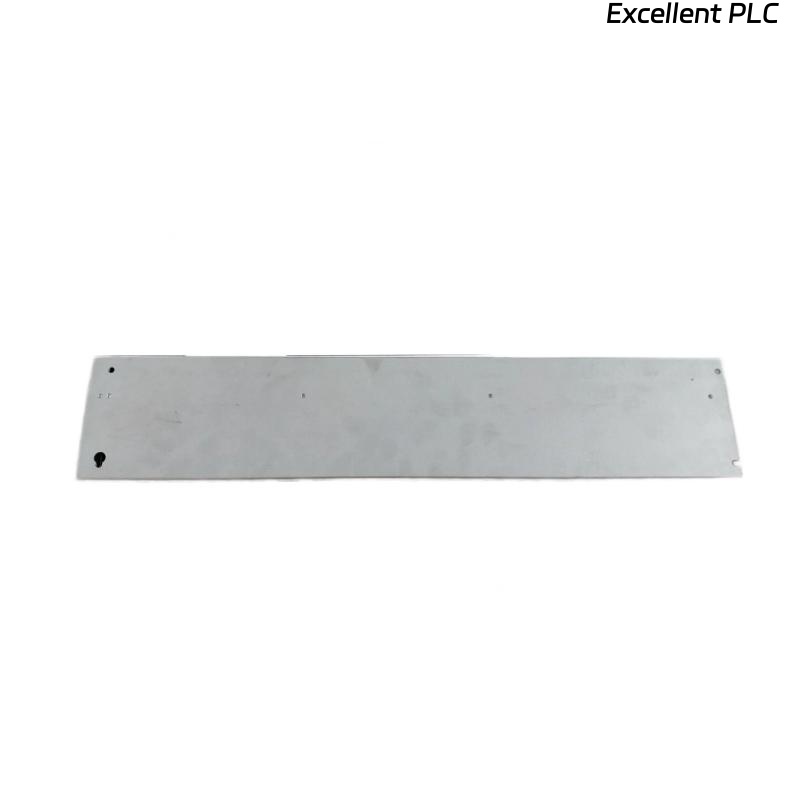

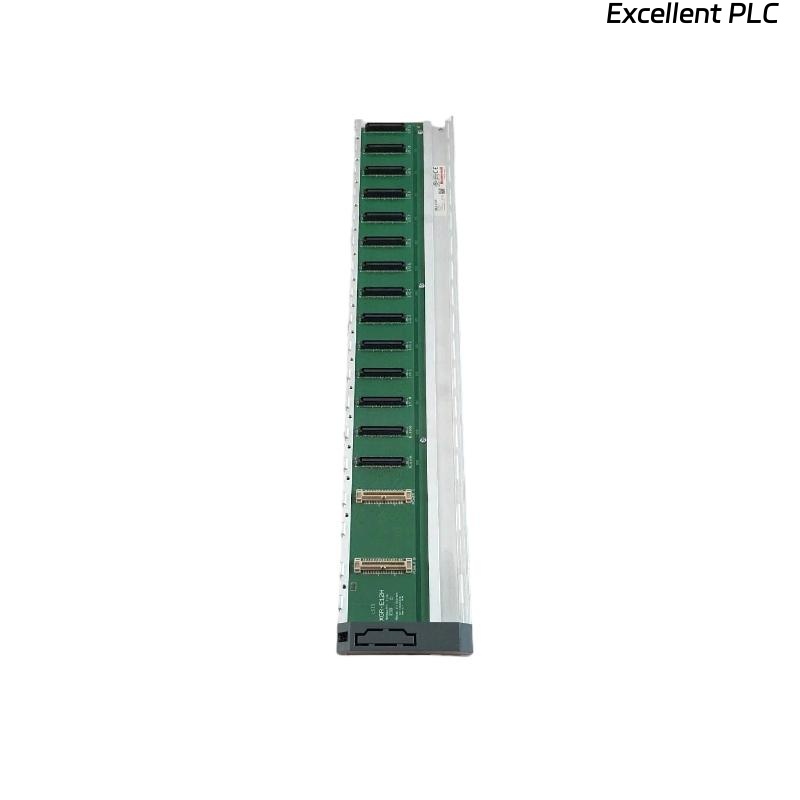

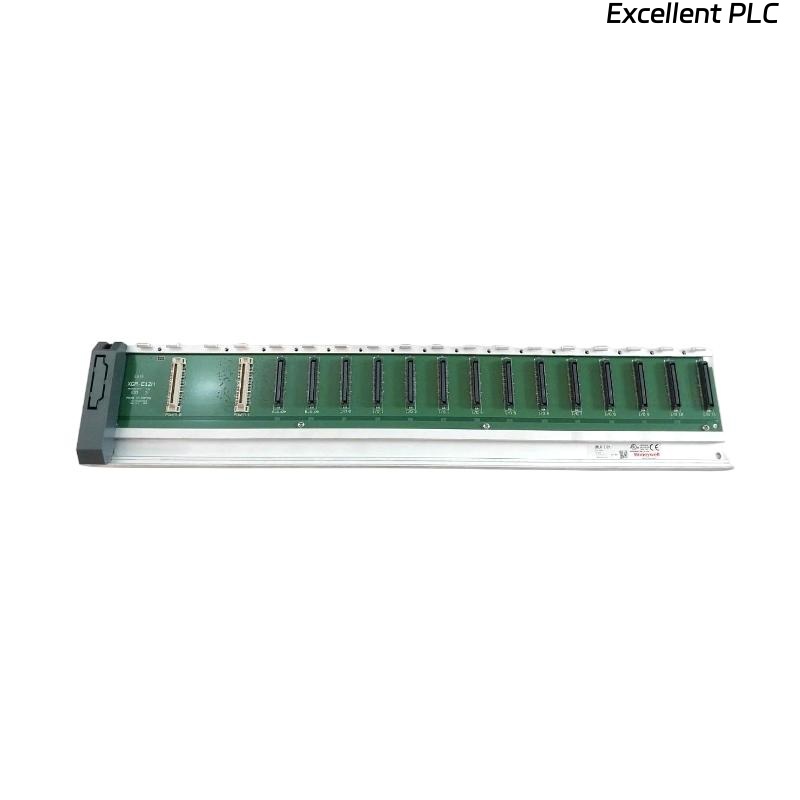

The Honeywell 2MLR-E08P is an advanced expansion base designed to expand the input and output capacity of Honeywell’s automation systems. It features 8 slots for the integration of I/O modules, enabling users to scale up their systems according to specific operational needs. The module is built to provide high performance in industrial environments, allowing for flexible automation, control, and monitoring of systems with varying complexities. It supports multiple module configurations to fit a wide range of applications, making it suitable for expanding control and automation systems in industries like manufacturing, process control, and more.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 2MLR-E08P |
| Slots | 8 |
| Mounting Type | DIN Rail |
| Dimensions (L x W x H) | 210 x 102 x 35 mm |
| Weight | 0.3 kg |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% RH |
| Max Input Voltage | 30 VDC |
| Current Consumption | 90 mA |
| Installation | Plug-in, Simple Wiring |
Product Applications
The Honeywell 2MLR-E08P expansion base is utilized in a variety of industrial settings where increased I/O capacity is needed. Its primary applications include:
-
Industrial Automation Systems: Expands the I/O capacity of automation systems to accommodate more sensors, actuators, and control devices.
-
Process Control: Provides a scalable solution for managing and controlling processes in industries such as chemical, food and beverage, and oil and gas.
-
Building Management Systems (BMS): Used in smart buildings for extending I/O control for HVAC, lighting, and security systems.
-
Machine Automation: Helps in scaling up control systems in large machines or production lines to handle more functions simultaneously.
-
Energy Management: Integrated into energy systems to monitor and control energy flow across multiple channels, improving efficiency.
Product Advantages
-
Expandable Capacity: The 8-slot design allows for a high level of scalability, enabling the system to grow as needed without a complete redesign.
-
Flexibility in Module Configuration: Supports a wide range of Honeywell I/O modules, providing flexibility in system design and function.
-
Simple Installation: The plug-in design and DIN rail mounting system make installation quick and easy without requiring complex wiring or setup.
-
Reliability in Harsh Environments: Designed to operate in environments with temperatures ranging from -10°C to 60°C, the module is ideal for industrial and manufacturing settings.
-
Energy Efficient: With low current consumption (90 mA), it minimizes energy usage, making it an efficient solution for large-scale installations.
-
High Compatibility: It seamlessly integrates with Honeywell’s industrial automation systems, offering smooth and reliable system expansion.
FAQ
1. What is the function of the Honeywell 2MLR-E08P expansion base?
The 2MLR-E08P serves to expand the I/O capacity of Honeywell’s automation systems by providing 8 additional slots for module installation.
2. How many modules can be installed in the 2MLR-E08P expansion base?
The module provides 8 slots, allowing up to 8 I/O modules to be installed, which enhances the system’s input and output capabilities.
3. What is the maximum voltage the 2MLR-E08P can handle?
The Honeywell 2MLR-E08P is designed to handle a maximum input voltage of 30 VDC.
4. How does the 2MLR-E08P expand automation systems?
By adding more I/O modules, the expansion base increases the number of inputs and outputs available, allowing for more sensors, actuators, and other devices to be controlled or monitored.
5. Can the 2MLR-E08P be used in harsh environments?
Yes, the 2MLR-E08P is built to operate in industrial environments with temperatures ranging from -10°C to 60°C and is suitable for environments with high humidity (5% to 95% RH).
6. What is the current consumption of the 2MLR-E08P?
The Honeywell 2MLR-E08P consumes 90 mA of current, which is relatively low, ensuring energy efficiency.
7. How is the 2MLR-E08P installed?
The module is designed for easy installation with a plug-in configuration and a standard DIN rail mounting system.
8. Is the 2MLR-E08P compatible with all Honeywell I/O modules?
Yes, it supports a wide range of Honeywell I/O modules, providing flexibility in configuring the system as required.
9. Can the 2MLR-E08P be used in building management systems (BMS)?
Yes, it is commonly used in building management systems (BMS) to extend the I/O capacity for controlling HVAC, lighting, and security systems.
10. What type of applications is the 2MLR-E08P suited for?
The module is ideal for applications in industrial automation, process control, machine automation, building management systems, and energy management.
