Product Introduction

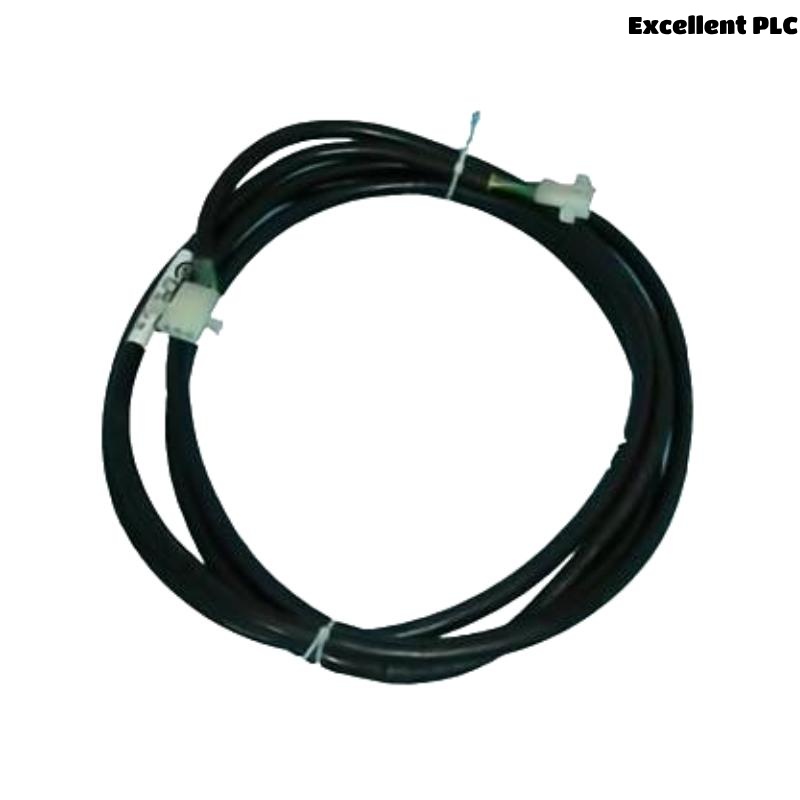

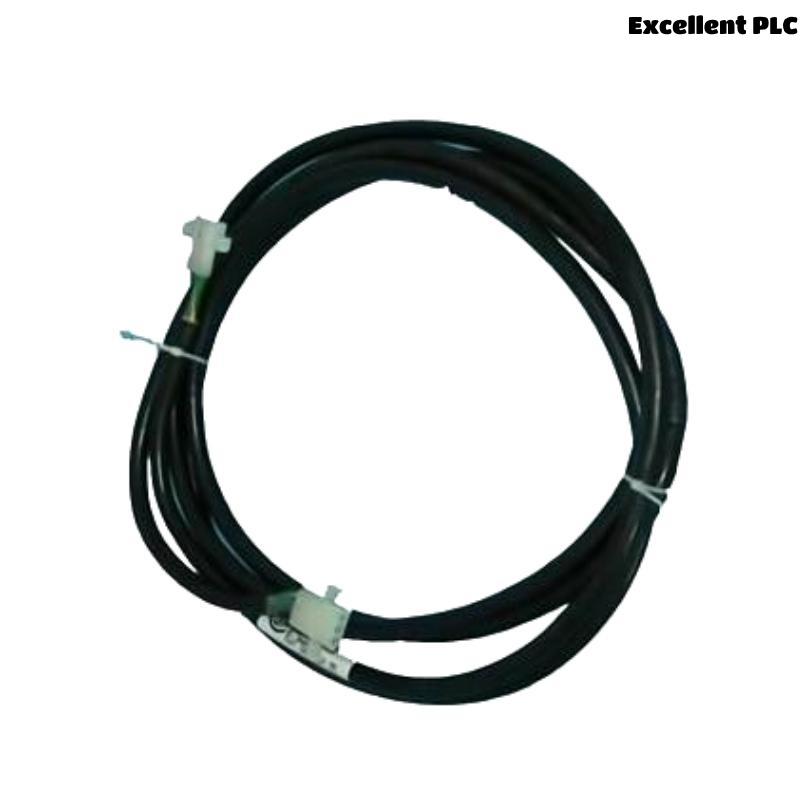

The Honeywell 51196074-100 Cable is a precision-engineered industrial-grade cable specifically developed for high-reliability applications in Honeywell’s control and automation systems. Known for its seamless compatibility with Honeywell’s Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC), this cable is typically utilized in connecting I/O modules, processors, and peripheral communication devices within the TDC 3000, Experion PKS, and TPS platforms.
Manufactured with high-quality shielding, robust insulation, and optimized conductor configurations, the 51196074-100 is ideal for environments where data fidelity, electrical noise immunity, and operational durability are non-negotiable. Whether it’s for a mission-critical refinery application or a power plant I/O interface, this cable performs reliably under continuous use and challenging field conditions.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | I/O Communication Cable |
| Part Number | 51196074-100 |
| Manufacturer | Honeywell |
| Cable Type | Multi-conductor shielded communication cable |
| Application | DCS/PLC I/O and processor interconnections |
| Compatible Systems | Honeywell TDC 3000, Experion PKS, TPS systems |
| Cable Length | 3 meters |
| Connector Type | Pre-molded industrial connectors on both ends |
| Jacket Material | Flame-retardant PVC |
| Shielding | Foil + Braid (Double Shielded) |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 AWG |
| Rated Voltage | 300V |
| Temperature Range | -25°C to +80°C |
| Outer Diameter | 7.2 mm |
| Weight | 0.2 kg |
| Flame Resistance | UL 1581 VW-1 |
| Compliance | CE, RoHS, UL Recognized |
| Environmental Rating | Indoor Use (IP20) |
Applications
The Honeywell 51196074-100 Cable is designed to serve a broad range of industrial and automation purposes. It plays a pivotal role in ensuring reliable data transfer and communication between key modules in control systems. Typical applications include:
-
I/O Module Interfacing: Connects remote or local input/output devices to system processors.
-
System Backplane Communication: Used in rack-based control cabinets for internal signal routing.
-
PLC-DCS Integration: Enables communication between different logic controllers or control layers.
-
Signal Synchronization: Ensures accurate timing and sequencing between hardware components.
-
Factory Automation: Suitable for continuous-duty environments with robotic or CNC equipment.
-
Power Plant Instrumentation: Trusted for consistent performance in nuclear and thermal power plants.
Product Advantages
-
Reliable Signal Transmission: Double-shielded cable construction minimizes signal loss and external noise interference.
-
Robust Industrial Design: Built to withstand temperature fluctuations, vibrations, and long-term wear.
-
Plug-and-Operate Compatibility: Comes with pre-molded, secure-fit connectors for Honeywell system modules.
-
Standardized Compliance: Certified to meet international quality, safety, and environmental directives.
-
Space-Saving Diameter: Compact enough to fit into densely populated control panels without compromising performance.
-
Long Service Life: Designed to deliver years of uninterrupted operation under industrial conditions.
Frequently Asked Questions (FAQ)
1. What systems is the 51196074-100 Cable compatible with?
This cable is designed for use with Honeywell TDC 3000, Experion PKS, and TPS control systems.
2. What is the standard length of the cable?
The standard length is 3 meters.
3. Can this cable be used in high-temperature environments?
Yes. It supports continuous operation from -25°C to +80°C, suitable for most industrial enclosures.
4. What kind of shielding does this cable have?
The cable features both foil and braided shielding, offering superior protection against EMI/RFI interference.
5. Is the outer jacket flame-resistant?
Yes. The PVC jacket is flame-retardant and compliant with UL 1581 VW-1 standards.
6. Are the connectors pre-installed on this model?
Yes. The cable is equipped with factory-molded connectors for fast and reliable installation.
7. Is the cable suitable for outdoor use?
No. It is intended for indoor use only (IP20 rating). If outdoor use is required, protective enclosures are recommended.
8. Can the cable handle high-frequency signals?
Yes. The shielding and conductor design allow the cable to carry control and communication signals with high integrity.
9. What certifications does the cable carry?
It is UL Recognized, RoHS compliant, and CE marked for safe global industrial usage.
10. How should this cable be installed for best performance?
Avoid tight bends, maintain a proper bend radius, and separate it from high-voltage lines to reduce potential signal degradation.
