Product Introduction

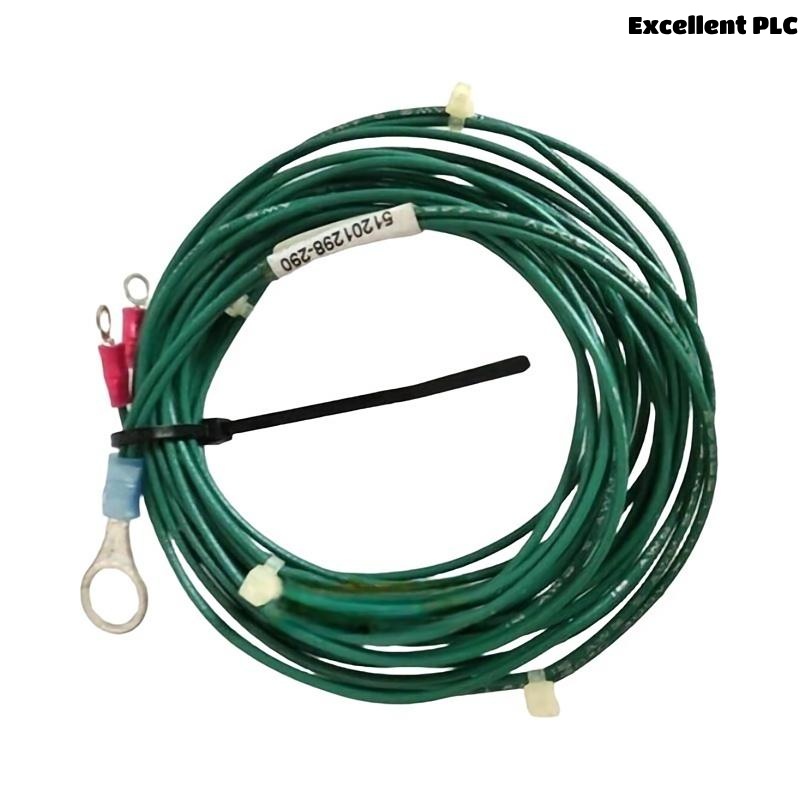

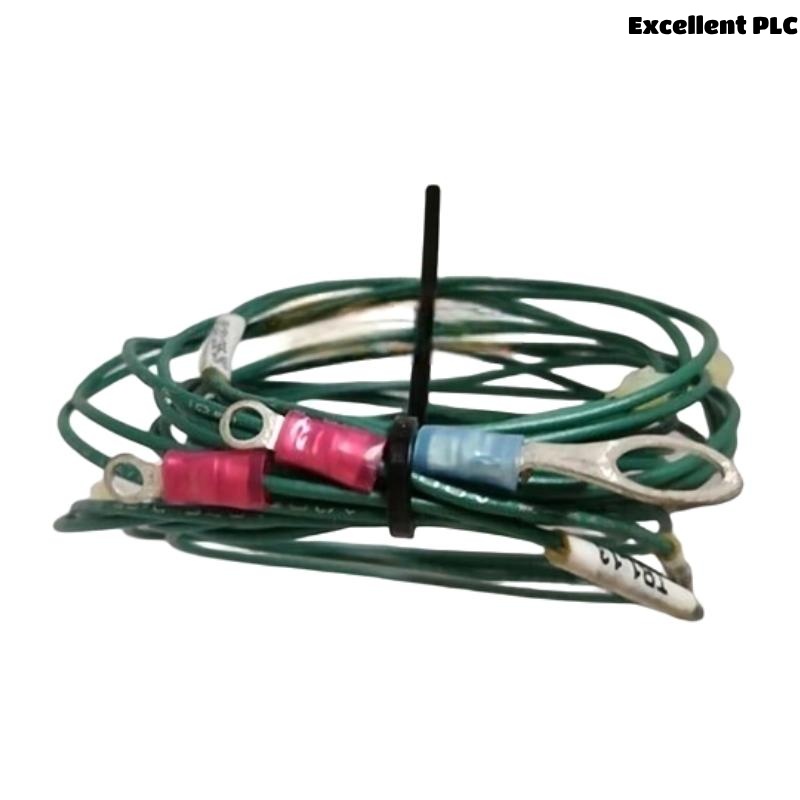

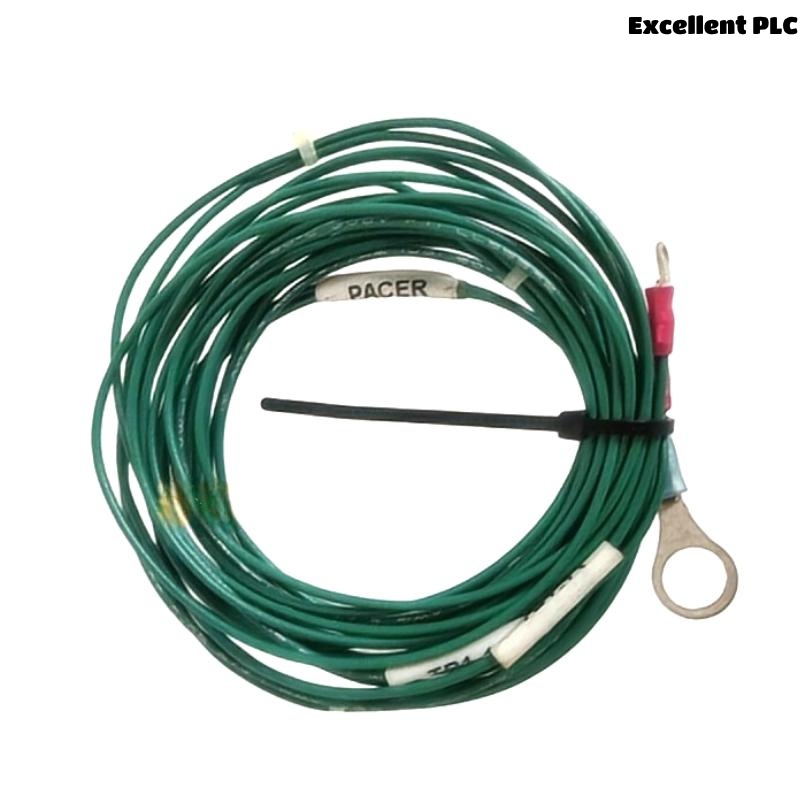

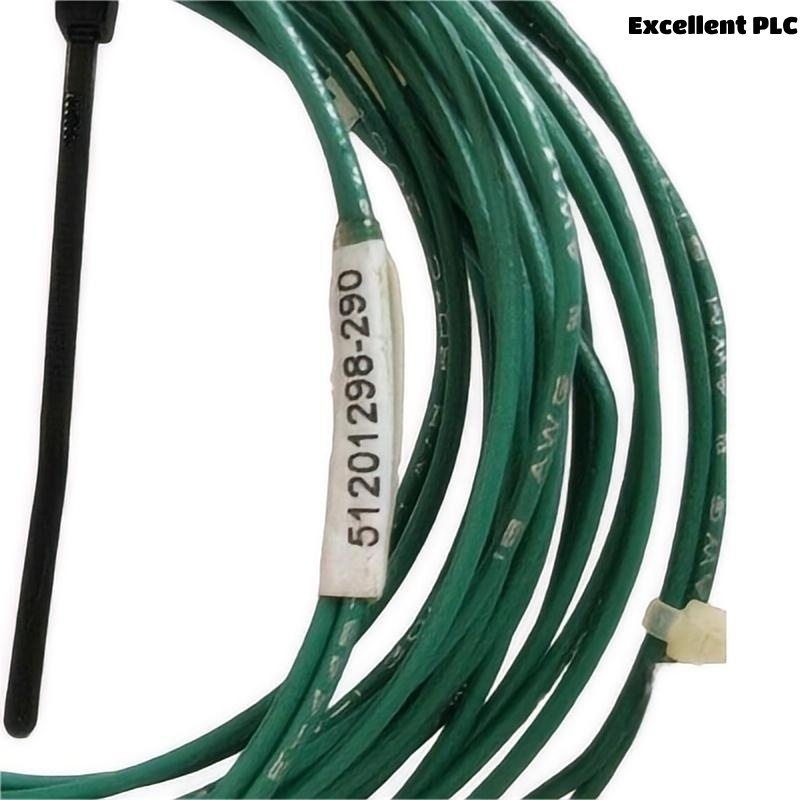

The Honeywell 51201298-290 Cable is an industrial-grade, shielded communication cable designed specifically for use in Honeywell automation and control systems. Engineered to deliver consistent, high-quality signal transmission, this cable is a trusted component in many critical industrial environments. Its construction emphasizes durability, noise resistance, and reliable interfacing between controllers, I/O modules, and peripheral devices.
Commonly deployed within Honeywell’s Distributed Control Systems (DCS), such as Experion PKS and TDC 3000, the 51201298-290 Cable supports mission-critical operations where uninterrupted data flow is vital. Its robust build makes it suitable for harsh industrial conditions, ensuring longevity and minimal maintenance.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Shielded Communication Cable |
| Part Number | 51201298-290 |
| Manufacturer | Honeywell |
| Cable Type | Multi-conductor, shielded control cable |
| Compatible Systems | Honeywell Experion PKS, TDC 3000, TPS |
| Connector Type | Pre-molded factory connectors on both ends |
| Shielding | Dual-layer shielding (foil + braid) |
| Jacket Material | Industrial-grade PVC, flame-retardant |
| Conductor Size | 22 AWG stranded copper |
| Rated Voltage | 300V |
| Operating Temperature Range | -25°C to +75°C |
| Package Size | 200 × 120 × 100 mm |
| Package Weight | 2 kg |
| Flame Rating | UL 1581 VW-1 |
| Compliance | UL Recognized, CE Certified, RoHS Compliant |
| Environmental Rating | Indoor use (IP20) |
Applications
The Honeywell 51201298-290 Cable is used extensively in industrial process control and automation systems for reliable signal and data transmission. Typical applications include:
-
Distributed Control Systems (DCS): Connecting I/O modules to Honeywell Experion PKS controllers.
-
Programmable Logic Controller (PLC) networks: Ensuring steady communication within Honeywell automation platforms.
-
Control Panel Wiring: Suitable for use in industrial control panels requiring noise-resistant cabling.
-
Factory Automation: Facilitating accurate data flow for automated manufacturing processes.
-
Power Generation: Used in power plants for monitoring and control cabling within control rooms.
-
Chemical and Petrochemical Plants: Reliable in hazardous environments due to durable construction and flame resistance.
Product Advantages
-
High Noise Immunity: Dual shielding minimizes electromagnetic interference ensuring signal clarity.
-
Durable Construction: Flame-retardant jacket and robust conductor insulation offer longevity in tough environments.
-
Plug-and-Play: Pre-molded connectors simplify installation and reduce wiring errors.
-
Temperature Range: Reliable performance across a wide temperature spectrum suitable for most indoor industrial conditions.
-
Compact Size: Small outer diameter facilitates use in crowded control panels or cable trays.
-
Certified Quality: Meets multiple international certifications, guaranteeing safety and compliance.
Frequently Asked Questions (FAQ)
1. What is the typical application of the 51201298-290 Cable?
It is mainly used for communication between Honeywell DCS and I/O modules in control systems like Experion PKS.
2. What shielding does this cable have to reduce noise?
The cable uses a dual-layer shield consisting of foil and braided copper for excellent EMI and RFI protection.
3. Is this cable suitable for outdoor installation?
No, it is designed for indoor use (IP20). Outdoor installations require additional protective conduits.
4. What is the temperature range this cable can handle?
It operates reliably between -25°C and +75°C.
5. Does the cable come with connectors?
Yes, factory-installed pre-molded connectors are provided on both ends.
6. Can this cable be bent around corners or routed tightly?
It has moderate flexibility with a diameter of 6.8 mm, allowing for installation in tight spaces without damaging the cable.
7. Is the cable flame retardant?
Yes, the jacket is flame-retardant and meets UL 1581 VW-1 standards.
8. What conductor size is used in this cable?
The cable uses 22 AWG stranded copper conductors to balance flexibility and conductivity.
9. How can I ensure I’ve installed the cable correctly?
Perform continuity and insulation resistance tests post-installation to confirm proper wiring and integrity.
10. Can this cable support both analog and digital signals?
Yes, it is designed to reliably transmit both analog and digital communication signals in automation systems.
Related or Compatible Models
| Model Number | Description | Length | Use Case |
|---|---|---|---|
| 51201298-100 | Same cable, shorter length version | 1 meter | Compact control panel wiring |
| 51201298-500 | Longer length version | 5 meters | Extended panel or rack connections |
| 51196074-100 | Shielded multi-conductor I/O cable | 1 meter | Experion PKS I/O communications |
| 51196742-500 | Multi-core shielded communication cable | 5 meters | Controller to I/O device connections |
| 51195479-300 | I/O Link Cable with high EMI resistance | 3 meters | Harsh industrial environments |
| 51303932-476 | Shielded control cable for noise-prone areas | 3 meters | EMI/RFI heavy industrial zones |
Popular Honeywell Models (Same Brand)
| Model Number | Product Type | Application | Key Feature |
|---|---|---|---|
| CC-PDOB01 | Digital Output Module | Honeywell DCS | Supports high-speed outputs |
| CC-TAIX01 | Analog Input Module | Process Control | High precision analog inputs |
| MU-TDOD12 | Digital Output Module | Universal I/O | 12-channel solid-state output |
| TC-CCR013 | Control Processor | C3000 Control System | Redundant architecture support |
| 51454416-100 | Power Supply Module | Control Cabinet | Stable 24V DC power output |
| FC-PDB-0824P | Power Distribution Board | Field Control Systems | 8-channel 24V DC power board |
