Product Introduction

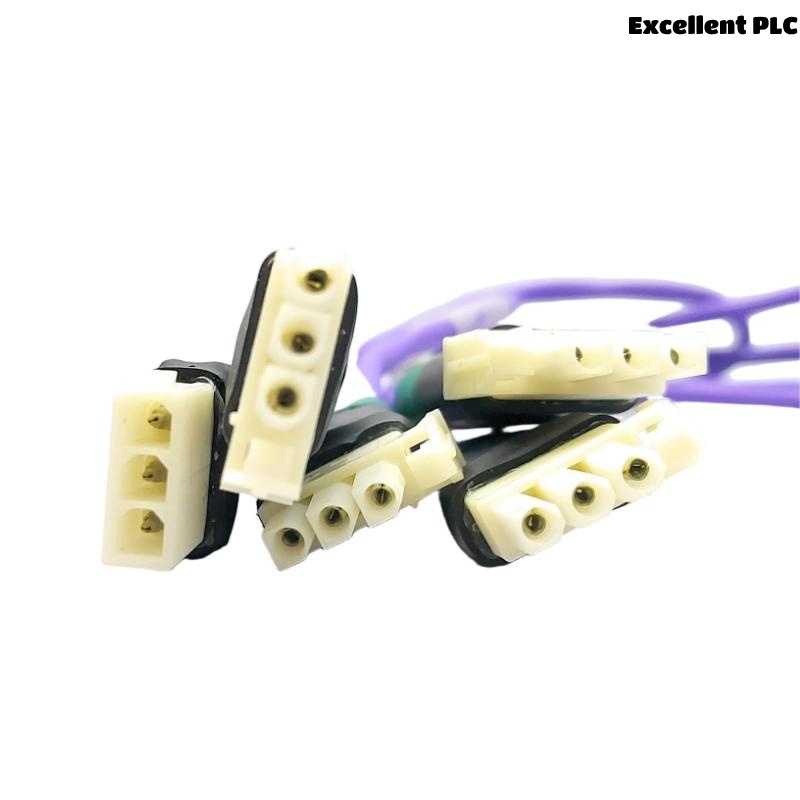

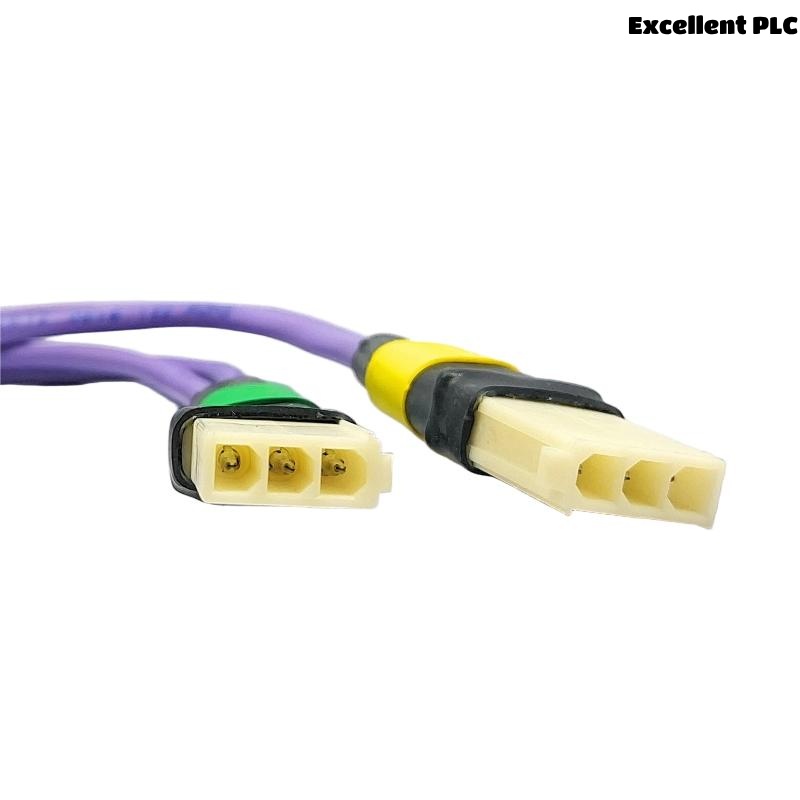

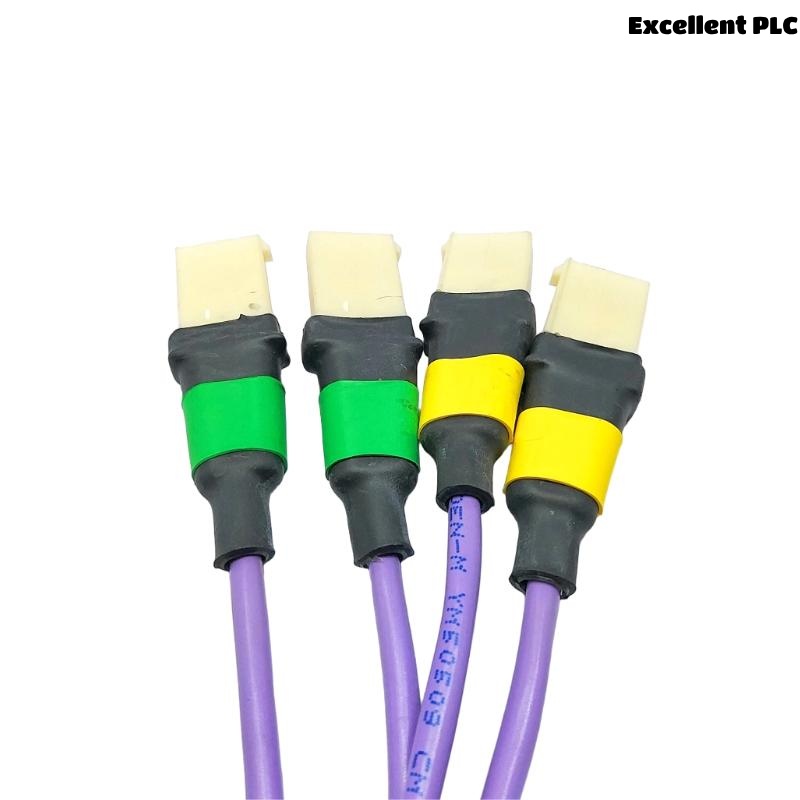

The Honeywell 51202329-615 Violet Drop Cable is a high-performance industrial-grade signal cable designed specifically for Honeywell TDC 3000 and Experion PKS control systems. As part of Honeywell’s trusted drop cable family, the 51202329-615 provides stable communication, excellent signal integrity, and robust protection in complex and demanding industrial environments.
Featuring a distinct violet-colored jacket, this cable allows engineers and technicians to quickly identify control-level wiring during installation or maintenance. Built with dual shielding layers (foil and braid) and tinned copper twisted pair conductors, it provides superior immunity to electromagnetic interference (EMI), ensuring consistent performance even in electrically noisy environments.
Designed for mission-critical operations in sectors such as oil & gas, chemical processing, energy, and heavy manufacturing, the 51202329-615 helps maintain signal continuity, reduces downtime, and contributes to overall system integrity.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 51202329-615 |
| Product Type | Violet Drop Cable |
| Manufacturer | Honeywell |
| Jacket Color | Violet (Purple) |
| Conductor Material | Tinned Copper |
| Conductor Type | Twisted Pair |
| Conductor Size | 22 AWG |
| Shielding | Foil + Braid (Dual Shielded) |
| Insulation Material | Flame-retardant PVC |
| Jacket Material | Industrial-grade PVC |
| Nominal Voltage Rating | 300V |
| Characteristic Impedance | 150 Ohms ±10% |
| Operating Temperature | -40°C to +85°C |
| Flame Retardancy | UL Listed |
| Certifications | UL, CSA, CE |
| Outer Diameter | 7.4 mm |
| Package Weight | 3 kg |
| Drop Cable | 3 Drop |
| System Compatibility | Honeywell TDC 3000, Experion PKS, related process systems |
Applications
The Honeywell 51202329-615 cable is engineered for industrial signal transmission in control environments where reliability and interference resistance are essential.
-
Honeywell DCS Communication
Designed to connect I/O modules, communication interfaces, and controllers within the Honeywell TDC 3000 and Experion systems. -
Oil & Gas Facilities
Supports reliable, interference-free communication in hazardous and high-temperature zones. -
Chemical & Petrochemical Plants
Withstands harsh chemical exposures and fluctuating temperatures during batch and continuous processing. -
Power Generation Systems
Used in high-reliability turbine control and plant-wide instrumentation systems. -
Automation Cabinets & Enclosures
Compact diameter and flexibility allow installation within control panels and narrow conduits. -
High-EMI Industrial Environments
Ideal for noisy electrical environments requiring strong shielding for uninterrupted signal flow.
Product Advantages
-
Dual Shielded for EMI Protection
Built with both foil and braided copper shielding to eliminate signal degradation from external noise sources. -
Durable Construction
PVC insulation and outer jacket resist oil, abrasion, chemicals, and UV exposure, ensuring long operational life. -
Easy Identification
Violet jacket helps distinguish control-level signal cables in multi-cable harnesses or dense control rooms. -
Flexible Design
Enables smooth installation in tight spaces, conduits, or complex cabinet layouts without damaging cable integrity. -
Stable Transmission Over Distance
Impedance-matched and low-capacitance design ensures consistent signal quality, even on longer runs. -
Certified Safety and Compliance
UL, CE, and CSA approvals ensure global safety standard compliance for industrial facilities.
