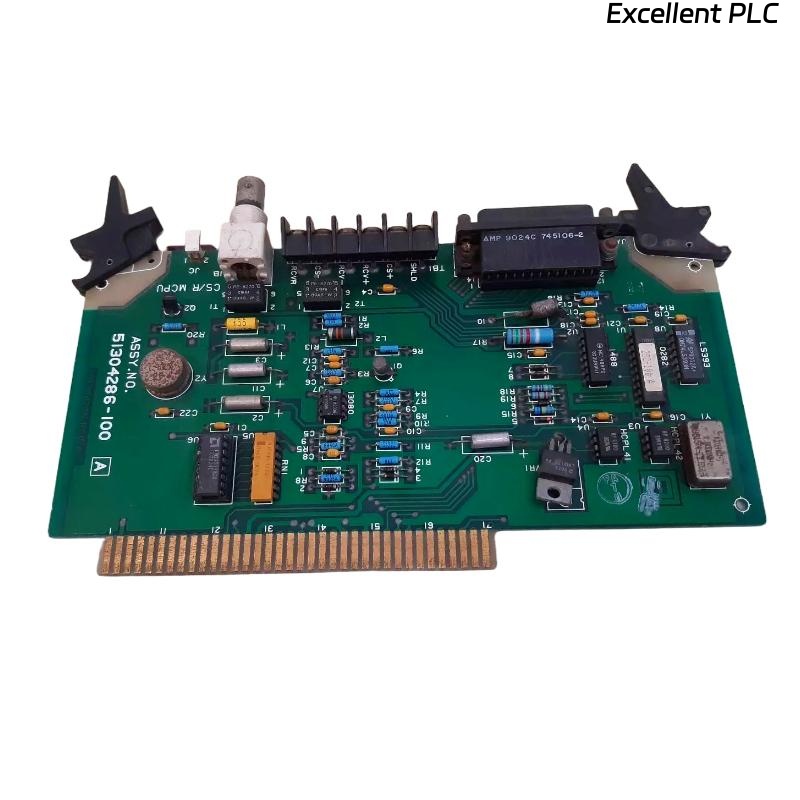

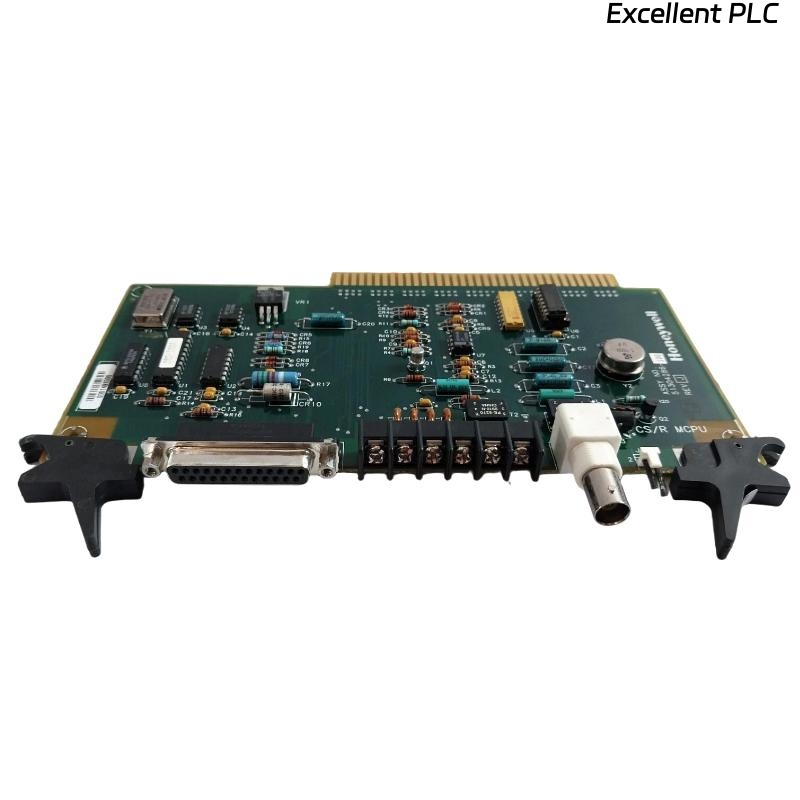

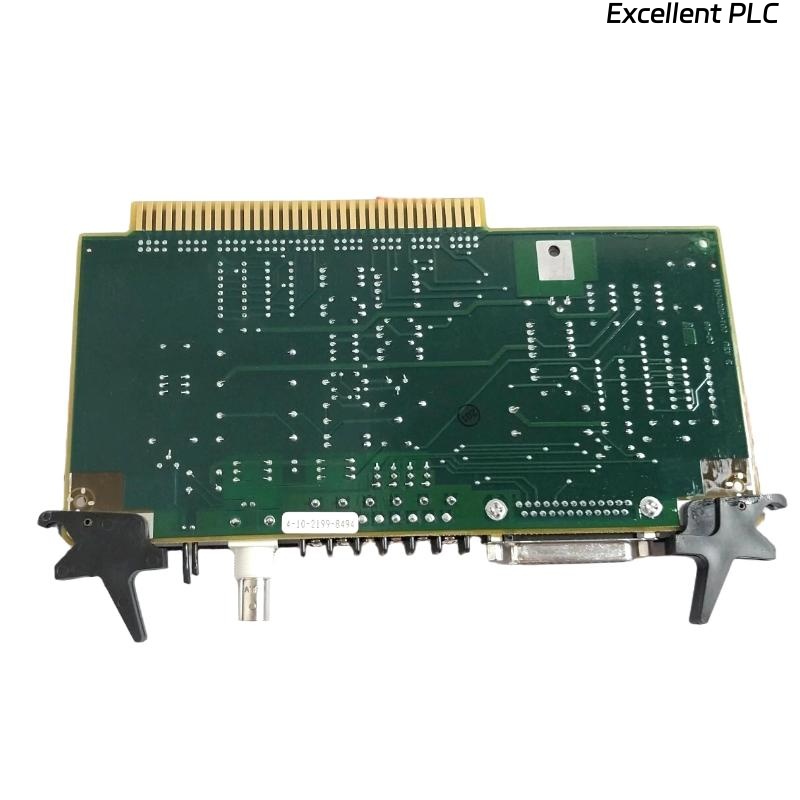

Honeywell 51304286-100 Circuit Board

Product Introduction

The Honeywell 51304286-100 is a high-performance circuit board designed for integration into the Experion Process Knowledge System (PKS) and TDC3000 systems. Engineered with robust architecture and superior component quality, this module ensures consistent and precise signal processing for critical industrial automation applications. It is widely used in distributed control systems (DCS) and serves as a foundational element within Honeywell’s control platforms, providing seamless communication, real-time control, and extended operational reliability.

Built to meet industrial-grade environmental requirements, the 51304286-100 supports secure mounting, stable electrical connectivity, and long-term operational integrity. It enables smooth data transmission between I/O subsystems and central processing units, facilitating optimal performance across process control environments.

Product Specifications

Product Applications

The 51304286-100 is extensively utilized in industrial process automation, particularly in:

• Distributed Control Systems (DCS) – for precise execution of logic operations and control sequences.

• SCADA Systems – interfacing field signals with the supervisory system.

• Power Plants – to manage turbine, boiler, and generator control systems.

• Petrochemical Facilities – for real-time monitoring and process automation.

• Pharmaceutical Manufacturing – supporting GMP-compliant automated control.

• Pulp & Paper Industry – for optimized process control and monitoring.

Product Advantages

• Seamless Integration
  Fully compatible with Honeywell Experion PKS and TDC3000 systems, enabling fast deployment without redesign.

• High Signal Integrity
  Designed with noise-reducing multilayer PCB architecture to ensure clean signal routing and stable performance.

• Industrial-Grade Reliability
  Built to withstand harsh industrial environments with wide operating temperature and humidity tolerance.

• Diagnostic Capabilities
  Integrated self-test and LED status indicators simplify troubleshooting and improve uptime.

• Reduced Downtime
  Hot-swappable and easily replaceable, minimizing system interruption during maintenance.

• Future-Proof Design
  Backward-compatible with legacy Honeywell systems, protecting long-term automation investments.

Frequently Asked Questions

1. Does the 51304286-100 support hot-swapping in live systems?
   Yes, it supports hot-swapping within compatible Honeywell DCS systems with no system reboot required.

2. What communication protocol does it use to interface with the main controller?
   It uses Honeywell’s proprietary system bus protocol for fast and secure communication.

3. Are the input channels configurable for analog or digital signals?
   Channel configuration depends on system setup and control logic; the board can process both types when programmed accordingly.

4. Does this board include fault isolation features?
   Yes, it includes onboard diagnostic routines and status indicators to help isolate and identify faults.

5. What is the power-up initialization time for this module?
   The initialization sequence typically completes within 5 seconds upon power application.

6. Can this board interface with third-party I/O modules?
   Generally, it is designed to work within Honeywell ecosystems; third-party integration is not recommended.

7. Is there built-in protection against reverse polarity or overvoltage?
   Yes, it has built-in protection mechanisms for overvoltage and reverse polarity on power input.

8. How does the board handle communication errors or packet loss?
   Error detection and retry mechanisms are in place to ensure data integrity during communication failures.

9. What kind of firmware does this board require?
   Firmware is proprietary and pre-installed by Honeywell. Updates can only be performed through certified channels.

10. How often should the circuit board be calibrated?
    Calibration is typically not required for this model, as it operates with digital logic and self-diagnostics.
