Product Description

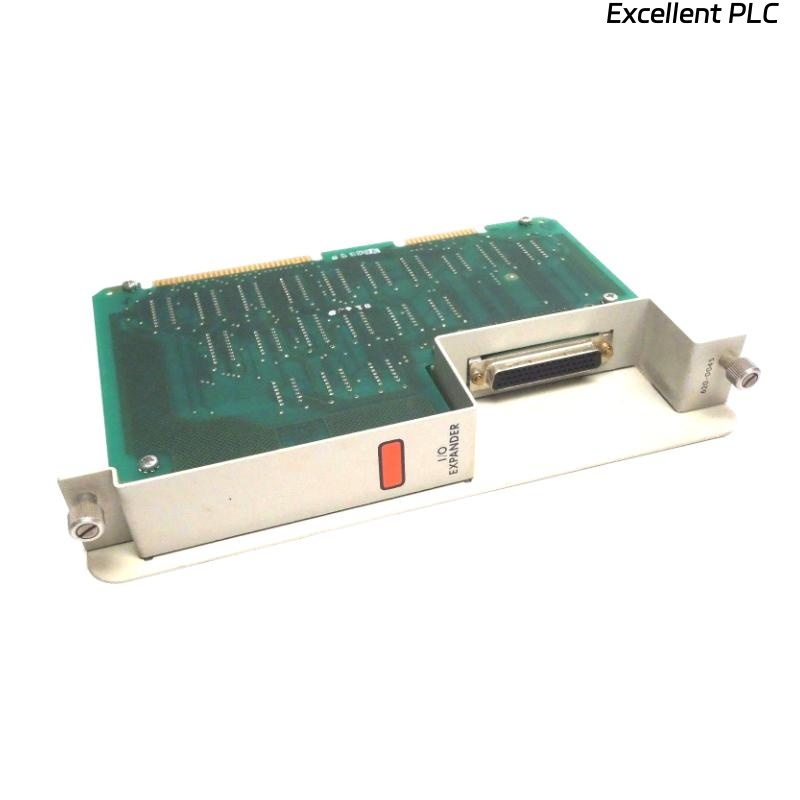

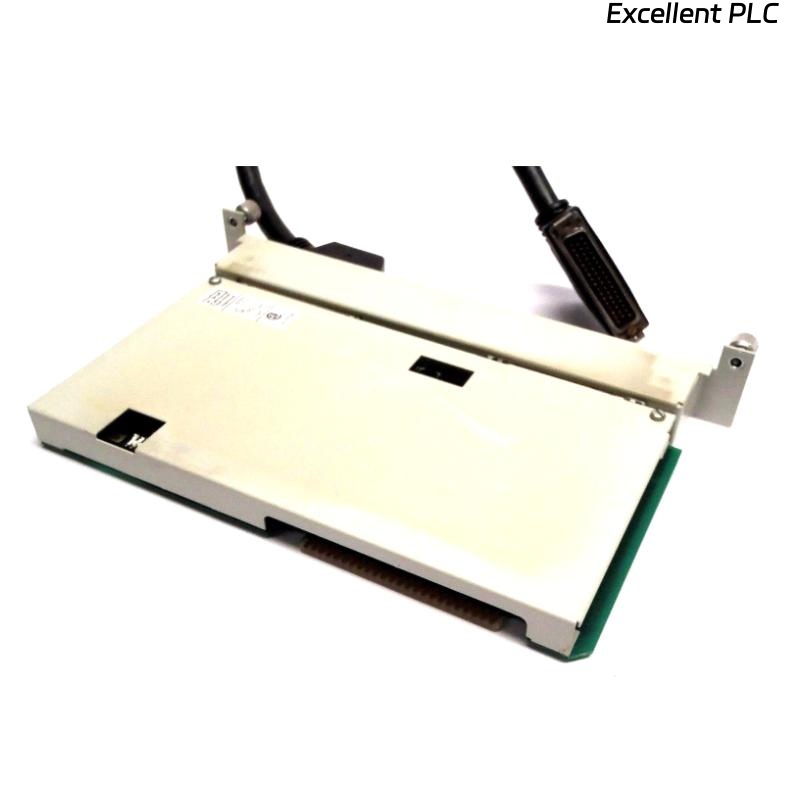

The Honeywell 620-0045 I/O Expander Module enhances the system capacity of Honeywell controllers by providing additional input and output points. Designed for high reliability in industrial environments, it ensures seamless integration and expanded control capabilities. Ideal for distributed control systems, the module supports precise data acquisition and efficient process management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 620-0045 |
| Type | I/O Expander Module |
| Input Points | 16 Digital / 8 Analog |
| Output Points | 16 Digital / 8 Analog |
| Communication | RS-485 / Modbus RTU |
| Power Supply | 24 VDC |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (L × W × H) | 266.7 × 177.8 × 38.1 mm |
| Weight | 0.91 kg |
| Mounting | DIN Rail / Panel |
Applications
-
Industrial automation and process control systems
-
Distributed control systems (DCS) expansion
-
Remote I/O data acquisition
-
HVAC and building management integration
-
Factory automation and monitoring
-
Process signal extension in production lines
Advantages
-
Compact design for easy installation in tight spaces
-
High reliability for continuous industrial operation
-
Flexible expansion of digital and analog I/O points
-
Seamless integration with Honeywell controllers
-
Simplified wiring and configuration
-
Supports multiple communication protocols
FAQ
1. What controllers are compatible with the 620-0045 I/O Expander Module?
It is compatible with Honeywell Experion PKS and ControlEdge HC900 systems.
2. Can this module operate in high-temperature environments?
Yes, it operates reliably up to 55°C and can withstand storage temperatures up to 70°C.
3. How is the module mounted?
It supports DIN rail and panel mounting for flexible installation.
4. How many I/O points does it provide?
It provides 16 digital and 8 analog inputs, and 16 digital and 8 analog outputs.
5. What communication protocols are supported?
It supports RS-485 and Modbus RTU for system integration.
6. What is the power requirement?
The module requires a 24 VDC power supply.
7. Is it suitable for outdoor use?
It is designed for indoor industrial environments; outdoor use requires protective enclosures.
8. How do I expand additional I/O modules?
Multiple 620-0045 modules can be networked via RS-485 or compatible controller expansion ports.
9. How do I troubleshoot I/O faults?
Check module LEDs for status, verify wiring integrity, and use controller diagnostics for detailed fault analysis.
10. What is the expected lifespan of the module?
With standard industrial use, the module is rated for over 10 years of reliable operation.
