Product Introduction

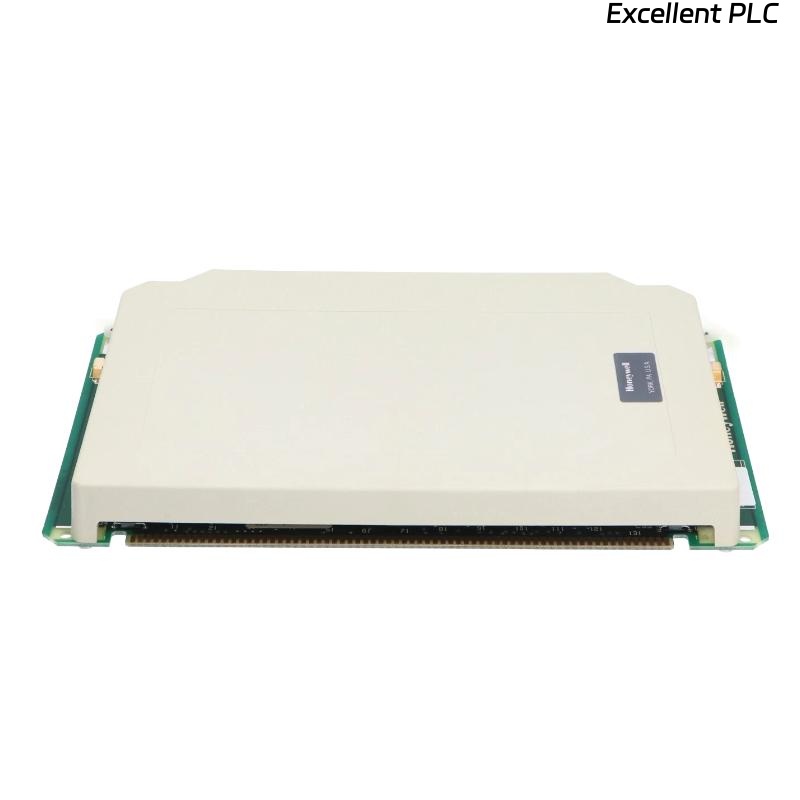

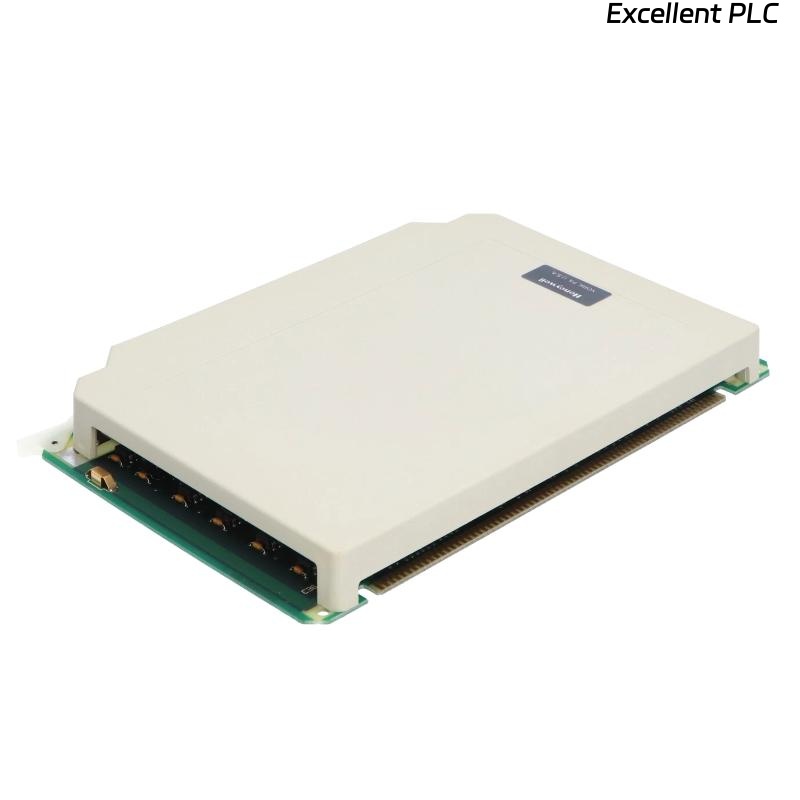

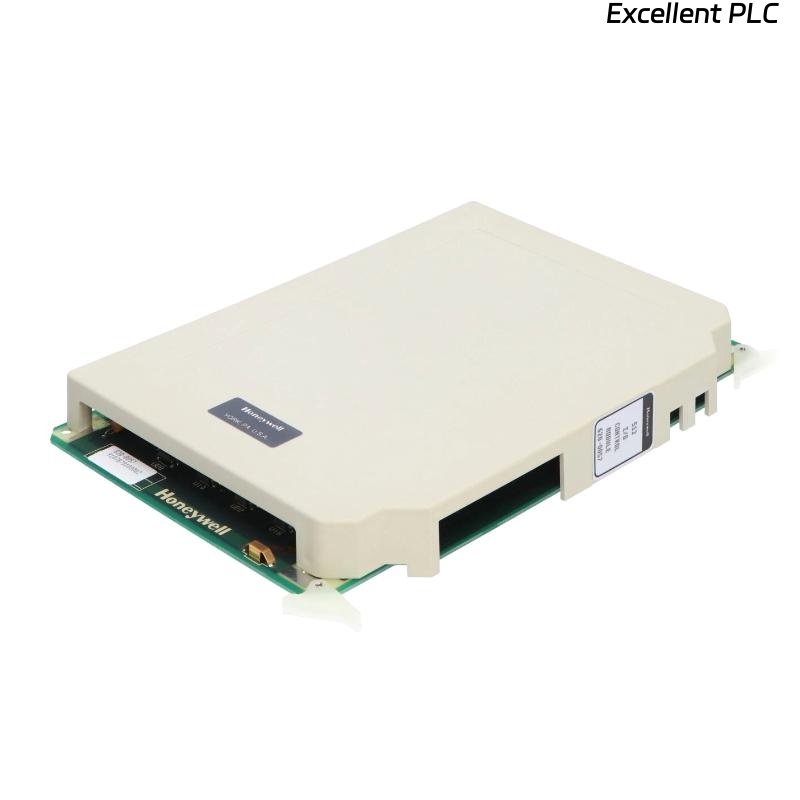

The Honeywell 620-0057 I/O Control Module is a central communication and control component within the Honeywell IPC-620 series. It acts as the interface between the system’s main processor and distributed I/O modules, managing the transfer of data, monitoring the operational status of each connected module, and ensuring fault-tolerant performance.
This module is designed to operate in high-reliability industrial control systems where precise timing, stable communication, and continuous monitoring are essential. By providing diagnostic feedback and supporting high-speed I/O scanning, it enables stable operation in critical automation environments.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Manufacturer | Honeywell |
| Model | 620-0057 |
| Module Type | I/O Control Module |
| Supported I/O Capacity | Up to 512 discrete points |
| Primary Function | I/O data management and fault monitoring |
| Communication Method | Parallel or serial via dedicated link interface |
| Data Transfer Speed | Typically under 1 ms for full I/O scan |
| Fault Detection | Individual module status monitoring |
| Power Supply Source | From system backplane |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | –20 °C to +70 °C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Mounting Method | Rack slot mounting (specific slot per rack model) |
| Module Dimensions (W×H×D) | 27 × 230 × 200 mm |
| Weight | 0.3 kg |
Applications
The 620-0057 module is widely used in:
-
Process Control Systems — Supervising I/O in refineries, chemical plants, and power stations.
-
Manufacturing Automation — Coordinating sensors and actuators in assembly lines.
-
Infrastructure Management — Controlling distributed I/O in water treatment plants and utility systems.
-
Safety Interlocks — Managing emergency stop inputs and output actuation for safety systems.
-
Data Acquisition — Ensuring accurate data collection from distributed field devices.
Advantages
-
High Reliability — Built for continuous operation in mission-critical control systems.
-
Fast I/O Scanning — Low-latency communication ensures timely process response.
-
Comprehensive Diagnostics — Monitors each module’s operational status to identify and isolate faults.
-
Scalable Design — Supports expansion without sacrificing performance.
-
Rugged Construction — Resistant to industrial environmental stresses such as vibration and electrical noise.
-
Seamless Integration — Designed for compatibility with other IPC-620 modules.
FAQ
-
What is the maximum number of I/O points this module supports?
Up to 512 discrete points. -
Can the module work with both parallel and serial communication interfaces?
Yes, it is compatible with either, depending on system configuration. -
Does the module provide per-channel diagnostics?
Yes, it can detect and report faults for individual connected modules. -
How is the module powered?
It receives operating power from the backplane of the system rack. -
What is the typical I/O scan time?
Generally under 1 millisecond for a full set of 512 points. -
Is it compatible with other Honeywell IPC-620 series racks?
Yes, provided it is installed in the correct designated slot for the rack type. -
Does it require any special cooling?
No active cooling is required, but adequate cabinet ventilation is recommended. -
Can the module operate in high-vibration environments?
Yes, it is designed to meet industrial vibration and shock standards. -
Is hot-swap capability supported?
No, the system should be powered down before removing or inserting the module. -
What type of mounting method is used?
It is designed for direct insertion into the rack’s dedicated slot.
