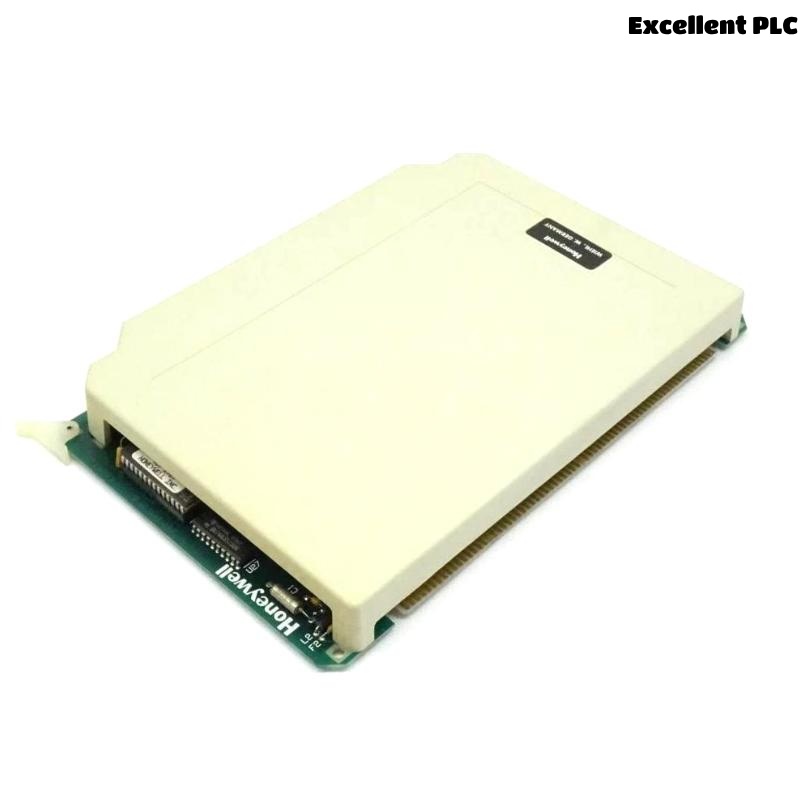

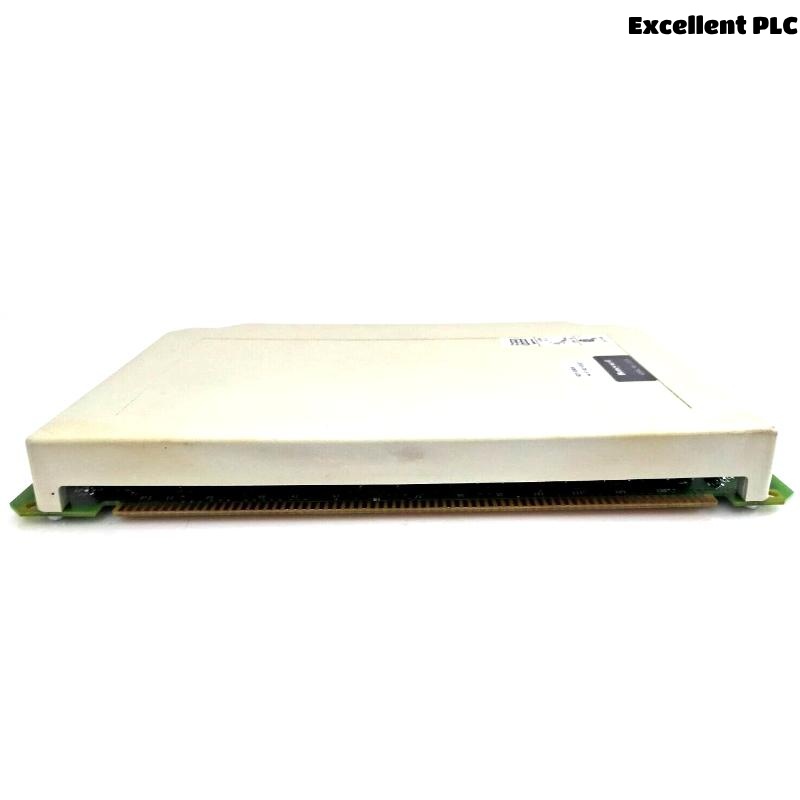

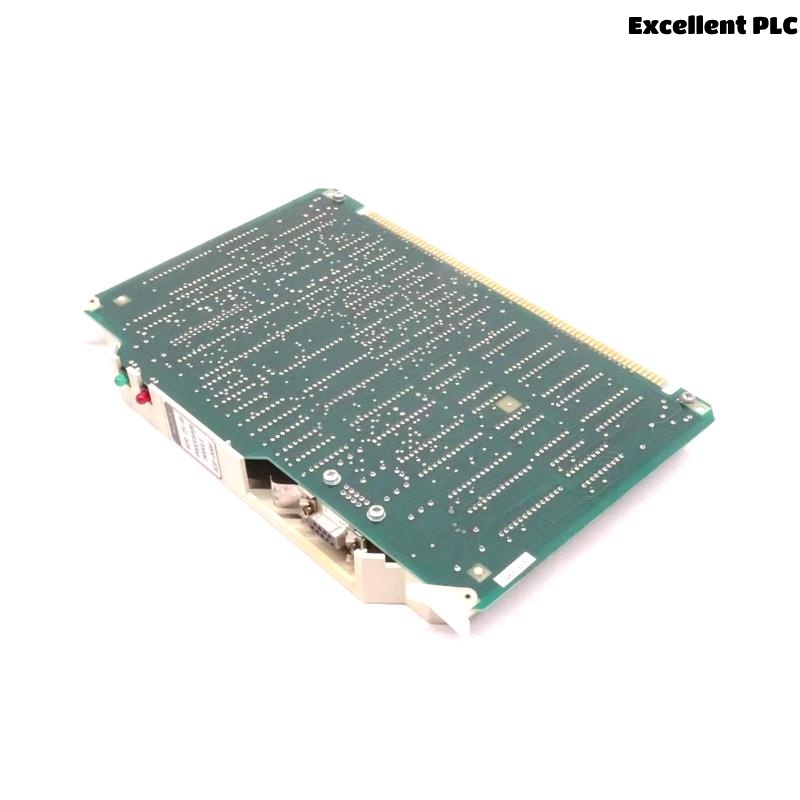

Honeywell 620-0080 Processor Module
The Honeywell 620-0080 is a processor module designed for the IPC620 programmable controller system. It executes the control program, performs arithmetic operations, and handles data movement. With high reliability and modular design, it suits a variety of industrial automation applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 620-0080 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 150 × 100 × 40 mm |
| Weight | 0.88 kg |
| Power Supply | Supplied by rack power module |
| Status Indicators | PASS (green), TESTING (red) |
| Mounting | Installed in slot F (620-25) or slot H (620-35) |
| System Compatibility | IPC620 System |
Applications
-
Industrial automation control systems
-
Factory process monitoring and management
-
Distributed control networks
-
Machine control in manufacturing environments
-
Energy and utilities process control
Advantages
-
High reliability and robust design
-
Seamless integration with Honeywell IPC620 system
-
Modular for easy maintenance and upgrade
-
Battery-backed memory for data retention
-
Clear status indication for diagnostics
Frequently Asked Questions
Q1: What is the main function of the 620-0080 Processor Module?
A1: It executes the control program, processes arithmetic operations, and manages data communication within the IPC620 system.
Q2: What systems is the 620-0080 compatible with?
A2: It is specifically designed for Honeywell IPC620-25 and IPC620-35 systems.
Q3: Where is the 620-0080 installed in the rack?
A3: Slot F in the 620-25 rack or slot H in the 620-35 rack.
Q4: Does the module have a backup for power loss?
A4: Yes, memory and registers are battery-backed via the system’s power module.
Q5: How do you know if the module is operating correctly?
A5: The green PASS LED will be lit when the self-test is successful.
Q6: What is indicated by the red TESTING LED?
A6: It shows that diagnostic tests are running during startup or scan cycles.
Q7: Is the module hot-swappable?
A7: No, it should only be replaced with system power off to avoid damage.
Q8: What is the expected operating temperature range?
A8: From 0°C to 60°C.
Q9: Can it be used in redundant configurations?
A9: Yes, when combined with a Redundancy Control Module.
Q10: How much does the 620-0080 weigh?
A10: Approximately 0.88 kg.
