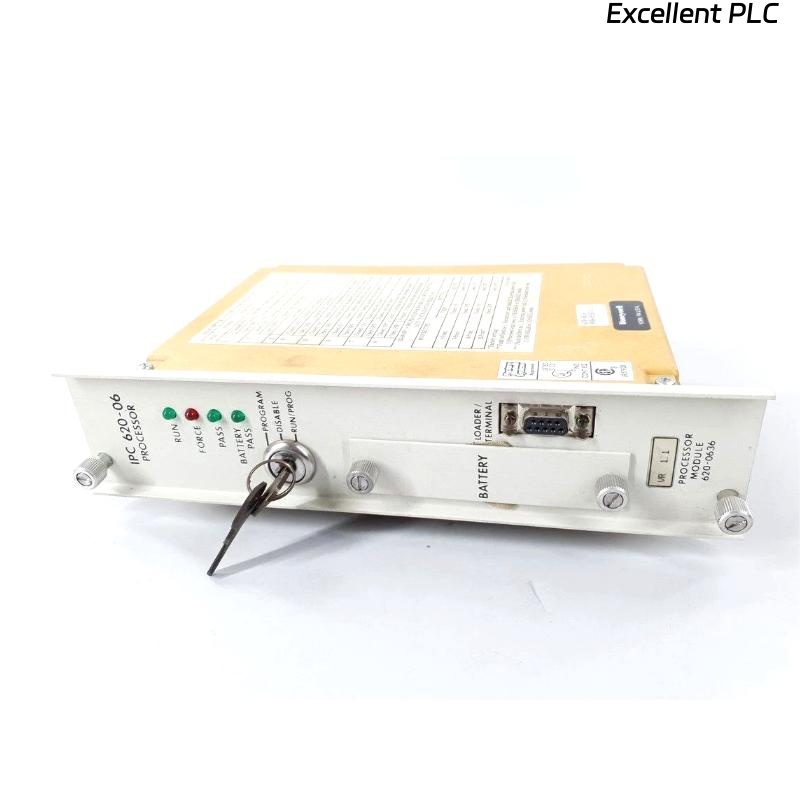

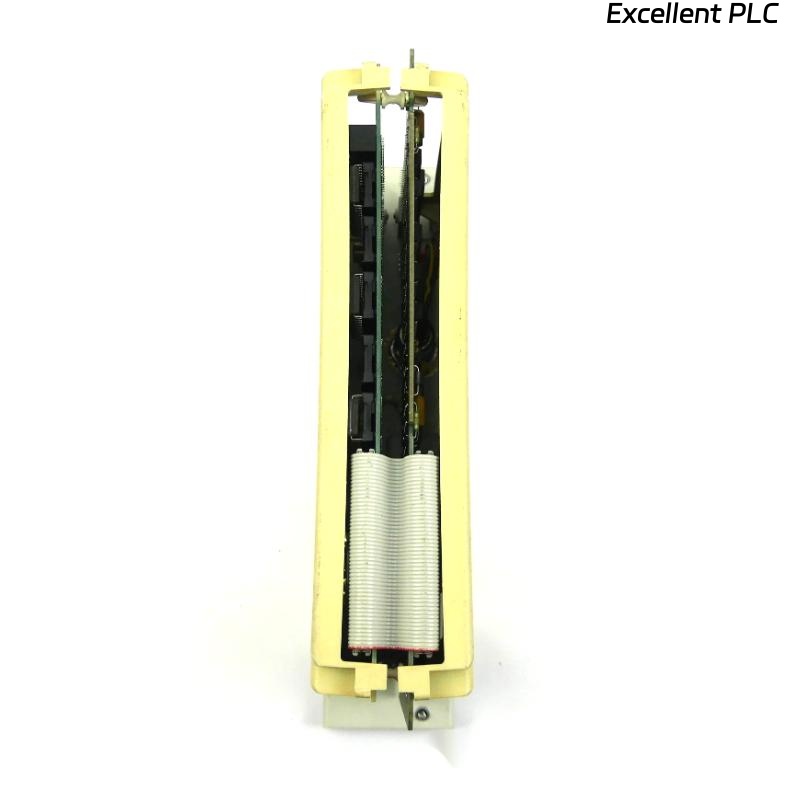

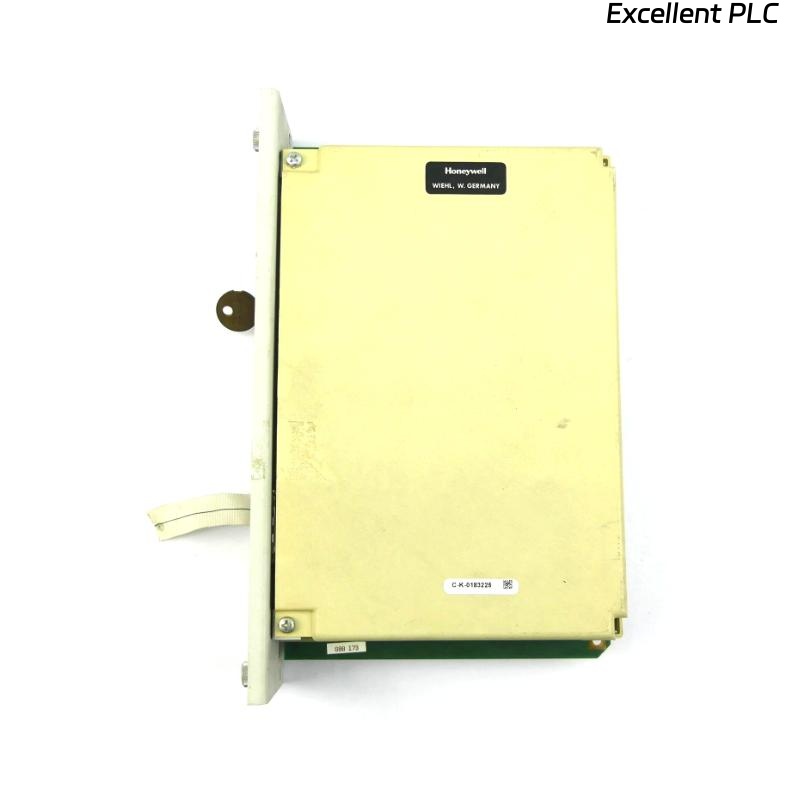

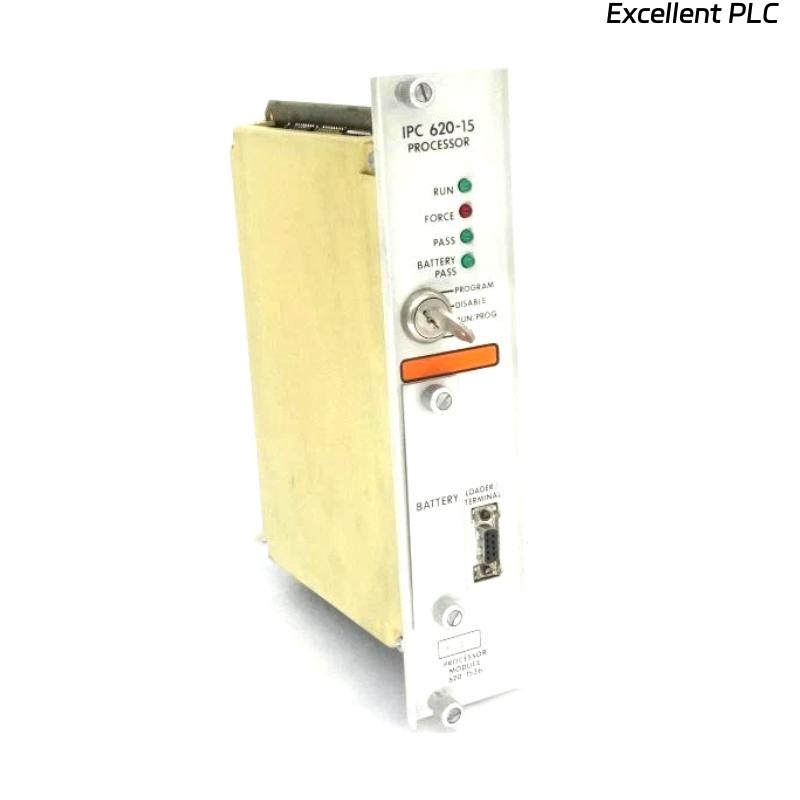

Honeywell 620-1536 Processor Module Overview
The Honeywell 620-1536 Processor Module is a high-performance control unit designed for seamless integration into industrial automation systems. It delivers reliable processing power, robust communication capabilities, and enhanced operational stability, making it ideal for critical process control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 620-1536 |
| Type | Processor Module |
| Dimensions | 241 × 178 × 38 mm |
| Weight | 0.91 kg |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to 60°C |
| Communication Interface | Ethernet, Modbus, DeviceNet |
| Input/Output Support | Digital and Analog I/O |
| Mounting | DIN Rail / Panel |
| Compliance | CE, UL |
Applications
-
Industrial process control systems
-
Safety-critical automation environments
-
Chemical, oil & gas, and power plant control
-
Continuous and batch process monitoring
-
Integration with Honeywell Experion and TDC systems
Advantages
-
Compact and lightweight design for easy installation
-
High processing speed for real-time data handling
-
Flexible communication interfaces for diverse system integration
-
Reliable operation in harsh industrial environments
-
Supports scalable system expansion
FAQ
1. What is the primary function of the 620-1536 Processor Module?
It serves as the main processing unit in industrial control systems, managing input/output signals and executing automation logic.
2. Can the module operate in high-temperature environments?
Yes, it supports operating temperatures up to 60°C.
3. What communication protocols are supported?
It supports Ethernet, Modbus, and DeviceNet for flexible integration.
4. Is it compatible with Honeywell Experion systems?
Yes, it is fully compatible with Experion and TDC systems.
5. How is the module mounted?
It can be installed on a DIN rail or panel-mounted.
6. What is the module’s power requirement?
The module operates on a 24 V DC power supply.
7. Can it handle both digital and analog inputs/outputs?
Yes, it supports a wide range of digital and analog I/O.
8. What certifications does it have?
It complies with CE and UL standards.
9. How does it ensure reliable operation?
Through robust hardware design, thermal management, and industrial-grade components.
10. Is the module suitable for safety-critical systems?
Yes, it is designed for reliable operation in safety-critical and industrial environments.
Related or Same Series Models
| Model Number | Type | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|
| 620-1535 | Processor Module | 241 × 178 × 38 | 0.90 | Previous generation |
| 620-1540 | Processor Module | 241 × 178 × 38 | 0.92 | Enhanced I/O support |
| 620-1550 | Processor Module | 241 × 178 × 38 | 0.95 | High-speed variant |
| 620-1560 | Processor Module | 241 × 178 × 38 | 0.91 | Redundant processing |
| 620-1570 | Processor Module | 241 × 178 × 38 | 0.93 | Extended temperature range |
| 620-1580 | Processor Module | 241 × 178 × 38 | 0.94 | Advanced communication |
