Product Introduction

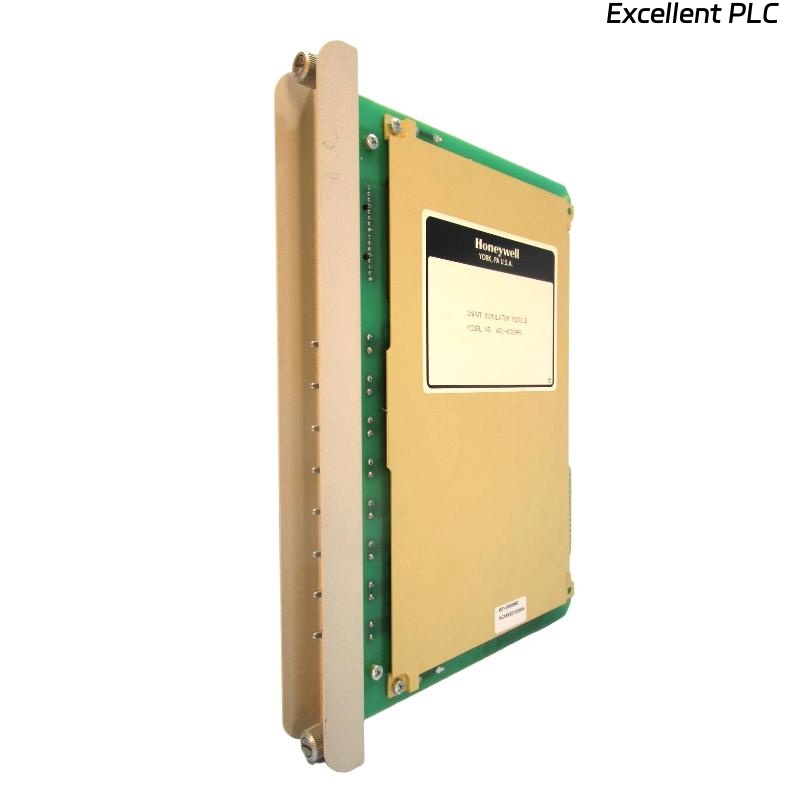

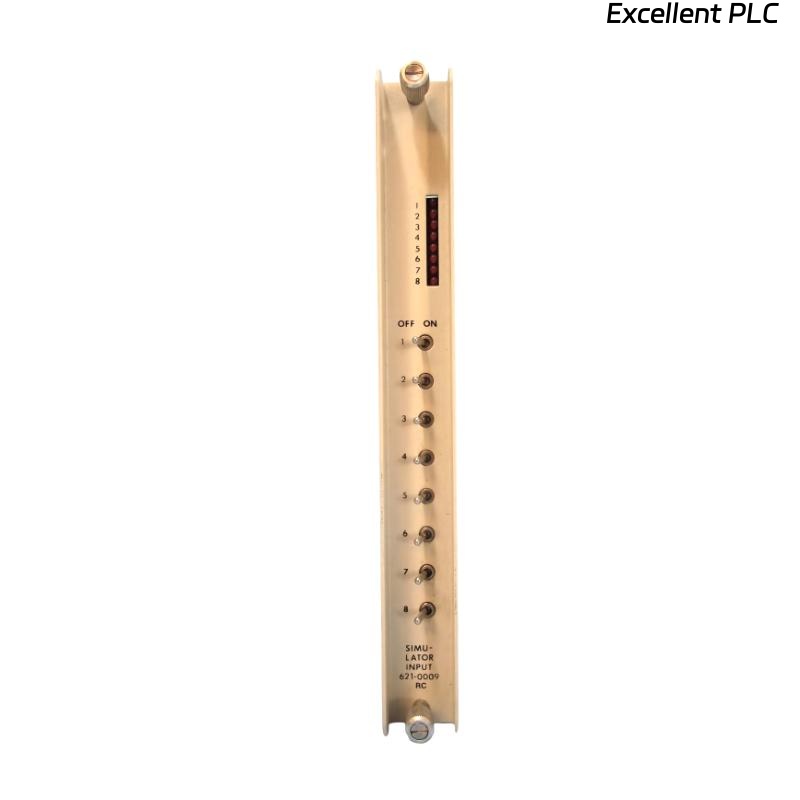

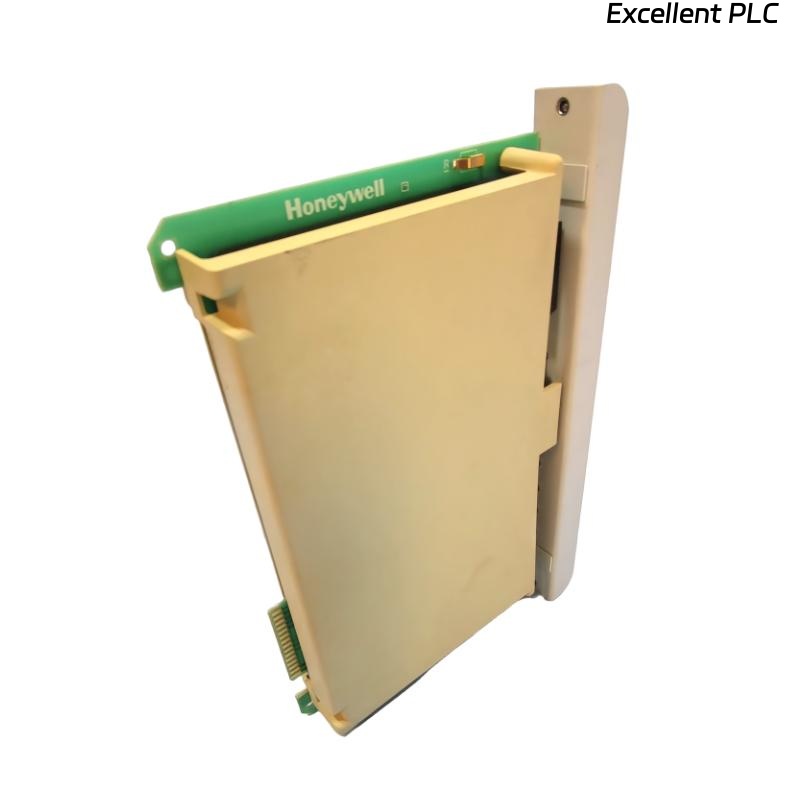

The Honeywell 621-0009 Simulator Input Module is a specialized module within the Honeywell IPC-620/621 series, designed to emulate input signals for testing and diagnostic purposes in industrial control systems. It allows engineers and technicians to simulate real-world process inputs such as discrete signals, analog voltages, or current loops without requiring the actual field devices to be connected.
By inserting the module into a compatible rack, operators can validate control logic, verify I/O scanning performance, and troubleshoot faults in a safe, controlled environment. This approach reduces downtime, speeds up commissioning, and provides a reliable means of testing system configurations before deployment in live process conditions.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Manufacturer | Honeywell |
| Model | 621-0009 |
| Module Type | Simulator Input Module |
| Primary Function | Emulates field input signals for system testing |
| Supported Signal Types | Digital (on/off), Analog (voltage/current) |
| Voltage Simulation Range | 0–10 V DC |
| Current Simulation Range | 0–20 mA or 4–20 mA selectable |
| Input Points Available | 8 simulation channels |
| Signal Accuracy | ±0.5% of full scale |
| Power Supply Source | Via backplane from control rack |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | –20 °C to +70 °C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Mounting Method | Rack slot mounting |
| Module Dimensions (W×H×D) | 27 × 230 × 200 mm |
| Weight | 0.517 kg |
Applications
The 621-0009 Simulator Input Module is primarily used in:
-
Control System Commissioning – Simulating process inputs to test new configurations before actual field devices are connected.
-
Training Systems – Allowing operators to practice on realistic system signals without interrupting real-time processes.
-
Troubleshooting and Maintenance – Isolating I/O issues by replacing field signals with controlled simulated values.
-
System Upgrades – Testing new software or hardware revisions without risking production downtime.
-
Process Development – Providing input simulation for control logic experimentation and optimization.
Advantages
-
Safe Testing – Eliminates the need to connect or disconnect live field devices during diagnostic procedures.
-
High Accuracy – Precise output simulation ensures realistic test conditions.
-
Versatile Signal Support – Can handle both analog and discrete inputs.
-
Plug-and-Play Compatibility – Fits directly into compatible Honeywell 621 series racks.
-
Maintenance Efficiency – Helps quickly verify I/O card functionality during routine inspections.
-
Cost Savings – Reduces downtime and eliminates the need for dedicated test field equipment.
FAQ
-
What types of signals can the 621-0009 simulate?
It can simulate both digital (on/off) and analog (voltage or current) inputs. -
How many channels does the module provide?
It offers 8 individual simulation channels. -
What voltage range can be simulated?
It can simulate 0–10 V DC for analog voltage inputs. -
What current ranges are supported?
It supports 0–20 mA and 4–20 mA simulation ranges. -
Is the signal output adjustable?
Yes, each channel’s simulated signal can be adjusted independently. -
How accurate are the simulated signals?
The typical accuracy is within ±0.5% of the full scale. -
Does the module require an external power source?
No, it receives its power through the rack backplane. -
Can it be used for continuous operation in a live system?
It is intended for testing and simulation; it is not typically used in live production control loops. -
Is hot-swap installation supported?
No, the control system should be powered down before inserting or removing the module. -
Can the simulation mode be switched between voltage and current easily?
Yes, it includes configuration jumpers or switches for changing between voltage and current simulation.
Related Models (Same Series or Function)
| Model No. | Description | Function |
|---|---|---|
| 621-0008 | Simulator Output Module | Simulates output signals for system testing |
| 621-0010 | Digital Input Module | Receives discrete on/off signals from field devices |
| 621-0011 | Analog Input Module | Receives analog voltage/current signals |
| 621-0012 | Analog Output Module | Sends analog voltage/current signals to field devices |
| 621-0020 | Test Adapter Module | Facilitates field wiring tests |
| 621-0030 | Signal Conditioning Module | Prepares signals for processing by control modules |
Popular Honeywell Models
| Model No. | Description | Category |
|---|---|---|
| 621-0008 | Simulator Output Module | Test/Simulation Module |
| 621-0011 | Analog Input Module | I/O Module |
| 621-0012 | Analog Output Module | I/O Module |
| 621-0025 | Digital Output Module | I/O Module |
| 621-0035 | Processor Module | CPU Module |
| 621-0040 | Power Supply Module | Power Module |
