Product Overview

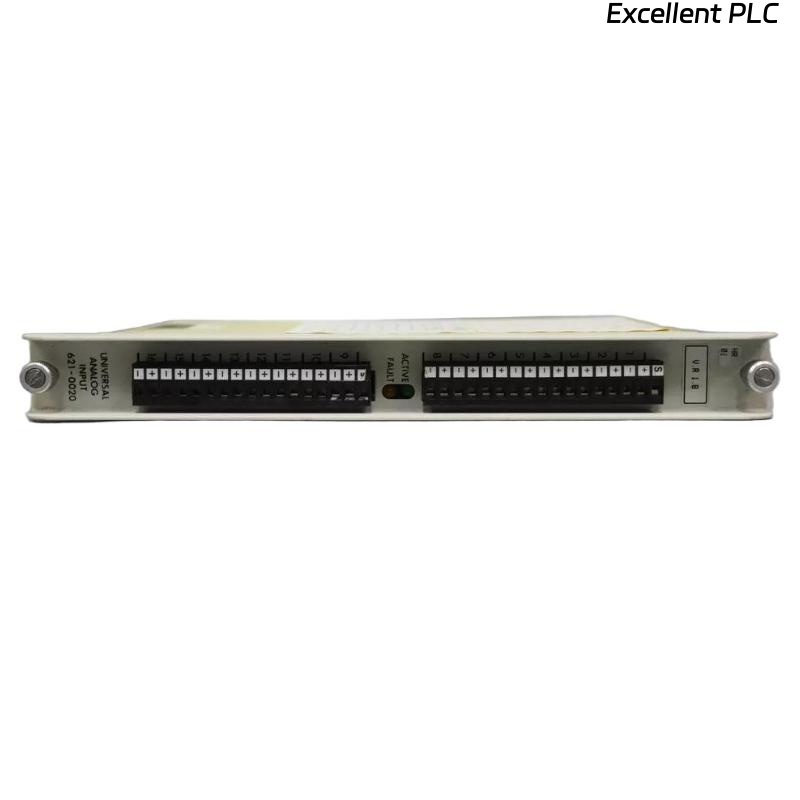

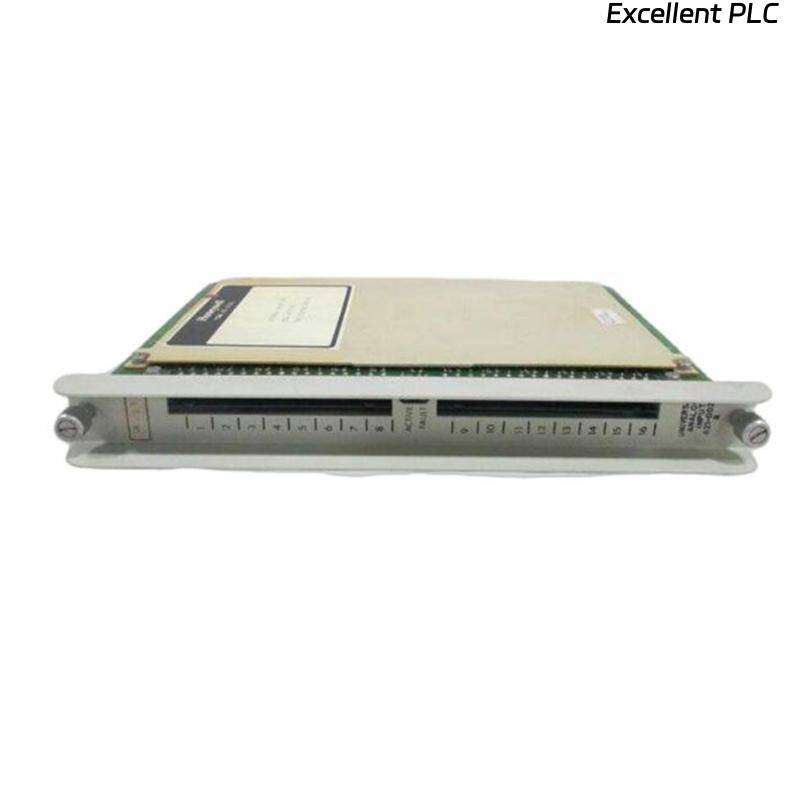

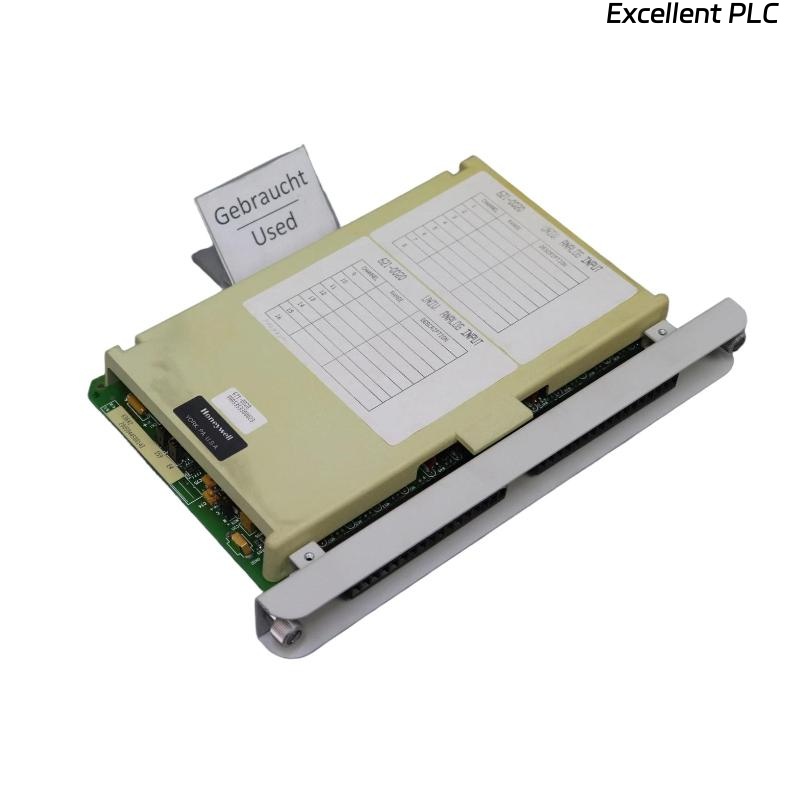

The Honeywell 621-0020 Analog Input Module is a precision signal interface device designed for use within Honeywell’s 620 Series control systems. This module is responsible for receiving, filtering, and converting analog signals from field instrumentation into a format that can be processed by the control system. It ensures accurate measurement of process variables such as temperature, pressure, flow, and level. Built for high performance and reliability, the 621-0020 is engineered to operate effectively in demanding industrial environments, offering superior noise immunity, stability, and ease of integration.
Key Features
-
High-accuracy analog signal acquisition
-
Supports multiple input signal types (voltage/current)
-
Excellent noise rejection for harsh industrial environments
-
Compact and modular design for easy installation and replacement
-
Powered via system backplane, no external supply required
-
Continuous operation with minimal maintenance
-
Fully compatible with Honeywell 620 Series control systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 621-0020 |
| Module Type | Analog Input Module |
| Manufacturer | Honeywell |
| Function | Acquisition and conversion of analog field signals |
| Compatibility | Honeywell 620 Series |
| Input Signal Types | Voltage, current (configurable) |
| Input Channels | Multiple (exact count depends on configuration) |
| Signal Resolution | High precision (system dependent) |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Power Supply | Provided via backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 330 x 230 x 130 mm |
| Weight | 0.6 kg |
| Certifications | CE, CSA, UL |
Industry Applications
-
Oil and gas processing and refining
-
Petrochemical and chemical manufacturing
-
Power generation facilities
-
Water and wastewater treatment plants
-
Pulp and paper production
-
Pharmaceutical and food processing industries
Frequently Asked Questions (FAQ)
Q1: What is the primary purpose of the 621-0020 module?
It receives and converts analog signals from field devices for processing in Honeywell control systems.
Q2: Which control systems is it compatible with?
It is fully compatible with Honeywell 620 Series systems.
Q3: What types of signals can it handle?
It can handle voltage and current signals, depending on configuration.
Q4: Does it provide signal isolation?
Yes, it offers channel-to-channel and channel-to-system isolation.
Q5: Is it hot-swappable?
It generally requires the system to be in a safe state before replacement.
Q6: How is it powered?
It is powered via the system backplane.
Q7: Does it require external signal conditioning?
In most applications, no, as it includes built-in filtering and conditioning.
Q8: Is it suitable for noisy industrial environments?
Yes, it is designed with strong noise immunity.
Q9: What is its typical lifespan?
It can operate reliably for many years under specified conditions.
Q10: Does it require calibration?
Yes, periodic calibration may be required depending on system accuracy requirements.
Related Modules
| Model Number | Description |
|---|---|
| 621-0000 | Digital Input Module |
| 621-0010 | Digital Output Module |
| 621-0030 | Analog Output Module |
| 621-0040 | Communication Interface Module |
| 621-6575R | Output Module |
