Product Introduction

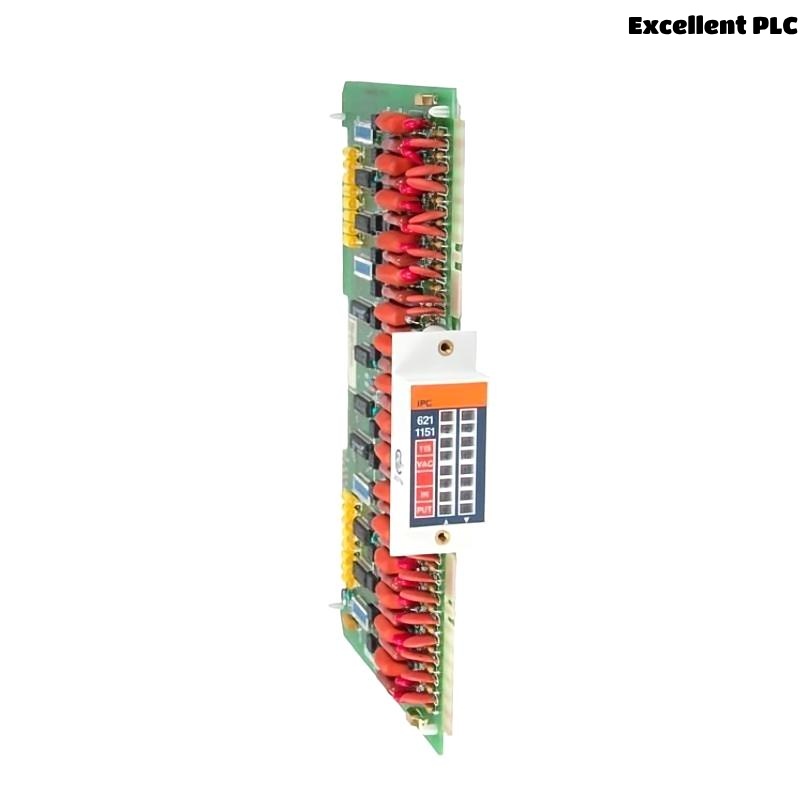

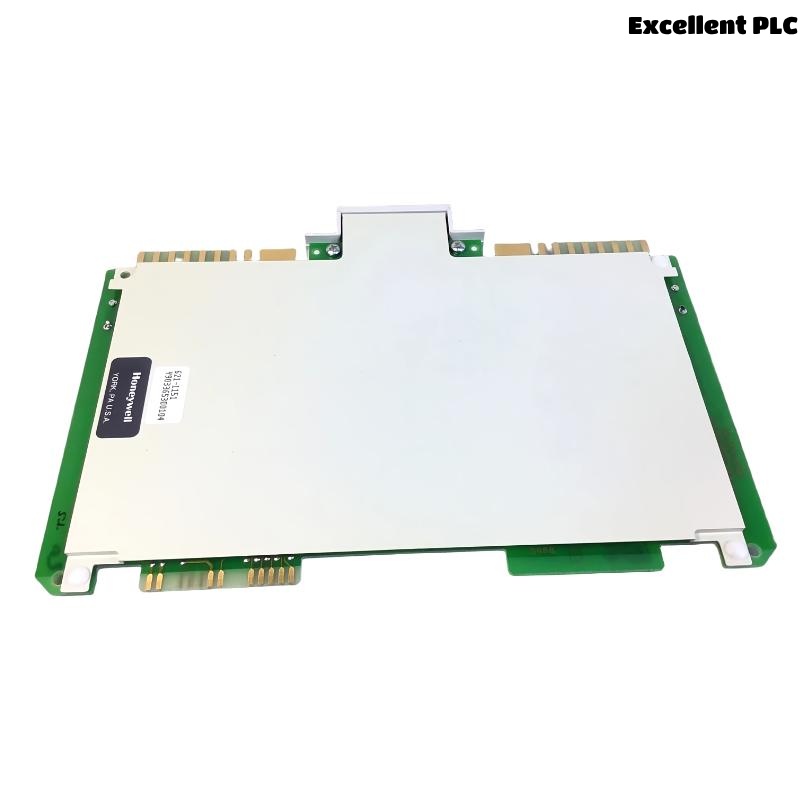

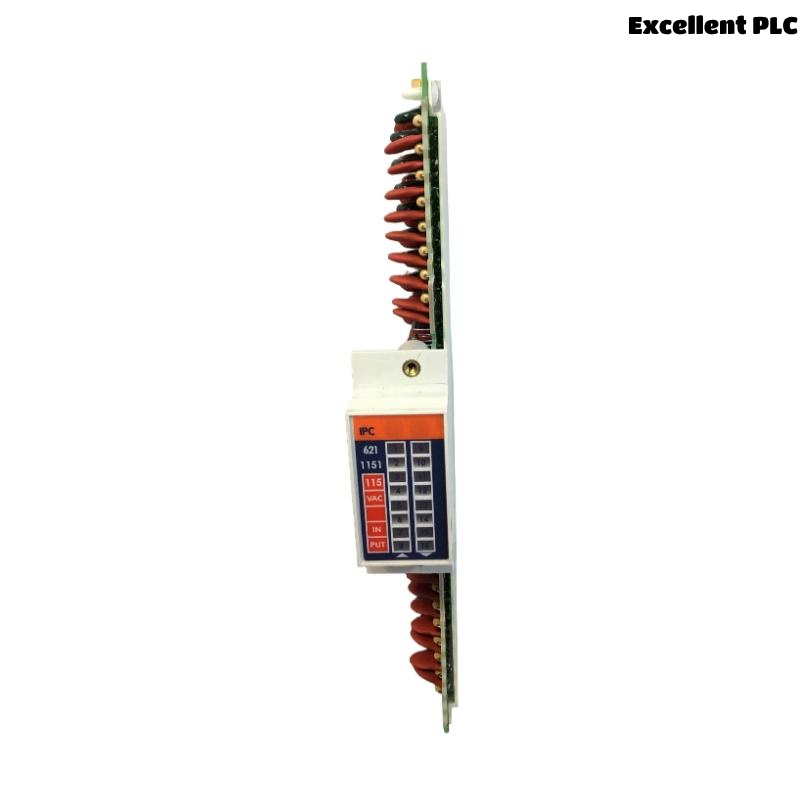

The Honeywell 621-1151 Input Module is a versatile, high-precision analog input module engineered for use within Honeywell’s TDC 3000 and PlantScape Distributed Control Systems (DCS). Designed to collect analog data such as pressure, temperature, flow, and level measurements from a variety of sensors and transmitters, this module plays a crucial role in real-time industrial automation processes.
With multiple analog input channels and built-in filtering and diagnostics, the 621-1151 ensures accuracy, reliability, and consistent performance. It is commonly deployed in industries where accurate monitoring of analog signals is vital to safety, efficiency, and compliance—including power generation, oil and gas, chemical processing, water treatment, and manufacturing.
Whether integrated into legacy systems or maintained in long-term installations, the Honeywell 621-1151 continues to be a trusted component in process control architectures due to its robust design and dependable performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 621-1151 |
| Product Type | Analog Input Module |
| Input Channels | 8 channels (individually isolated) |
| Signal Type | 4–20 mA, 0–20 mA, 0–5 V, 1–5 V (configurable) |
| Input Resolution | 12–16 bit (depending on system config) |
| Input Impedance | >250 Ohms (current), >1 MΩ (voltage) |
| Accuracy | ±0.1% of span (typical) |
| Scan Time | 50 ms (typical, for all channels) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostics | Open circuit detection, signal validity |
| Operating Voltage Range | 18–30 VDC |
| Power Consumption | ≤ 4 W |
| Backplane Interface | Redundant I/O bus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted in standard Honeywell chassis |
| Dimensions (W × H × D) | 145 x 100 x 40 mm |
| Weight | 0.454 kg |
| Certifications | CE, UL, CSA, FM-approved |
Application Scenarios
The 621-1151 Analog Input Module is suitable for a wide array of process industries where analog signals need to be accurately and reliably measured. Its applications span across:
-
Oil & Gas: Monitoring pressure transmitters, temperature sensors, and flow meters.
-
Chemical Processing: Supervising critical control variables such as reactor temperatures and tank levels.
-
Power Generation: Handling analog input from turbines, boilers, and generators.
-
Water & Wastewater: Tracking pH sensors, flow sensors, and chemical dosing indicators.
-
Pharmaceutical Manufacturing: Reading cleanroom conditions and processing line instrumentation.
-
Mining & Metals: Processing temperature and vibration signals in ore processing and smelting systems.
Product Advantages
-
High-Precision Measurements: Offers stable and accurate analog readings with excellent resolution.
-
Wide Signal Compatibility: Supports multiple input signal types, including current and voltage.
-
Strong Electrical Isolation: Prevents signal interference and enhances system safety.
-
Built-in Diagnostics: Assures quick identification of sensor faults or wiring issues.
-
Robust Industrial Design: Performs reliably in harsh environments with wide temperature tolerance.
-
Redundant System Integration: Compatible with dual-redundant Honeywell I/O networks.
-
Flexible Configuration: Input types and ranges can be configured based on system needs.
-
Low Maintenance: Designed for long-term stability with minimal recalibration.
Frequently Asked Questions (FAQ)
-
What types of analog signals does the 621-1151 support?
It accepts standard current (4–20 mA, 0–20 mA) and voltage signals (0–5 V, 1–5 V). -
How many analog channels does this module provide?
It offers 8 isolated analog input channels per module. -
Does it support diagnostics for failed sensors?
Yes, it includes diagnostics for open circuit detection and signal quality verification. -
Is this module compatible with legacy TDC 3000 systems?
Absolutely. It is fully compatible with TDC 3000 and PlantScape systems. -
Can I mix current and voltage inputs in the same module?
No, channels are typically configured uniformly across the module for one signal type. -
How is the module mounted and wired?
It mounts in a Honeywell I/O chassis and connects via the system backplane and terminal blocks. -
Does the 621-1151 require calibration?
Calibration is minimal and generally only required during commissioning or if significant drift is observed. -
What is the input resolution and accuracy?
It provides 12–16 bit resolution and ±0.1% accuracy (typical). -
What is the typical response time of the module?
Around 50 ms for all channels under normal load conditions. -
Is the module suitable for hazardous areas?
Yes, when used within certified enclosures and configurations, it can be installed in Class I, Div 2 environments.
