Product Introduction

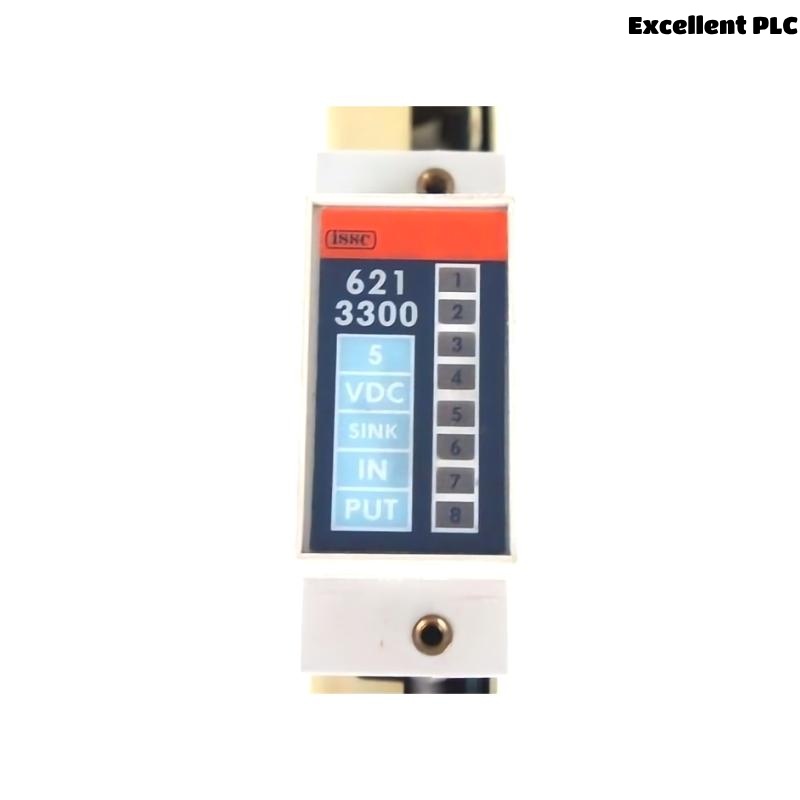

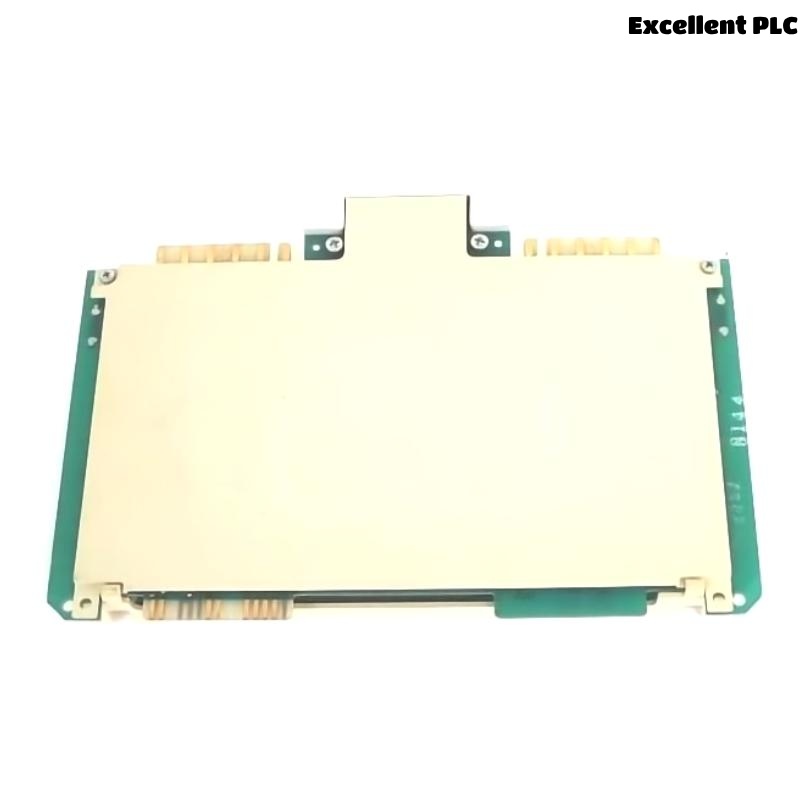

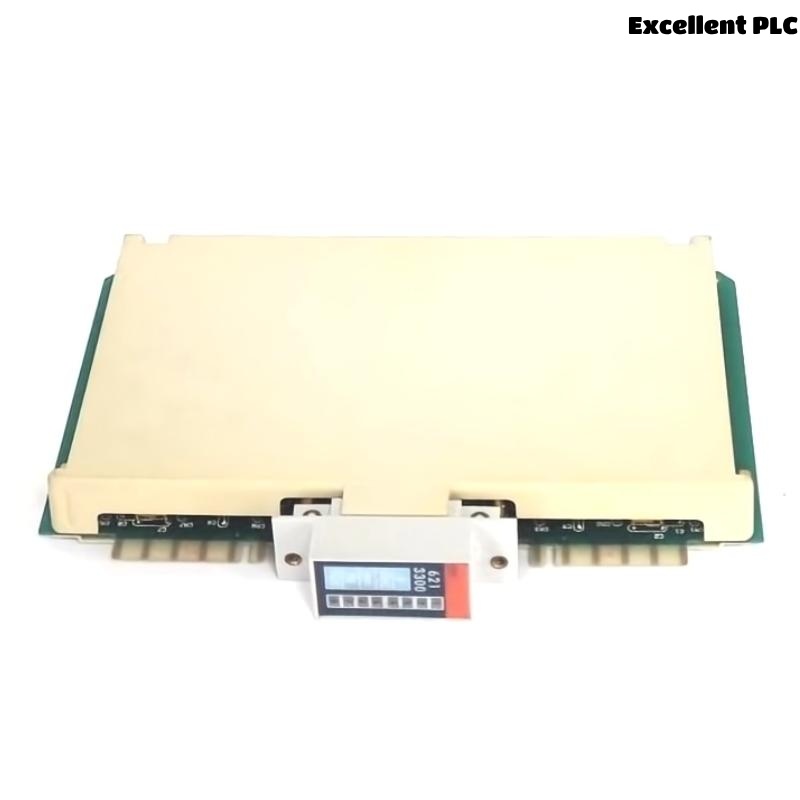

The Honeywell 621-3300 Input Module is a robust and reliable component in the Honeywell TDC 3000 control system, engineered for acquiring digital input signals from field devices. Designed to operate within demanding industrial environments, it serves as a critical interface between process-level instrumentation and higher-level control logic.
This module is typically deployed in DCS architectures where high-integrity signal acquisition is vital. It supports multiple discrete inputs and offers advanced features such as signal filtering, diagnostics, and fail-safe status retention. Its integration into Honeywell systems ensures consistent communication, improved system performance, and simplified maintenance procedures.
As part of Honeywell’s legacy of reliable automation hardware, the 621-3300 provides dependable input signal collection for alarms, interlocks, and system logic, allowing operators to confidently manage process safety and efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Digital Input Module |
| Model Number | 621-3300 |
| Brand | Honeywell |
| System Compatibility | TDC 3000 |
| Function | Digital input signal acquisition |
| Number of Input Channels | 16 channels |
| Input Voltage Range | 18–30 VDC |
| Input Type | Dry contact or voltage source |
| Input Signal Isolation | Optically isolated per channel |
| Input Impedance | Typically >10 kΩ |
| Scan Time | ≤ 10 ms |
| Power Consumption | Approx. 4.5 W |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Protection Rating | IP20 (installed in cabinet) |
| Dimensions (L × W × H) | 145 x 100 x 40 mm |
| Weight | 0.463 kg |
| Certifications | CE, UL, RoHS compliant |
Applications
The Honeywell 621-3300 Input Module is designed for discrete signal acquisition across a wide range of industrial sectors. It plays an essential role in:
-
Oil & Gas Facilities: Monitoring of pump status, pressure switch alarms, and emergency shutdown triggers.
-
Power Generation Plants: Collecting digital status inputs from turbine switches, breakers, and auxiliary systems.
-
Chemical Processing Units: Input from safety interlocks and batch process status indicators.
-
Water and Wastewater Treatment: Reading state information from valves, motors, and level switches.
-
Pharmaceutical Manufacturing: Managing interlock logic for critical safety and compliance functions.
-
Pulp and Paper Mills: Tracking status of machine sensors and process valves.
Product Advantages
-
Reliable Signal Acquisition: Captures critical digital inputs from field devices with high integrity.
-
Optical Isolation: Ensures channel-to-channel protection against voltage transients and noise.
-
Quick Response Time: Fast signal scanning supports time-sensitive interlocks and safety logic.
-
Simple Integration: Seamlessly fits into Honeywell’s TDC 3000 racks and backplanes.
-
Modular Design: Easy replacement and field maintenance without process disruption.
-
Diagnostic Support: Helps detect wiring issues or module faults to speed up troubleshooting.
Frequently Asked Questions (FAQ)
1. What is the main function of the Honeywell 621-3300 Input Module?
It collects 24VDC discrete signals from field devices such as pushbuttons, switches, and alarms, and sends them to the control system for logic processing.
2. How many digital inputs does the module support?
The 621-3300 provides 16 optically isolated digital input channels per module.
3. What type of signals are compatible with this input module?
It supports dry contact closures or externally powered 24VDC logic-level signals.
4. Can the 621-3300 be used with systems other than TDC 3000?
It is specifically engineered for Honeywell’s TDC 3000 DCS. Use with other systems is not supported without special adaptation.
5. Is each input channel isolated?
Yes, all input channels are individually optically isolated to improve signal integrity and electrical protection.
6. Does the module support field diagnostics?
Yes, the system interface can identify wiring errors or internal module faults, aiding in troubleshooting and maintenance.
7. How is the module installed and wired?
It is rack-mounted and connects to field wiring via I/O terminal blocks. Standard industrial wiring practices should be followed.
8. Is this module hot-swappable?
No, the module should only be installed or removed when the system is powered down to prevent potential damage.
9. How fast does the module scan inputs?
It typically scans all input channels in under 10 milliseconds, supporting real-time control needs.
10. What is the recommended operating environment?
It should be installed in a control cabinet, in environments between 0°C and 60°C with non-condensing humidity below 95%.
Related Models (Same or Related Series)
| Model | Part Number | Function | Compatibility |
|---|---|---|---|
| 621-3400 | 621-3400 | Digital Output Module | TDC 3000 |
| 621-3550 | 621-3550 | Analog Input Module | TDC 3000 |
| 621-3560 | 621-3560 | Analog Output Module | TDC 3000 |
| 621-2200 | 621-2200 | Enhanced CPU Interface | TDC 3000 / Experion |
| 621-1300 | 621-1300 | Communication Interface Module | TDC 3000 |
| 621-1100 | 621-1100 | Basic Diagnostic Module | TDC 3000 |
