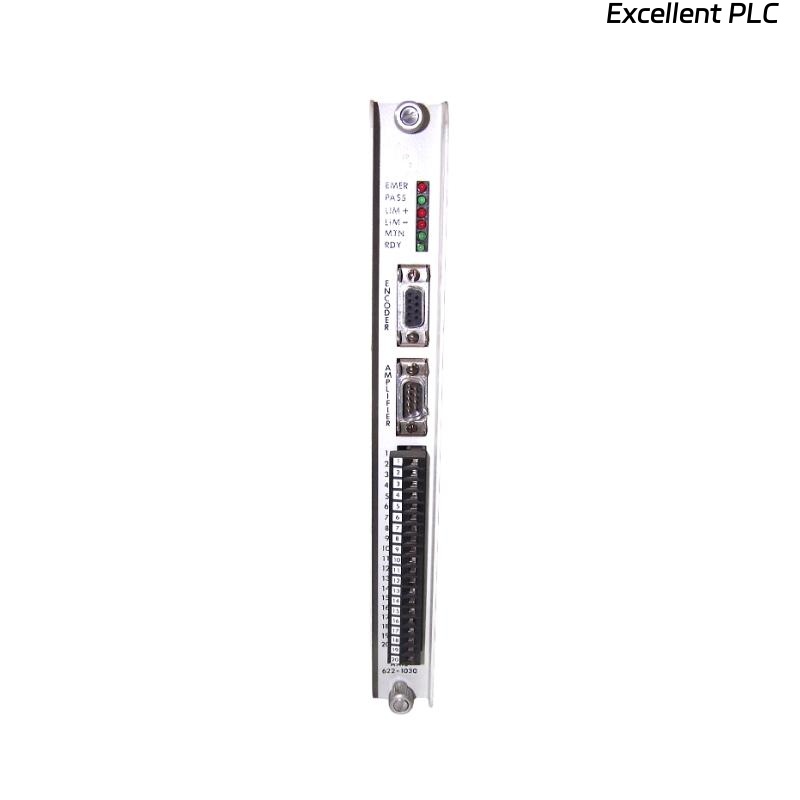

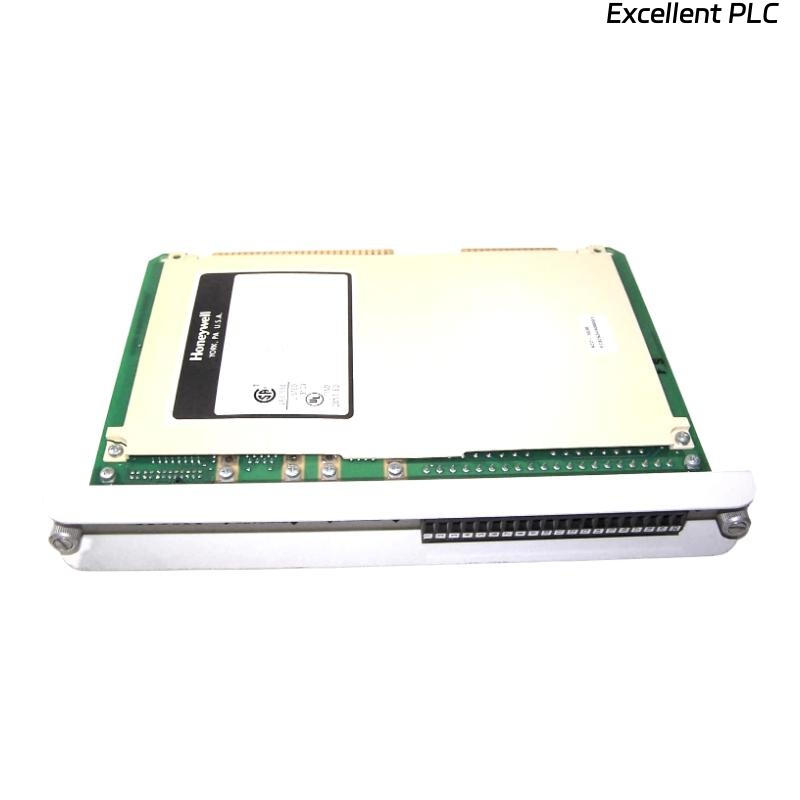

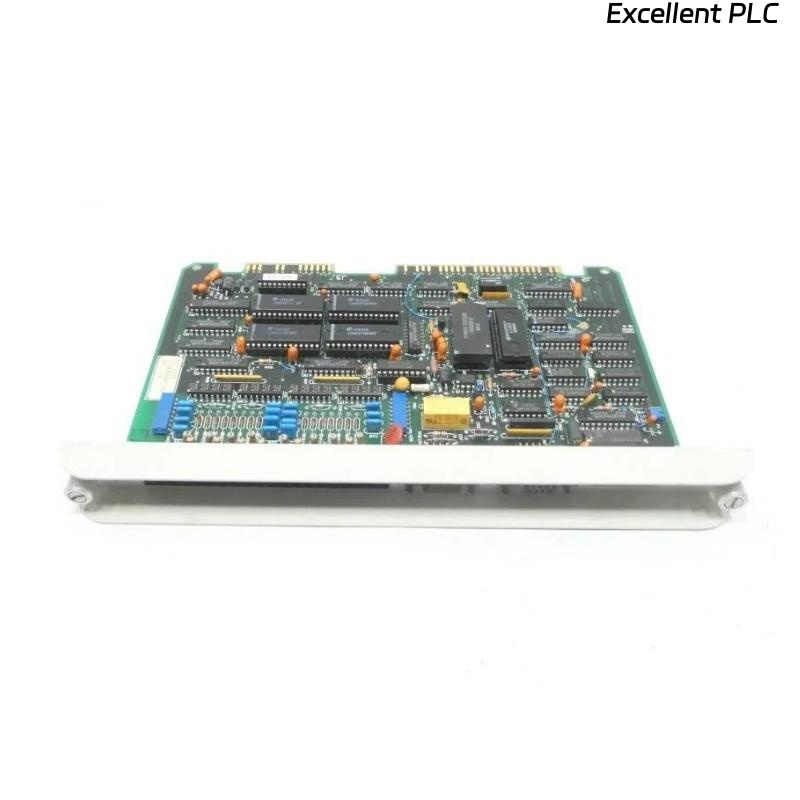

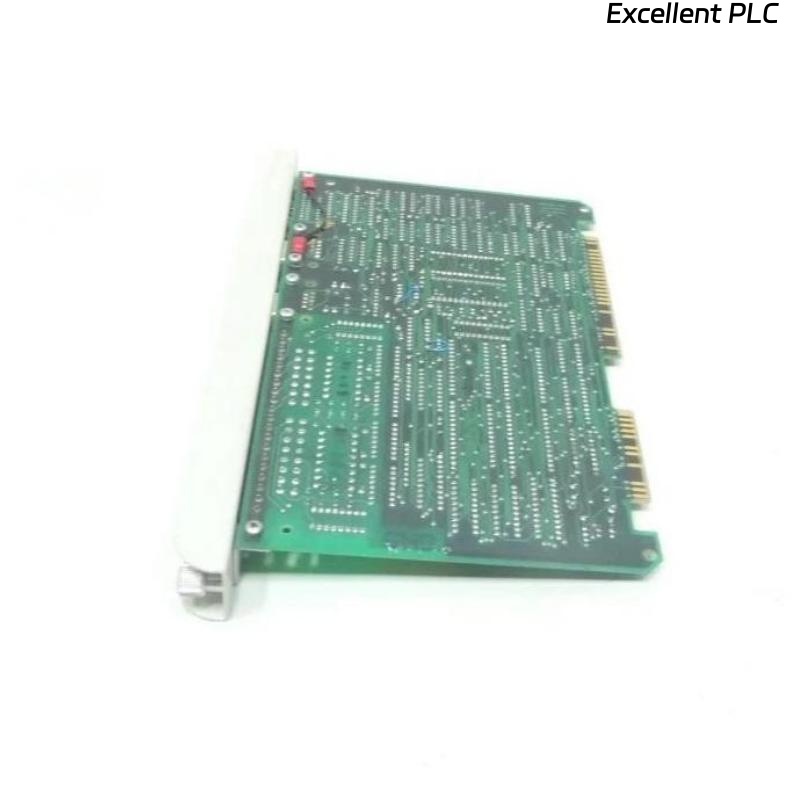

Honeywell 622-1030 Servo Axis Module
The Honeywell 622-1030 Servo Axis Module is designed for precise motion control in industrial automation systems. It provides reliable, high-performance servo axis control for complex machinery, ensuring accurate positioning and speed regulation. Its compact design and robust construction make it ideal for integration into demanding industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 622-1030 |
| Type | Servo Axis Module |
| Input Voltage | 24 VDC |
| Communication Protocol | Modbus / CANopen |
| Control Mode | Position, Velocity, Torque |
| Dimensions | 266.7 × 177.8 × 38.1 mm |
| Weight | 0.87 kg |
| Operating Temperature | 0 – 55 °C |
| Storage Temperature | -20 – 70 °C |
| Protection Class | IP20 |
| Mounting | DIN Rail / Panel Mountable |
Applications
-
Precision motion control in industrial automation
-
CNC machinery and robotic arms
-
Packaging and assembly lines
-
Material handling systems
-
Automated testing equipment
-
Factory process control
Advantages
-
Compact, lightweight design for easy integration
-
High-precision servo axis control
-
Flexible control modes: position, velocity, torque
-
Reliable operation under industrial conditions
-
Supports multiple communication protocols
-
Simplified installation and maintenance
FAQ
1. What is the input voltage for the 622-1030 module?
The module operates on 24 VDC power supply.
2. Which communication protocols are supported?
It supports Modbus and CANopen protocols for flexible system integration.
3. Can this module control both position and velocity?
Yes, it supports position, velocity, and torque control modes.
4. What is the operating temperature range?
It operates between 0 – 55 °C.
5. Is the module suitable for panel mounting?
Yes, it supports both DIN rail and panel mounting.
6. What is the protection class of this module?
The module has an IP20 protection rating.
7. How heavy is the 622-1030 module?
The module weighs 0.87 kg.
8. Can it be used in robotic applications?
Yes, it is suitable for robotic arms and automated machinery.
9. What are the dimensions of this module?
The dimensions are 266.7 × 177.8 × 38.1 mm.
10. Is this module compatible with other Honeywell servo products?
Yes, it is part of the Honeywell servo axis series and compatible with related modules.
Related Models (Same Series)
| Model | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 622-1031 | Servo Axis Module | 266.7 × 177.8 × 38.1 | 0.87 |
| 622-1032 | Servo Axis Module | 266.7 × 177.8 × 38.1 | 0.87 |
| 622-1040 | Servo Axis Module | 266.7 × 177.8 × 38.1 | 0.87 |
| 622-1045 | Servo Axis Module | 266.7 × 177.8 × 38.1 | 0.87 |
| 622-1050 | Servo Axis Module | 266.7 × 177.8 × 38.1 | 0.87 |
| 622-1055 | Servo Axis Module | 266.7 × 177.8 × 38.1 | 0.87 |
