Product Introduction

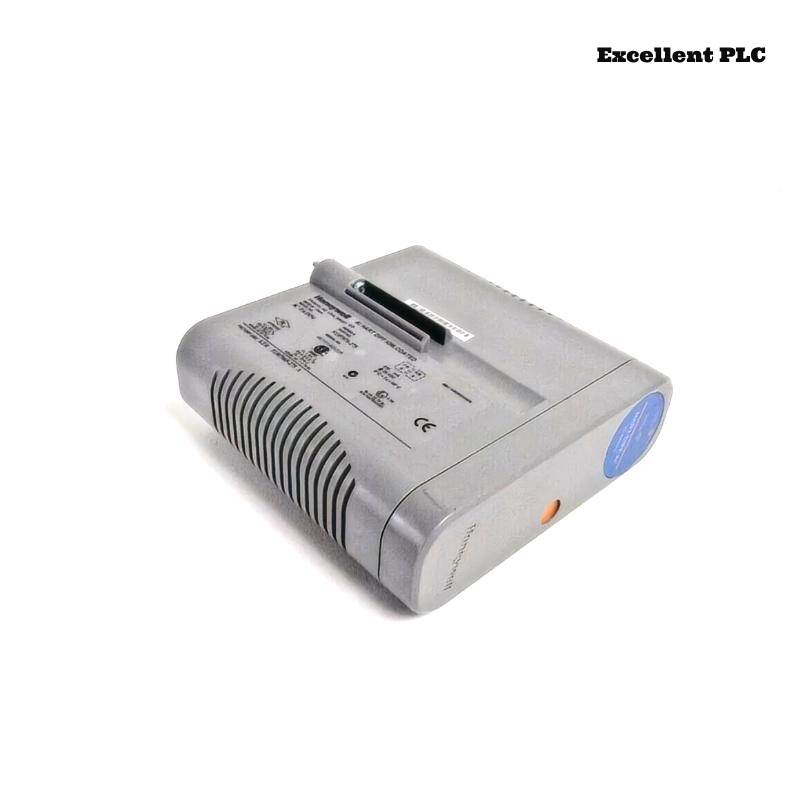

The Honeywell 8C-PAIH54 Analog Input Module (P/N: 51307070-275) is an integral part of the C300 I/O architecture within the Honeywell Experion Process Knowledge System (PKS) family. Designed to deliver high-precision analog signal processing, the 8C-PAIH54 provides secure, isolated analog input channels capable of handling industrial-standard signals like 4-20mA, voltage, and HART-enabled devices. This module is especially suited for demanding process environments where signal integrity, redundancy, and system uptime are critical.
A major enhancement over previous modules, the 8C-PAIH54 brings expanded diagnostics, channel isolation, and hot-swap capability, all housed in a compact, DIN-rail mountable form factor. Its robust build and compatibility with Experion’s fault-tolerant control systems make it a highly reliable component in process automation networks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 8C-PAIH54 |
| Part Number | 51307070-275 |
| Manufacturer | Honeywell |
| System Compatibility | Experion PKS / C300 Controller Series |
| Module Type | Analog Input Module |
| Input Signal Types | 4-20 mA, 0-10 V, HART (optional) |
| Number of Channels | 16 single-ended or 8 differential |
| Channel Isolation | Channel-to-channel and channel-to-ground |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Scan Time | 100 ms (typical) |
| Power Requirement | < 3.8 W |
| Operating Temp. Range | -40°C to +70°C |
| Storage Temp. Range | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| HART Protocol Support | Yes (via configuration) |
| Hot Swap Capability | Yes |
| Mounting Type | Vertical on I/O carrier (DIN Rail) |
| Dimensions (H × W × D) | 220 x 120 mm |
| Weight | 0.3 kg |
| Compliance/Certifications | CE, UL, FM, CSA, ATEX (depends on configuration) |
Applications
The Honeywell 8C-PAIH54 module is purpose-built for industrial process automation and excels in sectors where accurate and timely analog signal acquisition is essential. Common deployment areas include:
-
Petroleum Refineries and Chemical Plants
-
Natural Gas Processing Facilities
-
Thermal and Hydroelectric Power Stations
-
Pharmaceutical and Biotech Manufacturing
-
Food and Beverage Production
-
Water Treatment and Distribution Plants
-
Mining and Metallurgy Operations
-
Marine and Offshore Oil Platforms
Whether it’s pressure, level, temperature, or flow signals—this module handles them all with precision.
Product Advantages
High Accuracy with Full Isolation
Ensures reliable signal integrity, even in electrically noisy environments.
HART Support for Smart Devices
Enables digital communication with field devices, simplifying diagnostics and configuration.
16 Channels with Compact Footprint
Space-efficient design reduces cabinet size and I/O wiring complexity.
Hot Swappable for Zero Downtime
Maintenance or replacement doesn’t interrupt process operations.
Integrated into Experion PKS
Seamless compatibility with Honeywell’s state-of-the-art process control systems.
Durability Across Environments
Industrial-grade specs suitable for harsh temperatures and high humidity zones.
Advanced Diagnostics
Real-time fault detection and health monitoring reduce troubleshooting time.
