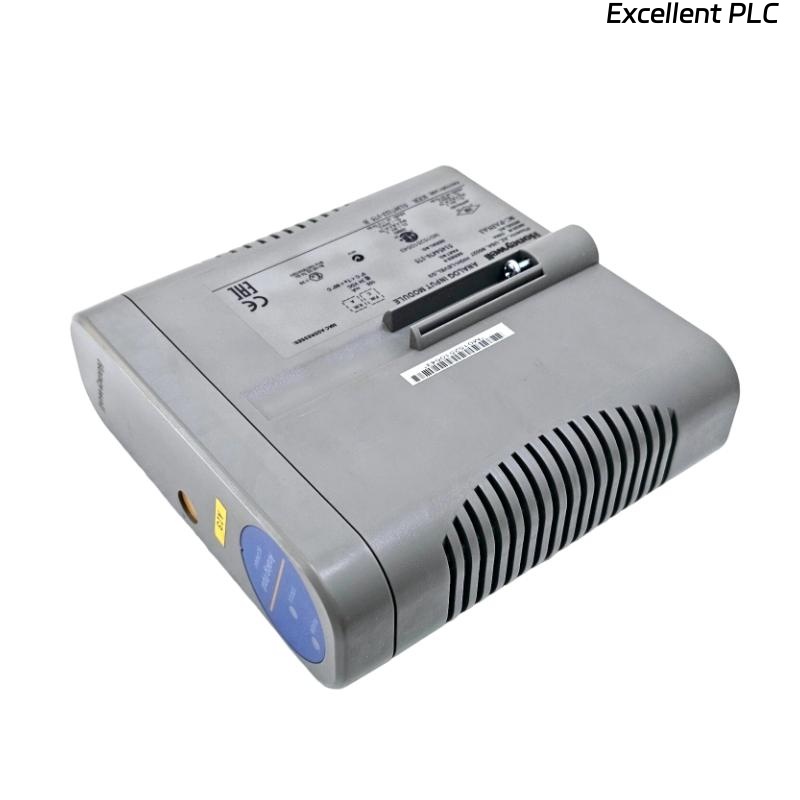

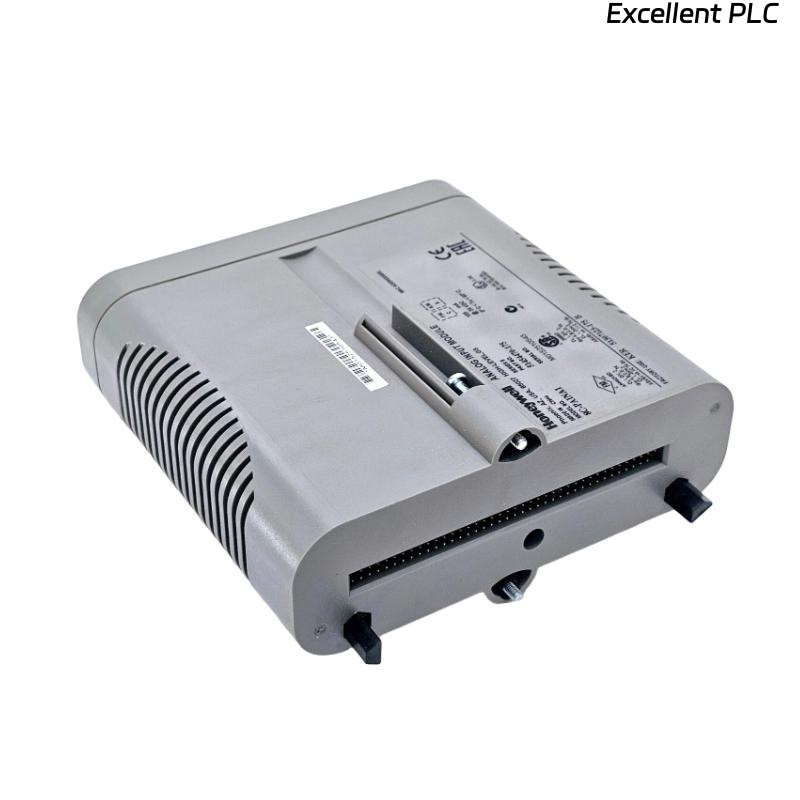

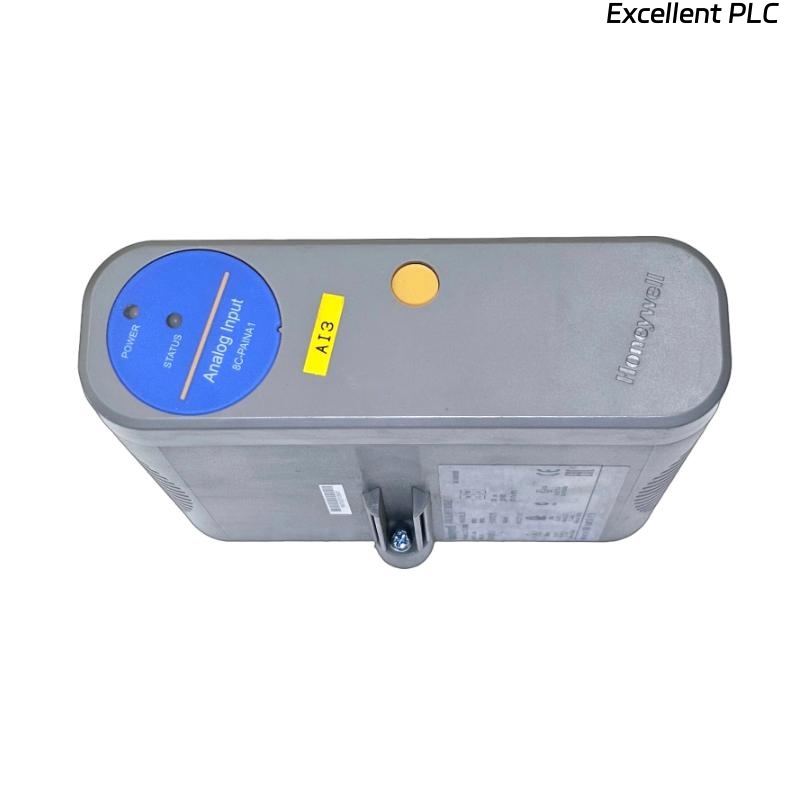

Honeywell 8C-PAINAI Analog Input Module

Product Introduction

The Honeywell 8C-PAINAI Analog Input Module is an advanced analog input module designed for industrial automation and process control systems. It provides high-precision acquisition of analog signals such as voltage, current, and thermocouple inputs. The module enables reliable data capture for monitoring, control, and diagnostic purposes within distributed control systems (DCS) and safety instrumented systems (SIS).

The module supports multiple analog signal types, offering high-resolution measurement and fast response time. With its robust industrial-grade design, the 8C-PAINAI ensures stable performance in demanding environments, including chemical plants, refineries, power generation, and manufacturing facilities.

Product Specifications

Product Applications

• Industrial Automation: Captures analog signals from sensors and transmitters for DCS systems.

• Process Control: Measures temperature, pressure, flow, and level signals in refineries and chemical plants.

• Power Generation: Monitors generator and turbine analog parameters.

• Safety Instrumented Systems (SIS): Provides input data for safety logic and alarm triggering.

• Factory Automation: Integrates with PLCs for real-time analog monitoring.

• Data Acquisition Systems: Ensures high-accuracy signal capture for analysis and diagnostics.

Product Advantages

• High Accuracy and Resolution: 16-bit resolution ensures precise analog signal measurement.

• Multi-Signal Support: Compatible with voltage, current, and thermocouple inputs.

• Fast Response Time: Sub-10 ms response for dynamic process control.

• Robust Industrial Design: EMI protection and surge resistance maintain signal integrity.

• Flexible Mounting: DIN rail or panel mounting for versatile installation.

• Channel Isolation: Prevents cross-channel interference and enhances measurement reliability.

• Wide Temperature Range: Operates reliably in extreme industrial environments.

FAQ

1. What types of analog signals does the 8C-PAINAI support?
   It supports voltage (0-10 V), current (0-20 mA), and thermocouple signals (types J, K, T, E).

2. How many input channels are available on this module?
   The module provides 8 independent analog input channels.

3. What is the resolution of the analog inputs?
   Each channel provides 16-bit resolution for precise measurement.

4. Is the module isolated for industrial safety?
   Yes, it features channel-to-channel isolation to prevent interference.

5. Can it be mounted in standard control cabinets?
   Yes, it supports both DIN rail and panel mounting for versatile installation.

6. What is the response time of the module?
   The analog inputs respond within 10 milliseconds, suitable for fast process control.

7. Does it support temperature measurement with thermocouples?
   Yes, it supports common thermocouple types including J, K, T, and E.

8. Is the module protected against electrical noise?
   Yes, it includes EMI shielding and surge protection to ensure signal integrity.

9. Can it operate in extreme temperatures?
   It operates from -20°C to +70°C, ensuring performance in industrial environments.

10. What kind of power supply is required?
    The module operates with a 24 V DC industrial power supply.
