Product Introduction

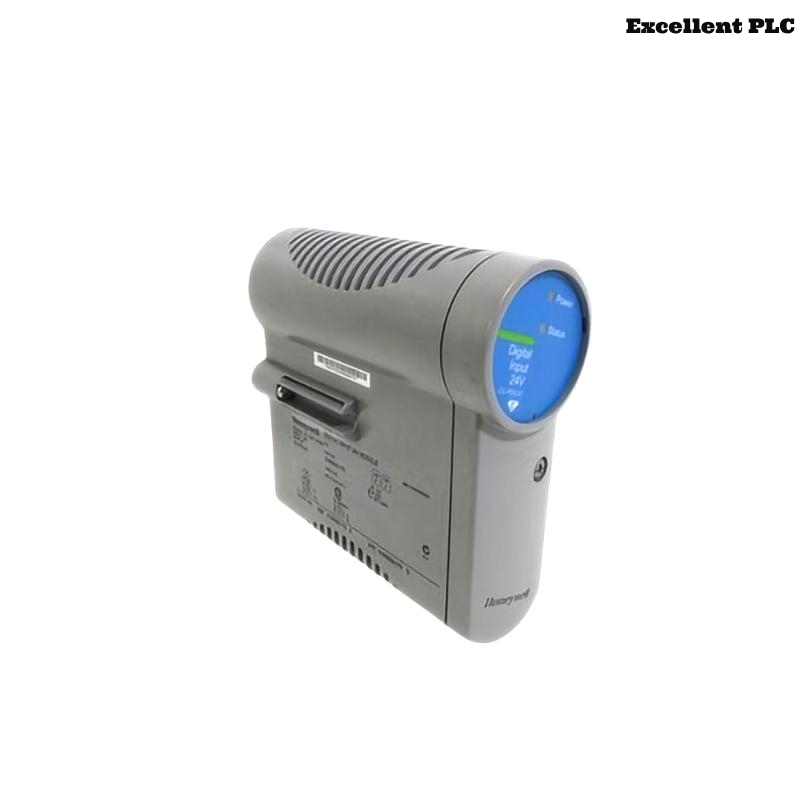

The Honeywell 8C-PDIS01 (Part Number: 51454360-175) is a 24 VDC Digital Input Module designed for high-speed, reliable acquisition of discrete signals within industrial process automation systems. It is a critical component of the Experion PKS system architecture, particularly in control environments where timely and accurate feedback of digital field statuses (such as on/off, open/closed, start/stop) is essential.
This module is part of Honeywell’s renowned Series 8 line, known for modularity, system integration efficiency, and enhanced diagnostics. Whether it’s monitoring limit switches, pressure switches, or digital alarms, the 8C-PDIS01 ensures optimal responsiveness and minimal downtime in control operations. Designed to support hot-swap capability, this module contributes significantly to system maintainability and overall equipment effectiveness (OEE).
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 8C-PDIS01 |
| Part Number | 51454360-175 |
| Product Type | Digital Input Module |
| Manufacturer | Honeywell |
| System Compatibility | Experion PKS / C300 Controller |
| Number of Input Channels | 16 Digital Inputs |
| Input Signal Type | Dry Contact / Voltage-type (24 VDC typical) |
| Input Voltage Range | 18 VDC to 30 VDC |
| Input Logic | Sourcing / Sinking |
| Input Threshold Voltage | Logic High: ≥15 VDC / Logic Low: ≤5 VDC |
| Isolation | Optical Isolation (Field-to-Logic) |
| Channel-to-Channel Isolation | No (common reference) |
| Module Diagnostics | Channel-wise LED status indication |
| Hot Swap Capability | Yes (Supported under power) |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Shock & Vibration Rating | IEC 60068 Compliant |
| Mounting | Horizontal DIN-rail or chassis rack |
| Dimensions (L x W x H) | 60 x 155 x 145 mm |
| Weight | 0.3 kg |
Product Applications
-
Oil & Gas Automation: Capturing input from pressure switches, flow sensors, and ESD interlocks.
-
Power Generation: Monitoring circuit breaker status, generator control signals, and safety lockouts.
-
Chemical & Petrochemical Plants: Discrete signal tracking for pumps, valves, alarms, and interlocks.
-
Water and Wastewater: Monitoring float switches, contactors, and motor protection relays.
-
Manufacturing Plants: Detecting machine position switches, conveyor status, and safety mats.
-
Infrastructure Automation: Used in SCADA and PLC-based systems to monitor facility-wide discrete inputs.
Product Advantages
-
Industrial-Grade Design: Engineered for long-term use in harsh environments with temperature and vibration tolerance.
-
Hot Swappable: Allows replacement without shutting down the system—minimizes process interruptions.
-
LED Channel Diagnostics: Built-in status indicators reduce troubleshooting time during commissioning and maintenance.
-
Compact & Modular: Optimizes cabinet space and supports easy integration in high-density systems.
-
Reliable Signal Detection: Optical isolation ensures safe and accurate signal processing between field and controller logic.
-
Flexible Input Type: Compatible with dry contact switches and electronic sensors—sourcing or sinking.
-
System Integration: Natively supports Honeywell Experion PKS architecture, ensuring compatibility and simplified configuration.
-
Reduced Maintenance: With module health diagnostics and reduced wiring complexity, it promotes long-term efficiency.
Frequently Asked Questions (FAQ)
-
Q: What type of signals can the 8C-PDIS01 module detect?
A: It can detect both dry contact and 24VDC voltage-based discrete signals. -
Q: How many inputs does the module support?
A: It supports 16 individual digital input channels. -
Q: Is the module suitable for high-speed detection?
A: Yes, it provides rapid input status updates ideal for real-time process control. -
Q: Can the module be replaced while the system is running?
A: Yes, it supports hot swapping for live system replacement. -
Q: Does it provide input isolation?
A: Yes, it includes optical isolation between field and controller logic levels. -
Q: What diagnostic features are available?
A: It features per-channel status LEDs to aid in troubleshooting and verification. -
Q: What environments is it rated for?
A: It is certified for 0–60°C operating temperatures and 5–95% relative humidity. -
Q: Can it interface with third-party digital sensors?
A: Yes, as long as the signal levels are within the specified 18–30 VDC range. -
Q: Is this module suitable for use in safety instrumented systems (SIS)?
A: While highly reliable, use in SIS should follow specific project certification and application requirements. -
Q: What is the physical footprint of the module?
A: The module measures 60 x 155 x 145 mm and weighs around 0.3 kg.
