Product Introduction

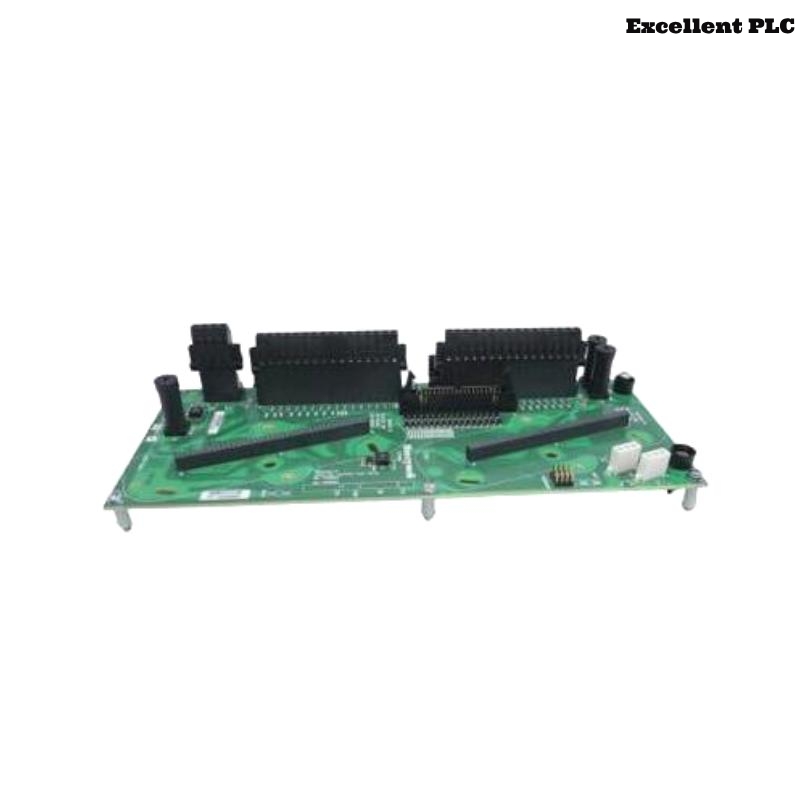

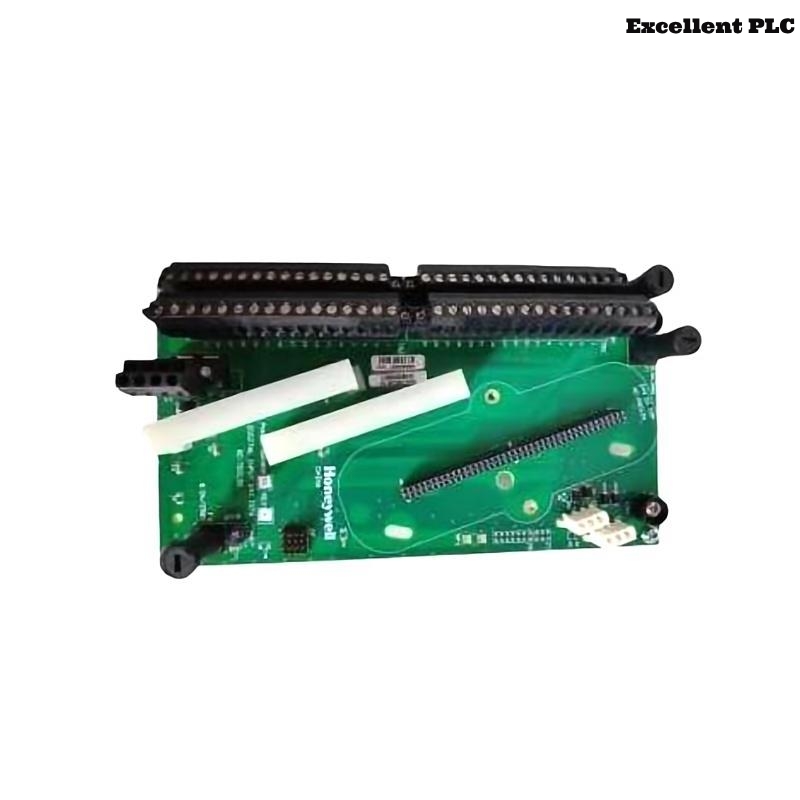

The Honeywell 8C-TDOD61 51306973-175 is a high-performance Digital Output (DO) module designed for use within Honeywell’s ControlEdge™ and Experion® Process Knowledge System (PKS). This module is commonly employed in distributed control systems (DCS) and programmable logic controller (PLC) environments where precise and reliable digital output operations are essential. Engineered to perform under demanding industrial conditions, the 8C-TDOD61 offers a robust solution for controlling actuators, solenoids, relays, and other field devices. With its compact design and high-speed output switching capability, it ensures minimal latency and improved operational efficiency.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 8C-TDOD61 |
| Part Number | 51306973-175 |
| Manufacturer | Honeywell |
| Product Type | Digital Output Module |
| Number of Outputs | 16 channels (Isolated) |
| Output Type | Discrete / Digital (24 VDC, sourcing) |
| Output Voltage Range | 18–30 VDC |
| Maximum Output Current | 0.5 A per channel |
| Isolation | Channel-to-channel and channel-to-ground |
| Protection | Overcurrent and short-circuit protection |
| Diagnostics | Channel status, error reporting |
| LED Indicators | Channel output and fault indication |
| Power Consumption | Typically < 5 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN rail or rack-mounted |
| Communication Interface | FTE (Fault Tolerant Ethernet) / IO Link |
| Compliance | CE, UL, CSA, ATEX, IECEx |
| Module Dimensions | 130 × 30 × 145 mm |
| Module Weight | 0.45 kg |
Product Applications
The 8C-TDOD61 module finds applications across a wide range of industrial automation environments, including:
-
Power Plants: For controlling switchgear and circuit breakers.
-
Oil & Gas Refineries: To operate solenoids, valves, and indicators.
-
Chemical Processing Plants: Enables safe and reliable digital control of chemical flows.
-
Pharmaceutical Manufacturing: Assures compliance with automation requirements through validated control.
-
Water & Wastewater Treatment: Manages pumps and motors in process control systems.
-
Food & Beverage Industry: Automates machinery such as conveyors and packaging equipment.
-
Manufacturing Plants: Suitable for machine control and safety interlocks.
Product Advantages
-
High Reliability: Designed for 24/7 industrial environments with built-in diagnostics and fault tolerance.
-
Scalability: Easily integrates into existing Honeywell Experion PKS and ControlEdge platforms.
-
Modular Architecture: Allows for quick replacement and flexible I/O configuration.
-
Reduced Downtime: Advanced diagnostics enable quick fault identification and maintenance.
-
Secure Communications: Supports secure protocols and integrated cybersecurity features.
-
Environmental Tolerance: Operates effectively in extreme temperatures and harsh conditions.
-
Compact Design: Space-saving module suitable for densely packed control cabinets.
-
Compliance Ready: Meets global standards for safety and performance certifications.
Frequently Asked Questions (FAQ)
-
Q: What system platforms is the 8C-TDOD61 compatible with?
A: It is compatible with Honeywell’s Experion PKS and ControlEdge systems. -
Q: Can this module be hot-swapped?
A: Yes, it supports hot-swapping within redundant configurations to avoid downtime. -
Q: Is this module certified for hazardous environments?
A: Yes, it complies with ATEX and IECEx standards for use in potentially explosive atmospheres. -
Q: How many digital outputs does the module support?
A: It supports 16 individually isolated digital output channels. -
Q: What kind of diagnostics are available?
A: The module includes channel-level diagnostics for short circuit, open circuit, and general faults. -
Q: Can it drive inductive loads like solenoids or relays?
A: Yes, it is specifically designed to handle inductive loads with built-in protection. -
Q: How is the module mounted?
A: It can be mounted on a DIN rail or within a system rack, depending on the setup. -
Q: Is there a visual indicator for output activity?
A: Yes, each channel has an individual LED for status indication. -
Q: What is the power requirement of the module?
A: The module consumes less than 5 watts during typical operation. -
Q: Does the module support redundancy?
A: Yes, it can operate in redundant configurations to ensure high availability.
