Product Overview

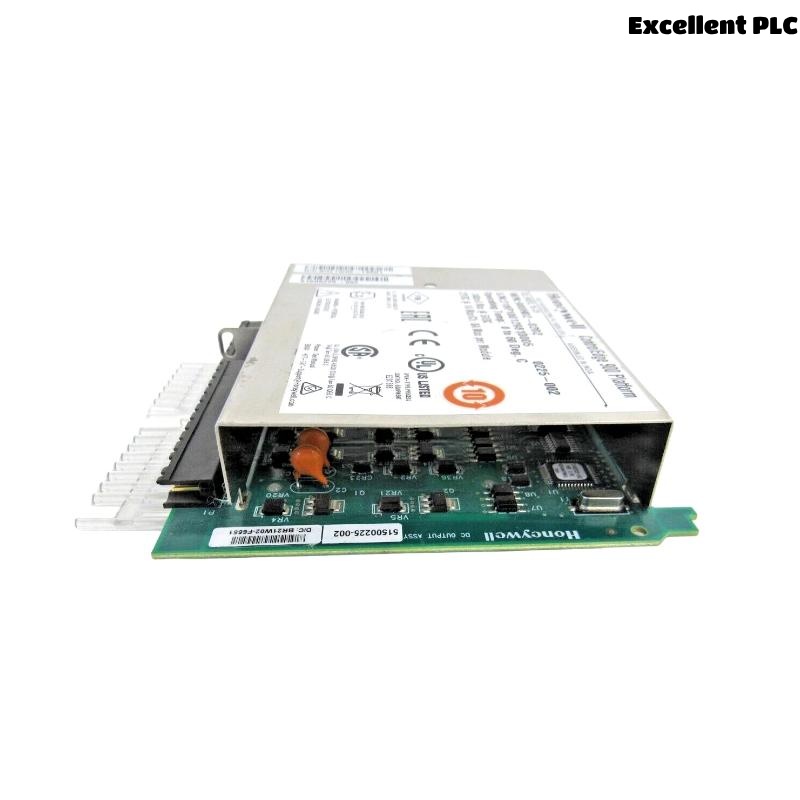

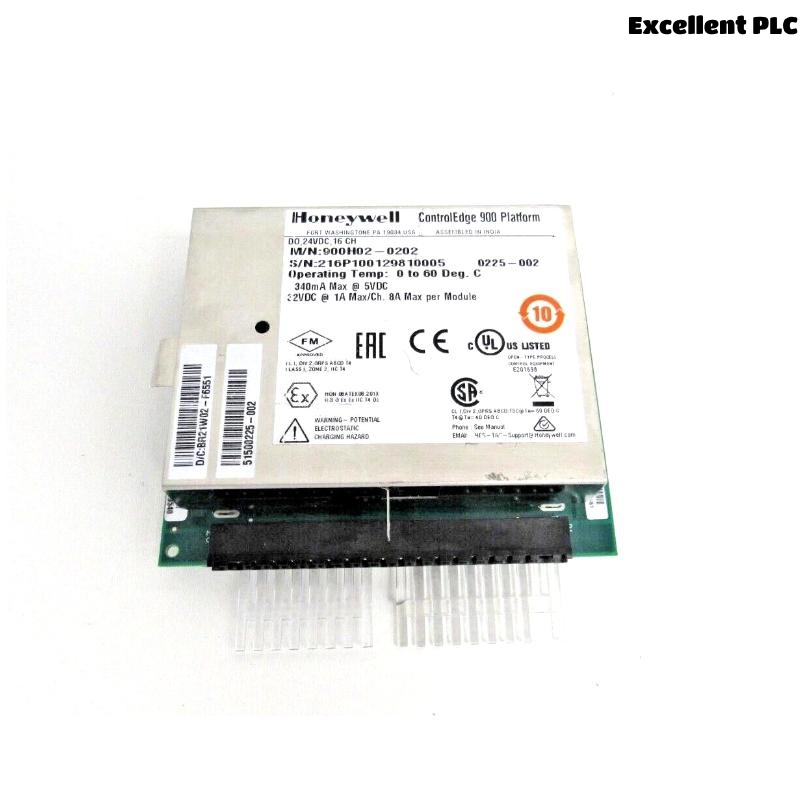

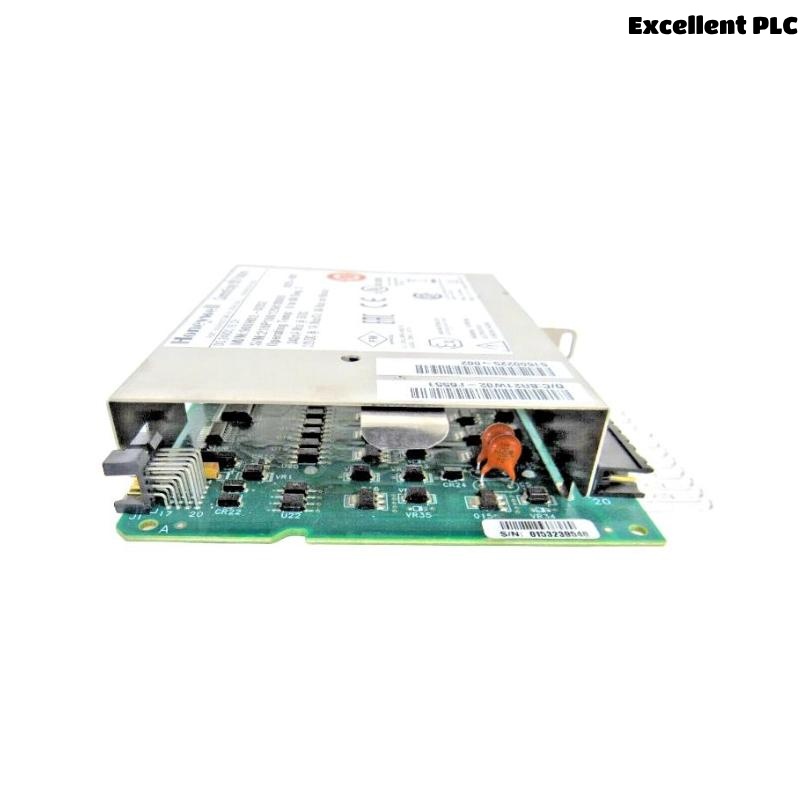

The Honeywell 900H02-0202 is a 16-channel DC digital output module for the ControlEdge HC900 system. It delivers reliable low-side (sinking) switching for industrial automation needs. This module is designed with built-in electronic protection and high-performance diagnostics, making it ideal for robust process control environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Output Channels | 16 (low-side, sinking type) |
| Output Groups | 2 groups of 8 outputs |
| Voltage Range | 6.5 to 32 VDC |
| Peak Voltage | 34 VDC |
| Output Type | Intelligent Power Switch (IPS) |
| Max Load Current | 1 A per point; 8 A total per module |
| Inrush Current | 4 A for 10 ms |
| Minimum Load | 0.0 mA |
| ON Voltage Drop | 0.3 VDC @ 1A load |
| Overload Protection | Electronic (resets after power cycle) |
| Galvanic Isolation | 2 isolated groups of 8 channels |
| Response Time (ON/OFF) | 6 ms |
| Power Supply Loading | 5V: 340 mA; 24V: 0 mA |
| Dimensions | 137 x 35.6 x 137.16 mm |
| Weight | 0.425 kg |
Applications
-
Discrete automation systems
-
Industrial process control
-
Actuator and solenoid switching
-
Packaging machinery
-
Water treatment plants
-
Furnace and burner management systems
Key Advantages
-
Independent electronic overload protection per channel
-
Fast ON/OFF switching (6 ms)
-
Galvanic isolation ensures signal integrity
-
Compact DIN rail mountable size
-
Hot-swappable for quick maintenance
-
Built-in status LEDs for every channel
FAQ – Frequently Asked Questions
Q1: How many output channels are available on the 900H02-0202 module?
A1: The module has 16 digital output channels grouped into two sets of 8.
Q2: What type of outputs does this module support?
A2: It supports current sinking (low-side) digital outputs.
Q3: What is the maximum current supported per channel?
A3: Each channel can handle up to 1 A resistive load.
Q4: Is the module protected against overcurrent or overtemperature?
A4: Yes, it features electronic current and temperature protection with auto-reset after power recycling.
Q5: What is the voltage range for operation?
A5: The module operates between 6.5 VDC and 32 VDC.
Q6: Can the module be replaced while the system is powered on?
A6: Yes, it supports hot swapping without powering down the system.
Q7: How is the module mounted?
A7: It is DIN rail mountable.
Q8: Are the output channels galvanically isolated?
A8: Yes, two groups of 8 channels each are galvanically isolated from each other and from logic.
Q9: What is the weight and dimension of the module?
A9: It measures 137 x 35.6 x 137.16 mm and weighs 0.425 kg.
Q10: What LED indicators are provided?
A10: Each channel has a green LED for ON status; the module also includes status LEDs for scanning and diagnostics.
Related Honeywell ControlEdge 900 Series Models
| Model Number | Description | Channels | Voltage Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 900H01-0202 | Relay Output Module (8 Ch) | 8 | Relay (AC/DC) | 137 x 35.6 x 137.16 | 0.425 kg |
| 900H03-0202 | Digital Output 120/240 VAC (8 Ch) | 8 | AC | 137 x 35.6 x 137.16 | 0.230 kg |
| 900H32-0102 | Digital Output 24VDC (32 Ch) | 32 | DC | 137 x 35.6 x 137.16 | 0.180 kg |
| 900G01-0202 | Digital Input Contact Type (16 Ch) | 16 | Dry Contact | 137 x 35.6 x 137.16 | 0.354 kg |
| 900G32-0101 | Digital Input 24VDC (32 Ch) | 32 | DC | 137 x 35.6 x 137.16 | 0.175 kg |
| 900G03-0202 | Digital Input 120/240 VAC (16 Ch) | 16 | AC | 137 x 35.6 x 137.16 | 0.210 kg |
