Product Overview

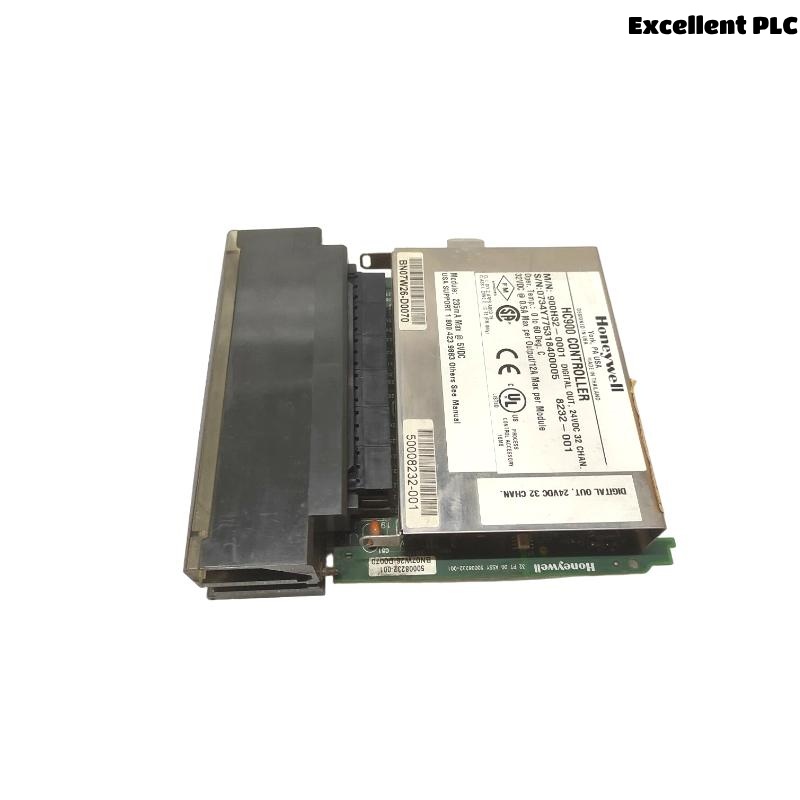

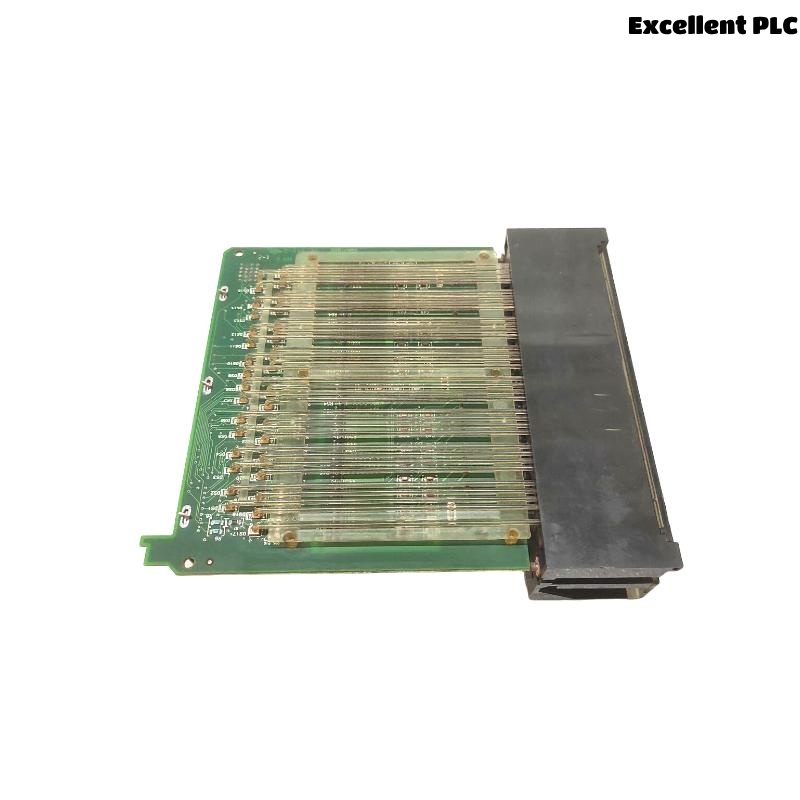

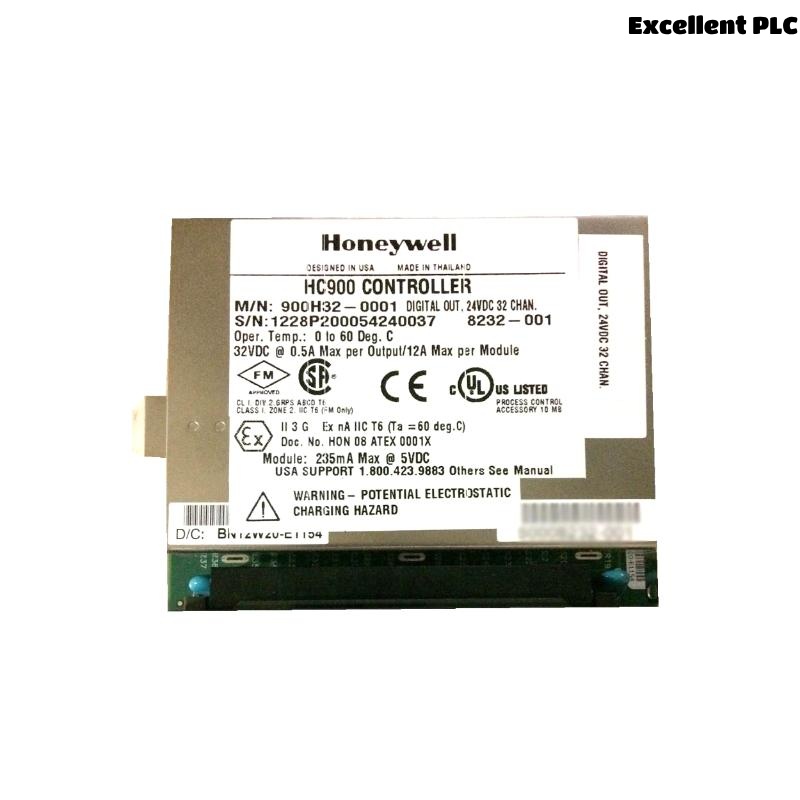

The Honeywell 900H32-0001 32-Point Digital Output Module is a robust and versatile module designed for controlling and monitoring industrial output devices in automated systems. As part of Honeywell’s high-performance series of I/O modules, it offers 32 digital output points, making it suitable for applications requiring high-density output control. This module is ideal for use in industries such as manufacturing, process automation, and building systems, where precise control over a large number of digital output devices is required.
It is designed for seamless integration with Honeywell’s control systems, but it is also compatible with other systems in various automation setups. The module supports dry contact (SPDT) outputs, which are commonly used for controlling relays, actuators, and other digital devices in industrial environments. The 900H32-0001 module is known for its high reliability, ease of use, and low maintenance requirements.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | 900H32-0001 |
| Type | 32-Point Digital Output Module |
| Output Type | Dry Contact (SPDT) |
| Number of Channels | 32 Outputs |
| Voltage Rating | 24 VDC |
| Current Rating | 2 Amps per Channel |
| Dimensions (H x W x D) | 137 × 35.6 × 137.16 mm |
| Weight | 0.408 kg |
| Mounting | DIN Rail or Panel Mount |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Power Consumption | 4 W |
Applications of the Honeywell 900H32-0001 32-Point Digital Output Module
The Honeywell 900H32-0001 is highly adaptable and can be used across a variety of industrial and commercial applications:
-
Factory Automation: Ideal for controlling multiple actuators, relays, and motors across production lines.
-
Process Control: In industrial plants, it can manage digital output devices such as solenoids, valve actuators, or pumps.
-
Building Management Systems (BMS): Used to control lighting, HVAC systems, and security devices in large buildings or campuses.
-
Energy Management: For managing power control systems, load switching, or energy-efficient automation processes.
-
Control Systems: Often used in SCADA systems and PLC-based control systems for high-density I/O operations.
-
Safety Systems: Controls emergency shutdown systems or other safety-related outputs.
Advantages of the Honeywell 900H32-0001 32-Point Digital Output Module
-
High Channel Density: With 32 output points in a single module, it helps save valuable space in control cabinets and reduces wiring complexity.
-
Durable and Reliable: Designed to operate in harsh industrial environments, ensuring a long service life and minimal downtime.
-
Flexible Mounting Options: Supports both DIN rail and panel mounting, allowing for easy integration into existing setups.
-
Low Power Consumption: Consumes only 4 W, making it energy-efficient and suitable for a variety of power budgets.
-
Wide Operating Temperature Range: Operates reliably in temperatures from -20°C to 60°C, making it versatile for different environments.
-
Easy Integration: Seamlessly integrates into Honeywell control systems, and is also compatible with a wide range of other industrial platforms.
-
Robust Output Control: Supports dry contact (SPDT) outputs that provide reliable control over digital devices like relays, solenoids, and actuators.
Frequently Asked Questions (FAQ)
-
How many output channels does the Honeywell 900H32-0001 have?
-
The module provides 32 output channels.
-
-
What is the maximum current rating per output channel?
-
Each output channel can handle up to 2 Amps.
-
-
What is the operating voltage for the module?
-
The module operates at 24 VDC.
-
-
How is the Honeywell 900H32-0001 mounted?
-
It can be mounted either on a DIN rail or directly to a panel.
-
-
What kind of output does the module provide?
-
It provides dry contact (SPDT) outputs, ideal for controlling relays or other digital devices.
-
-
What is the size of the module?
-
The dimensions are 137 × 35.6 × 137.16 mm
-
-
What is the weight of the Honeywell 900H32-0001?
-
The module weighs 0.408 kg.
-
-
Can the module be used in extreme environments?
-
Yes, it is designed to function in environments with temperatures ranging from -20°C to 60°C.
-
-
What applications are best suited for this module?
-
It is ideal for factory automation, process control, BMS, energy management, and more.
-
-
What is the power consumption of the module?
-
The Honeywell 900H32-0001 consumes 4 W of power.
-
