Overview

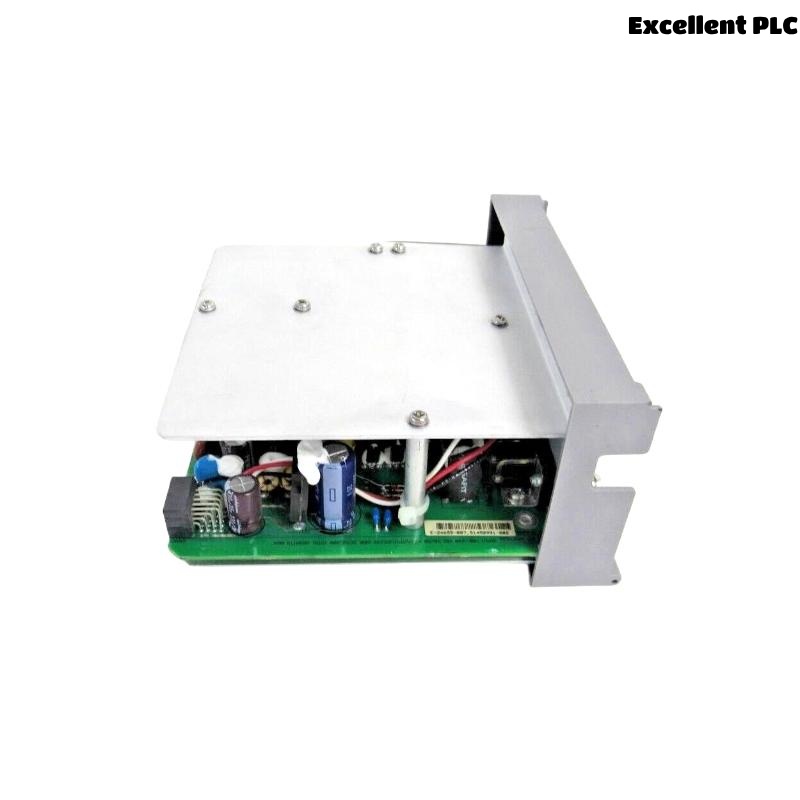

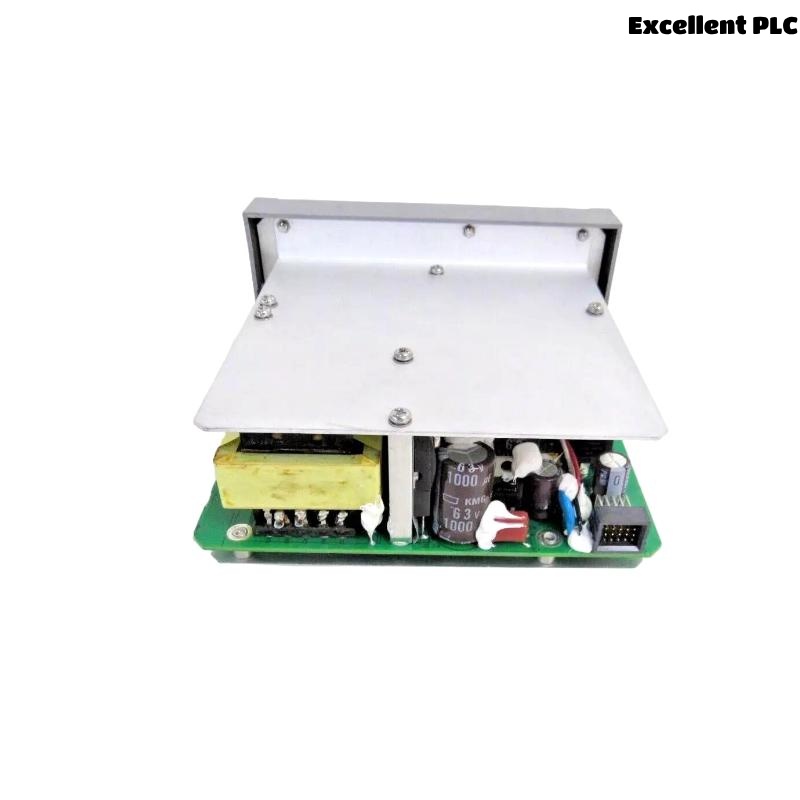

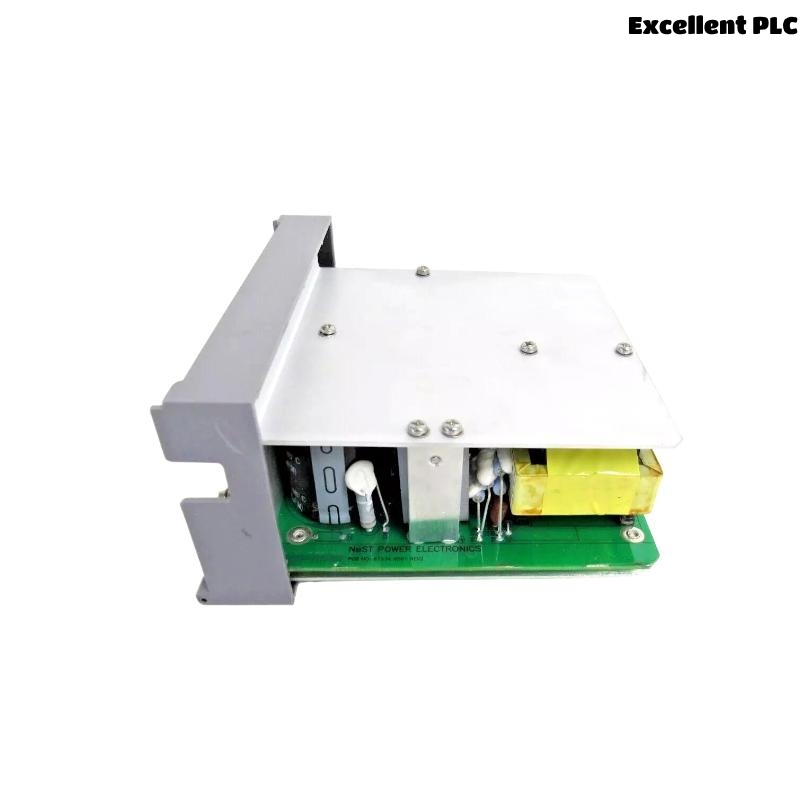

The Honeywell 900P01-0101 is a high-performance power supply module designed for the ControlEdge HC900 system. It delivers stable and efficient 24VDC power to controllers and I/O modules, ensuring uninterrupted operation in industrial automation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Dimensions | 137 x 72.6 x 151.7 mm |
| Weight | 0.82 kg |
| Input Voltage | 120/240 VAC |
| Output Voltage | 24 VDC |
| Max Output Current | 2 A |
| Efficiency | Up to 94% |
| Operating Temperature | -40°C to 70°C |
| Mounting | DIN-rail or panel mounted |
| Certifications | CE, UL |
| Use Case | Primary power for HC900 system |
Applications
-
Process Automation: Powers HC900 controllers and modules in manufacturing and refining processes.
-
Batch Control Systems: Ensures consistent power supply in recipe-driven batch operations.
-
Energy Management: Powers SCADA-connected systems in energy and utility facilities.
-
OEM Systems: Used in embedded industrial control systems designed by OEMs.
Advantages
-
Wide Voltage Compatibility: Accepts both 120V and 240V AC inputs.
-
High Efficiency: Reduces energy loss and thermal stress with 94% power conversion.
-
Compact Design: Saves panel space in industrial control cabinets.
-
Extended Temperature Range: Suitable for harsh environments.
-
Reliable Power Delivery: Stable 24VDC output with overload protection.
Frequently Asked Questions (FAQ)
Q1: What voltage input does the 900P01-0101 support?
A1: It supports 120/240 VAC input.
Q2: What is the output voltage?
A2: The module delivers 24V DC output.
Q3: What are its dimensions and weight?
A3: 137 x 72.6 x 151.7 mm, 0.82 kg.
Q4: Is this power supply compatible with all HC900 modules?
A4: Yes, it is specifically designed for the HC900 platform.
Q5: What is the maximum output current?
A5: Up to 2 A.
Q6: Can it be used in extended temperature environments?
A6: Yes, it operates from -40°C to 70°C.
Q7: Is redundancy supported?
A7: Yes, it can be used in redundant power configurations.
Q8: What is the efficiency rating?
A8: Up to 94%, ensuring energy efficiency.
Q9: Is it certified for industrial use?
A9: Yes, it has CE and UL certifications.
Q10: Does it include overload protection?
A10: Yes, it includes overload and short circuit protection.
Recommended Same Series or Related Models
| Model | Description | Input Voltage | Output Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 900P01-0501 | Standard AC Power Supply | 120/240 VAC | 24 VDC | 137 x 72.6 x 151.7 | 0.82 |
| 900P01-0701 | Extended Temp AC Power Supply | 120/240 VAC | 24 VDC | 137 x 72.6 x 151.7 | 0.85 |
| 900P24-0501 | DC Input Power Supply | 24 VDC | 24 VDC | 137 x 72.6 x 151.7 | 0.80 |
| 900PSM-0200 | Power Status Monitoring Module | N/A | N/A | 137 x 72.6 x 151.7 | 0.75 |
| 900CP1-0200 | Control Processor Module | 24 VDC | Logic Signal | 137 x 72.6 x 151.7 | 0.90 |
| 900SP1-0200 | Expansion Processor Module | 24 VDC | Logic Signal | 137 x 72.6 x 151.7 | 0.88 |
