Product Description

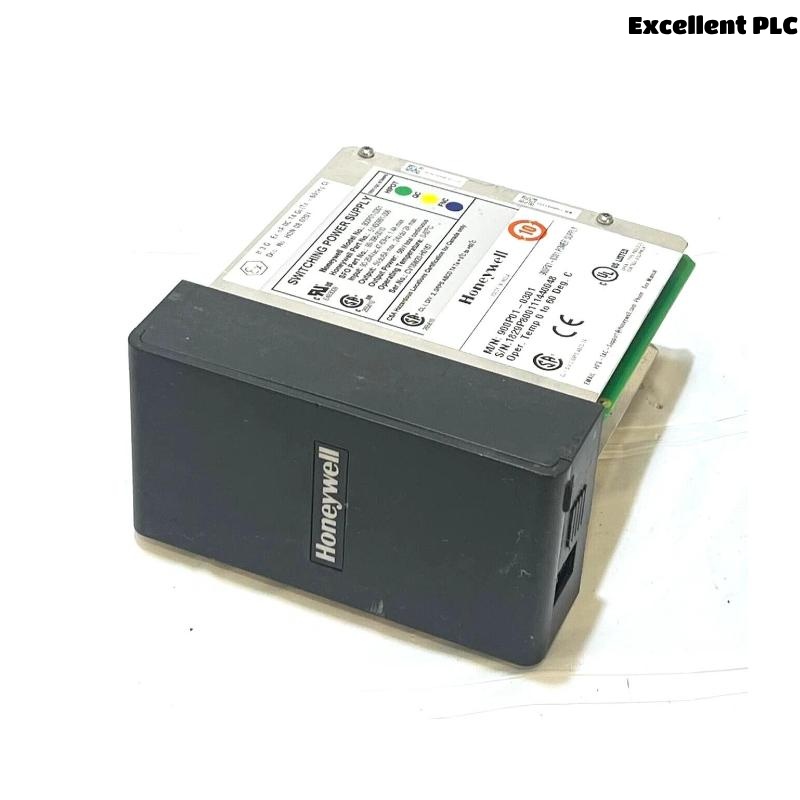

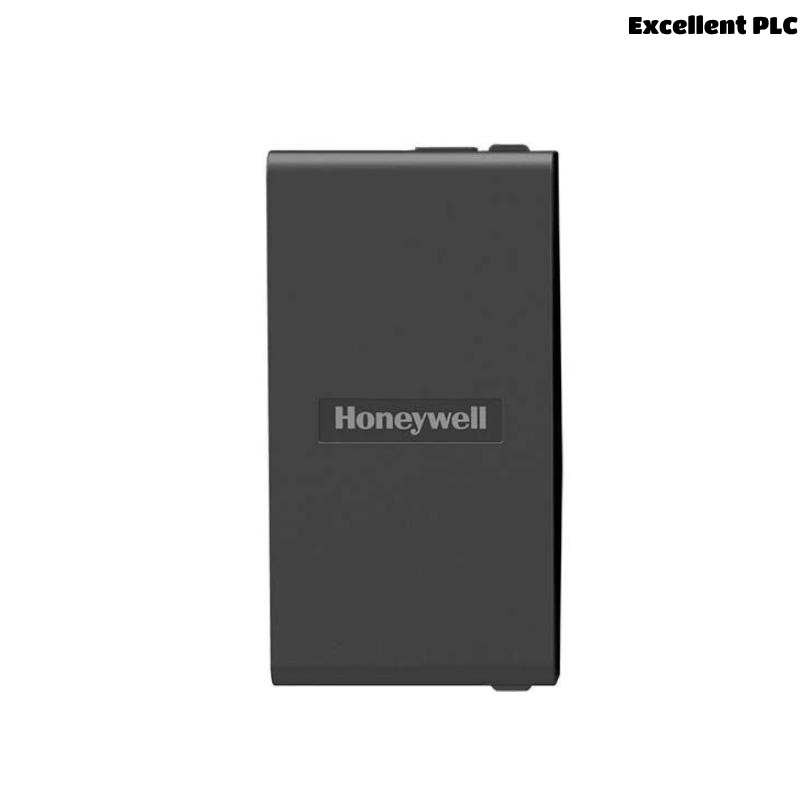

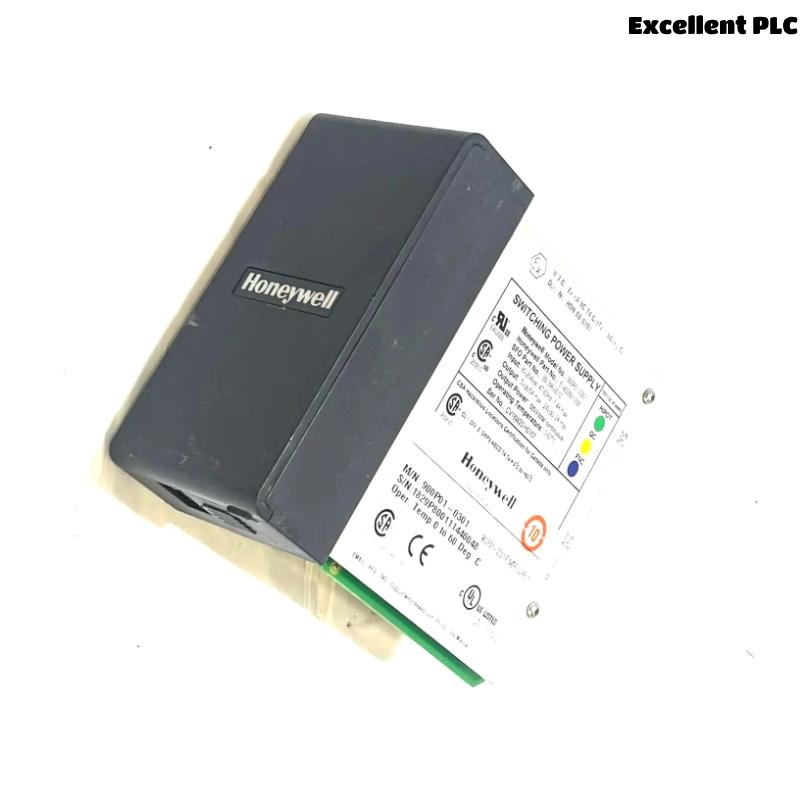

The Honeywell 900P01-0201 (Part Number: 51450991-002) is a dedicated power supply module designed for the ControlEdge HC900 hybrid controller system. It delivers regulated power to the HC900 system’s controller, I/O modules, and communication interfaces. Ensuring system integrity and robust performance, this module supports high availability and stable operation across demanding industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900P01-0201 |
| Part Number | 51450991-002 |
| Input Voltage | 24 VDC |
| Output Power | 51 W (nominal) |
| Output Voltage | Regulated to system requirements |
| Redundancy Support | Yes, with optional dual power supply setup |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (W x H x D) | 137 x 72.6 x 151.7 mm |
| Weight | 0.82 kg |
| Mounting | DIN-rail or rack-based installation |
| LED Indicators | Power status and fault diagnostics |
Applications
-
Industrial process automation
-
Batch control systems
-
Hybrid control systems for power and utilities
-
Safety-critical infrastructure
-
Pharmaceutical and chemical manufacturing
-
Water treatment and wastewater systems
Product Advantages
-
Reliable Operation: Ensures continuous power delivery for stable HC900 system performance
-
Redundancy Ready: Supports dual-module configuration for power supply redundancy
-
Compact Design: Space-efficient for cabinet or rack mounting
-
Diagnostic LEDs: Enables quick identification of power faults
-
Industrial Hardened: Operates across a wide temperature range
FAQs
Q1: What is the primary voltage input for the 900P01-0201?
A1: It accepts a 24 VDC input.
Q2: Is this power supply hot-swappable?
A2: No, it must be de-energized before replacement.
Q3: Can it be used in redundant configurations?
A3: Yes, it supports redundant power configurations for high-availability systems.
Q4: What kind of mounting does it support?
A4: It supports DIN-rail and rack-based mounting.
Q5: Does it include diagnostic indicators?
A5: Yes, it includes LED indicators for power and fault conditions.
Q6: What type of systems is it compatible with?
A6: It is specifically designed for the Honeywell ControlEdge HC900 system.
Q7: How much power can it deliver?
A7: It delivers a nominal power output of 51 watts.
Q8: What is its weight?
A8: The module weighs 0.82 kg.
Q9: Is this module approved for extended temperature use?
A9: It operates reliably within the standard -20°C to +60°C range.
Q10: Can this power supply support both logic and I/O power?
A10: Yes, it powers both the controller and associated I/O modules.
Related Models (Same Series or Functionally Similar)
| Model Number | Description | Output Power | Input Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 900P01-0501 | Power Supply Module 120/240VAC | 58 W | 120/240 VAC | 137 x 72.6 x 151.7 | 0.85 kg |
| 900P24-0501 | 24 VDC Power Supply | 51 W | 24 VDC | 137 x 72.6 x 151.7 | 0.82 kg |
| 900P01-0701 | Extended Temp AC Power Supply | 41 W | 120/240 VAC | 137 x 72.6 x 151.7 | 0.83 kg |
| 900PSM-0200 | Power Status Monitoring Module | N/A | 24 VDC | 137 x 72.6 x 151.7 | 0.65 kg |
| 900CP1-0200 | Control Processor Module | N/A | 24 VDC | 137 x 72.6 x 151.7 | 0.90 kg |
| 900SP1-0200 | Expansion Processor Module | N/A | 24 VDC | 137 x 72.6 x 151.7 | 0.88 kg |
