Product Overview

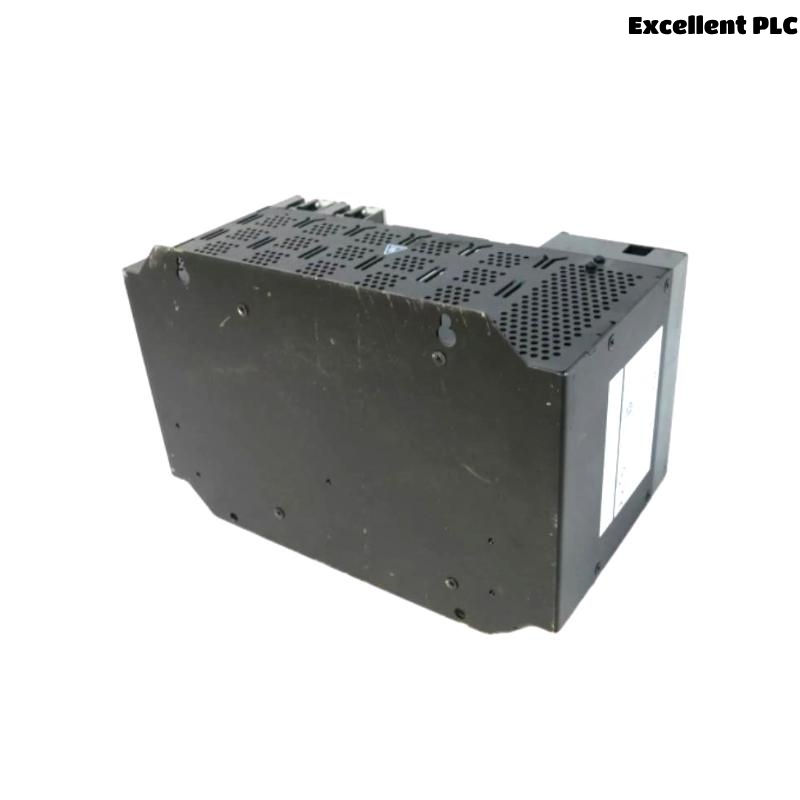

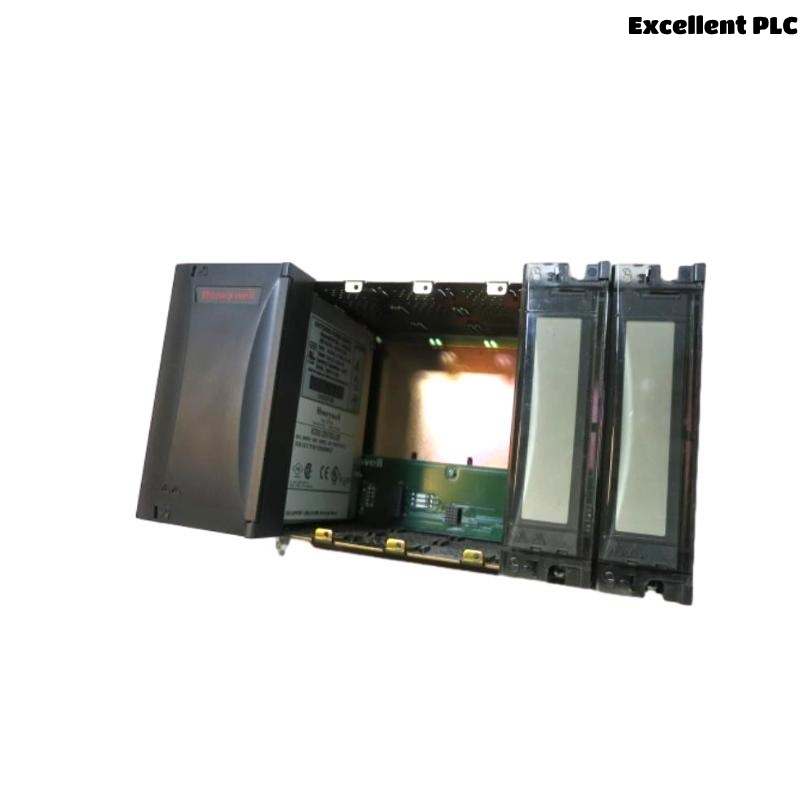

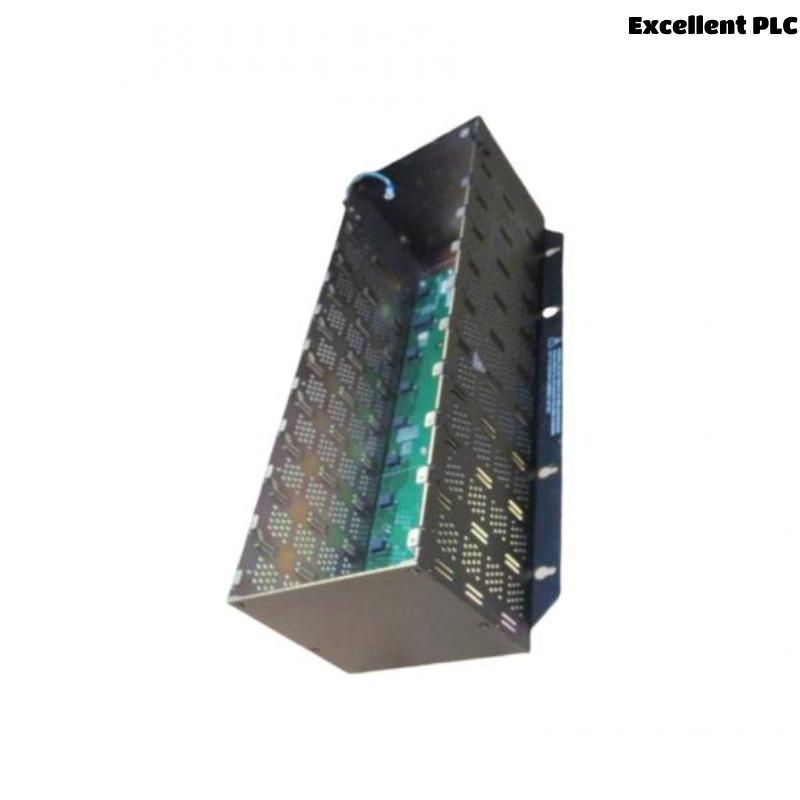

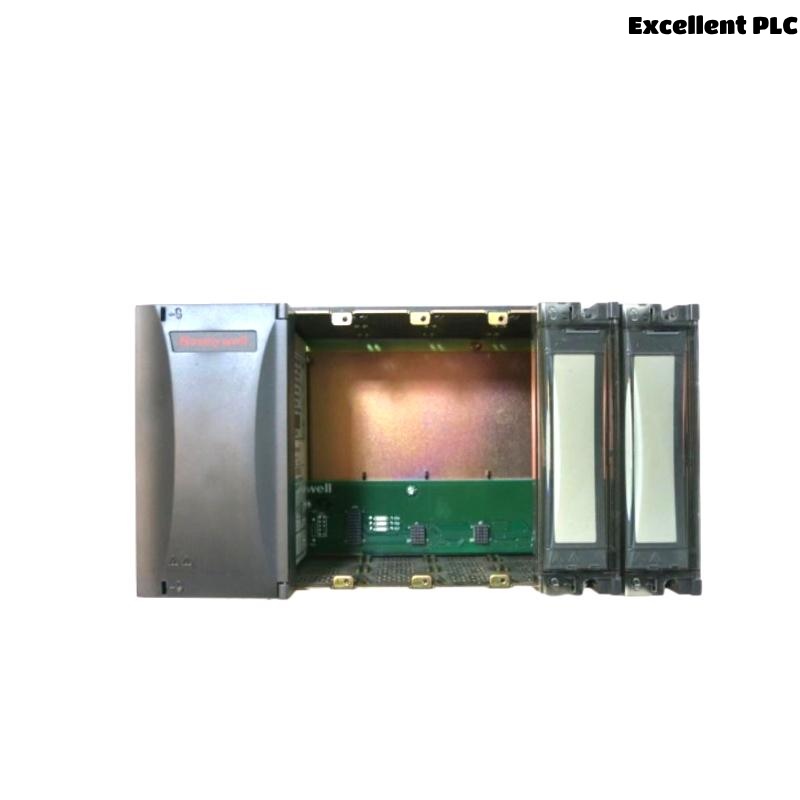

Honeywell 900R01-0300 is a modular I/O slot rack used in the ControlEdge HC900 system, providing a reliable and expandable base for installing multiple I/O modules. It is designed to support industrial control systems with robust performance, flexible configurations, and ease of integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900R01-0300 |
| Rack Type | I/O Slot Rack |
| Number of Slots | 4 Slots |
| Compatibility | ControlEdge HC900 Modules |
| Installation | DIN Rail or Panel Mount |
| Power Distribution | Backplane Power Bus |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Dimensions (W x H x D) | 137 x 150 x 151.7 mm |
| Weight | 0.9 kg |
Applications
-
Industrial Process Automation
-
Safety and Environmental Controls
-
Batch and Continuous Process Control
-
OEM Machine Control Systems
-
Remote and Distributed I/O Installations
Product Advantages
-
Modular Design: Easy expansion and maintenance.
-
Reliable Performance: Optimized for HC900 I/O integration.
-
Flexible Mounting: Supports both DIN rail and panel installations.
-
Compact Size: Saves control panel space.
-
Durable Build: Industrial-grade materials for longevity.
-
Backplane Power Distribution: Reduces external wiring needs.
Frequently Asked Questions (FAQ)
Q1: How many I/O modules can be installed in the 900R01-0300 rack?
A1: It supports up to 4 I/O modules.
Q2: Is the rack compatible with other Honeywell systems?
A2: It is specifically designed for Honeywell ControlEdge HC900 systems.
Q3: Can this rack be mounted on a DIN rail?
A3: Yes, DIN rail and panel mounting options are supported.
Q4: Does the rack provide integrated power?
A4: Power is distributed via the backplane from a system power supply.
Q5: What is the operating temperature range?
A5: 0 to 60°C.
Q6: Can this rack be used in safety system applications?
A6: Yes, when integrated with certified HC900 safety I/O modules.
Q7: How heavy is the rack?
A7: It weighs approximately 0.9 kg.
Q8: What type of modules are supported?
A8: Analog, digital, relay, and specialty HC900 I/O modules.
Q9: Is hot-swapping supported?
A9: I/O modules can be removed and inserted with system power off.
Q10: Does it require specific Honeywell firmware or version?
A10: Compatible with current HC900 firmware; check documentation for specifics.
Related Models (Same Series)
| Model | Description | Slots | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 900R01-0400 | I/O Slot Rack – 4 Slots | 4 | 137 x 150 x 151.7 | 0.9 kg |
| 900R01-0800 | I/O Slot Rack – 8 Slots | 8 | 264 x 150 x 151.7 | 1.6 kg |
| 900R01-1200 | I/O Slot Rack – 12 Slots | 12 | 391 x 150 x 151.7 | 2.4 kg |
| 900CP1-0200 | Control Processor Module | — | 49 x 150 x 151.7 | 0.6 kg |
| 900P01-0501 | Power Supply Module, 120/240 VAC | — | 34 x 150 x 151.7 | 0.5 kg |
| 900SP1-0200 | Expansion Processor Module | — | 49 x 150 x 151.7 | 0.6 kg |
Popular Honeywell Models (Same Brand)
| Model | Description | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 900CP1-0300 | Extended Temp Control Processor | CPU Module | 49 x 150 x 151.7 | 0.6 kg |
| 900A01-0202 | Universal Analog Input Module (8-ch) | Analog Input Module | 137 x 150 x 151.7 | 0.8 kg |
| 900B08-0202 | Analog Output Module, 8-ch, 0–20mA | Analog Output Module | 137 x 150 x 151.7 | 0.85 kg |
| 900H32-0302 | Digital Output Module, 32-ch, 24VDC | Digital Output Module | 137 x 150 x 151.7 | 0.9 kg |
| 900ES1-0100 | Serial Communication Module (2xRS232/2xRS485) | Comm Module | 137 x 150 x 151.7 | 0.75 kg |
| 900U01-0100 | Universal I/O Module, 16-ch | Mixed I/O Module | 137 x 150 x 151.7 | 0.9 kg |
