Product Overview

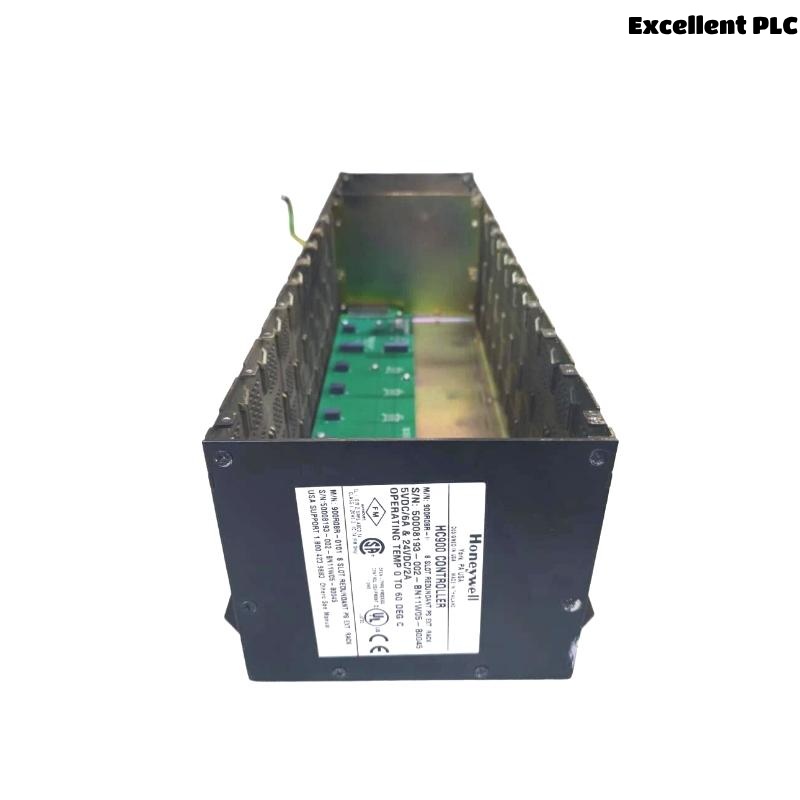

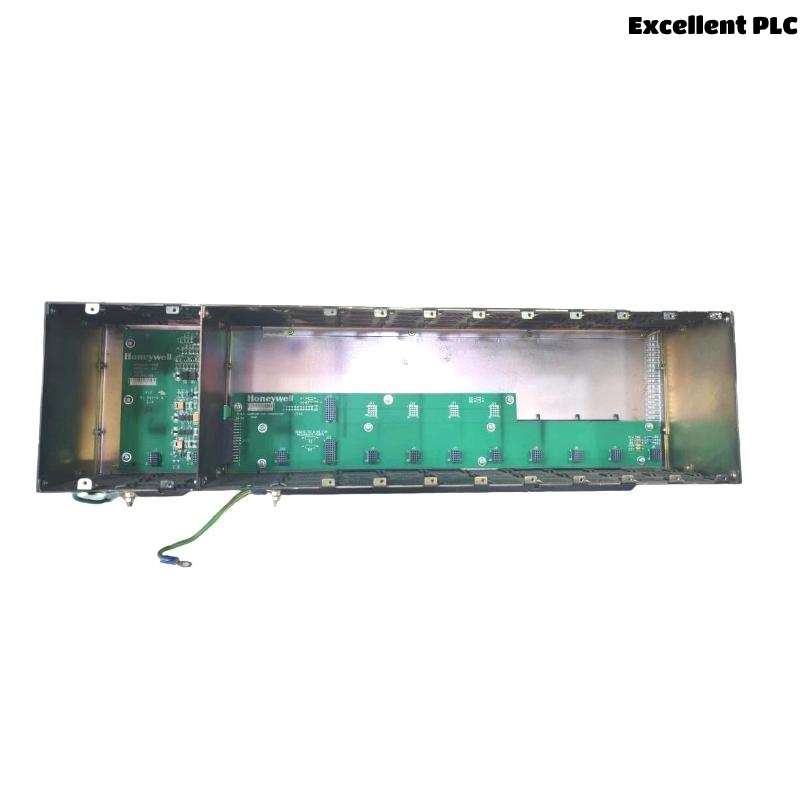

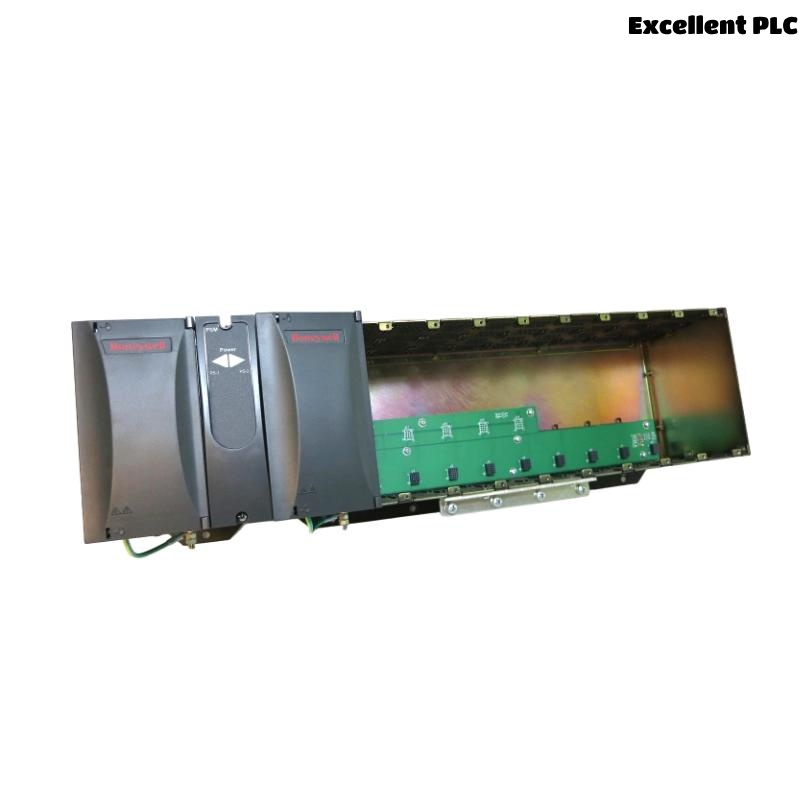

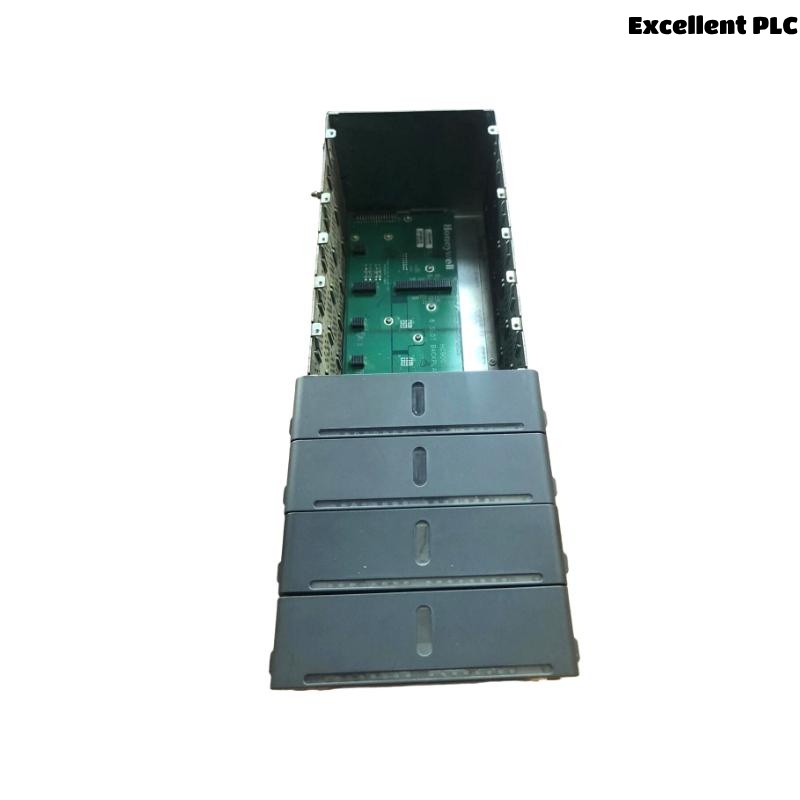

The Honeywell 900R08-0200 is an 8-slot I/O rack from the ControlEdge HC900 series, designed for modular and scalable control system architecture. It provides mounting space for up to eight I/O modules, making it ideal for mid-size process applications requiring high availability, redundancy options, and flexible I/O configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 900R08-0200 |
| Product Type | I/O Rack |
| Slot Capacity | 8 I/O slots |
| Dimensions (H x W x D) | 137 x 419.1 x 151.7 mm |
| Weight | 3.126 kg |
| Mounting Style | DIN rail (35 mm standard) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Certifications | CE, UL, ATEX, IECEx, CSA, FM |
| Material (Tray & Caps) | PVC, UL94-V0 flame-retardant |
Application
-
Batch and continuous process control
-
Furnace and thermal control systems
-
Water/wastewater automation
-
Food and beverage plant control
-
Life sciences and chemical industry systems
-
Remote I/O expansion for distributed architectures
Product Advantages
-
Modular Design: Supports a variety of analog, digital, and specialty I/O modules.
-
Hot-Swap Capability: Modules can be removed and inserted under power without shutting down the rack.
-
Redundant Power Support: Compatible with redundant power modules for critical applications.
-
Galvanic Isolation: Ensures signal integrity and improves safety.
-
Compact and Rugged: Designed to withstand industrial environmental conditions with conformal coating.
FAQs
Q1: How many modules can the 900R08-0200 support?
A1: It can hold up to 8 I/O modules.
Q2: Can modules be replaced without turning off power?
A2: Yes, it supports live insertion and removal under power.
Q3: What are the dimensions of this rack?
A3: 137 mm x 419.1 mm x 151.7 mm.
Q4: What is the weight of the rack?
A4: Approximately 3.126 kg.
Q5: Does it support redundant power?
A5: The base 900R08-0200 does not, but the 900R08R-0300 version does.
Q6: Is the rack suitable for harsh environments?
A6: Yes, it includes conformal coatings suitable for G3 harsh conditions.
Q7: What I/O types are compatible?
A7: Analog, digital, relay, universal, and specialty I/O modules.
Q8: Can it be mounted on a DIN rail?
A8: Yes, it is compatible with 35 mm standard DIN rail mounting.
Q9: What certifications does it carry?
A9: CE, UL, ATEX, IECEx, CSA, and FM for hazardous environments.
Q10: Is field wiring disconnection needed before module removal?
A10: Yes, field power should be disconnected before removing terminal blocks.
Related Models (Same Series)
| Model | Description | Slots | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 900R04-0300 | 4-slot I/O Rack | 4 | 137 x 266.7 x 151.7 | 2.104 kg |
| 900R08R-0300 | 8-slot Rack with redundant power | 8 | 137 x 530.9 x 151.7 | 4.422 kg |
| 900R12-0300 | 12-slot I/O Rack | 12 | 137 x 571.5 x 151.7 | 4.072 kg |
| 900R12R-0300 | 12-slot Redundant Rack | 12 | 137 x 683.3 x 151.7 | 5.252 kg |
| 900RR0-0300 | Redundant CPM Rack | 0 | 137 x 261.6 x 151.7 | 1.751 kg |
| 900P01-0501 | Power Supply 120/240VAC, 60W | N/A | 137 x 72.6 | 0.820 kg |
