Product Overview

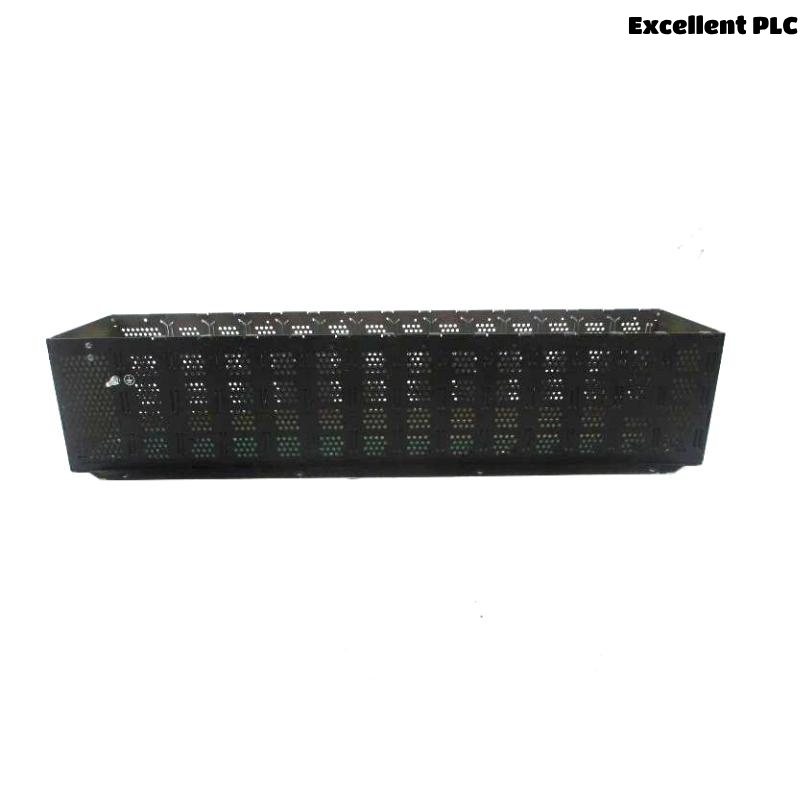

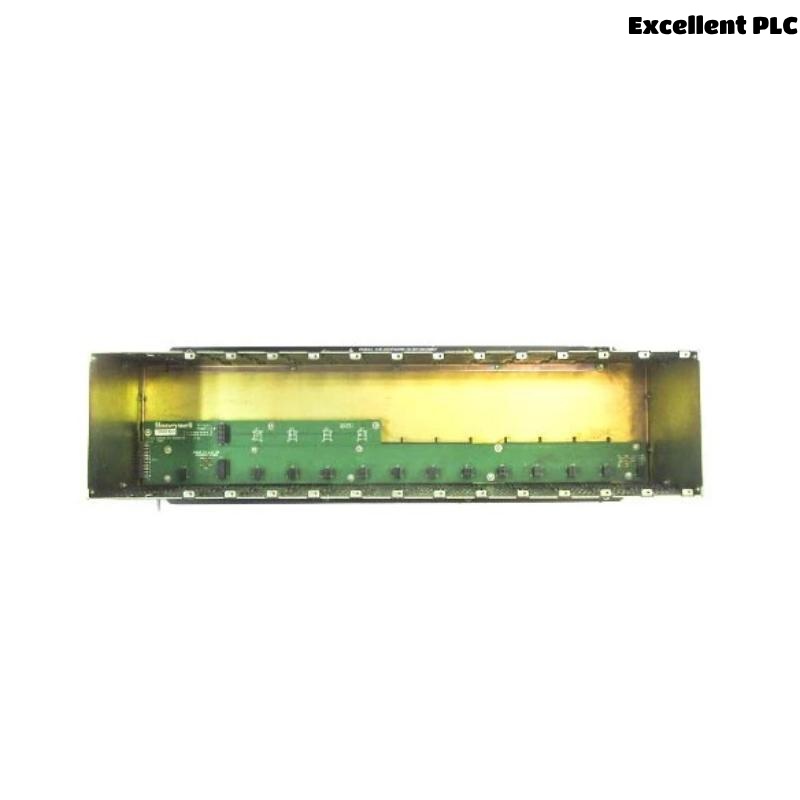

The Honeywell 900R12-0101 is part of the ControlEdge HC900 modular control system, designed to host up to 12 I/O modules for versatile industrial automation needs. It offers robust performance, flexible I/O support, and simplified installation, ideal for hybrid control applications in process industries.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 900R12-0101 |
| System Compatibility | ControlEdge HC900 |
| Number of I/O Slots | 12 |
| Power Supply Support | Standard or redundant (model dependent) |
| Module Insertion | Hot-swappable under power |
| Mounting | 35 mm DIN rail |
| Dimensions (H x W x D) | 137 x 571.5 x 151.7 mm |
| Weight | 4.072 kg |
| Construction Material | PVC (UL94-V0 rated) |
| Environmental Compliance | RoHS 2 (except PSU), G3 coating |
| Certifications | CE, UL, ATEX, FM, CSA, UKCA, IECEx |
Applications
-
Hybrid process control (batch and continuous)
-
Furnace and boiler control
-
Environmental monitoring systems
-
OEM machinery integration
-
Water & wastewater automation
-
Food and beverage production systems
Key Advantages
-
High-Density I/O Support: Up to 12 modules in one rack allow wide I/O mix.
-
Hot Swappable: Modules can be replaced without shutting down the system.
-
Scalable Architecture: Easily integrates into larger HC900 systems.
-
Industrial Certifications: Approved for use in hazardous and regulated environments.
-
Simplified Wiring: Supports Remote Terminal Panels (RTPs) with prewired cables.
-
Reliability: Diagnostic LEDs and failsafe configurations enhance system integrity.
FAQs
Q1: How many I/O modules can be installed in the 900R12-0101 rack?
A1: Up to 12 I/O modules can be installed.
Q2: Can I insert or remove modules while the system is powered?
A2: Yes, the rack supports hot-swapping of modules.
Q3: Is the 900R12-0101 rack compatible with redundant power supplies?
A3: The 900R12-0101 does not support redundancy; use model 900R12R-0300 for that.
Q4: What mounting method is used for this rack?
A4: It uses standard 35 mm DIN rail mounting.
Q5: What is the rack made of?
A5: The rack is constructed from UL94-V0 rated PVC.
Q6: What is the operating temperature range?
A6: 0°C to 60°C (32°F to 140°F).
Q7: Is conformal coating applied to the rack?
A7: Yes, it meets G3 environment standards (except PSU modules).
Q8: What safety certifications does this rack hold?
A8: It is CE, UL, ATEX, FM, CSA, UKCA, and IECEx certified.
Q9: What is the weight of the rack?
A9: The rack weighs approximately 4.072 kg.
Q10: Can this rack be used with both AC and DC power supplies?
A10: Yes, it is compatible with Honeywell 60W AC or 24VDC power supply modules.
Related Models (Same Series)
| Model Number | I/O Slots | Dimensions (mm) | Weight |
|---|---|---|---|
| 900R04-0300 | 4 | 137 x 266.7 x 151.7 | 2.104 kg |
| 900R08-0300 | 8 | 137 x 419.1 x 151.7 | 3.126 kg |
| 900R08R-0300 | 8 (Redundant) | 137 x 530.9 x 151.7 | 4.422 kg |
| 900R12R-0300 | 12 (Redundant) | 137 x 683.3 x 151.7 | 5.252 kg |
| 900RR0-0300 | CPU Rack | 137 x 261.6 x 151.7 | 1.751 kg |
| 900P24-0501 | Power Supply | 137 x 72.6 x 151.7 | 0.792 kg |
Popular Honeywell Models
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 900C30-0460 | Controller (C30) | 137 x 38.1 x 151.7 | 0.350 kg |
| 900S50-0460 | Scanner Module (1-Port) | 137 x 38.1 x 151.7 | 0.360 kg |
| 900B08-0202 | 8 Ch Analog Output Module | 137 x 35.6 x 151.7 | 0.400 kg |
| 900A01-0202 | 8 Ch Universal Analog Input | 137 x 35.6 x 151.7 | 0.210 kg |
| 900G32-0301 | 32 Ch Digital Input Module | 137 x 35.6 x 151.7 | 0.175 kg |
| 900H01-0202 | 8 Ch Relay Output Module | 137 x 35.6 x 151.7 | 0.425 kg |
