Product Description

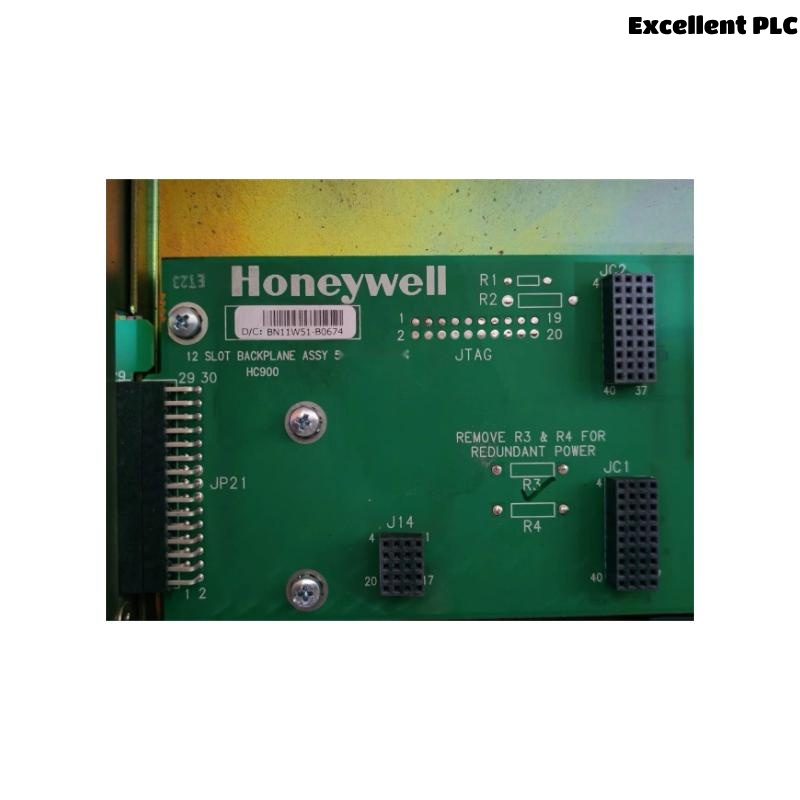

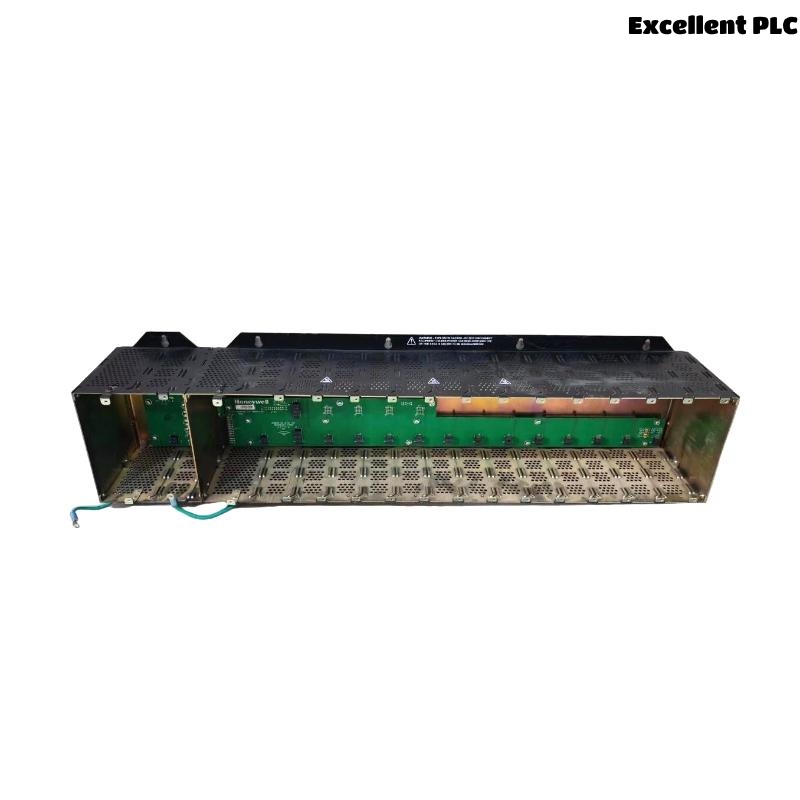

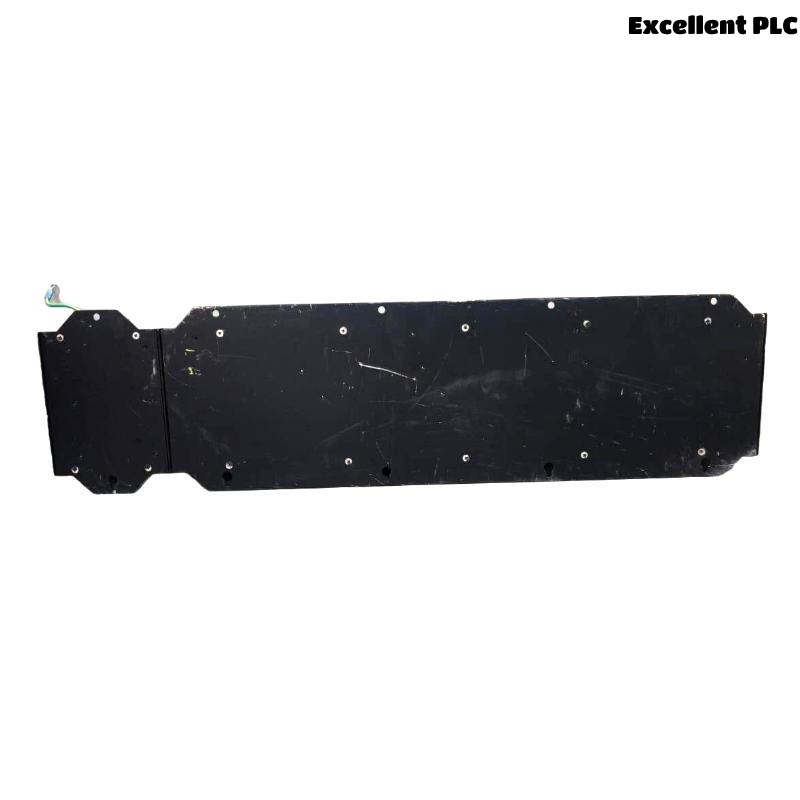

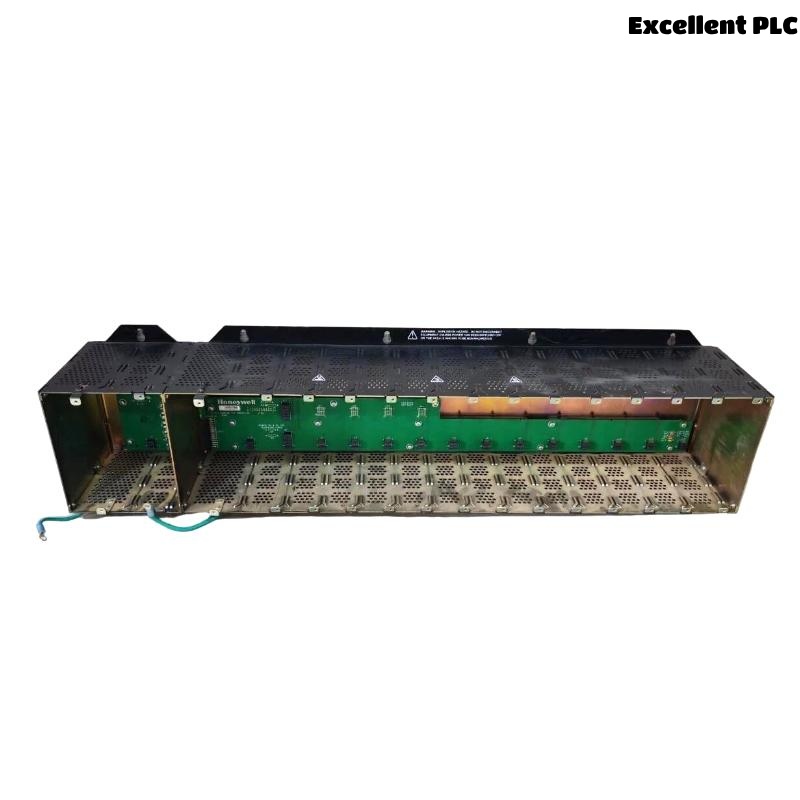

The Honeywell 900R12R-0200 is a 12-slot I/O rack with redundant power support, specifically designed for use with the ControlEdge HC900 controller family. It provides a modular and scalable backplane for accommodating a mix of input/output modules. It is ideal for process automation applications requiring reliability, flexibility, and ease of maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900R12R-0200 |
| Description | 12-slot I/O rack with redundant power support |
| I/O Capacity | 12 module slots |
| Power Support | Redundant |
| Mounting | Standard DIN rail or panel mount |
| Dimensions (H x W x D) | 137 x 683.3 x 151.7 mm |
| Weight | 5.252 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Material | Polyvinyl Chloride (PVC), UL94-V0 |
| Compliance Certifications | CE, UL, CSA, FM, ATEX, IECEx |
Applications
-
Industrial process control systems
-
Batch and continuous process automation
-
Environmental chambers and kilns
-
Burner management systems
-
OEM equipment integration
-
Remote I/O stations in distributed control networks
Key Advantages
-
Redundant Power Support: Enhances system uptime in critical applications
-
12 Slot Expansion: Accommodates a broad range of I/O modules for various signal types
-
Hot-Swappable Modules: Allows module replacement without system shutdown
-
Galvanic Isolation: Improves system safety and signal integrity
-
DIN Rail Mounting: Simplifies installation in control cabinets
-
Robust Construction: Operates reliably in industrial environments
Frequently Asked Questions (FAQ)
Q1: What type of controller is compatible with 900R12R-0200?
A1: It is compatible with the Honeywell ControlEdge HC900 controllers (e.g., C30, C50, C70, C75).
Q2: Does the rack support hot-swapping of modules?
A2: Yes, modules can be inserted and removed under power.
Q3: How many modules can it hold?
A3: It supports up to 12 I/O modules.
Q4: Is redundant power supported?
A4: Yes, the “R” in the model number indicates redundant power support.
Q5: What is the material and flame rating of the rack?
A5: It is made of PVC and complies with UL94-V0 flammability rating.
Q6: What certifications does it meet?
A6: It meets CE, UL, CSA, ATEX, IECEx standards.
Q7: What mounting options are available?
A7: It supports DIN rail and panel mounting.
Q8: Can the rack operate in harsh environments?
A8: Yes, it is conformally coated and suitable for G3 level harsh environments.
Q9: What are the dimensions and weight of the rack?
A9: 137 x 683.3 x 151.7 mm, 5.252 kg.
Q10: Is it suitable for safety-related applications?
A10: Yes, it supports failsafe configuration and meets safety requirements for critical applications.
Related Honeywell ControlEdge Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 900R04-0300 | 4-slot I/O rack | 137 x 266.7 x 151.7 | 2.104 |
| 900R08-0300 | 8-slot I/O rack | 137 x 419.1 x 151.7 | 3.126 |
| 900R08R-0300 | 8-slot I/O rack with redundant power | 137 x 530.9 x 151.7 | 4.422 |
| 900R12-0300 | 12-slot I/O rack (non-redundant) | 137 x 571.5 x 151.7 | 4.072 |
| 900RR0-0300 | Redundant CPM rack | 137 x 261.6 x 151.7 | 1.751 |
| 900U02-0100 | Universal I/O module (SIL) | 134 x 33.1 | 0.260 |
