Product Overview

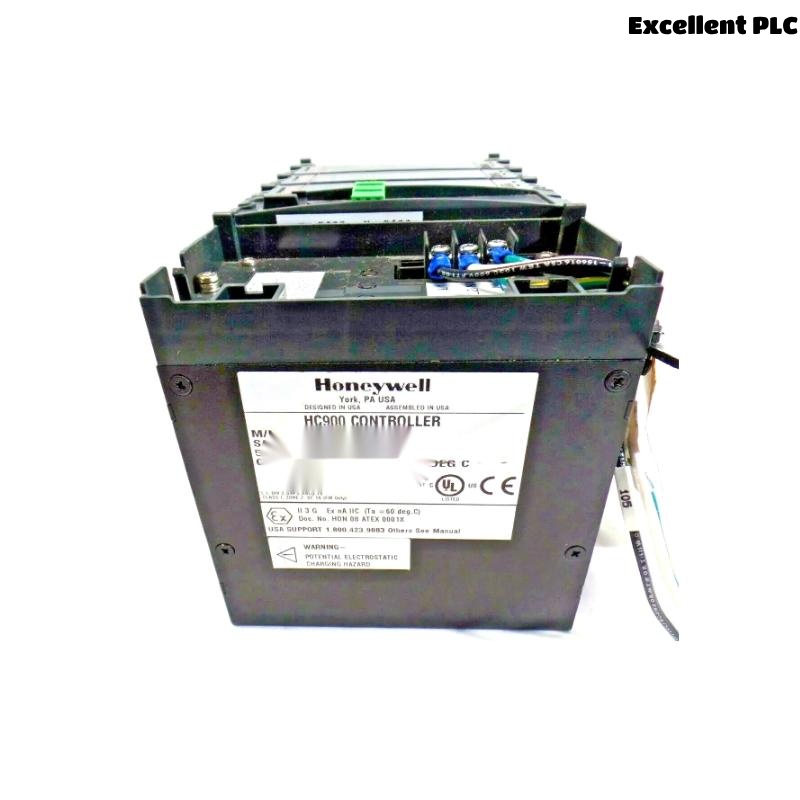

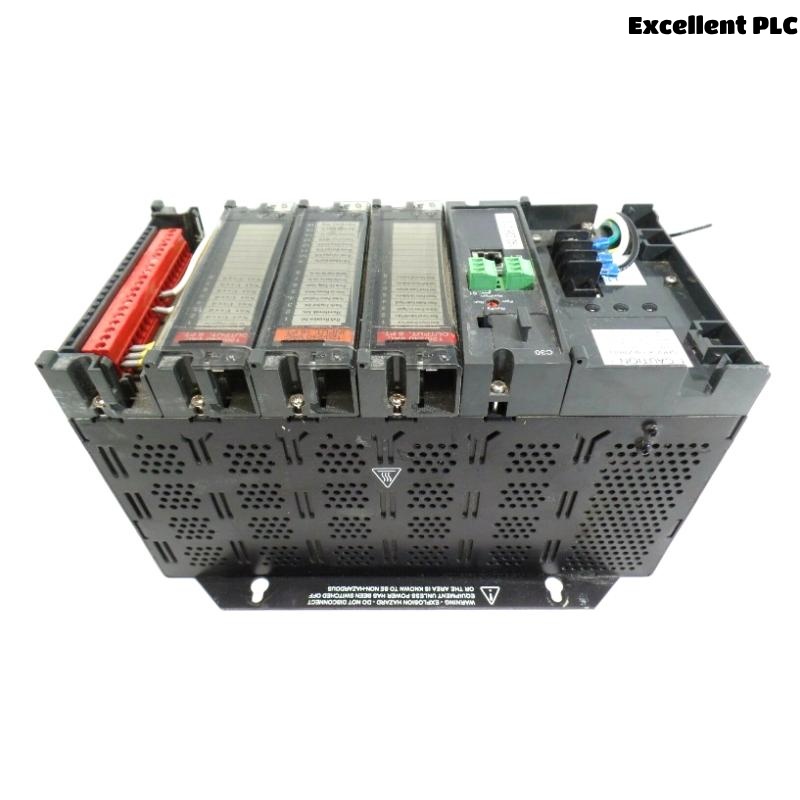

The Honeywell 900S50S-0460 is a single-port I/O scanner module designed for the ControlEdge HC900 platform. It enables high-speed communication between the controller and remote I/O racks. Engineered for modular and distributed control systems, it simplifies integration, ensures flexibility, and improves diagnostics.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 900S50S-0460 |
| Function | I/O Scanner for Remote Rack (1-Port) |
| Product Series | ControlEdge HC900 |
| Mounting | DIN Rail (35 mm) |
| Dimensions | 137 × 38.1 × 137.16 mm |
| Weight | 0.36 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 90% (Non-condensing) |
| Isolation | Galvanic isolation to chassis |
| Certifications | CE, UL, ATEX, CSA, FM |
| Diagnostics | Tri-color LED (Green, Amber, Red) |
| Field Wiring | Via terminal blocks or RTPs |
| Power Usage | 3.9 W (Typical) |
Applications
-
Remote process automation control
-
Distributed I/O architecture
-
Industrial manufacturing lines
-
Chemical and water treatment plants
-
Energy and power systems
-
Food and beverage automation
Product Advantages
-
Single-Port Simplicity: Enables straightforward connection to remote racks.
-
Hot-Swap Capability: Supports insertion/removal under power.
-
Diagnostic LEDs: Clear module and channel-level indicators.
-
Industrial Hardened: Designed for harsh G3-level environments.
-
Modular Expansion: Seamlessly scalable for various I/O needs.
-
Fail-Safe Support: Ensures predictable outputs on communication loss.
Frequently Asked Questions (FAQs)
Q1: What is the main function of the 900S50S-0460?
A1: It acts as a communication bridge between the main controller and remote I/O racks.
Q2: Is this scanner hot-swappable?
A2: Yes, it can be inserted or removed under power without system shutdown.
Q3: What communication type does it support?
A3: This model supports single-port scanning over ControlEdge HC900 architecture.
Q4: How is it mounted?
A4: It mounts on a standard 35mm DIN rail inside a control enclosure.
Q5: What LED indicators are available?
A5: Green (OK), Red (Fault), Amber (Override).
Q6: Can the scanner operate in humid environments?
A6: Yes, it supports up to 90% relative humidity (non-condensing).
Q7: What is the scanner’s power consumption?
A7: Approximately 3.9 watts.
Q8: Is it compatible with redundant systems?
A8: For redundancy, use the dual-port 900S75S-0460 version.
Q9: Does it support failsafe outputs?
A9: Yes, output modules support user-defined failsafe values/states.
Q10: Can it be used in hazardous areas?
A10: Yes, it complies with ATEX and FM Class 1, Div. 2 standards.
Related Models (Same Series)
| Model Number | Description | Ports | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 900S50S-0460 | Single-Port Remote I/O Scanner | 1 | 137 × 38.1 × 137.16 | 0.36 kg |
| 900S75S-0460 | Dual-Port Remote I/O Scanner | 2 | 137 × 38.1 × 137.16 | 0.40 kg |
| 900R08-0200 | 8-slot Remote I/O Rack | – | 137 × 419.1 × 151.7 | 3.13 kg |
| 900P24-0301 | 24VDC Power Supply for Remote Rack | – | 137 × 72.6 × 137.16 | 0.79 kg |
| 900PSM-0200 | Power Status Monitoring Module | – | 137 × 35.6 × 137.16 | 0.45 kg |
| 900TCK-0001 | Euro Style Terminal Block (36-pin) | – | Compatible with I/O modules | – |
