Product Overview

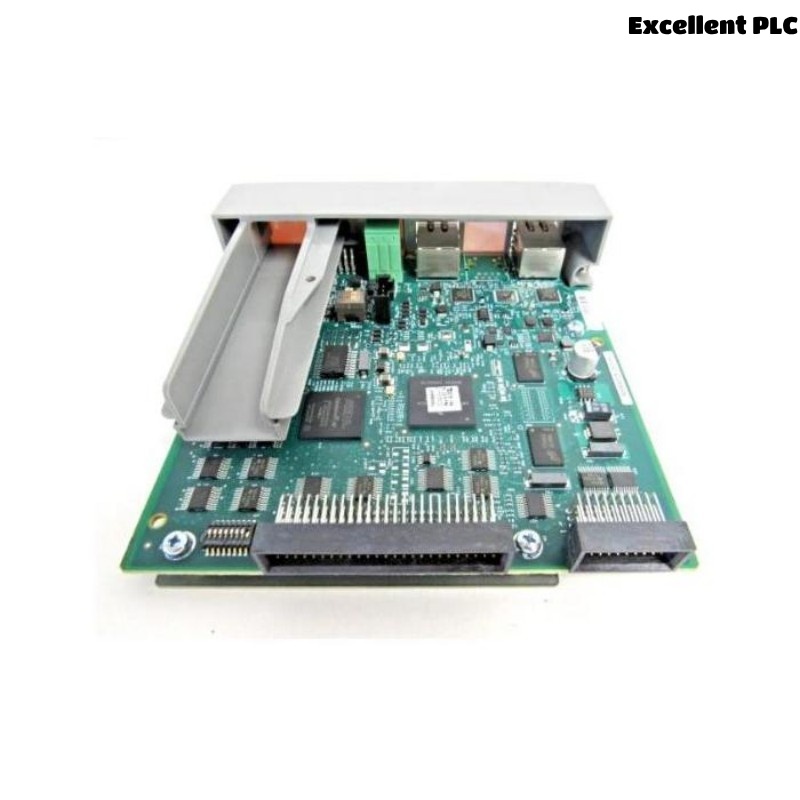

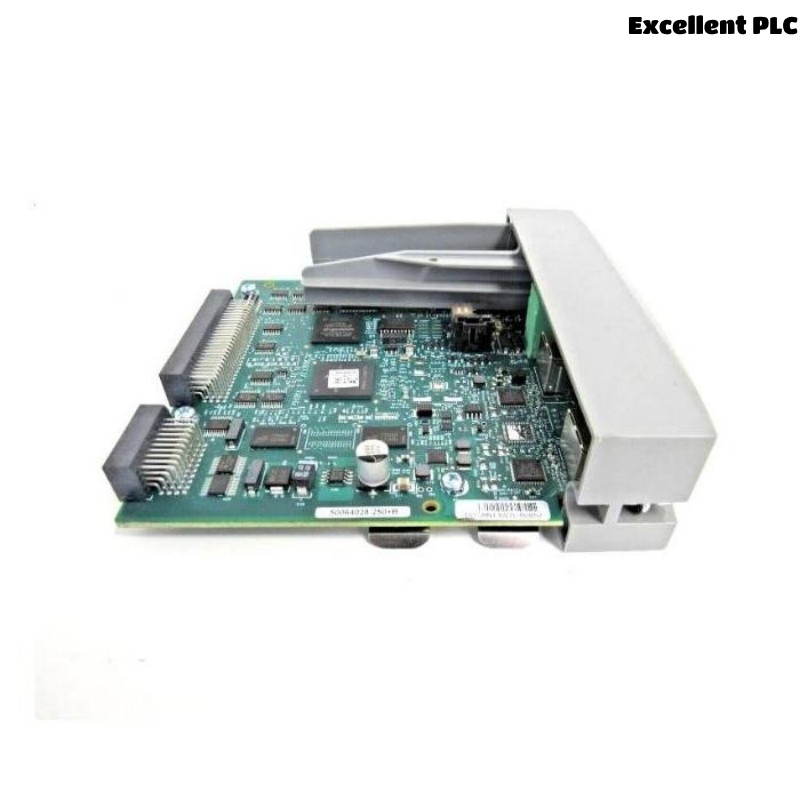

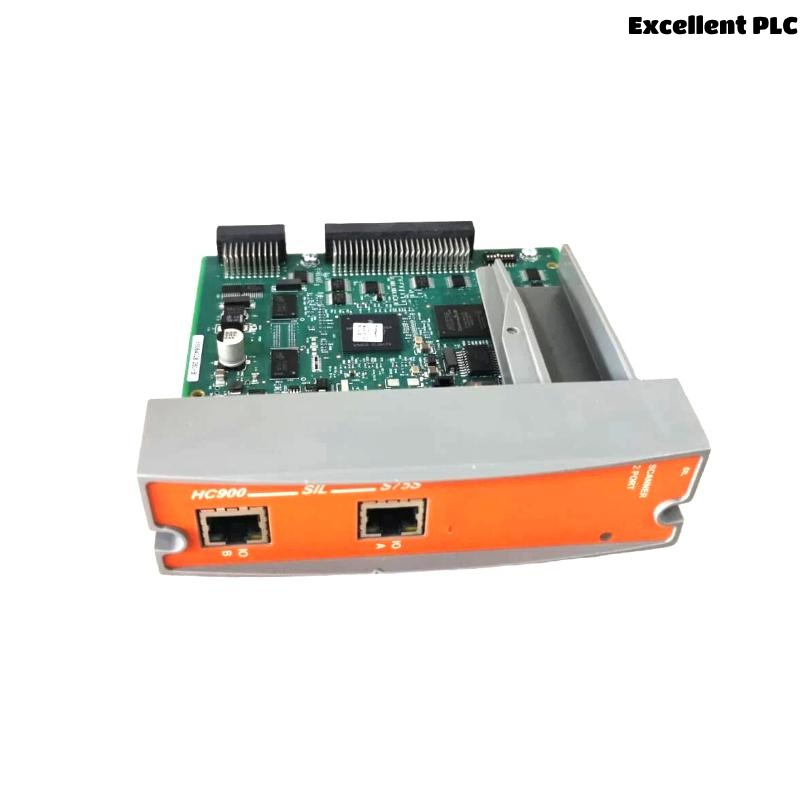

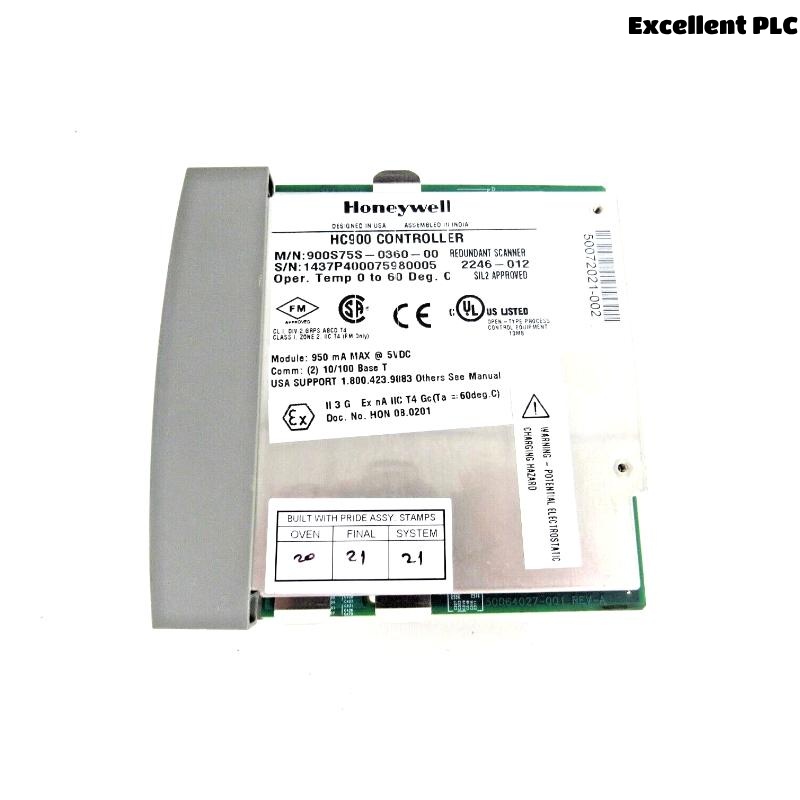

Honeywell 900S75S-0360-00 ControlEdge HC900 I/O Scanner is a dual-port scanner module designed for high-speed, reliable communications between the ControlEdge HC900 controller and remote I/O racks. It enables flexible remote I/O configurations in process control and automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 900S75S-0360-00 |
| Product Type | Dual Port I/O Scanner |
| Compatibility | ControlEdge HC900 System |
| Communication Ports | 2 × Ethernet Ports (10/100 Mbps) |
| Isolation | Galvanically Isolated |
| Power Consumption | 5.0 W |
| Installation | DIN rail mounted |
| Hot-Swappable | Yes |
| Status Indication | Green (OK), Red (Fault), Amber (Override) |
| Dimensions (H × W × D) | 137 × 38.1 × 137.16 mm |
| Weight | 0.4 kg |
Applications
-
Distributed control systems (DCS)
-
Batch process automation
-
Thermal process equipment
-
Water and wastewater management
-
Furnace and kiln control systems
Advantages
-
Dual Ethernet Ports: Supports redundant or independent communication paths.
-
Plug-and-Play Capability: Automatically recognized by the HC900 controller.
-
High Reliability: Galvanic isolation ensures robust operation.
-
Modular Integration: Easily integrated with various HC900 I/O modules.
-
Diagnostics Support: Built-in LED indicators for operational status and faults.
-
Remote Configuration: Enables flexible deployment of remote I/O panels.
FAQ (Q&A Format)
Q1: What is the main function of the 900S75S-0360-00 I/O Scanner?
A1: It manages communication between the controller and remote I/O modules in the ControlEdge HC900 system.
Q2: How many Ethernet ports does it have?
A2: It features two Ethernet ports for dual-port communication.
Q3: Can this module be inserted or removed under power?
A3: Yes, it supports hot-swap functionality without system shutdown.
Q4: What does the LED status indicator show?
A4: It shows module condition—green for OK, red for fault, and amber for override.
Q5: Is this module galvanically isolated?
A5: Yes, for enhanced safety and signal integrity.
Q6: Does it support redundant communication paths?
A6: Yes, thanks to its dual-port design.
Q7: What environments is it suitable for?
A7: Industrial settings including harsh environments with G3 level protection.
Q8: What is the typical power usage of the scanner?
A8: Approximately 5.0 watts.
Q9: Can I use this module in non-Honeywell systems?
A9: No, it is designed exclusively for the Honeywell ControlEdge HC900 system.
Q10: What kind of mounting does it support?
A10: It is DIN rail mounted for easy installation.
Related Models (Same Series)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 900S50S-0460 | Single-Port Scanner Module | 137 × 38.1 × 137.16 | 0.36 kg |
| 900C70-0460 | CPU Module | 137 × 38.1 × 137.16 | 0.4 kg |
| 900A01-0202 | 8-Ch Universal Analog Input Module | 137 × 35.6 × 137.16 | 0.21 kg |
| 900B08-0202 | 8-Ch Analog Output Module | 137 × 35.6 × 137.16 | 0.40 kg |
| 900H01-0202 | 8-Ch Relay Output Module | 137 × 35.6 × 137.16 | 0.425 kg |
| 900P24-0301 | 24VDC 60W Power Supply | 137 × 72.6 × 137.16 | 0.792 kg |
