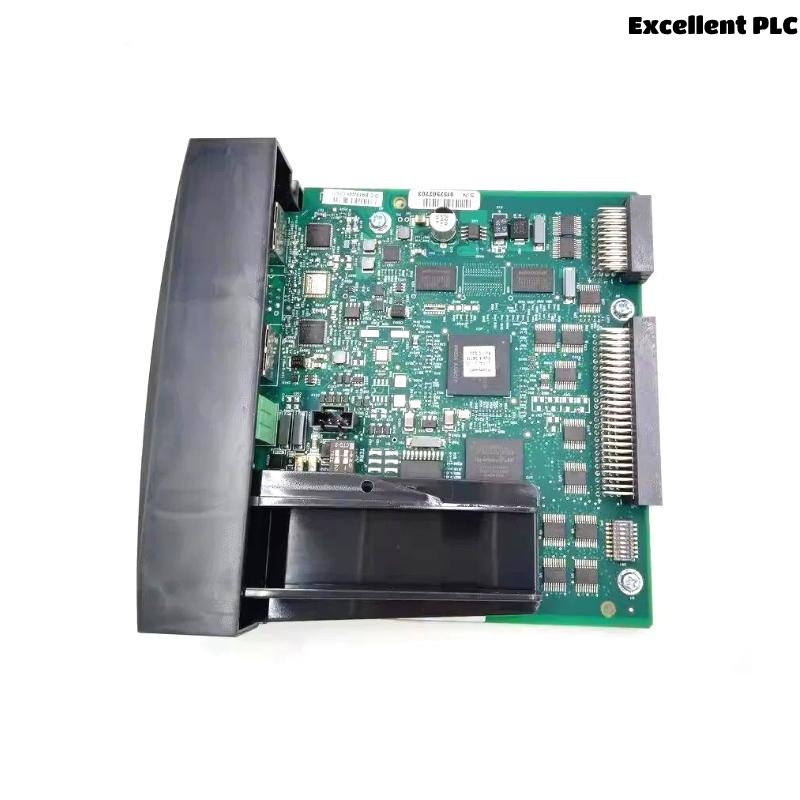

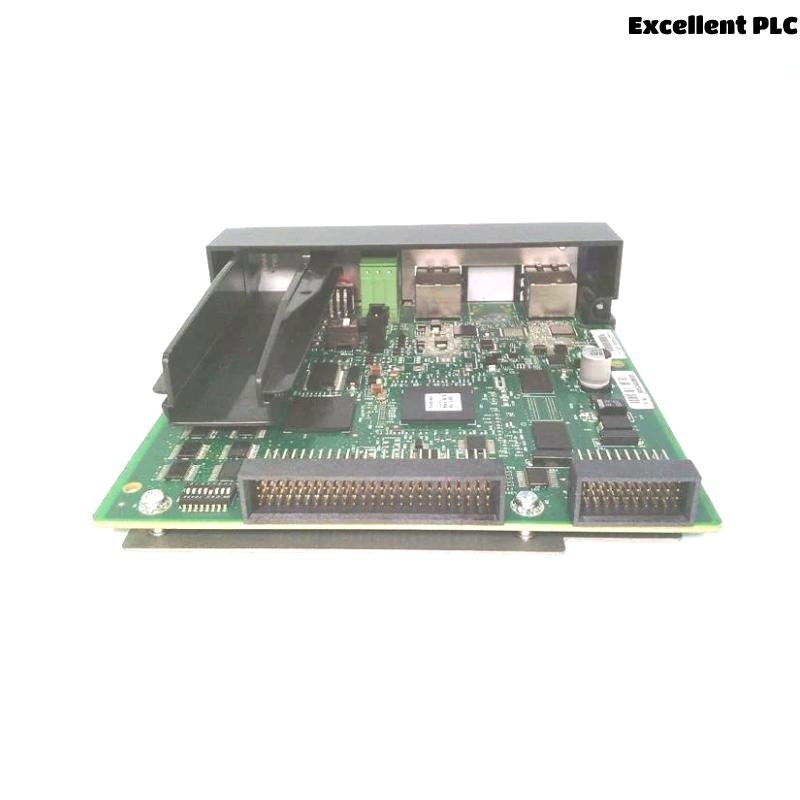

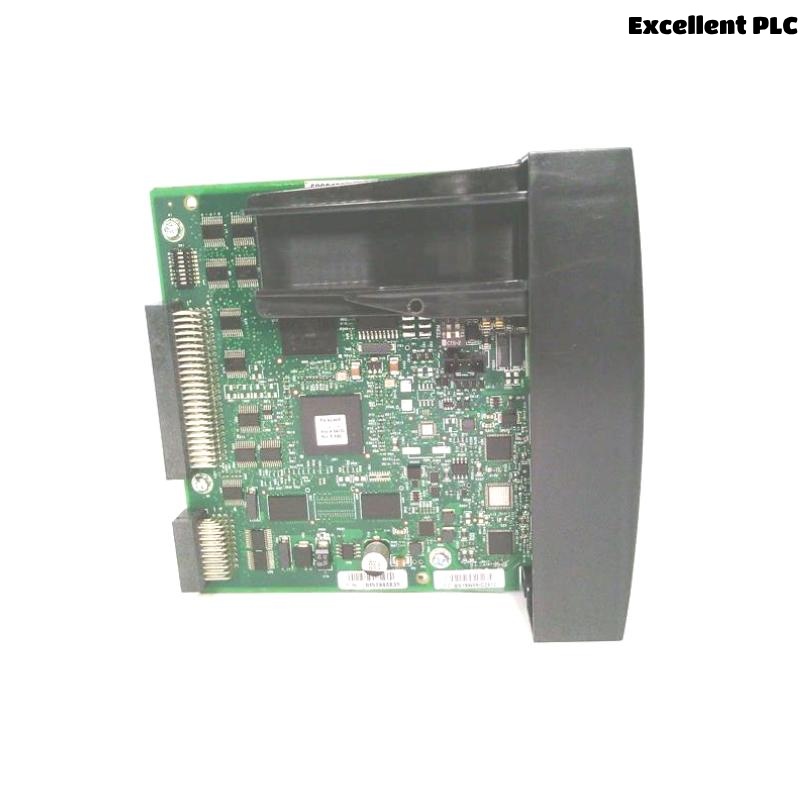

Honeywell 900S75S-0460 ControlEdge HC900 Scanner
The Honeywell 900S75S-0460 is a dual-port Scanner Module for the ControlEdge HC900 series, designed to provide high-reliability communication between the controller and remote I/O racks. It ensures seamless data acquisition and control in distributed industrial automation systems.
Technical Specifications
Parameter | Value |
---|---|
Model | 900S75S-0460 |
Product Type | Dual-Port Scanner Module |
Compatibility | Honeywell ControlEdge HC900 |
Dimensions (H × W × D) | 137 × 38.1 × 151.7 mm |
Weight | 0.4 kg |
Mounting | Standard 35 mm DIN Rail |
Power Consumption | 5 W (typical) |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -40°C to 70°C |
Relative Humidity | 10% to 90% (non-condensing) |
Certifications | CE, UL, CSA, ATEX, FM |
Applications
-
Distributed process control systems
-
Remote I/O communication for industrial automation
-
Data acquisition networks in harsh environments
-
Safety-critical control systems
Advantages
-
Dual-port configuration for redundancy and reliability
-
Compact DIN rail mounting saves panel space
-
Conformal coating for harsh industrial environments
-
Hot-swappable under power for ease of maintenance
-
Certified for use in hazardous locations
FAQ
Q1: What is the main function of the 900S75S-0460?
A1: It serves as a dual-port scanner to interface the HC900 controller with remote I/O modules.
Q2: Can this module be hot-swapped?
A2: Yes, it supports removal and insertion under power.
Q3: Is it suitable for hazardous locations?
A3: Yes, it is certified for Class I, Div. 2 and ATEX Zone 2 environments.
Q4: What is the difference between 900S50S and 900S75S?
A4: The 900S75S offers dual ports for redundancy, whereas the 900S50S has a single port.
Q5: Does it require special mounting?
A5: No, it mounts on a standard 35 mm DIN rail.
Q6: How much space does it occupy?
A6: It is 137 × 38.1 × 151.7 mm in size and weighs just 0.4 kg.
Q7: Is the module compatible with other Honeywell systems?
A7: It is specifically designed for the ControlEdge HC900 platform.
Q8: What power does it consume?
A8: Typically about 5 W.
Q9: Does it have environmental protection?
A9: Yes, it is conformally coated for G3 harsh environments.
Q10: Can it operate in high-humidity areas?
A10: Yes, up to 90% relative humidity, non-condensing.
