Product Overview

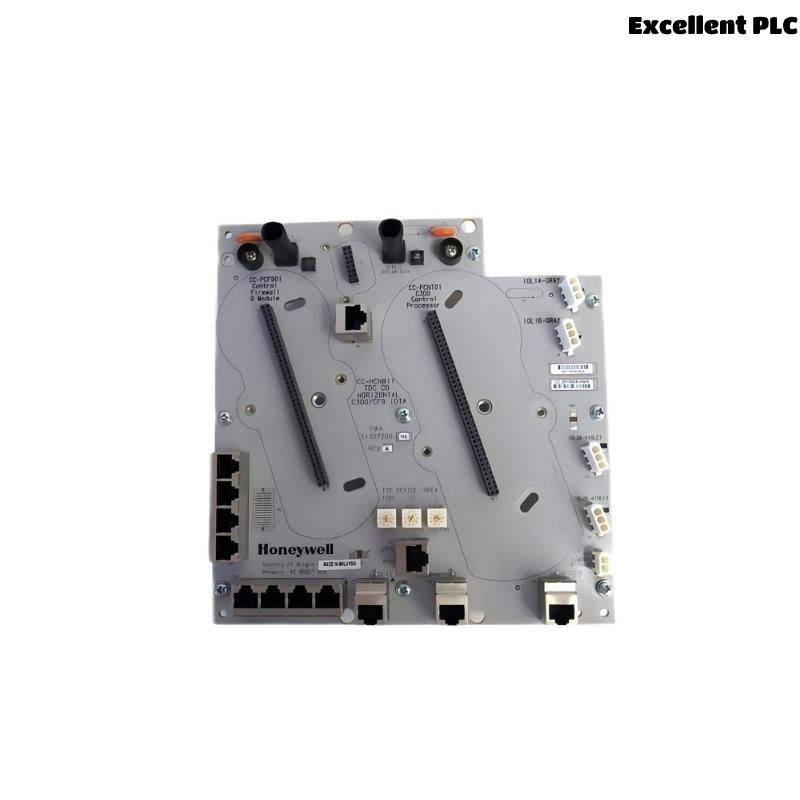

The Honeywell CC-HCN911 is a high-performance I/O terminal assembly designed for integration within the Experion Process Knowledge System (PKS). Engineered to handle multiple input and output channels, this module is ideal for acquiring data from a wide range of field devices such as sensors and actuators in industrial automation environments.
Manufactured by Honeywell, a global leader in industrial automation, the CC-HCN911 ensures reliable operation, high accuracy, and seamless integration into existing control systems. Its compact design and robust features make it suitable for applications where space is limited, and performance is critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | CC-HCN911 51307206-175 |
| Type | Horizontal C300/CF9 I/O Terminal Assembly |
| Input Channels | 4 Analog, 4 Digital |
| Output Channels | 8 Relay Outputs |
| Communication Protocols | RS-232, RS-485, Ethernet |
| Operating Voltage Range | 12V to 24V DC |
| Power Consumption | Max. 2W @ 24V DC |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN rail or panel mount |
| Dimensions (W×H×D) | 145 x 100 x 60 mm |
| Weight | 0.6 kg |
| Certifications | CE, UL, CSA |
Applications
The CC-HCN911 module is versatile and can be employed in various industrial sectors. Its primary applications include:
-
Factory Automation: Acquires data from sensors and actuators for monitoring and control.
-
Process Control: Monitors and controls discrete and analog signals within industrial processes.
-
Building Automation: Monitors environmental conditions for HVAC systems.
-
Water and Wastewater Treatment: Monitors levels, flow rates, and quality parameters.
-
Oil and Gas Industry: Monitors drilling parameters and safety systems.
-
Power Generation: Acquires data from turbines, generators, and related systems.
Advantages
-
High Accuracy: Provides precise measurements with rapid response time.
-
Robust Communication: Supports multiple communication protocols for seamless integration.
-
Versatile I/O: Supports both analog and digital inputs and outputs from various field devices.
-
Seamless Integration: Fully compatible with Honeywell’s Experion PKS, facilitating easy system integration.
-
Durable Design: Built to withstand harsh industrial environments with wide temperature and humidity ranges.
-
Compact Size: Space-saving design suitable for installations with limited space.
-
Certified Quality: Meets international safety and quality standards (CE, UL, CSA).
Frequently Asked Questions (FAQ)
-
What is the primary function of the CC-HCN911 module?
It serves as an I/O terminal assembly, acquiring and controlling signals from various field devices for processing and control. -
How many input and output channels does the CC-HCN911 support?
It supports 4 analog inputs, 4 digital inputs, and 8 relay outputs. -
What communication protocols are supported by the module?
The module supports RS-232, RS-485, and Ethernet communication protocols. -
Is the module compatible with Honeywell’s Experion PKS?
Yes, it is fully compatible with Honeywell’s Experion PKS. -
What are the environmental operating conditions?
Operating temperature ranges from -20°C to +55°C, with humidity between 5% and 95% RH (non-condensing). -
How is the module mounted?
It can be mounted on a DIN rail or panel, offering flexibility in installation. -
Is the module certified for international use?
Yes, it carries CE, UL, and CSA certifications. -
What is the weight and size of the module?
It weighs 0.6 kg and measures 145 x 100 x 60 mm. -
Can the module be used in hazardous environments?
The module is designed for industrial environments; however, specific hazardous area certifications should be verified based on application requirements. -
What is the power consumption of the module?
The module consumes a maximum of 2W at 24V DC.
Related Models in the Same Series
| Model Number | Description | Channels | Input/Output Type |
|---|---|---|---|
| CC-HCAR01 | Horizontal Backplane PWA | N/A | Backplane Assembly |
| CC-HCMB02 | Battery Backup Mounting Kit | N/A | Mounting Accessory |
| CC-HUIO12 | Horizontal UHIO2 IOTA | N/A | Universal I/O |
| CC-IP0101 | PROFIBUS DP Gateway Module | N/A | Communication Gateway |
| CC-KFPGR5 | IOL FOE PM Gray – 0.5M | N/A | Fiber Optic Cable |
| CC-KREB01 | DO Relay Extension Cable – 1M | N/A | Extension Cable |
