Product Introduction

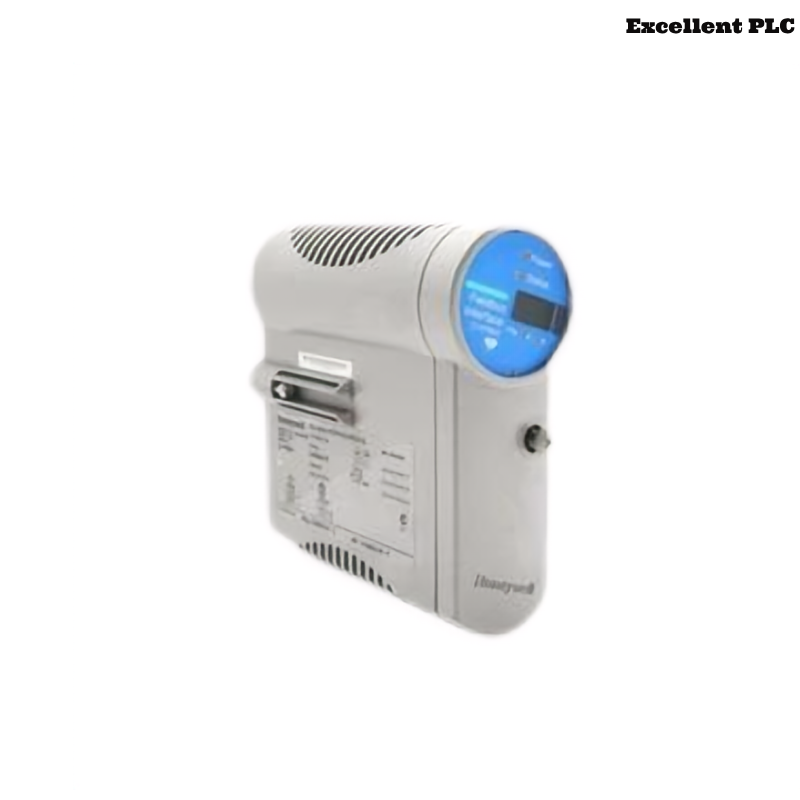

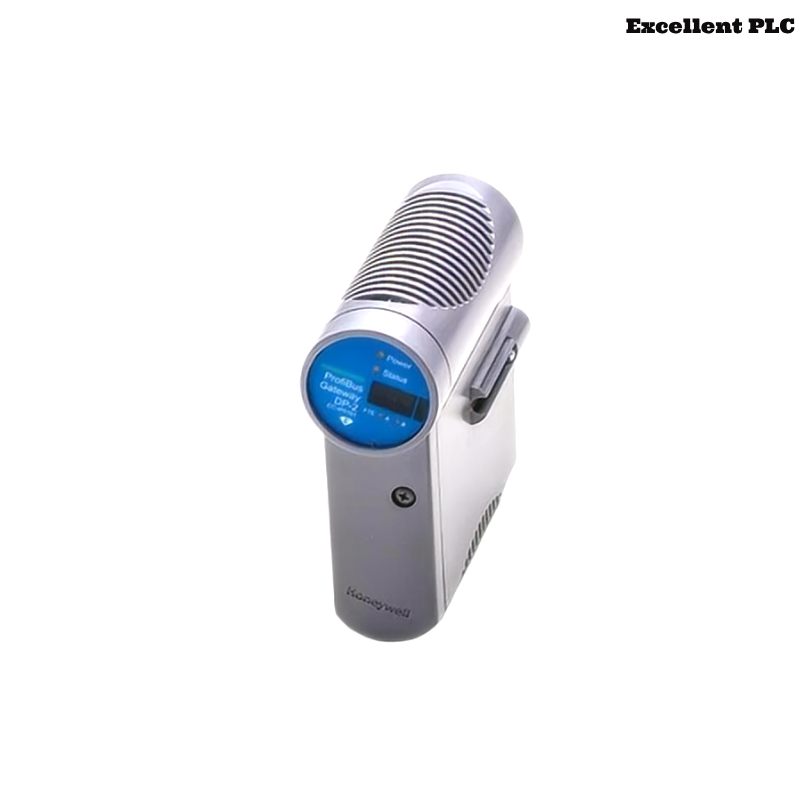

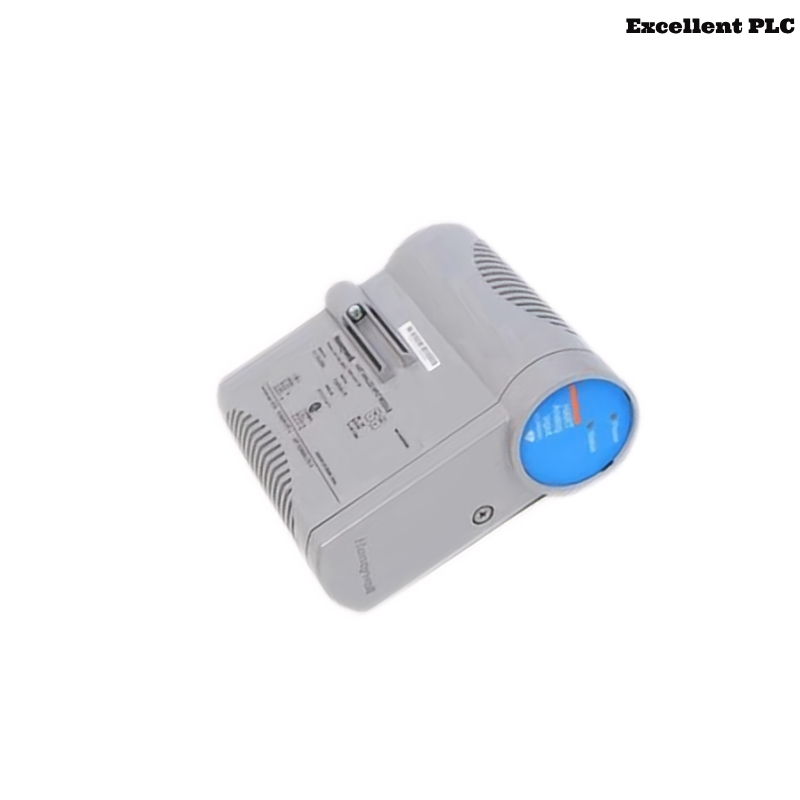

The Honeywell CC-IP0101 51410056-175 is a Profibus DP gateway module designed to facilitate seamless communication between Profibus DP devices and Honeywell’s Experion Process Knowledge System (PKS) or Experion LX systems. This module enables integration of up to 127 Profibus DP devices, including sensors, actuators, and controllers, into Honeywell’s control architecture, ensuring efficient and reliable data exchange in industrial automation environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | CC-IP0101 |
| Part Number | 51410056-175 |
| Manufacturer | Honeywell |
| Product Type | Profibus DP Gateway Module |
| Communication Protocol | Profibus DP |
| Supported Devices | Up to 127 Profibus DP devices |
| Baud Rate | 9.6 kbps to 12 Mbps |
| Power Supply | 24V DC |
| Power Consumption | 10 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5 g peak at 20 to 500 Hz |
| Shock Resistance | 30 g peak for 11 ms |
| Dimensions (W x H x D) | 55 x 160 x 145 mm |
| Weight | 0.4 kg |
| Mounting | DIN rail |
| Material | Aluminum alloy |
| Protection Level | IP67 |
| Certifications | CE, RoHS |
| Warranty | 12 months |
Product Applications
The CC-IP0101 Profibus DP Gateway Module is utilized across various industrial sectors to integrate Profibus DP devices into Honeywell’s control systems. Key application areas include:
-
Manufacturing: Facilitates communication between production equipment and control systems.
-
Process Control: Enhances data exchange between sensors, actuators, and controllers in process industries.
-
Oil and Gas: Supports pipeline monitoring and SCADA systems.
-
Water and Wastewater Treatment: Optimizes treatment plant automation.
-
Building Automation: Integrates building management systems with industrial controls for improved energy efficiency.
Product Advantages
-
Seamless Integration: Enables efficient communication between Profibus DP devices and Honeywell Experion systems.
-
High Device Support: Supports up to 127 Profibus DP devices, allowing for extensive network integration.
-
Flexible Communication: Supports baud rates from 9.6 kbps to 12 Mbps, accommodating various network requirements.
-
Robust Design: Constructed with industrial-grade materials, ensuring durability in harsh environments.
-
Compact Form Factor: The slim design facilitates easy installation in space-constrained settings.
-
Diagnostic Capabilities: Includes features for monitoring network traffic and diagnosing network issues.
-
Versatile Mounting: DIN rail mounting allows for straightforward installation and maintenance.
-
Compliance and Certification: Meets CE and RoHS standards, ensuring adherence to international regulations.
Frequently Asked Questions (FAQ)
-
What is the primary function of the CC-IP0101 module?
It serves as a gateway to connect Profibus DP devices to Honeywell’s Experion control systems, facilitating seamless communication and integration. -
How many devices can the CC-IP0101 support?
The module supports up to 127 Profibus DP devices, allowing for extensive network integration. -
What are the supported baud rates?
The CC-IP0101 supports baud rates ranging from 9.6 kbps to 12 Mbps, accommodating various network requirements. -
Is the module compatible with both master and slave operations?
Yes, it supports both master and slave operations, providing flexibility in network configurations. -
What are the power requirements for the CC-IP0101?
The module operates on a 24V DC power supply with a power consumption of 10 W. -
What are the environmental operating conditions?
It operates within a temperature range of -40°C to +85°C and a humidity range of 5% to 95% non-condensing. -
What mounting options are available?
The CC-IP0101 is designed for DIN rail mounting, facilitating easy installation in control panels. -
Does the module have diagnostic capabilities?
Yes, it includes features for monitoring network traffic and diagnosing network issues, enhancing maintenance and troubleshooting. -
What materials are used in the construction of the module?
The module is constructed from aluminum alloy, providing durability and resistance to industrial environments. -
What certifications does the CC-IP0101 hold?
It is certified with CE and RoHS standards, ensuring compliance with international safety and environmental regulations.
Related Models (Same Series or Compatible)
| Model Number | Description | Compatibility |
|---|---|---|
| CC-PAIH01 | Analog Input Module | Compatible with Experion systems |
| CC-PAOH01 | Analog Output Module | Compatible with Experion systems |
| CC-PDIL01 | Digital Input Module | Compatible with Experion systems |
| CC-PDOH01 | Digital Output Module | Compatible with Experion systems |
| CC-TDIL01 | Digital Input Module | Compatible with Experion systems |
| CC-TDOH01 | Digital Output Module | Compatible with Experion systems |
Popular Honeywell Models
| Model Number | Description | Application Area |
|---|---|---|
| MU-TDID12 | Universal Digital Input Module | Process Control Systems |
| FC-SDI-1624 | High-Density Digital Input Module | Safety Instrumented Systems |
| CC-TAIX01 | Analog Input Module | Temperature/Pressure Sensing |
| CC-TAOX01 | Analog Output Module | Actuator Control |
| CC-PDOB01 | Digital Output Module | Process Control |
| CC-PAIH02 | Analog Input Module | Process Control Systems |
