Product Introduction

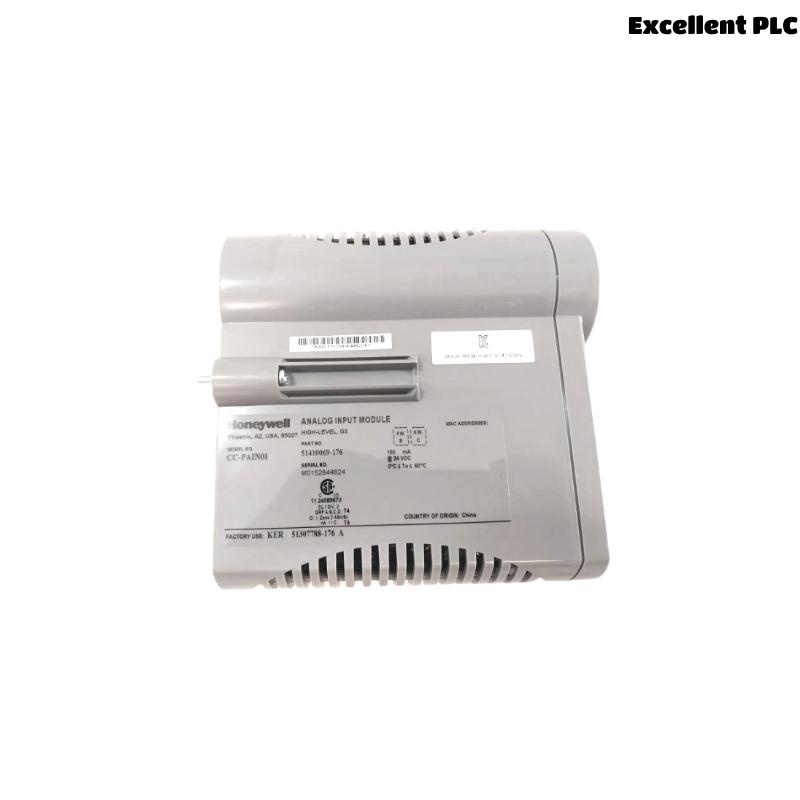

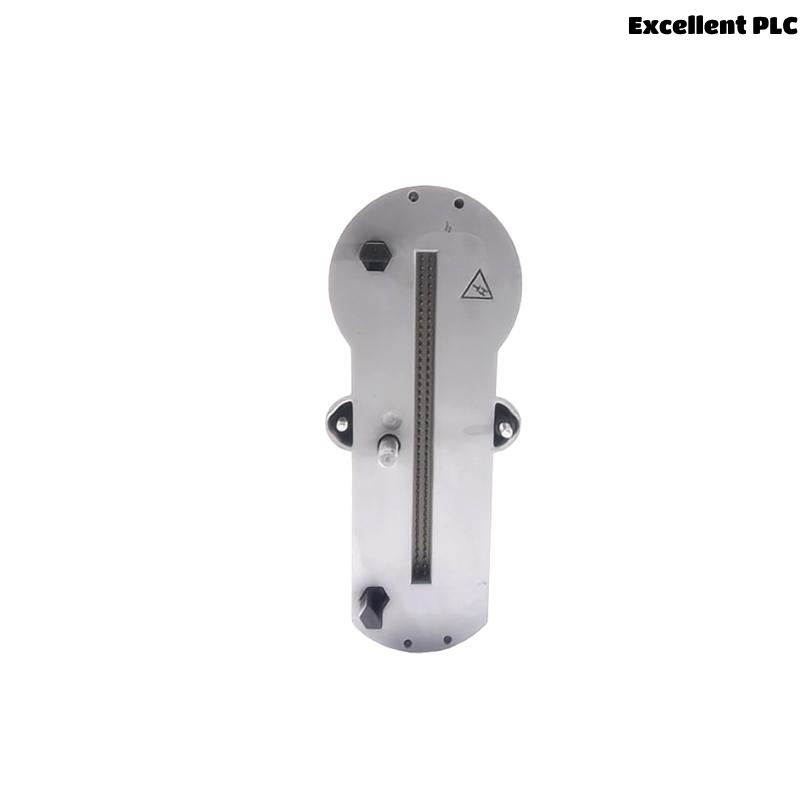

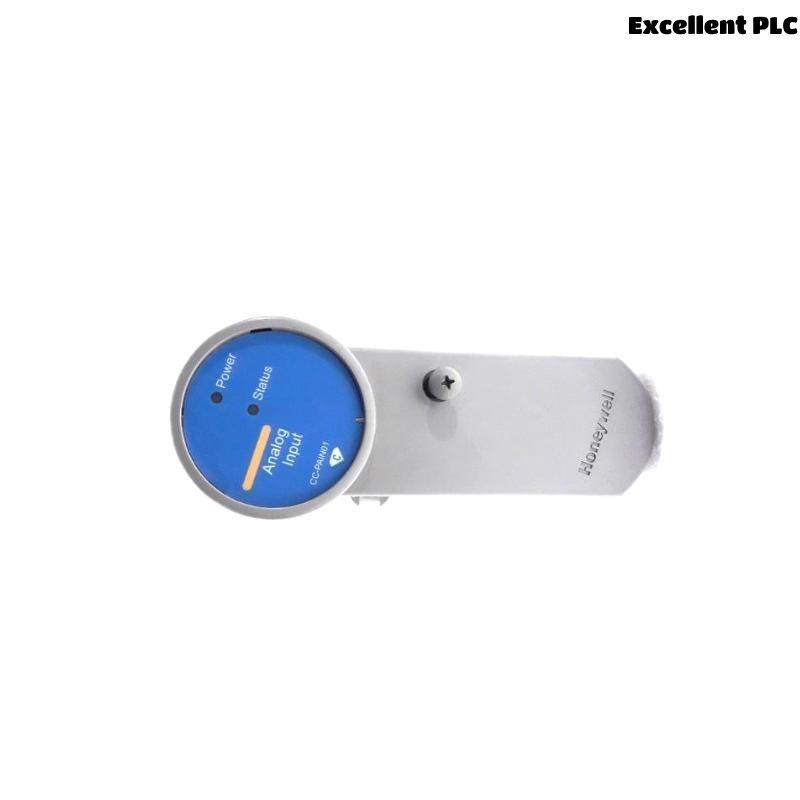

The Honeywell CC-PAIN01 (51410069-175) is a high-performance analog input module designed for Honeywell’s C300 controller within the Experion Process Knowledge System (PKS). It facilitates the integration of analog field devices by converting their signals into digital data for precise monitoring and control. The module supports 16 single-ended channels and is optimized for 4–20 mA current inputs, making it suitable for various industrial applications.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | CC-PAIN01 |
| Part Number | 51410069-175 |
| Input Channels | 16 (Single-Ended) |
| Input Type | Current (2-wire or self-powered transmitters) |
| Input Range | 4–20 mA (through 200 Ω) |
| A/D Converter Resolution | 16 bits |
| Normal Mode Rejection Ratio (60 Hz) | 20 dB |
| Common Mode Rejection Ratio (dc to 60 Hz) | 70 dB (500 Ω source imbalance) |
| Maximum Normal Mode Input | ±30 Volts |
| Crosstalk (dc to 60 Hz) | -60 dB (channel-to-channel) |
| Input Scan Rate | 50 ms |
| Hardware Accuracy (@ CMV = 0 V) | ±0.075% of full-scale (23.5°C ± 2°C); ±0.15% of full-scale (0 to 60°C) |
| Power Supply | 24 VDC |
| Dimensions (HxWxD) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
| Operating Temperature Range | 0°C to 60°C |
| Certifications | CE, RoHS |
| Warranty | 12 months |
Applications
-
Industrial Process Control: Monitoring and controlling variables such as temperature, pressure, and flow in industries like chemical, petrochemical, and manufacturing.
-
Energy Management Systems: Accurate data acquisition for optimizing energy consumption and efficiency.
-
Building Automation: Integration with HVAC systems for environmental control in commercial buildings.
-
Water and Wastewater Treatment: Monitoring parameters like pH, turbidity, and flow rates.
-
Food and Beverage Industry: Ensuring quality control by monitoring critical process variables.
Product Advantages
-
High Accuracy: Ensures precise data acquisition with minimal error margins.
-
Robust Design: Engineered to withstand industrial environments with high immunity to electrical noise.
-
Fast Loop Scanning: 50 ms scan rate allows for real-time monitoring and quick response.
-
Optional Redundancy: Enhances system reliability by supporting redundant configurations.
-
Non-Incendive Field Power: Safe operation in hazardous environments without the need for external marshalling.
-
Comprehensive Self-Diagnostics: Continuous monitoring for optimal performance and easy maintenance.
-
Compact Size: Space-efficient design suitable for various installation scenarios.
Frequently Asked Questions (FAQs)
-
What types of input signals does the CC-PAIN01 support?
The module supports 4–20 mA current inputs from 2-wire or self-powered transmitters.
-
How many input channels are available on the CC-PAIN01?
It offers 16 single-ended input channels.
-
What is the resolution of the analog-to-digital converter?
The module features a 16-bit A/D converter for high-precision measurements.
-
Is the CC-PAIN01 suitable for use in hazardous environments?
Yes, it provides non-incendive field power, making it safe for use in Class 1, Division 2 hazardous locations.
-
Does the module support redundancy?
Yes, it offers optional redundancy to enhance system reliability.
-
What is the input scan rate of the CC-PAIN01?
The module has an input scan rate of 50 milliseconds.
-
What are the dimensions and weight of the module?
It measures 63.5 x 124.46 x 307.34 mm and weighs 0.299 kg.
-
What is the operating temperature range?
The module operates within a temperature range of 0°C to 60°C.
-
Are there any certifications associated with the CC-PAIN01?
Yes, it is certified with CE and RoHS standards.
-
What is the warranty period for the CC-PAIN01?
It comes with a 12-month warranty.
Related Models (Same Series or Function)
| Model | Description | Channels | Input Type | Protocol |
|---|---|---|---|---|
| CC-PAIH01 | High-Level Analog Input Module | 16 | 4–20 mA | HART |
| CC-PAIH02 | High-Level Analog Input Module | 16 | 4–20 mA | HART |
| CC-PAOH01 | Analog Output Module | 8 | 4–20 mA | HART |
| CC-PAIM01 | Low-Level Analog Input Module | 16 | Thermocouple/RTD | – |
| CC-PAON01 | Analog Output Module | 16 | 4–20 mA | HART |
| CC-PDIL01 | Pulse Digital Input Module | 16 | Pulse | FTE |
