Product Introduction

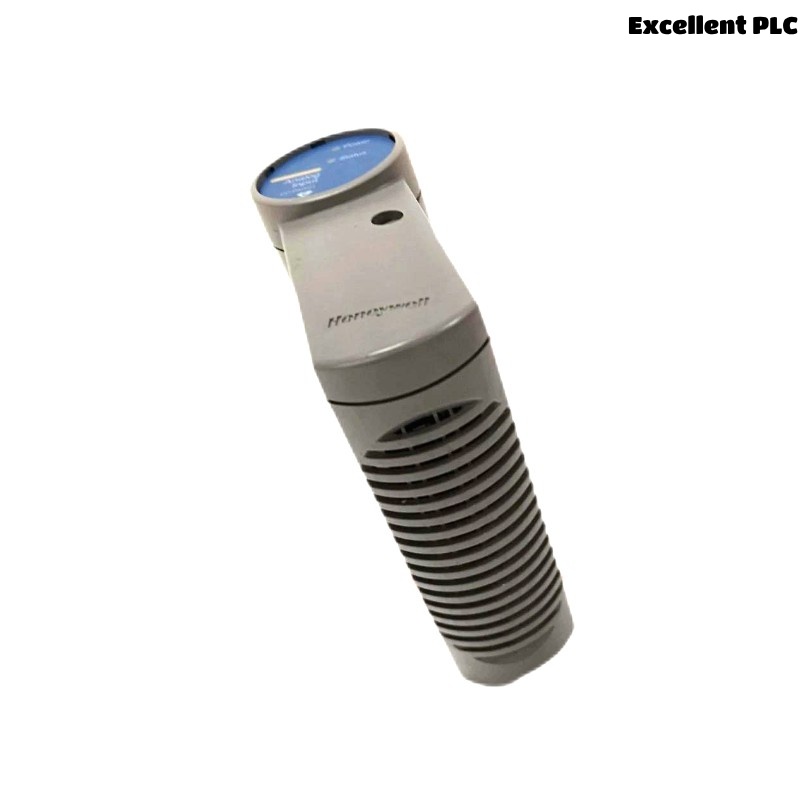

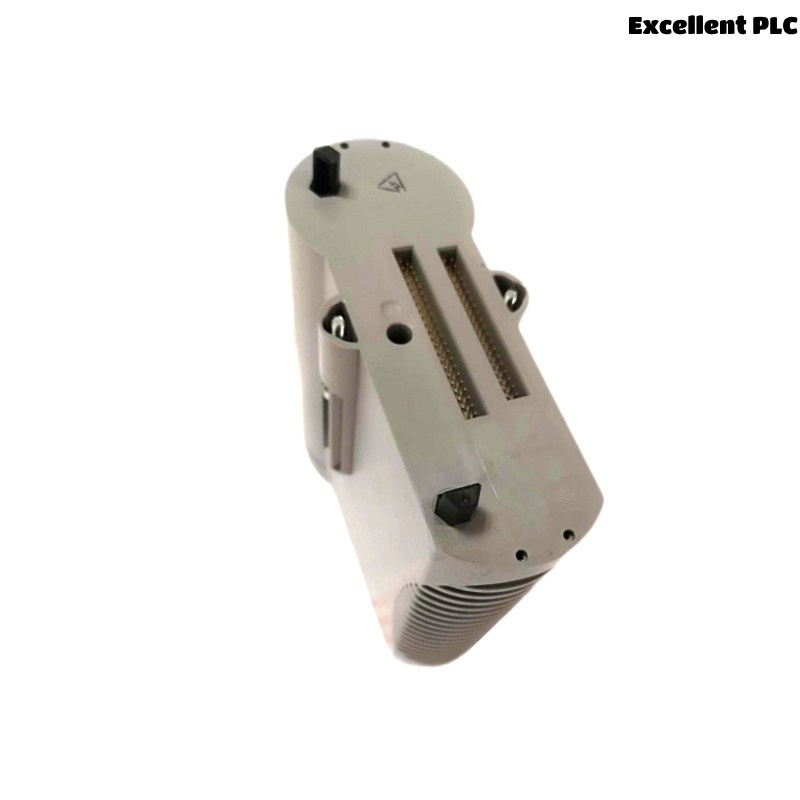

The Honeywell CC-PAIX01 51405038-275 Analog Input Module is a critical component designed for Honeywell’s Experion Process Knowledge System (PKS) and other control platforms. This module serves as a reliable interface for collecting and processing analog signals from field instruments, enabling accurate measurement of process variables such as temperature, pressure, flow, and level.
Engineered for industrial environments, the CC-PAIX01 features robust signal conditioning and filtering capabilities, ensuring that the control system receives clean, stable signals. Its architecture supports multiple analog inputs, allowing for consolidated and efficient data acquisition. This module plays a key role in enhancing process control accuracy and operational efficiency.
Designed for plug-and-play installation within Honeywell’s modular control system racks, the CC-PAIX01 offers ease of maintenance and expansion. Its compact footprint and high reliability make it suitable for both new installations and retrofits in existing systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | CC-PAIX01 51405038-275 |
| Module Type | Analog Input Module |
| Number of Channels | 8 channels |
| Input Signal Types | 4-20 mA current, 0-10 V voltage inputs |
| Input Impedance | Approximately 250 Ω (current input) |
| Accuracy | ±0.1% of span |
| Sampling Rate | 100 ms per channel |
| Power Supply | 24 V DC (from mainframe rack) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W × H × D) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
| Mounting | Rack-mounted in Honeywell control system chassis |
| Certifications | CE, UL, CSA |
Product Applications
-
Process Control Systems: Accurate signal acquisition for essential process variables in chemical, petrochemical, and refining plants.
-
Power Generation: Monitors parameters critical to turbine and boiler operation for efficiency and safety.
-
Water and Wastewater Treatment: Supports measurement of flow rates, pressure, and chemical dosing signals.
-
Pharmaceutical Manufacturing: Ensures precise control over environmental and process variables.
-
Food and Beverage Industry: Maintains quality control by delivering accurate real-time data from process sensors.
-
Oil and Gas: Provides robust and stable analog input handling in harsh environments, enabling continuous process monitoring.
Product Advantages
-
High Signal Integrity: Advanced filtering reduces noise and interference for clean data acquisition.
-
Multi-Channel Support: Consolidates multiple analog inputs into a single module, reducing wiring complexity.
-
Compact Design: Optimizes cabinet space without sacrificing performance.
-
Wide Operating Range: Designed for stable operation across varying temperatures and humidity levels.
-
Plug-and-Play Installation: Simplifies system expansion and maintenance with modular rack compatibility.
-
Reliable and Durable: Built to withstand industrial environments and reduce downtime.
-
Compatibility: Seamlessly integrates with Honeywell Experion PKS and other control systems.
-
Safety Compliance: Certified to meet global industrial safety and quality standards.
Frequently Asked Questions (FAQ)
-
What analog input types does the CC-PAIX01 module support?
It supports 4-20 mA current and 0-10 V voltage input signals. -
How many input channels are available on this module?
The module provides 8 analog input channels. -
What accuracy can I expect from this module?
The accuracy is ±0.1% of the signal span. -
Is the module suitable for use in humid environments?
Yes, it operates reliably in 5% to 95% relative humidity (non-condensing). -
What is the operating temperature range?
The module works within 0°C to 60°C. -
How is the module powered?
It receives 24 V DC power from the mainframe rack. -
Can this module be used for hazardous areas?
The module itself lacks intrinsic hazardous area certification; appropriate barriers or enclosures are required. -
What are the physical dimensions of the module?
Dimensions are 63.5 x 124.46 x 307.34 mm. -
Does the module include any diagnostic features?
Yes, it supports fault detection including wiring errors and sensor malfunctions. -
Which industries commonly use this module?
Widely used in oil and gas, power generation, water treatment, pharmaceuticals, and food processing.
