Product Introduction

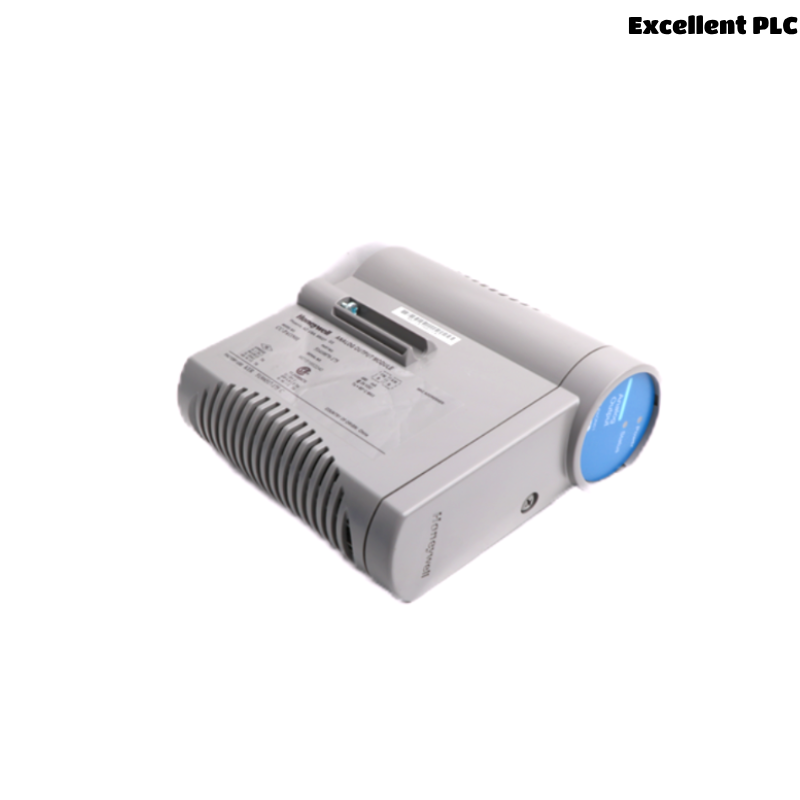

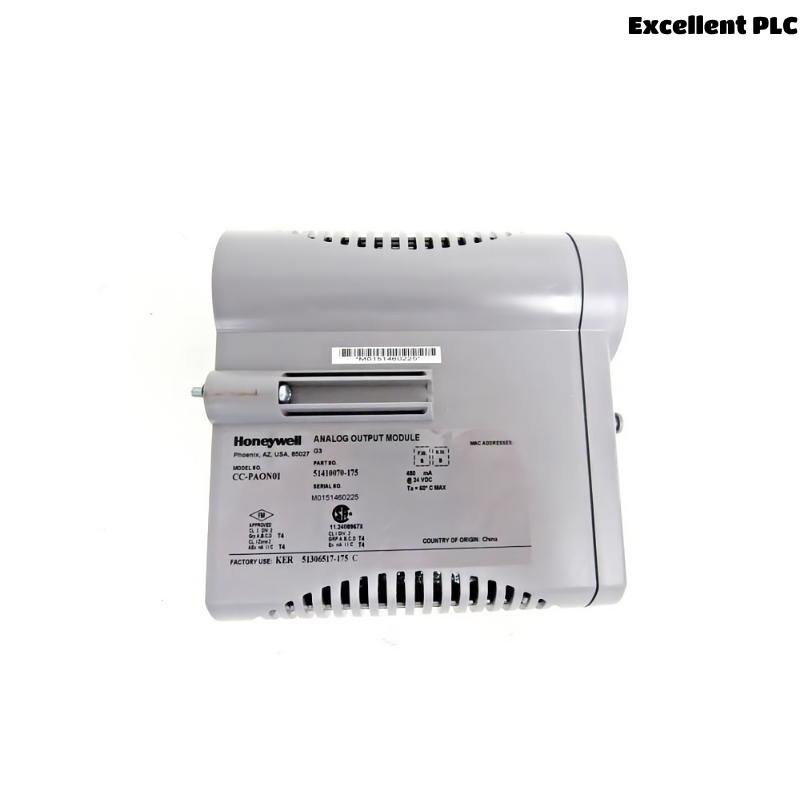

The Honeywell CC-PAON01 51410070-175 Analog Output Module serves as an essential component in Honeywell’s control system ecosystem, designed for delivering precise analog output signals from digital control data. This module is built to translate digital commands into reliable current signals, which are critical for the regulation of actuators, control valves, and other field instrumentation in industrial automation environments.
Known for its robustness and high-performance capability, the CC-PAON01 is integrated into Honeywell’s Experion PKS and other control platforms, supporting tight process control and operational stability. Its design prioritizes signal accuracy and fast response, ensuring efficient and smooth operation of downstream control devices. The module’s diagnostic functions provide real-time monitoring of output health, thus minimizing system downtime.
This product is ideal for industries requiring accurate and dependable analog output control, including power generation, petrochemical, pharmaceuticals, and water treatment sectors.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | CC-PAON01 51410070-175 |
| Module Type | Analog Output Module |
| Number of Channels | 8 channels |
| Output Signal Range | 4–20 mA current output |
| Output Resolution | 16-bit DAC |
| Load Resistance | Up to 1000 Ω |
| Accuracy | ±0.1% of span |
| Response Time | < 10 ms |
| Power Supply | 24 V DC (from main rack chassis) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W × H × D) | 100 x 60 x 20 mm |
| Weight | 0.2 kg |
| Mounting | Rack-mounted in Honeywell control chassis |
| Certifications | CE, UL, CSA |
Product Applications
-
Industrial Process Control: Used extensively for converting control system digital signals into analog current outputs to regulate field devices like valves, actuators, and dampers.
-
Power Generation: Controls output to turbines, generators, and other critical equipment ensuring stable and efficient power production.
-
Oil & Gas Industry: Controls process variables in refineries and pipelines by modulating valves and actuators.
-
Chemical and Petrochemical Plants: Provides accurate control signals to maintain process integrity and safety.
-
Pharmaceutical Manufacturing: Ensures precise dosing and mixing processes by controlling field instruments.
-
Water and Wastewater Treatment: Controls pumps, valves, and mixers for optimized fluid management and treatment.
Product Advantages
-
High Precision: Offers ±0.1% output accuracy for consistent and reliable control signals.
-
Multiple Outputs: Supports 8 independent analog output channels to maximize control flexibility.
-
Fast Response: Less than 10 ms response time allows quick adaptation to process changes.
-
Rugged Construction: Designed to endure harsh industrial environments with wide temperature and humidity tolerance.
-
Built-In Diagnostics: Continuous monitoring of output status helps detect faults early, reducing unexpected downtime.
-
Seamless Integration: Compatible with Honeywell Experion PKS and other control system platforms for ease of installation and expansion.
-
Compact Size: Slim module design allows efficient use of rack space.
-
Stable Performance: Advanced signal conditioning minimizes noise and interference, ensuring signal integrity.
Frequently Asked Questions (FAQ)
-
What type of analog output signals does the CC-PAON01 provide?
It provides 4-20 mA current analog output signals. -
How many analog output channels are available on this module?
The module supports 8 analog output channels. -
What level of accuracy does this module achieve?
The output accuracy is ±0.1% of the signal span. -
Is the CC-PAON01 compatible with Honeywell Experion PKS?
Yes, it is fully compatible and designed for integration with Experion PKS. -
What power supply voltage does the module require?
It requires a 24 V DC power supply provided from the control system rack. -
What environmental conditions can the module operate under?
It operates reliably within 0°C to 60°C temperature and 5% to 95% non-condensing humidity. -
Does the module support diagnostic functions?
Yes, it has built-in diagnostics for output circuit health monitoring. -
What are the physical dimensions of the CC-PAON01?
The module measures 100 x 60 x 20 mm. -
What is the module’s response time for output changes?
The response time is less than 10 milliseconds. -
Can this module be used in safety instrumented systems?
It can be used as part of a safety system depending on the overall architecture and certifications, but additional safety measures may be necessary.
Recommended Models – Same Series or Related
| Model Number | Description | Key Features |
|---|---|---|
| CC-PAON02 | Analog Output Module with enhanced isolation | Improved noise immunity |
| CC-PAIX01 | Analog Input Module | Supports multiple analog inputs |
| CC-PAOH01 | Analog Output Module | High precision 4-20 mA outputs |
| CC-PDIX01 | Digital Input Module | For digital status signals |
| CC-PDOX01 | Digital Output Module | Controls digital field devices |
| CC-PMIX01 | Multiplexer Input Module | Supports multiplexed inputs |
Recommended Popular Models – Honeywell Brand
| Model Number | Description | Typical Application |
|---|---|---|
| Experion PKS R430 | Process control system | Enterprise-wide automation |
| SmartLine TDC3000 | Temperature transmitter | High accuracy temperature sensing |
| HC900 | Hybrid controller | Flexible control solutions |
| Triconex 3500 | Safety instrumented system | High-reliability safety systems |
| SmartLine Vortex Flow Meter | Flow measurement device | Precise flow monitoring |
| OneWireless Gateway | Wireless communication module | Wireless sensor networking |
