Product Introduction

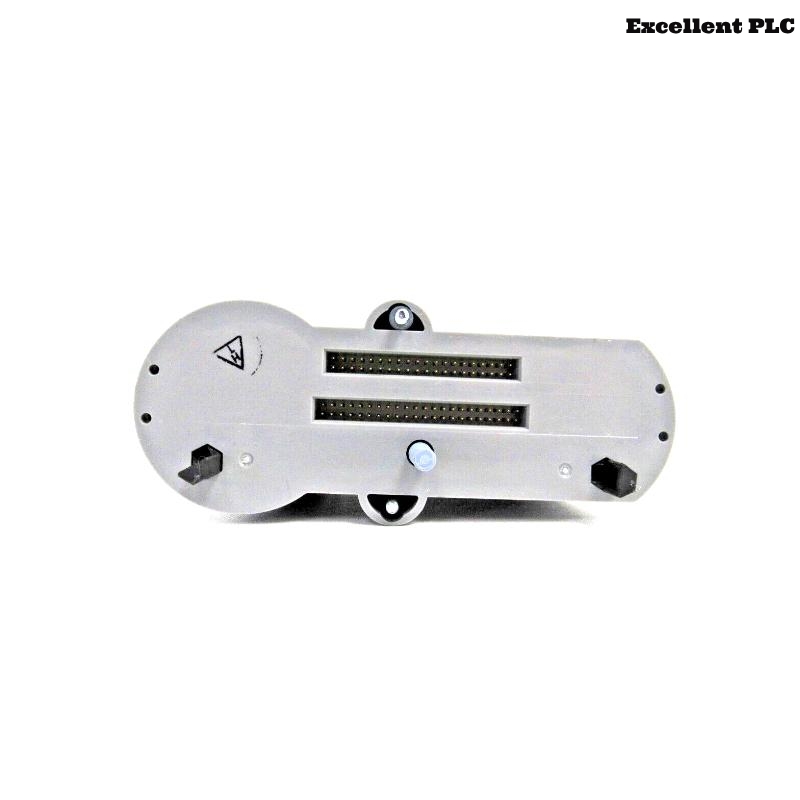

The Honeywell CC-PAOX01 (Part Number: 51405039-275) is a high-performance analog output module that forms an integral part of Honeywell’s Experion Process Knowledge System (PKS) or the ControlEdge HC900/Experion LX platforms. Designed for seamless integration into process automation systems, this module facilitates precise analog signal output to field actuators such as control valves and variable speed drives. It delivers analog current signals (typically 4–20 mA), enabling closed-loop control in complex process environments.
Engineered for robust reliability and accuracy, the CC-PAOX01 is known for its stability in critical applications across industries such as oil & gas, chemical, power generation, water treatment, and pharmaceuticals.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | CC-PAOX01 |
| Part Number | 51405039-275 |
| Type | Analog Output Module |
| Channels | 8 independent analog output channels |
| Output Signal Type | 4–20 mA current output |
| Signal Resolution | 16-bit |
| Accuracy | ±0.05% of span |
| Update Rate | 50 ms (typical) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Diagnostics | Built-in self-diagnostics, loop test, and field fault detection |
| Redundancy | Supported with redundant I/O architecture |
| Hot Swappable | Yes |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Power Consumption | < 4.5 W |
| Dimensions (W x H x D) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.35 kg |
| Mounting | DIN rail or chassis mount |
| Compliance & Certifications | CE, UL, FM, CSA, RoHS |
Applications
The Honeywell CC-PAOX01 module finds application in a wide range of industrial and critical process control systems. It is designed to support complex control strategies in distributed control systems (DCS) and hybrid control environments. Typical application areas include:
-
Oil & Gas: Control of pressure valves and flow regulation
-
Chemical Processing: Dosing and flow metering for reactions
-
Power Plants: Turbine and boiler control
-
Water & Wastewater Treatment: Level control and chemical dosing
-
Pharmaceuticals: Precise control of flow in production batches
-
Food & Beverage: Flow regulation in automated filling lines
The module’s fast response and precise signal integrity ensure optimal performance in systems where timing and accuracy are critical.
Product Advantages
-
High Precision Control: With 16-bit resolution and tight accuracy specifications, the CC-PAOX01 delivers excellent analog control fidelity.
-
Redundancy Support: Designed for mission-critical environments, it supports hot-swappable redundancy for uninterrupted operation.
-
Robust Diagnostics: Built-in diagnostic functions help identify field wiring issues, loop status, and calibration errors.
-
Seamless Integration: Native compatibility with Honeywell’s Experion systems ensures effortless configuration and reduced commissioning time.
-
Compact Form Factor: Its modular design and small footprint make it ideal for high-density cabinet installations.
-
Reliability in Harsh Conditions: With industrial-grade temperature and humidity tolerance, it performs reliably even in extreme environments.
Frequently Asked Questions (FAQ)
1. What type of output does the CC-PAOX01 module provide?
It provides analog 4–20 mA current output across eight independent channels.
2. Can the module be hot-swapped without shutting down the system?
Yes, it is fully hot-swappable when installed in a redundant system architecture.
3. Is the module suitable for safety-critical applications?
While the module includes diagnostic capabilities, it is generally used in standard control loops. For safety applications, confirm compliance with your specific safety architecture.
4. How does the CC-PAOX01 ensure signal accuracy?
It features a 16-bit resolution DAC and tight accuracy tolerance (±0.05% of span), providing precise analog output.
5. What systems is the CC-PAOX01 compatible with?
It is compatible with Honeywell’s Experion PKS, Experion LX, and ControlEdge platforms.
6. How many channels does the module have?
It includes 8 analog output channels.
7. What is the power requirement of the CC-PAOX01?
The module consumes less than 4.5 watts during operation.
8. Does the module include field wiring diagnostics?
Yes, it includes advanced diagnostics for loop integrity, open-loop detection, and hardware failure.
9. What mounting options are available?
It can be DIN rail mounted or inserted into an I/O chassis rack.
10. What is the physical size of the CC-PAOX01 module?
It measures 63.5 x 124.46 x 307.34 mm, and weighs about 0.35 kg.
