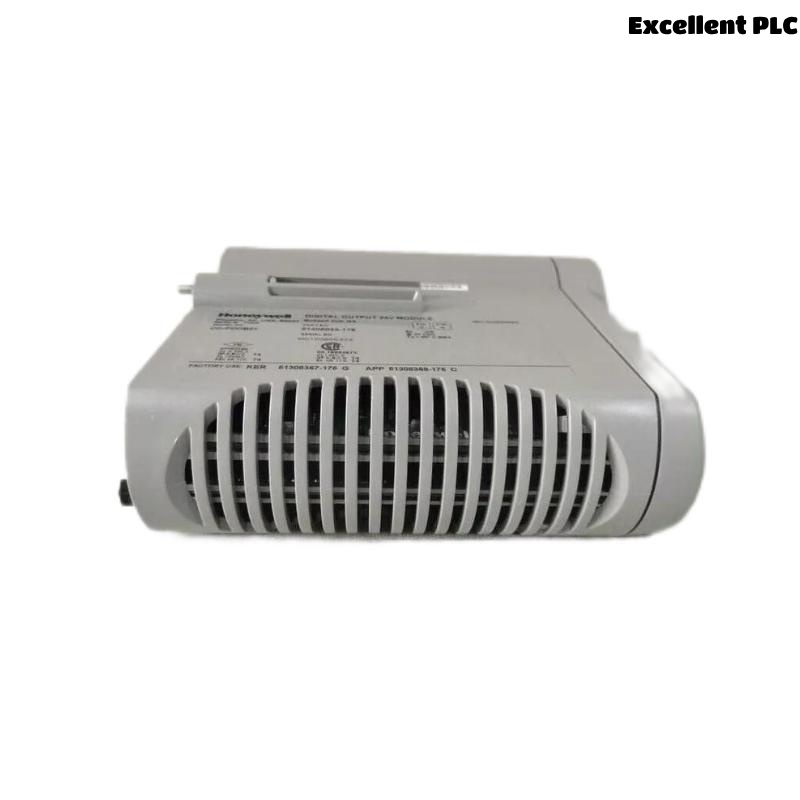

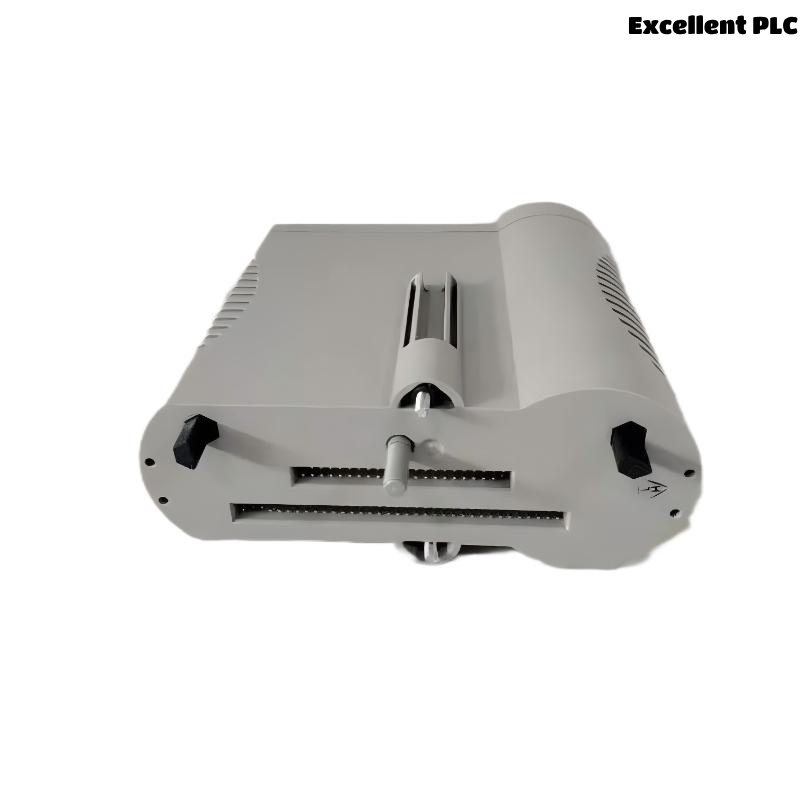

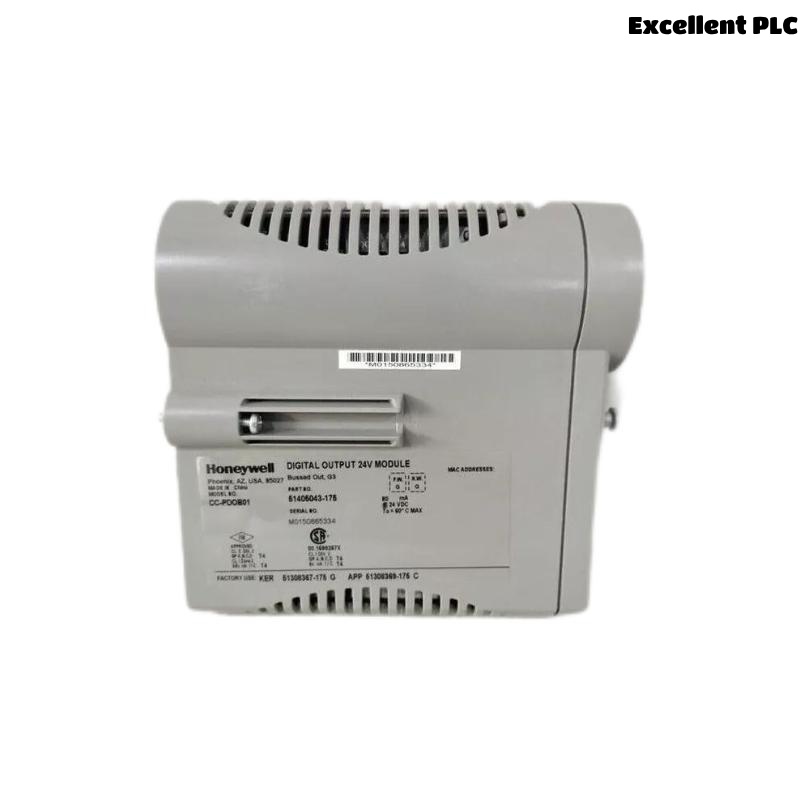

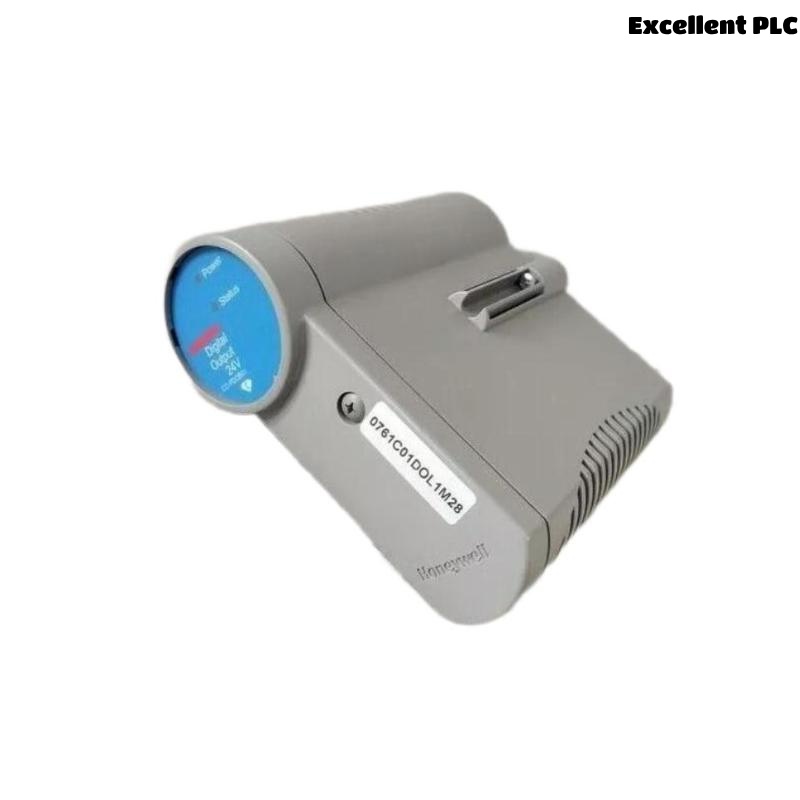

Honeywell CC-PDOB01 51405043-175 Digital Output Modules

Product Overview

The Honeywell CC-PDOB01 51405043-175 is a high-performance Digital Output Module designed to provide reliable and precise control over field devices in industrial automation systems. This module enables seamless communication between the control system and various actuators, such as motors, relays, and other digital output devices.

Engineered for integration into Honeywell’s control systems like Experion and Safety Manager, the CC-PDOB01 delivers high output accuracy and offers extensive flexibility for handling different types of digital outputs. The module is built to perform in harsh industrial environments, ensuring that the connected systems operate reliably under challenging conditions.

This Digital Output Module is ideal for critical applications in industries such as manufacturing, oil & gas, power generation, and process automation, where precision and reliability are essential for operational success.

Key Features

• High Current Output: Capable of driving high-current devices, making it suitable for heavy-duty industrial applications.

• Modular Design: The module features a modular design that allows for flexible configuration in different control systems.

• Field-Selectable Output Types: Outputs can be configured to control devices such as relays, solenoids, or motors.

• Galvanic Isolation: Provides electrical isolation between the control system and output devices, ensuring system integrity and reducing the risk of signal interference.

• Status Indicators: Each output channel has LED indicators for real-time monitoring of output status, simplifying troubleshooting and system diagnostics.

• Temperature Range: Operates efficiently in a wide temperature range from -20°C to +60°C, suitable for industrial environments.

• High Reliability: Built with robust materials to ensure long-term, reliable performance in demanding industrial settings.

• Seamless Integration: Designed for easy integration into Honeywell Experion and Safety Manager systems, facilitating efficient automation and control.

Technical Specifications

Industry Applications

• Manufacturing – Ideal for controlling actuators such as relays, valves, and motors in automated manufacturing processes.

• Oil & Gas – Used for controlling equipment like pumps and solenoids in remote oil rigs and refineries.

• Power Generation – Suitable for managing digital outputs for relays, circuit breakers, and control equipment in power plants.

• Chemical Processing – Ensures precise control over safety systems and automation equipment in chemical plants.

• Water & Wastewater Treatment – Enables control of field actuators, such as valves and pumps, in water treatment plants.

• Automotive – Provides digital output control for assembly line robots and actuators.

Product Advantages

• Wide Compatibility – Capable of driving a variety of field devices including relays, solenoids, and motors, providing flexibility for diverse applications.

• Enhanced Reliability – Designed to deliver consistent and reliable performance in harsh industrial environments.

• Seamless Integration – Easily integrates with Honeywell Experion and Safety Manager control systems for a streamlined automation experience.

• Real-Time Monitoring – Equipped with LED indicators for each output, allowing operators to monitor the system’s status easily.

• Galvanic Isolation – Provides electrical isolation between the output devices and the control system, minimizing the risk of faults due to electrical interference.

• Space-Efficient – Compact and modular design makes it suitable for use in systems with space constraints.

• Wide Temperature Range – Operates efficiently in extreme temperature conditions, from -20°C to +60°C, making it suitable for diverse environments.

Frequently Asked Questions (FAQ)

1. What types of devices can be controlled by the CC-PDOB01 module?
   The module can control devices like relays, solenoids, and motors, making it ideal for a variety of industrial automation tasks.

2. How many outputs are available on the module?
   The CC-PDOB01 features 16 outputs, grouped into 4 sets of 4 outputs.

3. What is the current limit per output channel?
   Each output channel can handle a maximum current of 2 A when using a 24 V DC output.

4. What is the input voltage range for the outputs?
   The module supports multiple output voltages, including 24 V DC, 120 V AC, and 230 V AC.

5. Can the CC-PDOB01 be used in hazardous environments?
   The module is designed to meet industry standards, including IEC 61508, ensuring safe operation in critical control systems, but may not be specifically rated for explosive environments.

6. What is the operating temperature range of the module?
   The CC-PDOB01 operates within a temperature range of -20°C to +60°C.

7. How is the CC-PDOB01 installed?
   The module can be installed either on DIN rails or by panel mounting, offering flexible installation options.

8. Does the module provide feedback on the status of the outputs?
   Yes, each output channel has an LED indicator to show the output status in real time.

9. What certifications does the module have?
   The CC-PDOB01 is certified for CE, UL, RoHS, IEC 61131-2, and IEC 61508 compliance.

10. What is the weight of the CC-PDOB01 module?
    The CC-PDOB01 weighs approximately 0.231 kg.
