Product Overview

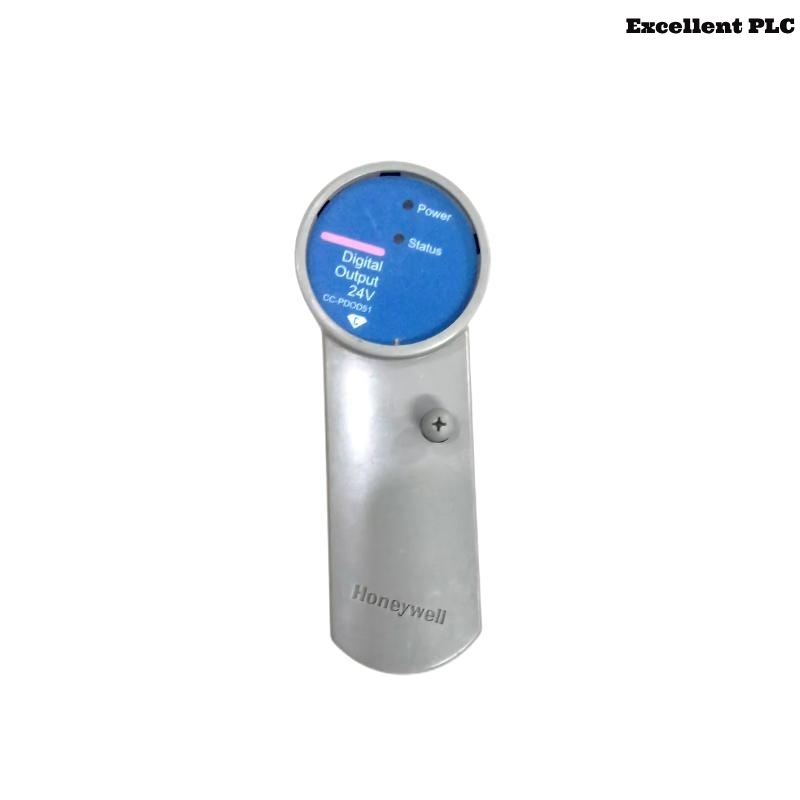

The Honeywell CC-PDOD51 (Part Number: 51454408-175) is a robust and reliable 24V digital output module designed for industrial automation applications. As part of Honeywell’s Series C I/O modules, it offers seamless integration with various control systems, providing efficient and precise control over digital output signals. Its compact design and advanced features make it suitable for deployment in diverse industrial environments.
Product Specifications
The following table outlines the key specifications of the Honeywell CC-PDOD51 Digital Output Module:
| Specification | Details |
| Model Number | CC-PDOD51 |
| Part Number | 51454408-175 |
| Output Voltage | 24V DC |
| Output Type | Bussed Output |
| Series | G3 |
| Certifications | Cl I Div. 2 Grp A, B, C, D; T4 Cl. I, Zone 2 Aex/Ex Na IIC T4 |
| Current Consumption | 80 mA @ 24 VDC |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
Applications
The Honeywell CC-PDOD51 module is versatile and can be utilized in various industrial applications, including:
-
Manufacturing Automation: Controls machinery and production lines, ensuring precise operations and enhancing productivity.
-
Energy Sector: Manages control systems in power plants and substations, facilitating reliable energy distribution and monitoring.
-
Utilities: Oversees operations in water treatment facilities and waste management systems, ensuring efficient process control.
-
Hazardous Environments: Suitable for use in areas classified under hazardous conditions due to its compliance with safety standards.
Advantages
The Honeywell CC-PDOD51 Digital Output Module offers several benefits:
-
Compact and Integrated Design: Combines I/O module and field terminations in the same area, reducing the need for additional chassis and saving space.
-
Flexible Configuration: Allows for adaptable parameter settings and channel configurations to meet specific application requirements.
-
Fault Detection and Diagnostics: Equipped with built-in fault detection capabilities, it monitors output channels and provides diagnostic information in case of abnormalities.
-
High Reliability: Designed to operate in demanding industrial environments, ensuring consistent performance and longevity.
-
Compliance with Safety Standards: Meets various certifications, making it suitable for use in hazardous locations.
Frequently Asked Questions (FAQs)
-
What is the primary function of the Honeywell CC-PDOD51 module?
The CC-PDOD51 is a 24V digital output module designed to control and manage digital output signals in industrial automation systems.
-
Can the CC-PDOD51 module be used in hazardous environments?
Yes, it is certified for use in hazardous locations, including Class I Division 2 Groups A, B, C, D; T4 and Class I Zone 2 Aex/Ex Na IIC T4 environments.
-
What are the dimensions and weight of the CC-PDOD51 module?
The module measures 63.5 x 124.46 x 307.34 mm and weighs 0.299 kg.
-
Is the CC-PDOD51 compatible with other Honeywell Series C I/O modules?
Yes, it is designed to integrate seamlessly with Honeywell’s Series C I/O modules for cohesive system functionality.
-
What is the operating temperature range for the CC-PDOD51?
The module operates effectively within a temperature range of 0°C to 60°C.
-
Does the CC-PDOD51 have built-in diagnostics?
Yes, it features fault detection and diagnostic capabilities to monitor output channels and provide alerts in case of issues.
-
What type of output does the CC-PDOD51 provide?
It offers bussed output, facilitating organized and efficient signal distribution.
-
How does the CC-PDOD51 contribute to system reliability?
By providing precise control over digital outputs and featuring fault detection, it enhances the overall reliability of the automation system.
-
Is the CC-PDOD51 suitable for energy sector applications?
Yes, it is commonly used in power plants and substations for managing control systems and ensuring reliable energy distribution.
-
Where can I purchase the Honeywell CC-PDOD51 module?
The module is available through authorized Honeywell distributors and reputable industrial automation equipment suppliers.
Related or Similar Models (Same Series or Function Type)
| Model Number | Description |
| CC-PDOB01 | Digital Output Module, 24V DC, non-bussed, 16 channels |
| CC-PDOD01 | Digital Output Module, 120V AC, 16-channel |
| CC-PDIL01 | Digital Input Module, 120V AC, 16-channel |
| CC-PDIL51 | Digital Input Module, 24V DC, bussed, 16-channel |
| CC-PDOR01 | Relay Output Module, 8-channel relay output |
| CC-PDIL02 | Digital Input Module, 24V DC, non-bussed, 32 channels |
| CC-PDIS01 | Isolated Digital Input Module, 16-channel |
| CC-PCNT01 | Counter Module for high-speed pulse input applications |
