Product Introduction

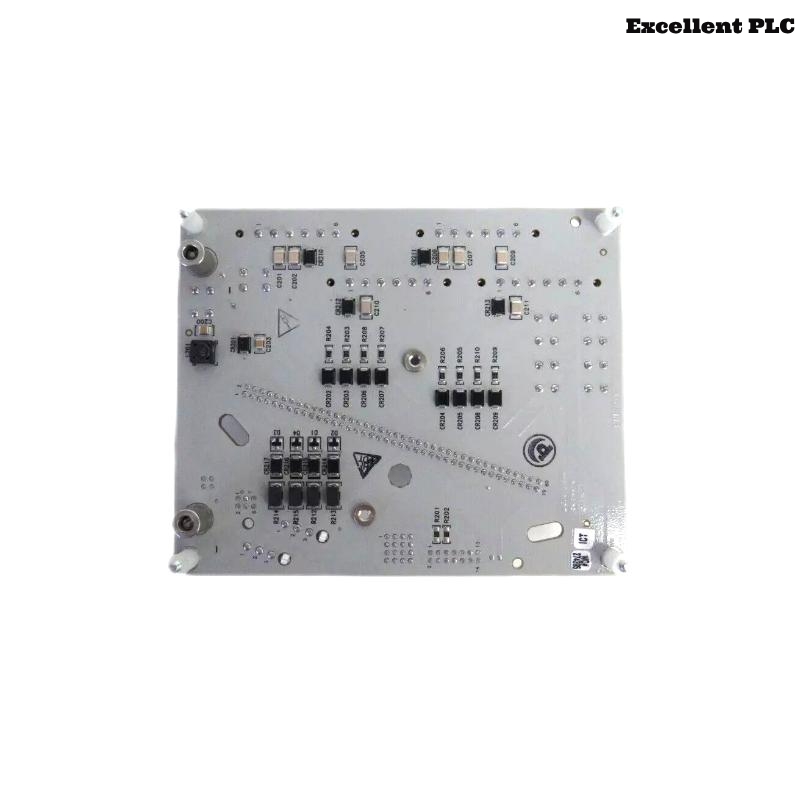

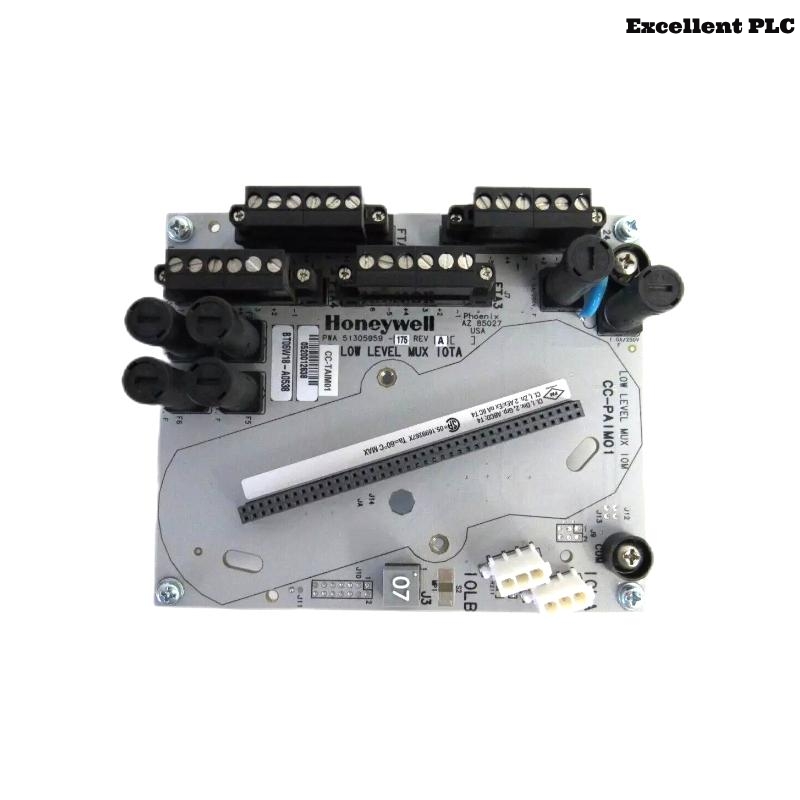

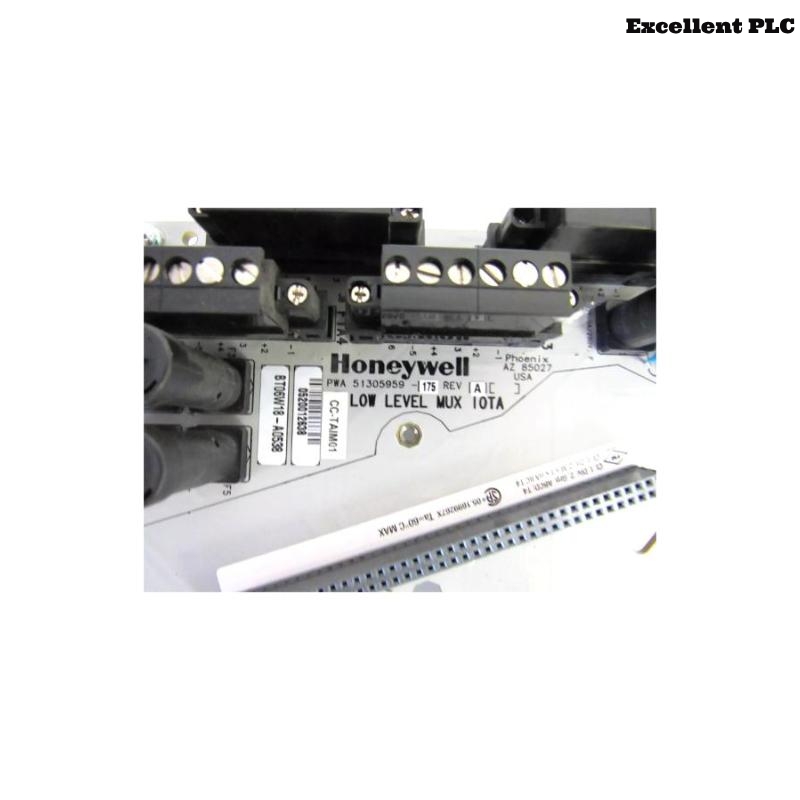

The Honeywell CC-TAIM01 51305959-175 is a Low-Level Analog Input Module designed for industrial automation and control systems. It enables precise data acquisition from various sensors and devices, ensuring accurate monitoring and control of complex processes.
Product Specifications
| Parameter | Specification |
| Input Channels | 64 fully-isolated channels |
| Isolation | Channel-to-channel, channel-to-PM, and channel-to-power supply common in 16-channel increments |
| Input Scan Rate | 1 second fixed by IOM (up to 64 channels/sec max) |
| Channel Bandwidth | 0 to 4.7 Hz (-3 dB) |
| Nominal Input Range | Thermocouple (TC) only |
| Dimensions | 313 x 30 cm x 278 cm |
| Weight | 0.32 kg |
Product Applications
The CC-TAIM01 module is utilized in various industrial applications, including:
-
Process Control Systems: Facilitates accurate data acquisition from sensors, enabling precise control of industrial processes.
-
Machine Monitoring: Collects and transmits data from machinery, aiding in performance analysis and predictive maintenance.
-
Building Automation: Integrates with building management systems to monitor environmental parameters and optimize energy usage.
Product Advantages
-
High Channel Density: Offers 64 fully-isolated input channels, allowing for extensive data collection within a compact module.
-
Robust Isolation: Ensures reliable data transmission with excellent isolation between channels, power supplies, and PM connections.
-
Flexible Input Handling: Capable of processing low-level analog signals, accommodating a variety of sensor types.
-
Reliable Performance: Designed for stable operation in industrial environments, contributing to system dependability.
Frequently Asked Questions (FAQ)
-
What types of sensors are compatible with the CC-TAIM01 module?
The module is designed to interface with low-level analog sensors, including thermocouples.
-
Can the CC-TAIM01 module be used in safety-critical applications?
While the module offers reliable performance, suitability for safety-critical applications depends on system requirements and compliance with relevant safety standards.
-
Is the CC-TAIM01 module compatible with other Honeywell I/O modules?
Yes, it is designed to integrate seamlessly with Honeywell’s Experion Series-C I/O systems.
-
What is the power consumption of the CC-TAIM01 module?
Specific power consumption details are not provided in the available sources.
-
Does the module support HART communication?
The CC-TAIM01 is primarily designed for low-level analog inputs and does not support HART communication.
-
What is the operating temperature range of the CC-TAIM01 module?
It is designed to operate within standard industrial temperature ranges, typically 0°C to 60°C.
-
How is the CC-TAIM01 module mounted within a control system?
Mounting details are not specified in the available sources.
-
Is the CC-TAIM01 module suitable for use in hazardous environments?
The module’s suitability for hazardous environments depends on compliance with relevant certifications and standards.
-
What is the channel-to-channel isolation voltage rating?
Specific isolation voltage ratings are not provided in the available sources.
-
Can the CC-TAIM01 module be used for both AC and DC signal inputs?
The module is designed for low-level analog signals; compatibility with AC or DC signals depends on the sensor and system configuration.
