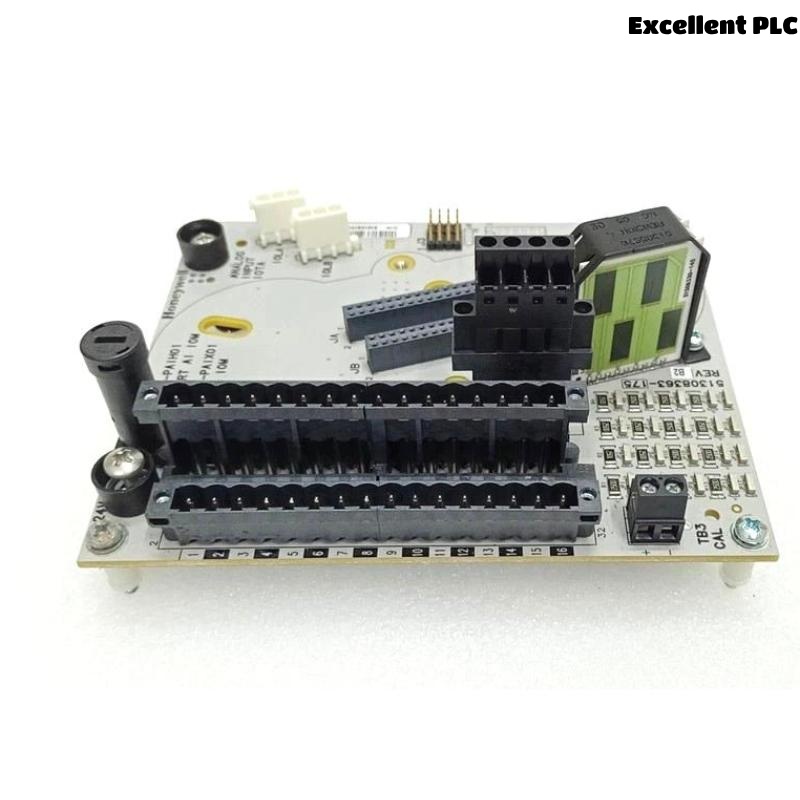

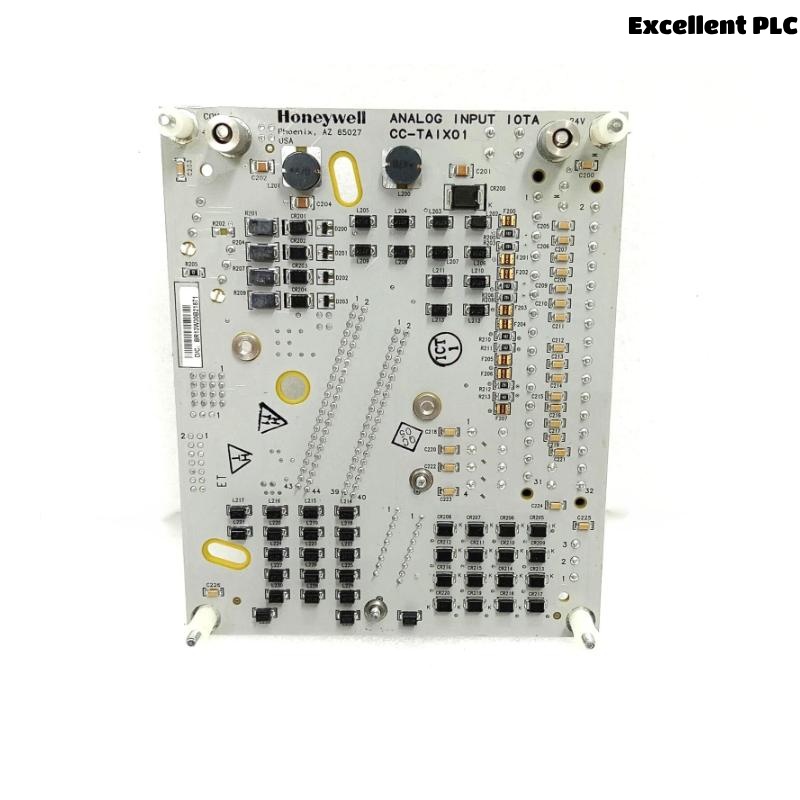

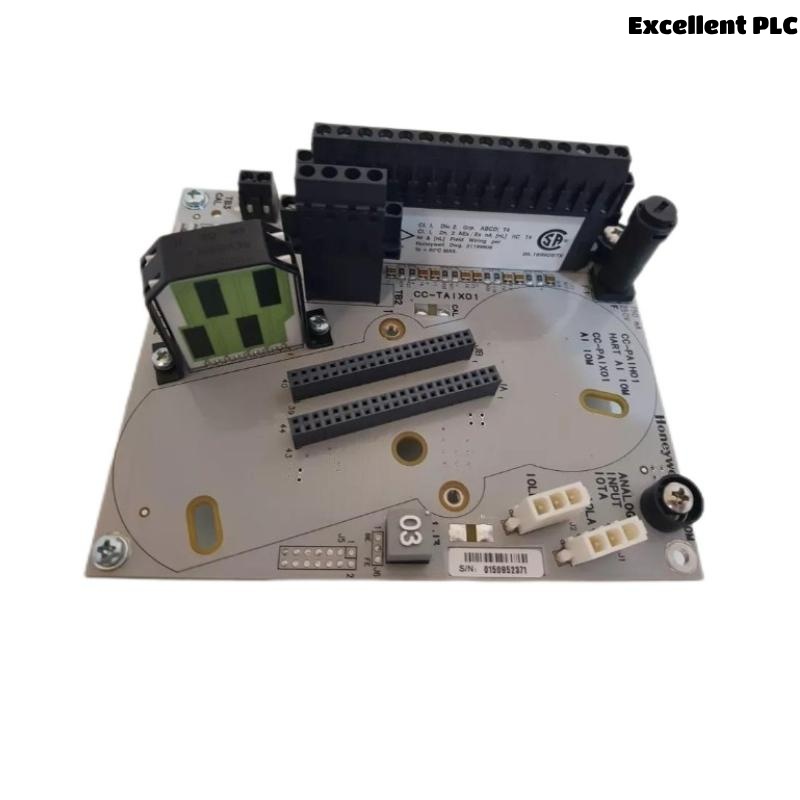

Honeywell CC-TAIX01 51306513-175
Product Introduction
The Honeywell CC-TAIX01 (Part Number: 51306513-175) is a high-performance Analog Input module engineered for Honeywell’s Experion Process Knowledge System (PKS). Designed with precision and reliability in mind, this module enables accurate signal acquisition from field instruments such as transmitters and sensors, converting analog signals into digital values for the control system. It is widely used in complex industrial automation environments requiring accurate process variable monitoring, such as temperature, pressure, flow, and level measurements.
The CC-TAIX01 is part of the Series C I/O family, built with a modular design for maximum scalability and minimal downtime during maintenance. It supports both single-ended and differential analog input types, making it adaptable to various applications across industries.
Product Advantages
-
High Accuracy: Offers precise analog signal processing with minimal noise interference.
-
Hot-Swappable: Enables replacement or maintenance without shutting down the system.
-
Modular Design: Facilitates easy installation, expansion, and system integration.
-
Redundancy Ready: Supports redundant configurations for enhanced system reliability.
-
Robust Build Quality: Built to withstand harsh industrial environments.
-
Wide Compatibility: Seamlessly integrates with Honeywell’s Experion PKS and C300 controller platforms.
-
Ease of Configuration: Uses intuitive engineering tools for fast configuration and diagnostics.
-
Low Power Consumption: Ensures energy-efficient operations even in high-load environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Name | CC-TAIX01 |
| Part Number | 51306513-175 |
| Function | Analog Input Module |
| Input Type | Single-ended or Differential Analog Inputs |
| Input Channels | 16 channels |
| Input Signal Range | 0–20 mA, 4–20 mA, 0–5 V, 1–5 V, ±10 V |
| Resolution | 16-bit |
| Update Rate | 10 ms per channel (typical) |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Diagnostics | Built-in health monitoring and fault reporting |
| Redundancy Support | Yes |
| Hot Swap Capability | Yes |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Shock/Vibration | IEC 60068-2-6 compliant |
| Power Consumption | <5 W |
| Dimensions | 152 x 84 x 45 mm |
| Weight | 0.5 kg |
| Mounting | DIN Rail or panel mount |
| Certifications | CE, CSA, UL, RoHS compliant |
| System Compatibility | Experion PKS, C300 Controller, Series C I/O |
Product Applications
The CC-TAIX01 analog input module finds use in various industrial sectors, including but not limited to:
-
Oil and Gas: Monitoring pipeline pressures, temperatures, and flow rates.
-
Chemical Processing: Reading process variables for reaction control and product quality.
-
Power Generation: Capturing temperature and vibration data from turbines and generators.
-
Water and Wastewater: Monitoring water level, pH, and turbidity sensors.
-
Pharmaceutical Manufacturing: Ensuring cleanroom environmental parameters.
-
Food & Beverage: Real-time process control for mixing, heating, and packaging.
Installation Instructions
-
Power Off the System: Always ensure power is disconnected before installation.
-
Mount the Module: Secure the module on a DIN rail or panel using provided clips.
-
Connect Field Wiring: Follow the wiring diagram for analog signal inputs; ensure polarity is correct.
-
Plug into I/O Chassis: Insert the module into the appropriate I/O slot within the Series C enclosure.
-
Enable Configuration via FTE: Use Experion configuration tools to assign and calibrate each channel.
-
Run Diagnostics: Post-installation, check health status LEDs and system logs.
-
Hot-Swap (if needed): Replace without shutdown by ensuring system redundancy is active.
10 Frequently Asked Questions (FAQ)
Q1: What type of signals does the CC-TAIX01 support?
A: It supports 0–20 mA, 4–20 mA, 0–5 V, 1–5 V, and ±10 V analog signals, both single-ended and differential.
Q2: Can the module be used in a redundant configuration?
A: Yes, CC-TAIX01 supports full redundancy with automatic switchover to enhance system reliability.
Q3: How many channels are available on the CC-TAIX01?
A: The module offers 16 individual analog input channels.
Q4: Does it require any special calibration?
A: Factory-calibrated, but users can apply calibration offsets through configuration software.
Q5: Is the module hot-swappable?
A: Yes, it can be replaced without powering down the control system.
Q6: What systems are compatible with the CC-TAIX01?
A: It integrates with Experion PKS, Series C I/O, and C300 controllers.
Q7: What diagnostics features does it offer?
A: It provides channel diagnostics, signal range checking, and internal fault detection.
Q8: Is any shielding required for wiring?
A: For noisy environments, shielded cables are recommended to maintain signal integrity.
Q9: Can it operate in extreme temperatures?
A: The operating range is 0°C to 60°C, suitable for most industrial control rooms.
Q10: Is this module approved for use in hazardous environments?
A: It carries certifications like CE and UL; for hazardous zones, check specific site compliance needs.
