Product Introduction

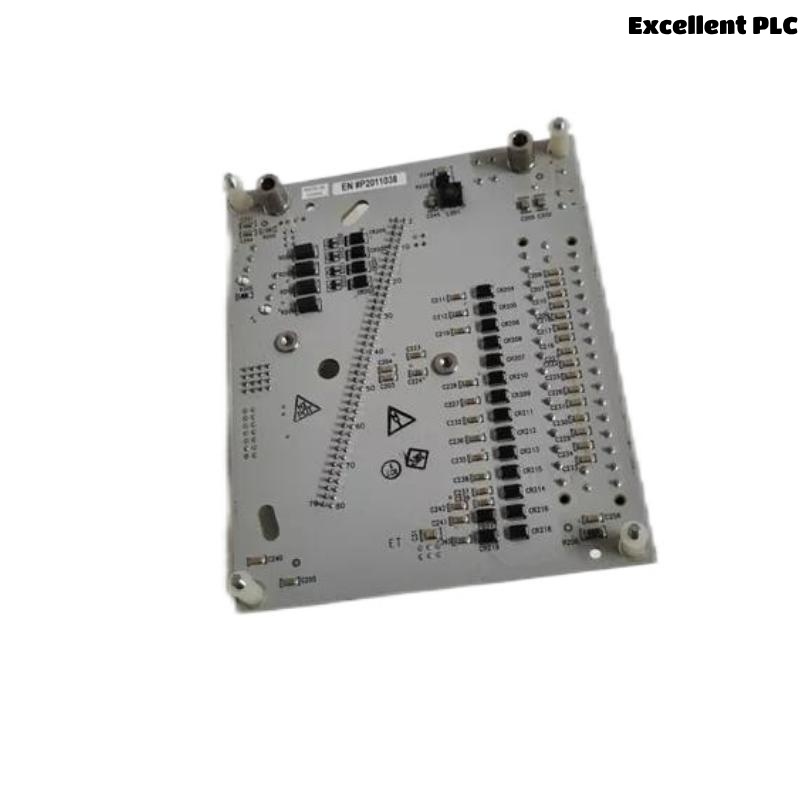

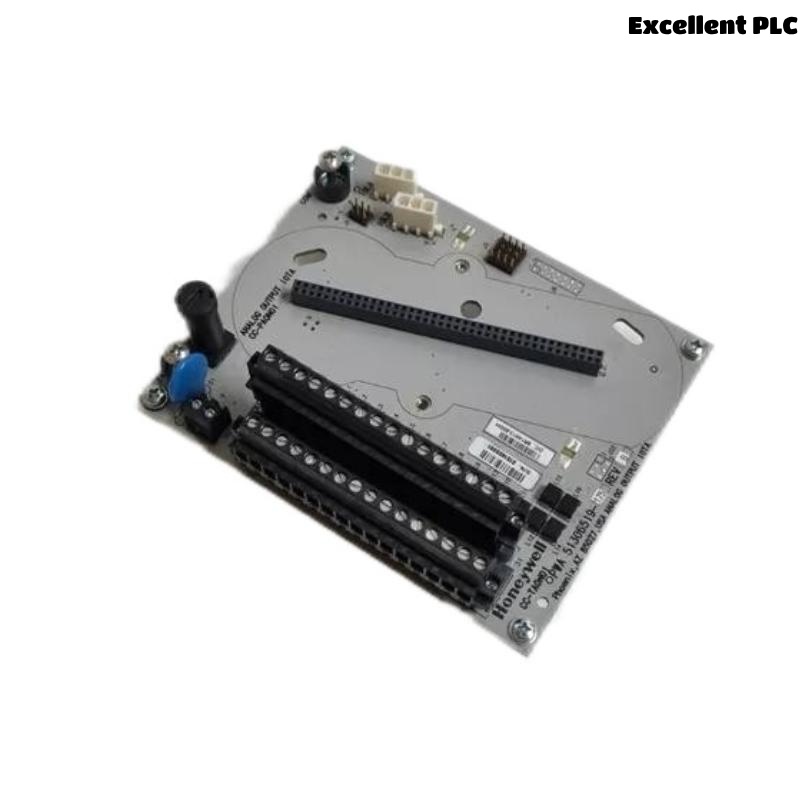

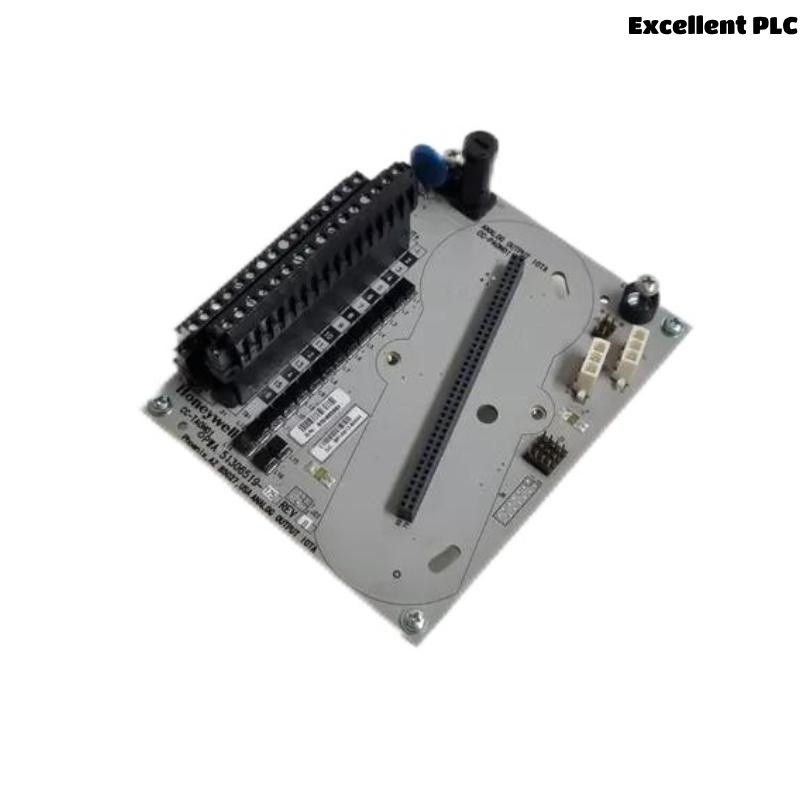

The Honeywell CC-TAON01 51306519-175 is an Analog Output Module used in Honeywell’s Experion Process Knowledge System (PKS). It is specifically designed to provide high-performance analog signal transmission from the controller to field devices such as valves and actuators. The module supports multiple channels for analog output and ensures precise and stable control over industrial processes. It integrates seamlessly with the C300 controller and Safety Manager, and supports fault diagnostics, redundancy, and hot-swapping for maximum availability and reliability in mission-critical systems.
Product Features
-
8-channel analog output capability
-
Supports 4–20 mA output signals
-
Isolated outputs to prevent ground loop issues
-
Hot-swappable for minimal downtime
-
Advanced diagnostics for maintenance planning
-
Supports redundancy configurations
-
Integrated with Experion PKS architecture
-
Fast and accurate analog output response
-
Designed for harsh industrial environments
-
Configuration via Control Builder and Engineering Workstation
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-TAON01 51306519-175 |
| Output Type | Analog (Current Output: 4–20 mA) |
| Number of Channels | 8 |
| Isolation | Channel-to-channel and channel-to-bus |
| Resolution | 12 bits or better |
| Accuracy | ±0.1% of span |
| Redundancy | Supported |
| Diagnostics | Built-in, with fault status indicators |
| Hot Swap | Supported |
| Voltage Range | 24 VDC nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 0.4 kg |
| Mounting | DIN rail or cabinet mount |
Product Applications
The Honeywell CC-TAON01 is commonly used in a wide range of industrial automation and control applications, including:
-
Petrochemical processing
-
Power generation plants
-
Oil and gas refineries
-
Pharmaceutical manufacturing
-
Water and wastewater treatment facilities
-
Pulp and paper industries
-
Food and beverage processing
-
Steel and metal processing plants
The module is especially valuable in processes that require precise analog output control, such as modulating valve positions or variable speed drives.
Product Advantages
-
High Precision Output: Ensures stable and accurate signal delivery for field control.
-
Robust Industrial Design: Built to perform reliably under harsh environmental conditions.
-
Easy Maintenance: Diagnostic features allow predictive maintenance, reducing downtime.
-
Flexibility: Can be used in both standard and safety-related applications.
-
Integration: Native compatibility with Honeywell’s Experion PKS DCS.
-
Reliability: Redundant configuration and hot-swap capabilities minimize operational disruption.
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the CC-TAON01 module?
A1: It provides analog current output signals (4–20 mA) from the controller to field devices like valves or actuators.
Q2: How many analog outputs does the CC-TAON01 provide?
A2: The module supports 8 isolated analog output channels.
Q3: Is the CC-TAON01 hot-swappable?
A3: Yes, it supports hot-swapping, allowing replacement without shutting down the system.
Q4: Can this module be used in safety systems?
A4: Yes, it is compatible with Honeywell Safety Manager for safety-related applications.
Q5: What type of output signal does the CC-TAON01 support?
A5: It supports 4–20 mA analog output signals.
Q6: What diagnostic capabilities does this module offer?
A6: It includes built-in diagnostics to detect open circuits, shorts, and hardware faults.
Q7: What is the operating temperature range for the CC-TAON01?
A7: It operates from 0°C to 60°C (32°F to 140°F).
Q8: Does the module support redundant configuration?
A8: Yes, it supports redundancy to ensure continuous operation in case of a failure.
Q9: How is the module configured or programmed?
A9: Configuration is performed via Honeywell’s Control Builder and Engineering Workstation.
Q10: What industries benefit most from this module?
A10: It is widely used in power, oil & gas, chemical, water treatment, and manufacturing sectors.
