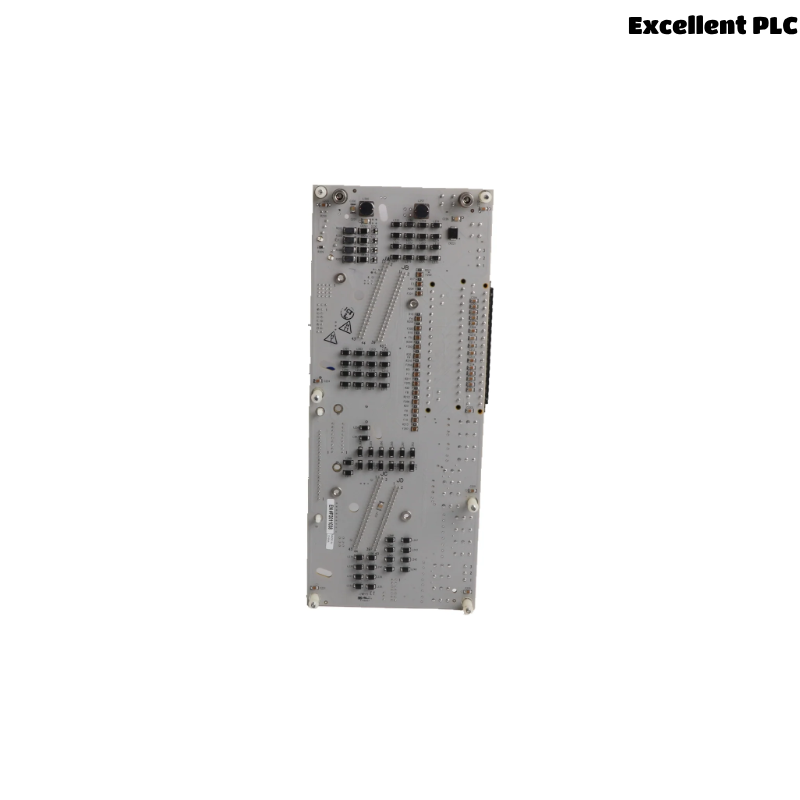

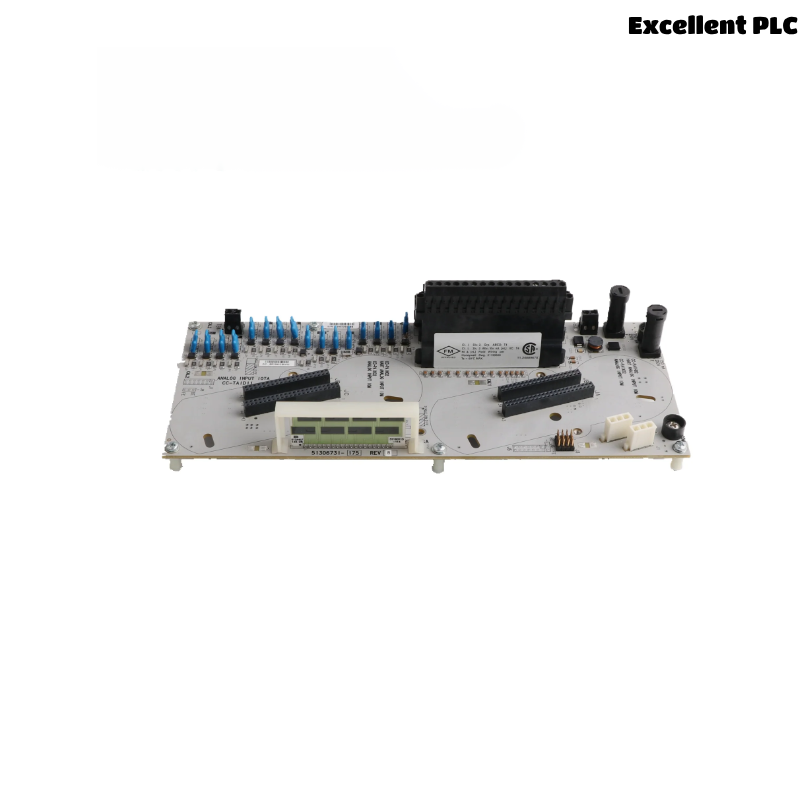

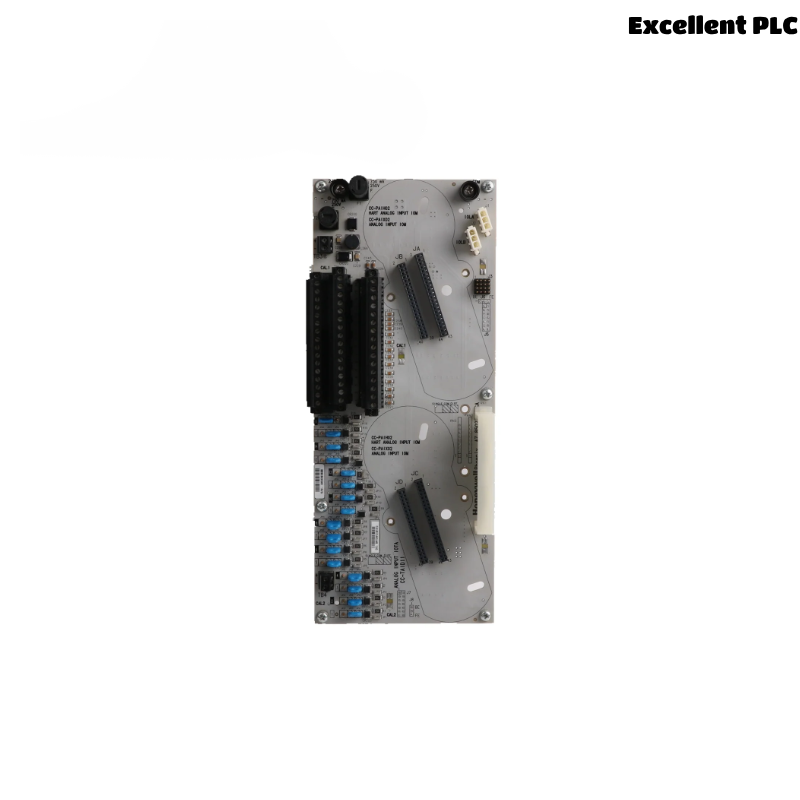

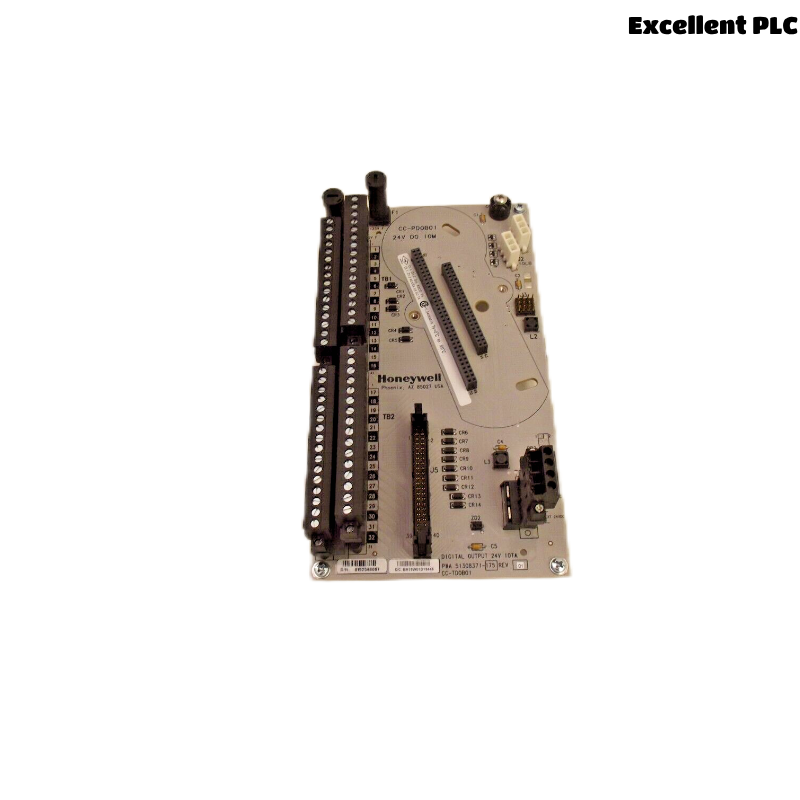

Honeywell CC-TD0B01 Product Overview
The Honeywell CC-TD0B01 is a high-performance temperature differential transmitter designed for industrial process control applications. It provides accurate and reliable measurement of temperature differences, making it ideal for critical monitoring in harsh environments.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-TD0B01 |
| Input Type | RTD, Thermocouple, or mA signal |
| Output Signal | 4-20 mA, HART® communication |
| Power Supply | 10.5-55 VDC |
| Accuracy | ±0.1% of span |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Enclosure Rating | NEMA 4X (IP66) |
| Dimensions | 86 x 32 x 16 mm |
| Weight | 0.6 kg |
| Mounting | DIN rail or surface mount |
| Certifications | ATEX, IECEx, SIL 2 compliant |
Applications
The CC-TD0B01 is widely used in industries requiring precise temperature differential monitoring, including:
-
Oil & Gas: Monitoring heat exchangers, pipelines, and reactors.
-
Power Generation: Ensuring efficient heat transfer in boilers and turbines.
-
Chemical Processing: Controlling reaction temperatures in batch processes.
-
HVAC Systems: Balancing temperature differences in large-scale systems.
-
Pharmaceuticals: Maintaining strict temperature conditions in production.
Product Advantages
-
High Accuracy: Delivers precise measurements with ±0.1% span accuracy.
-
Robust Construction: NEMA 4X/IP66 rating ensures durability in harsh conditions.
-
Flexible Inputs: Supports RTD, thermocouple, and mA signals.
-
HART Communication: Enables remote configuration and diagnostics.
-
Wide Temperature Range: Operates reliably in extreme temperatures (-40°C to +85°C).
-
Certified for Hazardous Areas: ATEX and IECEx certifications for safe use in explosive environments.
Frequently Asked Questions (FAQ)
-
What is the primary function of the CC-TD0B01?
It measures and transmits temperature differentials for process control. -
Can this transmitter be used in hazardous areas?
Yes, it is ATEX and IECEx certified for hazardous locations. -
What types of temperature sensors are compatible?
It supports RTDs (Pt100, Pt1000), thermocouples (J, K, T, E, etc.), and mA signals. -
What is the power supply requirement?
It operates on 10.5-55 VDC. -
Is the CC-TD0B01 HART-compatible?
Yes, it supports HART 7 protocol for communication. -
What is the enclosure rating?
NEMA 4X/IP66, suitable for dusty or wet environments. -
Can it be mounted on a DIN rail?
Yes, it supports DIN rail or surface mounting. -
What is the operating temperature range?
-40°C to +85°C (-40°F to +185°F). -
Does it require calibration?
Periodic calibration is recommended for maintaining accuracy. -
Is SIL 2 compliance supported?
Yes, it meets SIL 2 requirements for safety-critical applications.
