Product Overview

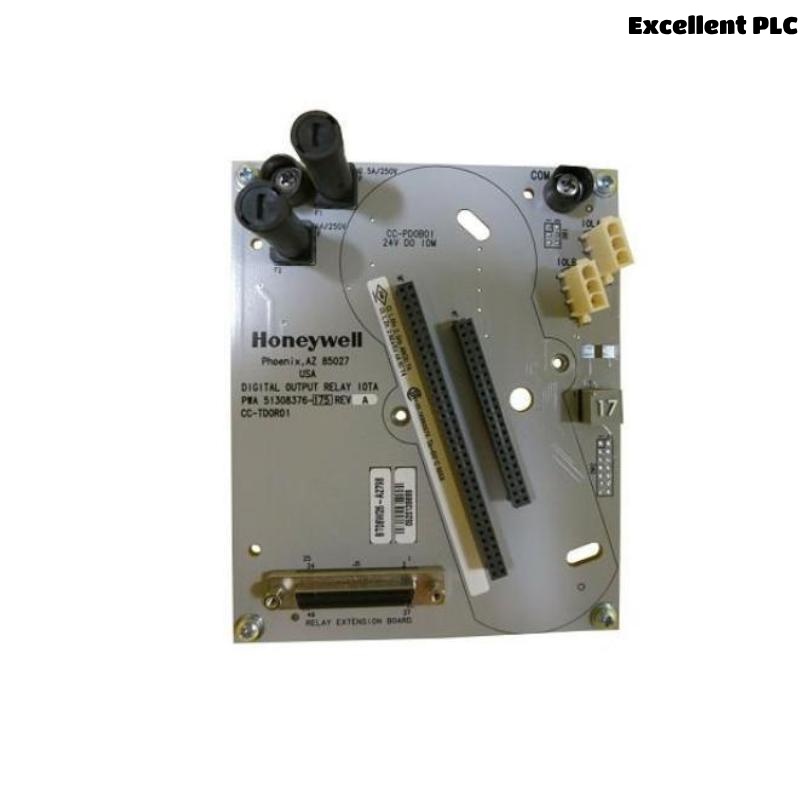

The Honeywell CC-TDOR01 51307087-175 is a robust 24-channel Digital Output Module designed for Honeywell’s C300 controller and Universal I/O systems within the Experion Process Knowledge System (PKS). This module facilitates the transmission of discrete digital control signals from the controller to field devices such as contactors, relays, solenoids, alarms, and indicator lights.
With optical isolation, channel-level diagnostics, and hot-swap capability, the CC-TDOR01 offers safe and efficient operation for process control environments that demand reliability, flexibility, and minimal downtime. Its compact, high-density design ensures space-saving installation while maintaining high-performance output control.
Key Features
-
24 individually controllable digital output channels
-
24 VDC output switching, compatible with industrial actuators
-
Optically isolated outputs for signal integrity and equipment protection
-
Field-side disconnect for safe maintenance and servicing
-
Fail-safe and diagnostic features per channel
-
Seamless integration with Honeywell Experion PKS and C300 controllers
-
Hot-swappable design for minimal process interruption
-
Channel status indicators for at-a-glance monitoring
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-TDOR01 |
| Part Number | 51307087-175 |
| Module Type | Digital Output Module |
| Output Channels | 24 channels |
| Output Type | Sourcing, Solid State (Transistor) |
| Rated Output Voltage | 24 VDC nominal |
| Voltage Range | 18 VDC – 30 VDC |
| Maximum Output Current | 0.5 A per channel (fused) |
| Output Isolation | Optical Isolation between field and logic |
| Short-Circuit Protection | Yes (current-limiting and diagnostics) |
| Output Delay (On/Off) | < 1 ms typical |
| Hot Swappable | Yes |
| Status Indicators | Individual channel LEDs |
| Power Supply | Supplied via system backplane |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity Range | 5% to 95% RH non-condensing |
| Shock & Vibration | IEC 60068-2 compliant |
| Dimensions | 120 x 45 x 110 mm |
| Weight | 0.5 kg |
| Mounting | Universal I/O base |
| Certifications | CE, CSA, UL, ATEX (system-dependent) |
Industry Applications
The CC-TDOR01 module is well-suited to discrete output control across a broad range of industries, including:
-
Oil & Gas – Actuator control, valve actuation, system bypass signaling
-
Petrochemical and Refining – Motor relay triggering, audible/visual alarm output
-
Power Generation – Control signals to breakers, annunciator activation
-
Pharmaceuticals – Process start/stop signaling and batch triggering
-
Water & Wastewater – Pump starter signals, indicator lighting, gate operation
-
Manufacturing Automation – Conveyor logic, machinery interlocking
-
Mining and Metals – Hydraulic solenoid and ventilation control
Product Advantages
-
High Channel Density: Supports 24 outputs in a compact module, reducing panel space.
-
Signal Integrity: Optical isolation protects the controller from electrical noise.
-
System Integration: Native compatibility with Honeywell C300 and Experion PKS platforms.
-
Diagnostic Feedback: Detects output failure conditions and notifies the operator.
-
Flexible Wiring: Supports sourcing configurations and various actuator types.
-
Fail-Safe Design: Outputs revert to safe states upon fault detection or power loss.
-
Maintenance-Friendly: Hot-swap and individual channel indicators speed up diagnostics.
Frequently Asked Questions (FAQ)
-
Q: What type of devices can the CC-TDOR01 control?
A: It can control relays, solenoids, alarms, contactors, and other 24 VDC actuators. -
Q: Does this module support output diagnostics?
A: Yes, it provides diagnostics for short-circuit and output failure conditions. -
Q: Are the output channels isolated?
A: Yes, each channel is optically isolated from the logic side. -
Q: What happens if one output channel fails?
A: The diagnostic system will flag the specific channel, and the module can continue operating with other channels. -
Q: Can the CC-TDOR01 be replaced without stopping the system?
A: Yes, it is hot-swappable under normal operating conditions. -
Q: How does the module indicate channel status?
A: Each output channel has an individual LED status indicator. -
Q: Can I use this module with Honeywell Series 8 chassis?
A: It is intended for Universal I/O architecture, but compatibility depends on specific system configurations. -
Q: What is the per-channel current limit?
A: Each channel can drive up to 0.5 A, with built-in protection. -
Q: Is external power required for the outputs?
A: Yes, the outputs require an external 24 VDC power supply. -
Q: What certification standards does this module meet?
A: It complies with CE, UL, CSA, and ATEX standards when used in approved systems.
