Product Introduction

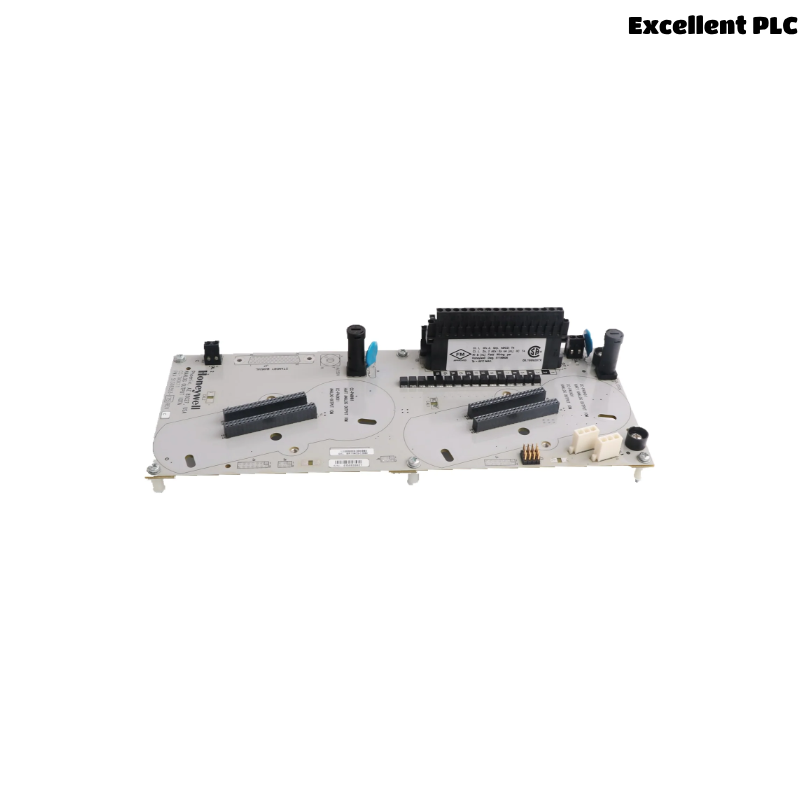

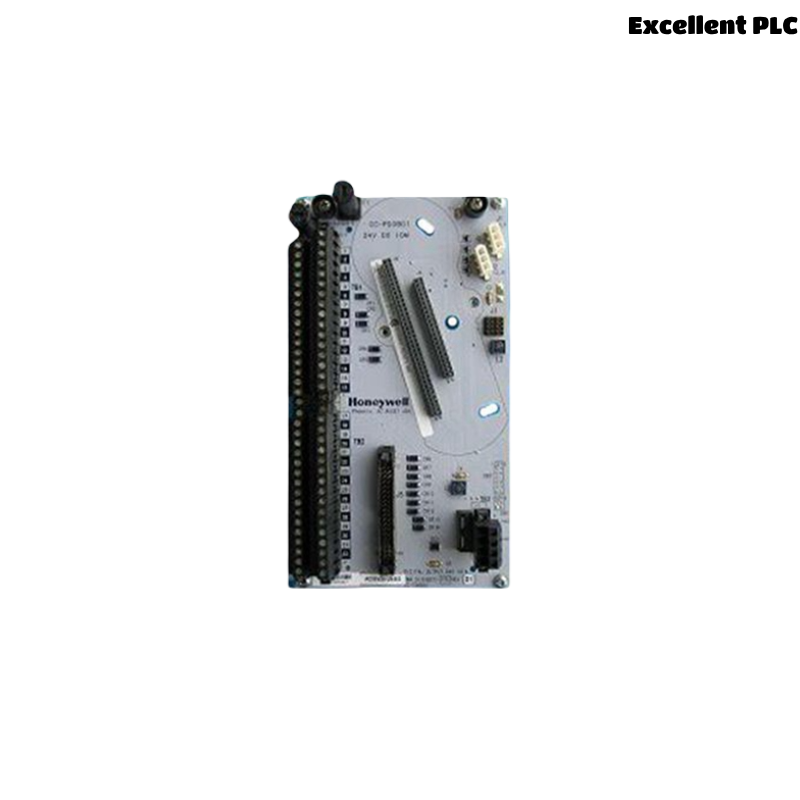

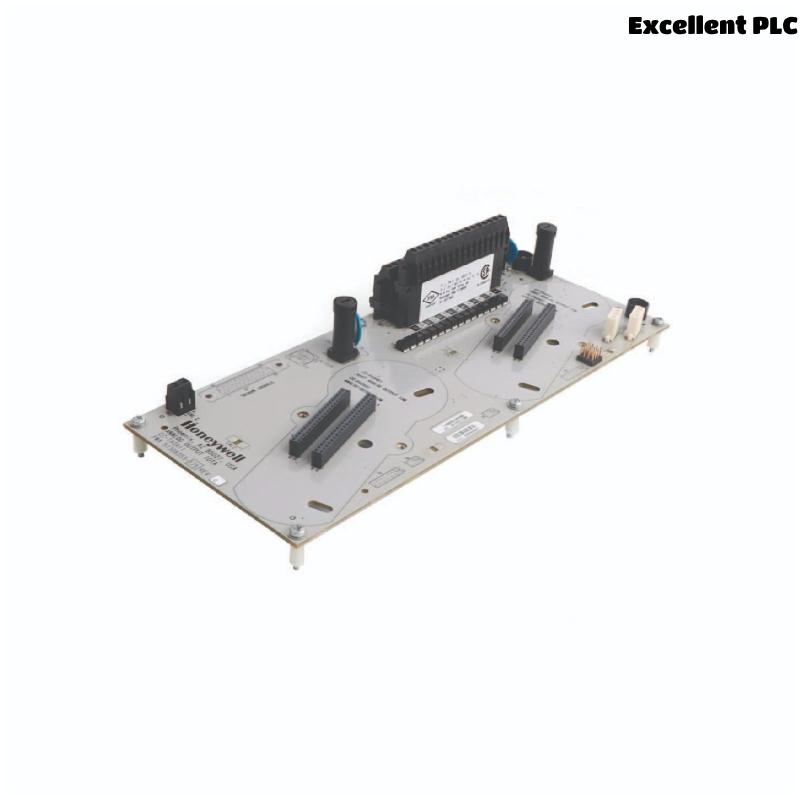

The Honeywell CC-TUIO31 51306875-176 is a high-performance analog input module designed for industrial automation and control systems. It is part of Honeywell’s Experion® Process Knowledge System (PKS) and is widely used in process control applications. This module provides reliable signal conditioning and conversion for various analog inputs, ensuring accurate data acquisition and system integration.
Built with robust industrial-grade components, the CC-TUIO31 ensures long-term reliability in harsh environments. It supports multiple input types, including voltage and current signals, making it versatile for different industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | CC-TUIO31 51306875-176 |
| Input Type | Analog (Voltage/Current) |
| Input Channels | 8 channels |
| Signal Range | 0-10V, 0-5V, 4-20mA, etc. (Configurable) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Communication Protocol | Honeywell Experion PKS C-series bus |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Power Supply | 24V DC (Typical) |
| Dimensions (W x H x D) | 120mm x 80mm x 40mm (4.72″ x 3.15″ x 1.57″) |
| Weight | 0.5 kg (1.1 lbs) |
| Mounting | DIN rail mounting |
| Certifications | CE, ATEX (Hazardous area compliance) |
Product Applications
The Honeywell CC-TUIO31 is widely used in industries requiring precise analog signal processing, including:
-
Oil & Gas: Monitoring pressure, temperature, and flow rates.
-
Chemical Processing: Controlling reactor inputs and outputs.
-
Power Generation: Managing turbine and boiler systems.
-
Water Treatment: Regulating pump speeds and chemical dosing.
-
Manufacturing: Integrating with PLCs for automated production lines.
-
Pharmaceutical: Ensuring precise environmental control in cleanrooms.
Product Advantages
-
High Accuracy & Resolution: Ensures precise signal conversion with 16-bit resolution.
-
Robust Construction: Designed for harsh industrial environments with wide temperature tolerance.
-
Flexible Configuration: Supports multiple input types (voltage/current).
-
Easy Integration: Compatible with Honeywell’s Experion PKS for seamless system control.
-
Reliable Performance: High MTBF (Mean Time Between Failures) for minimal downtime.
-
Certified Safety: Complies with ATEX and CE standards for hazardous areas.
Frequently Asked Questions (FAQ)
Q1: What input signals does the CC-TUIO31 support?
A1: It supports 0-10V, 0-5V, and 4-20mA signals, configurable per channel.
Q2: Is this module suitable for hazardous environments?
A2: Yes, it is ATEX-certified for use in explosive atmospheres.
Q3: How many channels does the CC-TUIO31 have?
A3: It has 8 analog input channels.
Q4: What is the operating temperature range?
A4: It operates between -20°C to +70°C (-4°F to +158°F).
Q5: Can it be mounted on a standard DIN rail?
A5: Yes, it supports DIN rail mounting.
Q6: What is the power supply requirement?
A6: It requires a 24V DC power supply.
Q7: Does it support Honeywell’s Experion PKS?
A7: Yes, it is fully compatible with Experion PKS systems.
Q8: What is the accuracy of this module?
A8: It has an accuracy of ±0.1% of full scale.
Q9: Is the CC-TUIO31 hot-swappable?
A9: No, it is not hot-swappable; power must be disconnected before replacement.
Q10: What certifications does this module have?
A10: It is CE and ATEX certified.
