Product Introduction

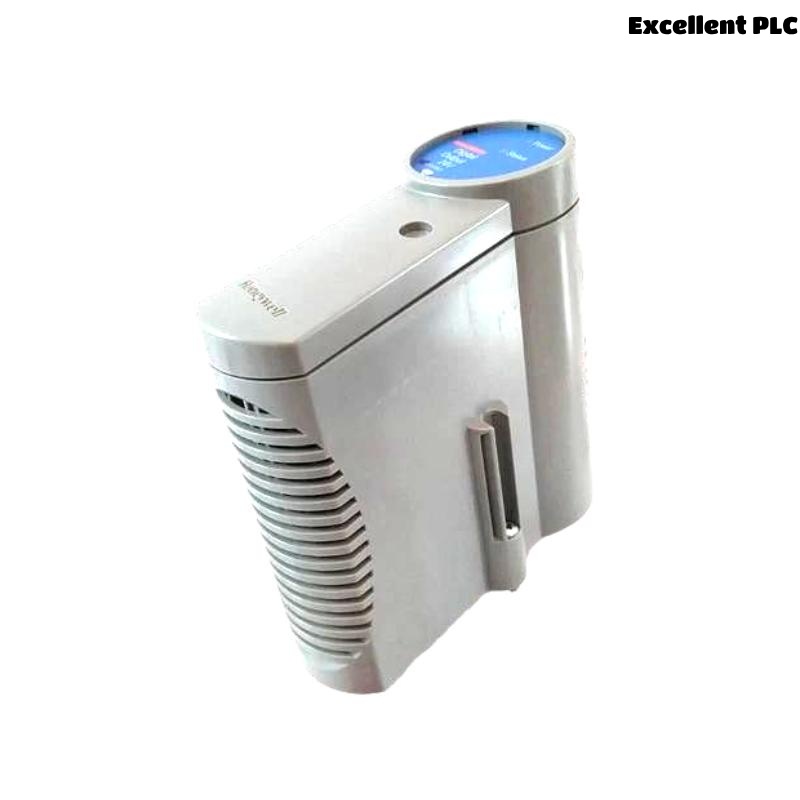

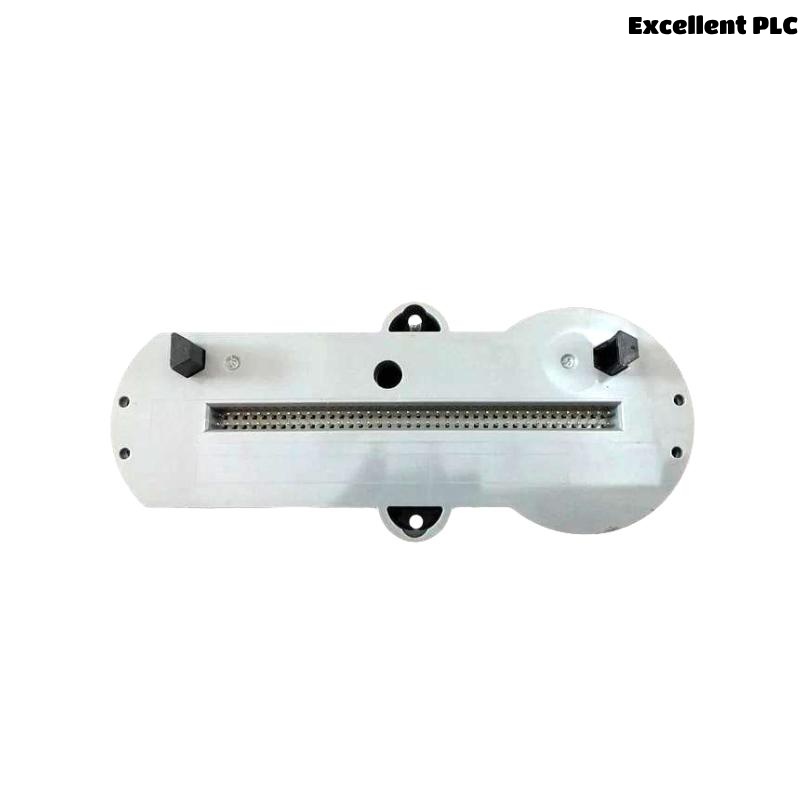

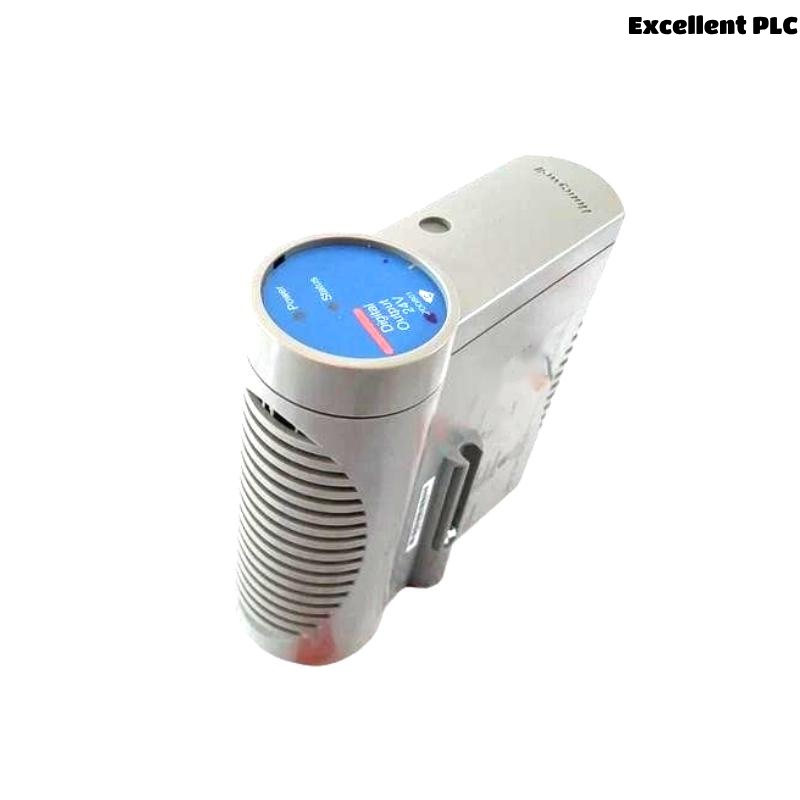

The Honeywell DC-PDOD51 51454820-175 is a high-quality Digital Output Module designed for reliable and precise control of industrial equipment. It is an essential component in Honeywell’s DC-PD series, offering accurate digital output signals for a wide range of applications. With a robust design and compact size, the DC-PDOD51 is built to provide stable performance even in harsh industrial environments.
This module features a compact size of 130 x 100 x 150 mm and weighs 0.6 kg, making it easy to install in control panels or systems with limited space. It is widely used for applications that require digital control signals, ensuring the safe and efficient operation of machinery and systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | DC-PDOD51 Digital Output Module |
| Part Number | 51454820-175 |
| Dimensions | 130 x 100 x 150 mm |
| Weight | 0.6 kg |
| Input Voltage | 24 VDC |
| Output Channels | 8 Digital Outputs |
| Output Type | NPN/PNP |
| Current per Output | 500 mA |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | DIN Rail Mount |
| Isolation | 500 VDC |
Product Applications
The Honeywell DC-PDOD51 51454820-175 Digital Output Module is ideal for a wide range of industrial applications, including:
-
Industrial Automation
Used for controlling actuators, motors, and other digital devices in automated systems. -
Process Control Systems
Controls valves, relays, and other process control devices in chemical, pharmaceutical, and manufacturing plants. -
Energy and Power Systems
Provides output control signals for switching devices and power equipment in power plants and substations. -
Building Management Systems
Interfaces with HVAC systems, lighting controls, and security devices to provide reliable digital outputs. -
Machine Control
Essential for controlling robotic arms, conveyors, and other machinery in manufacturing lines. -
Safety Systems
Used in safety-related applications, including emergency shutdown systems, to ensure quick and reliable control.
Product Advantages
-
Compact and Space-Efficient Design
The module’s compact size (130 x 100 x 150 mm) allows for easy integration into space-constrained control panels or systems. -
High Output Capacity
Each of the 8 digital output channels can handle up to 500 mA, making it suitable for driving a wide range of industrial equipment. -
Wide Operating Temperature Range
The module operates in environments ranging from -20°C to +60°C, making it suitable for both indoor and outdoor applications. -
Flexible Output Types
Supports both NPN and PNP output types, providing flexibility to meet different system requirements. -
Robust and Durable
With an isolation rating of 500 VDC, the module is highly resistant to electrical surges and disturbances. -
Reliable Performance
Designed for continuous operation, the DC-PDOD51 offers high reliability even in harsh industrial environments. -
Easy Installation
The DIN rail mounting style ensures quick and secure installation in standard industrial enclosures. -
Improved Safety
Ideal for use in safety-critical systems, with precise and reliable digital output signals to control equipment. -
Energy Efficient
Operates on a 24 VDC input, consuming minimal power while providing maximum output control. -
Versatile Industrial Use
Suitable for a variety of industries, including automation, process control, power systems, and more.
Frequently Asked Questions (FAQ)
-
Q: What are the output specifications of this module?
A: The module features 8 digital output channels, each capable of handling up to 500 mA. -
Q: What is the operating temperature range of the DC-PDOD51?
A: It operates within the temperature range of -20°C to +60°C. -
Q: How is the module mounted?
A: The module can be mounted on a DIN rail for easy installation. -
Q: What is the input voltage required for this module?
A: The input voltage is 24 VDC. -
Q: Can this module support both NPN and PNP output types?
A: Yes, the DC-PDOD51 supports both NPN and PNP output types for greater flexibility. -
Q: What is the isolation rating of the DC-PDOD51?
A: The module has an isolation rating of 500 VDC, ensuring protection against electrical surges. -
Q: Is this module suitable for industrial automation?
A: Yes, it is ideal for controlling actuators, motors, and other equipment in automated industrial systems. -
Q: How many output channels does the module have?
A: The module provides 8 digital output channels. -
Q: Is this module energy efficient?
A: Yes, it operates with a 24 VDC input and is designed to consume minimal power. -
Q: What industries typically use the DC-PDOD51?
A: It is used in industries such as industrial automation, process control, energy systems, and building management.
Recommended Models (Same Series or Related)
| Model | Output Channels | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|
| DC-PDOD52 | 8 Digital Outputs | 130 x 100 x 150 mm | 0.6 kg | Similar to DC-PDOD51, extended features |
| DC-PDOD53 | 8 Digital Outputs | 140 x 110 x 150 mm | 0.65 kg | Higher output capacity (up to 1A per channel) |
| DC-PDID51 | 8 Digital Inputs | 130 x 100 x 150 mm | 0.6 kg | Compatible with DC-PDOD51 for I/O integration |
| DC-PDID52 | 8 Digital Inputs | 130 x 100 x 150 mm | 0.6 kg | Expansion model for DC-PD series |
| DC-PDOD56 | 16 Digital Outputs | 150 x 100 x 160 mm | 0.75 kg | Double output channels, ideal for larger systems |
| DC-PDOD55 | 4 Digital Outputs | 130 x 100 x 150 mm | 0.55 kg | Compact version for smaller systems |
