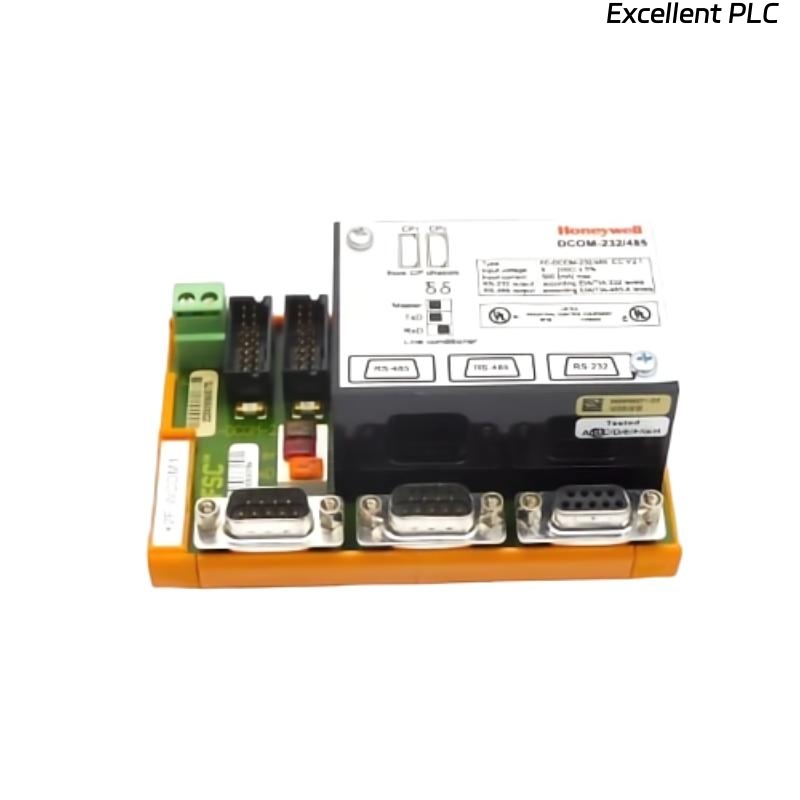

Honeywell FC-DCOM-234/485 Communication Interface Module

Product Introduction

The Honeywell FC-DCOM-234/485 Communication Interface Module is a specialized communication interface unit designed for Honeywell’s ControlEdge, Experion, and Field Control (FC) series platforms. It enables reliable serial data communication using RS-232C and RS-485 standards, ensuring compatibility with a wide array of third-party devices, including PLCs, flow computers, RTUs, and smart sensors.

This module is particularly well-suited for industrial automation environments that require robust integration with legacy or external systems over serial networks. It supports MODBUS RTU protocol and can function in both master and slave modes, enhancing its interoperability. Designed for DIN-rail mounting and easy slot integration, the FC-DCOM-234/485 ensures seamless communication expansion while maintaining high standards of industrial reliability and cybersecurity.

Product Specifications

Product Applications

The FC-DCOM-234/485 module is engineered for critical industrial use cases requiring dependable serial communication integration between Honeywell systems and third-party or legacy devices. Its applications include:

• Process Automation Integration: Interfacing flow computers, analyzers, and RTUs into Experion PKS or ControlEdge networks.

• Modbus Interoperability: Connecting legacy Modbus RTU devices into modern Honeywell control architectures.

• OEM Equipment Communication: Linking vendor-specific equipment with proprietary RS-485 protocols.

• Remote Asset Management: Serving as a communication interface for distributed devices in oil & gas, mining, or utility systems.

• Pipeline SCADA Systems: Acting as a serial gateway for telemetry and metering data from field devices.

• Legacy PLC Integration: Bridging legacy programmable controllers to the main automation layer.

Product Advantages

• Dual Protocol Support (RS-232C & RS-485): Offers flexibility for connecting a wide range of field devices.

• MODBUS RTU Master/Slave Compatibility: Ensures smooth data exchange with both modern and legacy devices.

• Hot-Swappable Design: Reduces downtime and simplifies maintenance activities.

• Optically Isolated RS-485 Ports: Protects communication integrity in electrically noisy environments.

• Advanced Diagnostics: Real-time status LEDs and integrated software diagnostics for quick fault detection.

• High Reliability: Designed to meet industrial-grade environmental specifications for rugged deployments.

• Seamless Experion Integration: Fully compatible with Honeywell’s control platforms and configuration tools.

• Software Configurable: Port settings can be managed via engineering software without physical jumper changes.

FAQ

1. Does the FC-DCOM-234/485 module support MODBUS RTU in both master and slave configurations?
   Yes, the module can be configured to act as either a MODBUS master or slave depending on application needs.

2. Can the module communicate over both RS-232C and RS-485 simultaneously?
   No, only one port is active at a time based on configuration. You must choose either RS-232C or RS-485 during setup.

3. Is the RS-485 port electrically isolated from the system bus?
   Yes, optical isolation is provided to prevent noise and protect against ground loops.

4. Can I update firmware remotely?
   Yes, firmware can be upgraded using Honeywell engineering tools connected to the host controller or system.

5. How many devices can be connected on the RS-485 line?
   The module can support up to 32 devices per RS-485 bus, following standard RS-485 limitations.

6. Are custom baud rates supported?
   The module supports standard baud rates between 300 and 115.2 kbps. Some custom rates may work if aligned with configuration tools.

7. Is this module supported in ControlEdge RTU and PLC platforms?
   Yes, it is compatible with both ControlEdge PLC and RTU systems.

8. How is the communication port configured?
   Port parameters (baud rate, parity, stop bits) are software-configurable via system configuration tools.

9. Does the module support HART communication?
   No, HART communication is not supported via RS-232/485. Use dedicated HART I/O modules for that purpose.

10. What happens if the module fails during operation?
    Failover or module replacement can be performed with minimal impact due to hot-swap support, depending on controller setup.
